5-Bedroom, 2716 Sq Ft Ranch Plan with Walk-in Pantry

Main image for house plan # 19477
5-Bedroom, 2716 Sq Ft Ranch Home Plan - 101-1377 - Main Exterior

About Plan # 101-1377

About Plan # 101-1377

2716 SQUARE FEET 5 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 63' 0" WIDTH 62' 0" DEPTH 3 GARAGE BAY
Graceful columns and a careful blend of stone and shingle siding give this home a country charm that will inspire many buyers. Inside an open floor plan creates a living space where the kitchen, dining room and great room all work together. The master suite is located behind the garage and includes a large walk-in closet and dual sinks. The other two bedrooms are on the opposite side of the home and share the full bath just off the hallway. The completed lower level includes a large recreation room, wet bar and two additional bedrooms. The three-stall garage makes this the perfect home for a growing family.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.

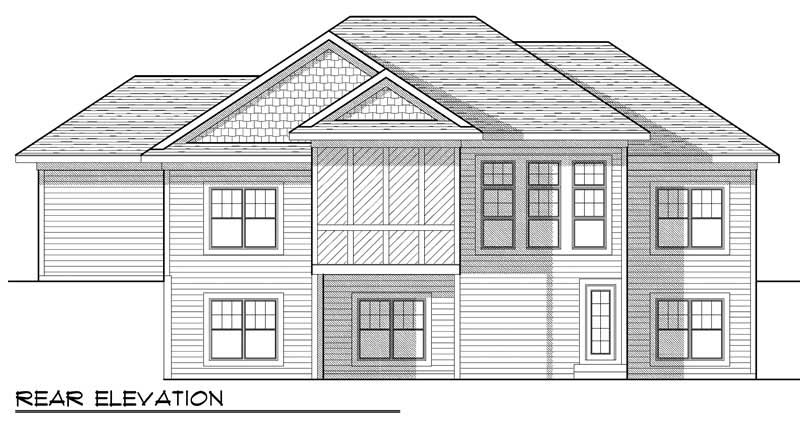

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.

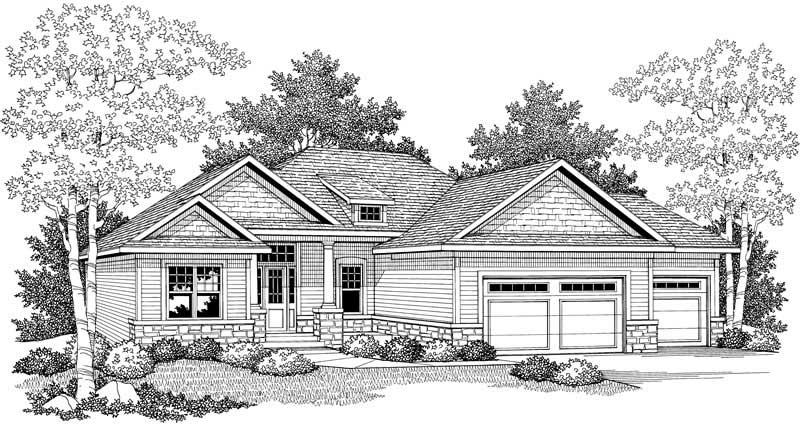

  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

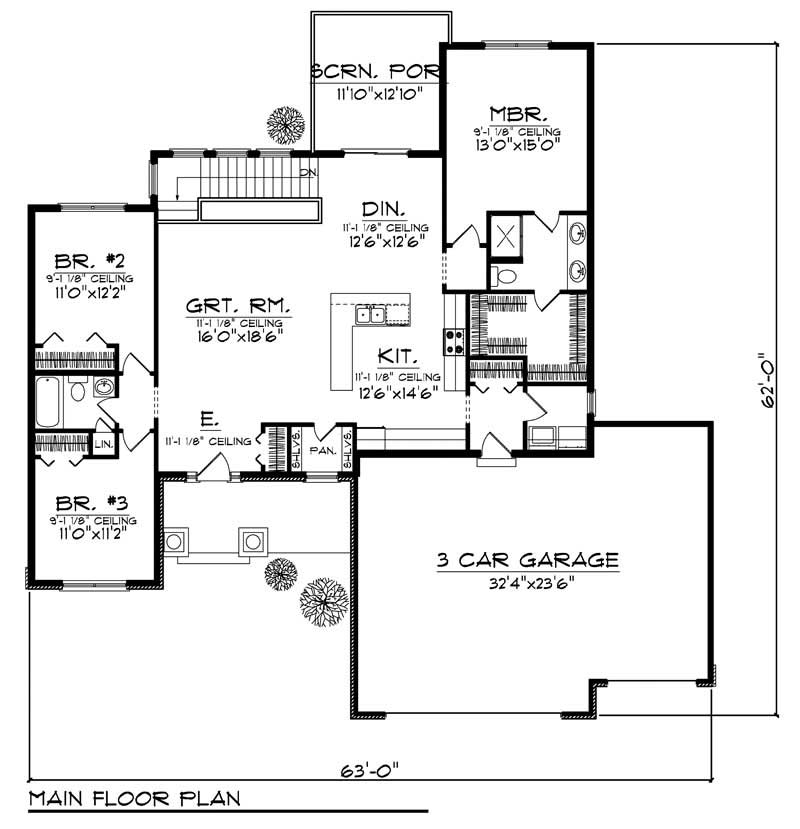

Home Plan: #101-1377 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1377

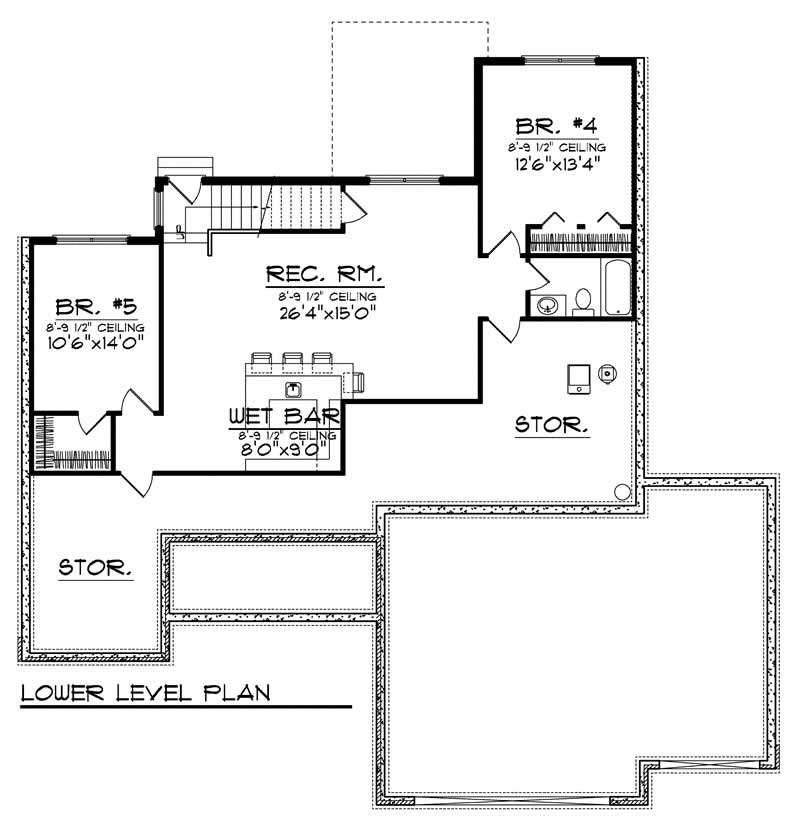

#101-1377 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #101-1377
Home Plan: #101-1377 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1377
#101-1377 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #101-1377
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 101-1377
Floors:
1
Bedrooms:
5
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2716
Main Floor:
1720
Unfinished Sq Ft:
Lower Floor:
996
Garage :
792

Dimensions

Width:
63' 0"
Depth:
62' 0"

Architectural Styles

Traditional

Exterior Wall Material

Aluminum Siding
Rock/Stone
Shakes
Vinyl Siding
Wood Siding

Roof Pitch

6/12
8/12

Special Feature

Dining Room

Garage Type

Front Entry

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
