4-Bedroom, 2639 Sq Ft European Plan with Covered Rear Porch

Main image for homeplans # 18354

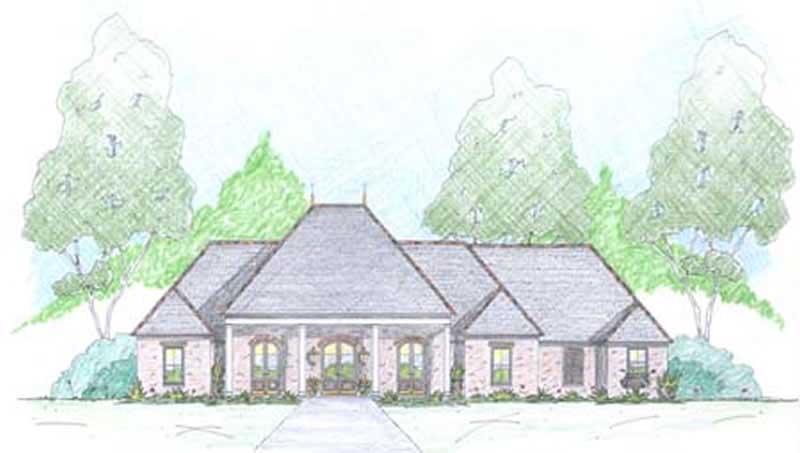

4-Bedroom, 2639 Sq Ft European Home Plan - 139-1017 - Main Exterior

About Plan # 139-1017

About Plan # 139-1017

2639 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 78' 4" WIDTH 55' 5" DEPTH 2 GARAGE BAY
The Melanson is a beautiful French Style Home. This set of houseplans has a very elegantly flowing layout. The large front porch leads to the impressive entry foyer with a 10' ceiling. The Foyer is flanked on either side by the dining room or the study and leads into the grand living room. The Master bedroom is very large and features a whirlpool tub in the master bath; as well as a large walk-in closet.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF LAYOUT: A bird's eye view of peaks and valleys
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

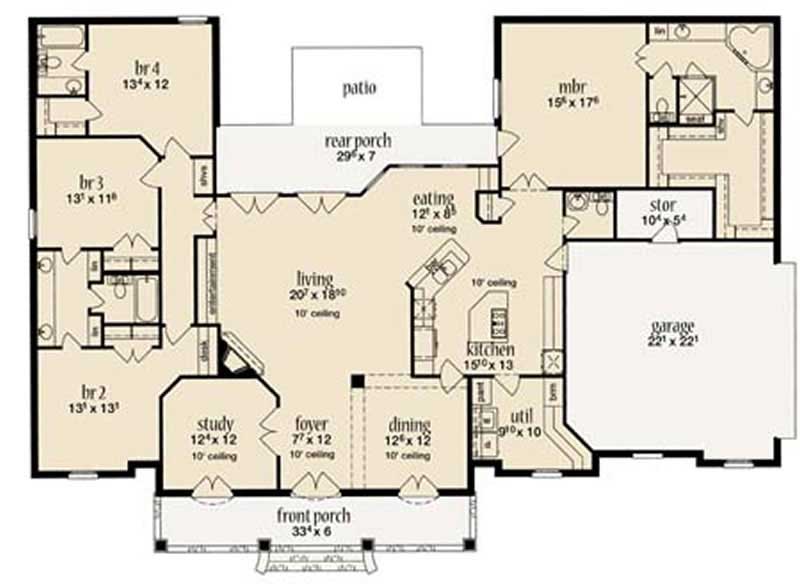

Home Plan: #139-1017 Floor Plan First Story Floor Plan First Story of European Plan #139-1017
Home Plan: #139-1017 Floor Plan First Story Floor Plan First Story of European Plan #139-1017
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 139-1017
Floors:
1
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
2639
Main Floor:
2639
Unfinished Sq Ft:
Garage :
541

Dimensions

Width:
78' 4"
Depth:
55' 5"
Ridge Height:
27'11' 0"

Architectural Styles

European
French
Traditional

Exterior Wall Material

Brick

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

9/12
Other

Ceiling Height

9 Foot Ceiling

Special Feature

Den
Dining Room
Fireplace
Library
Main Level Laundry
Split Bathroom
Storage

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Private Deck
Walk In Closet
