4-Bedroom, 2457 Sq Ft Modern Plan with Walk In Closet

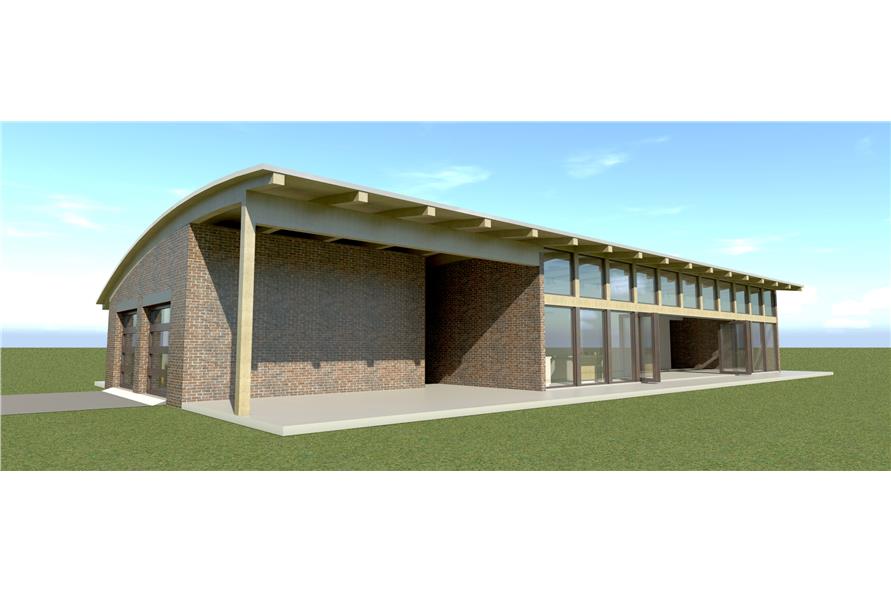

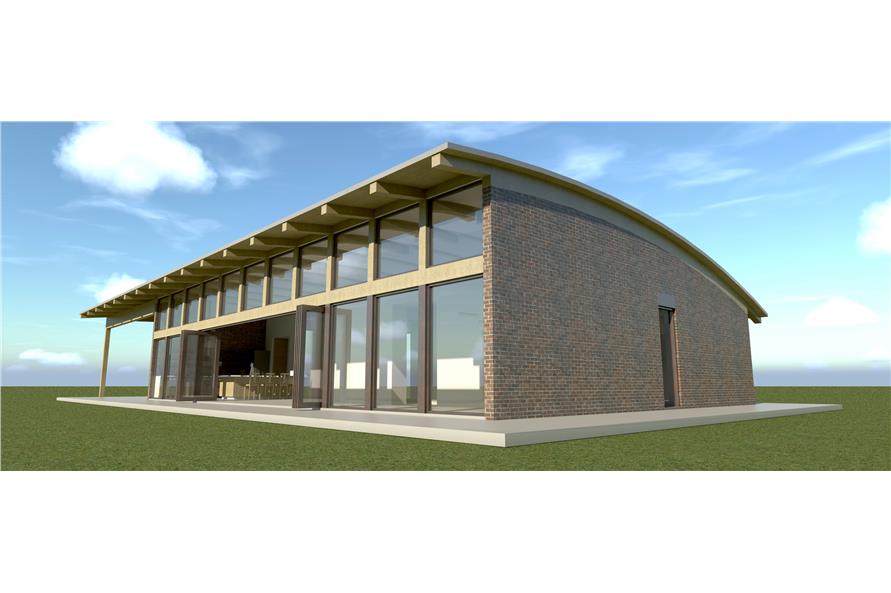

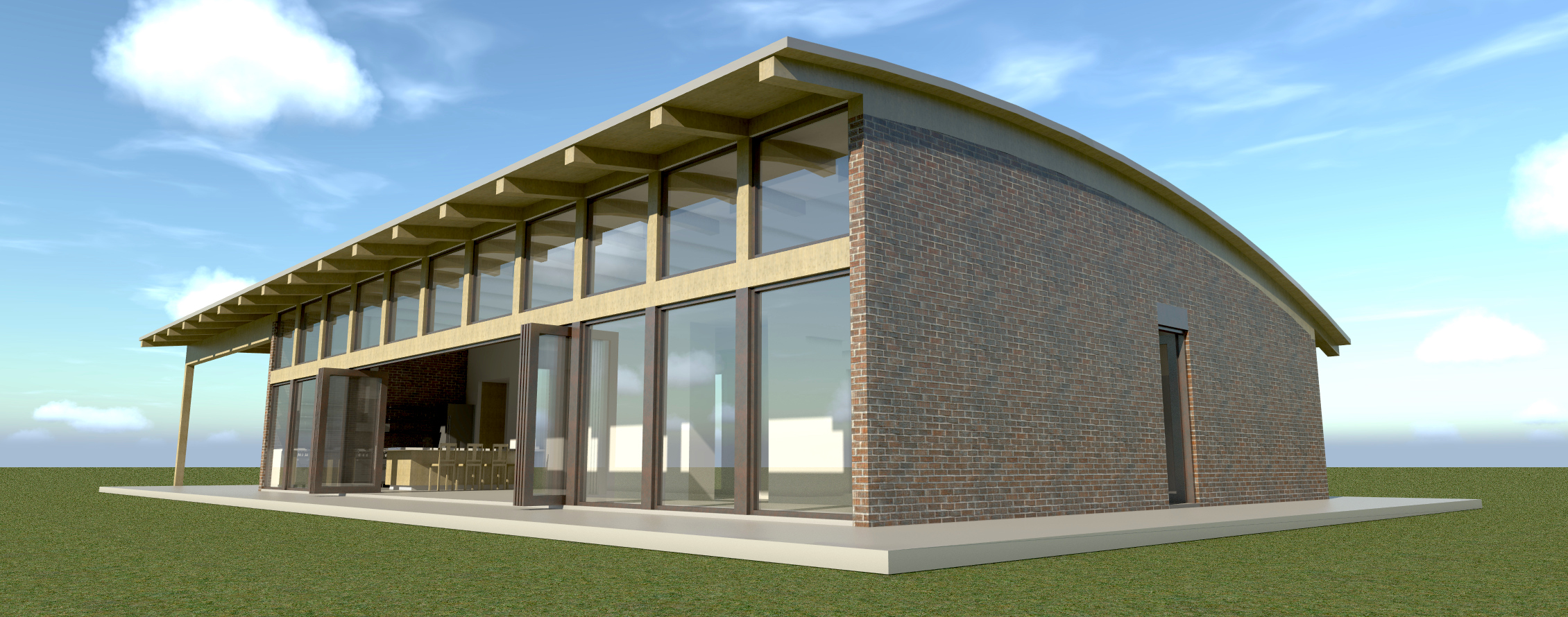

Front elevation of Modern home (ThePlanCollection: House Plan #116-1037)

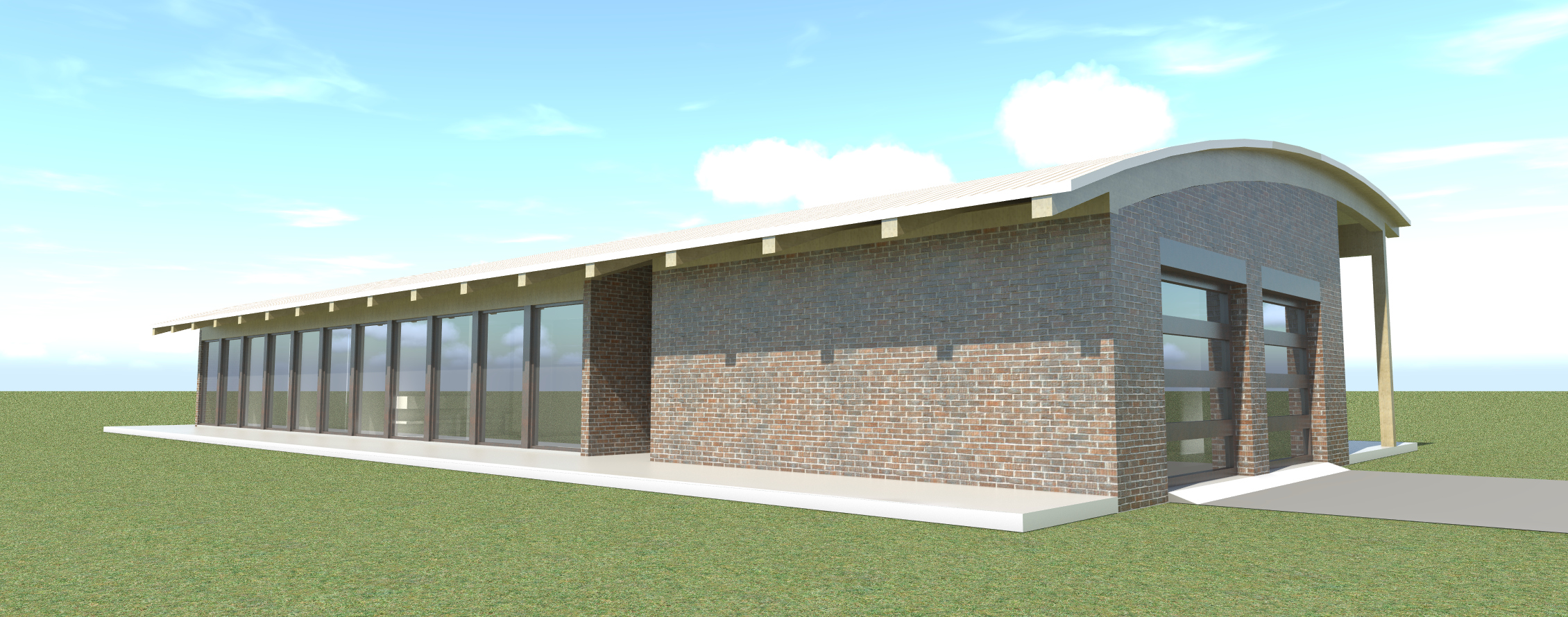

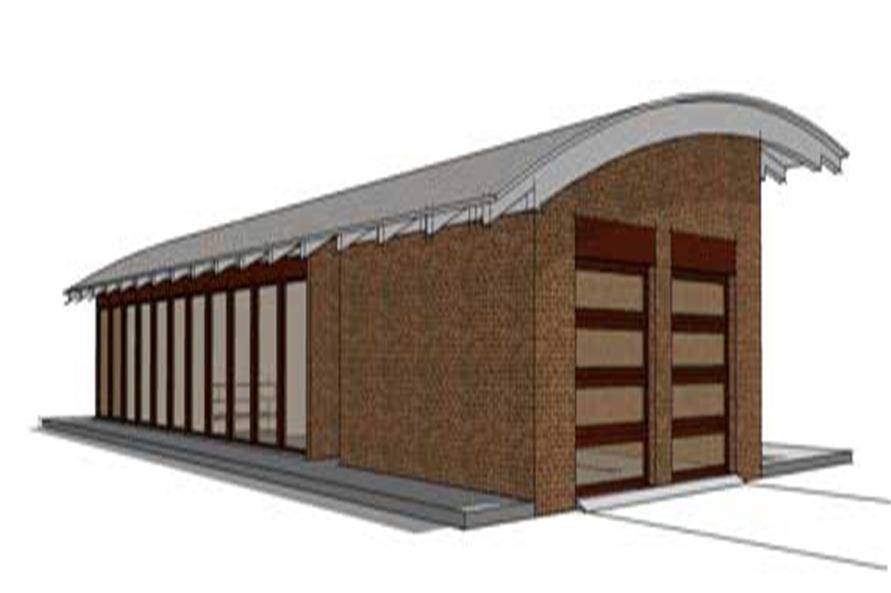

Home Plan Rear Elevation

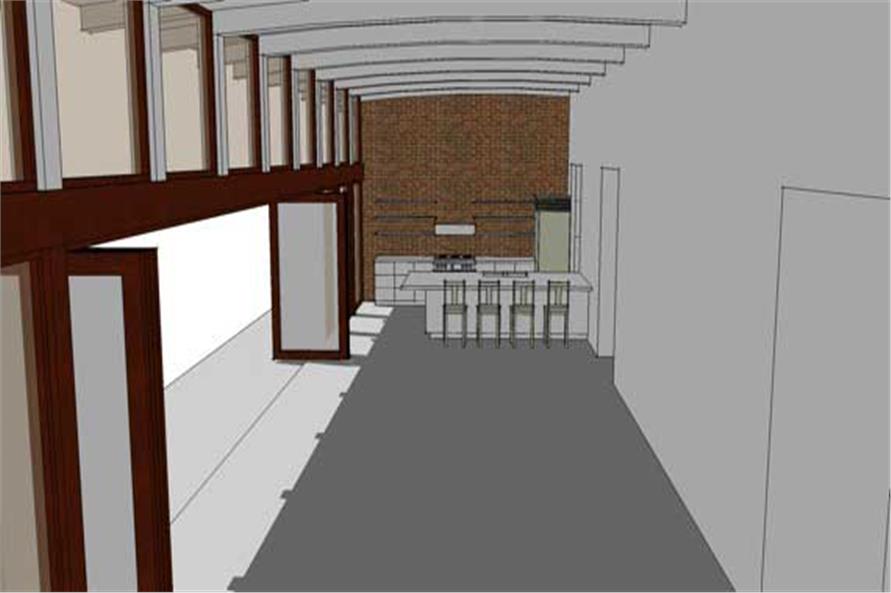

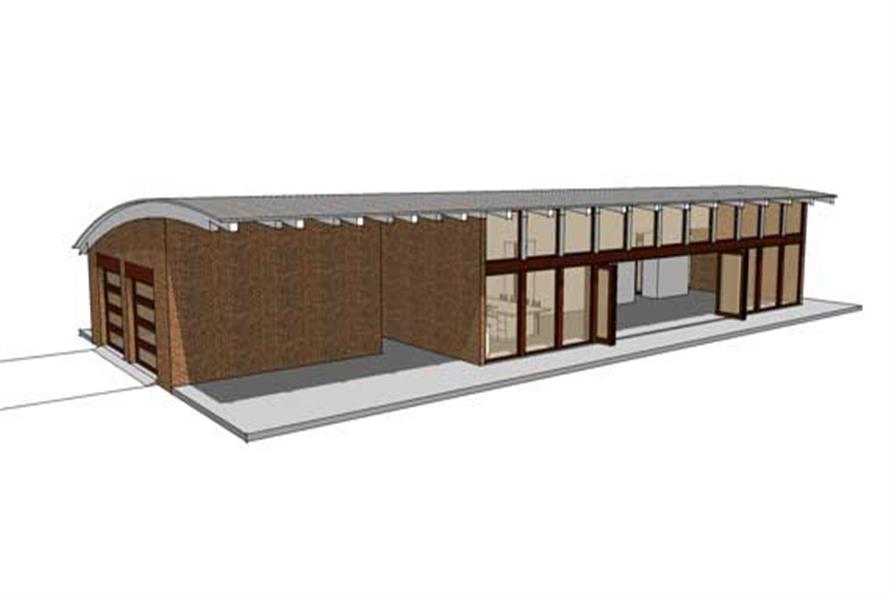

Home Plan Rendering
Home Plan Rendering

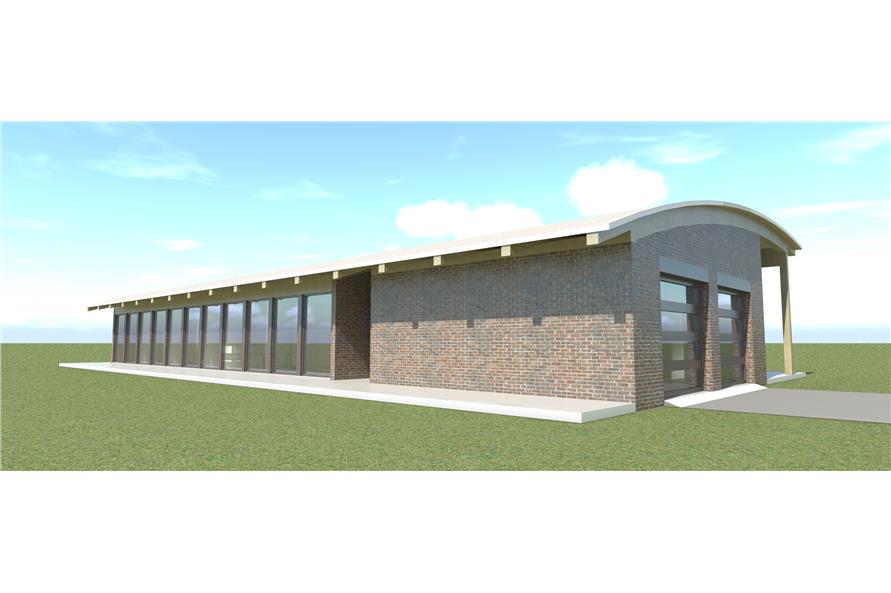

116-1037: Home Plan Rear Elevation
116-1037: Home Plan Rendering

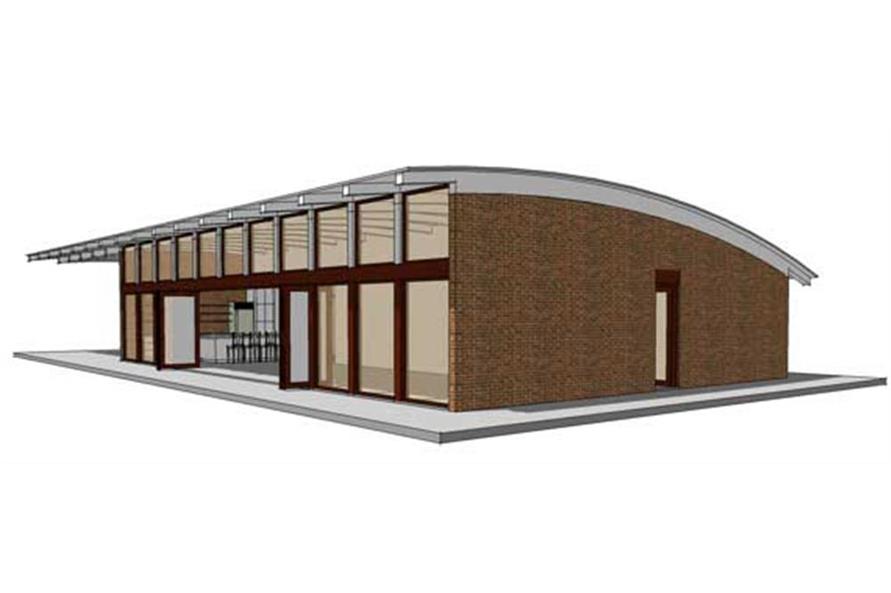

116-1037: Home Plan Left Elevation

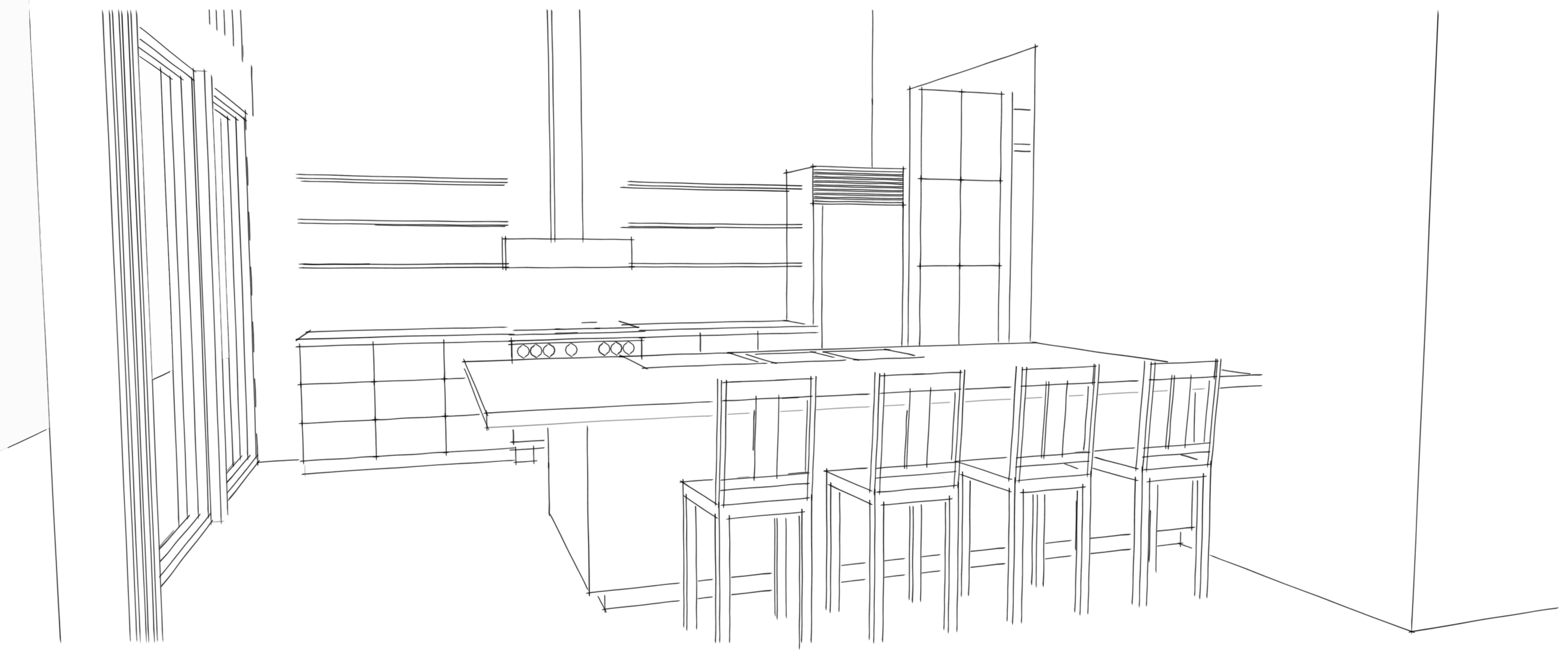

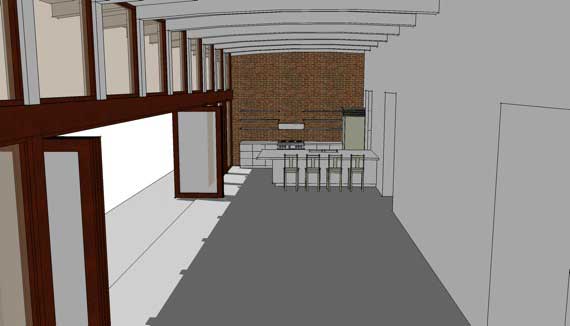

116-1037: Home Plan Aux Image-Kitchen

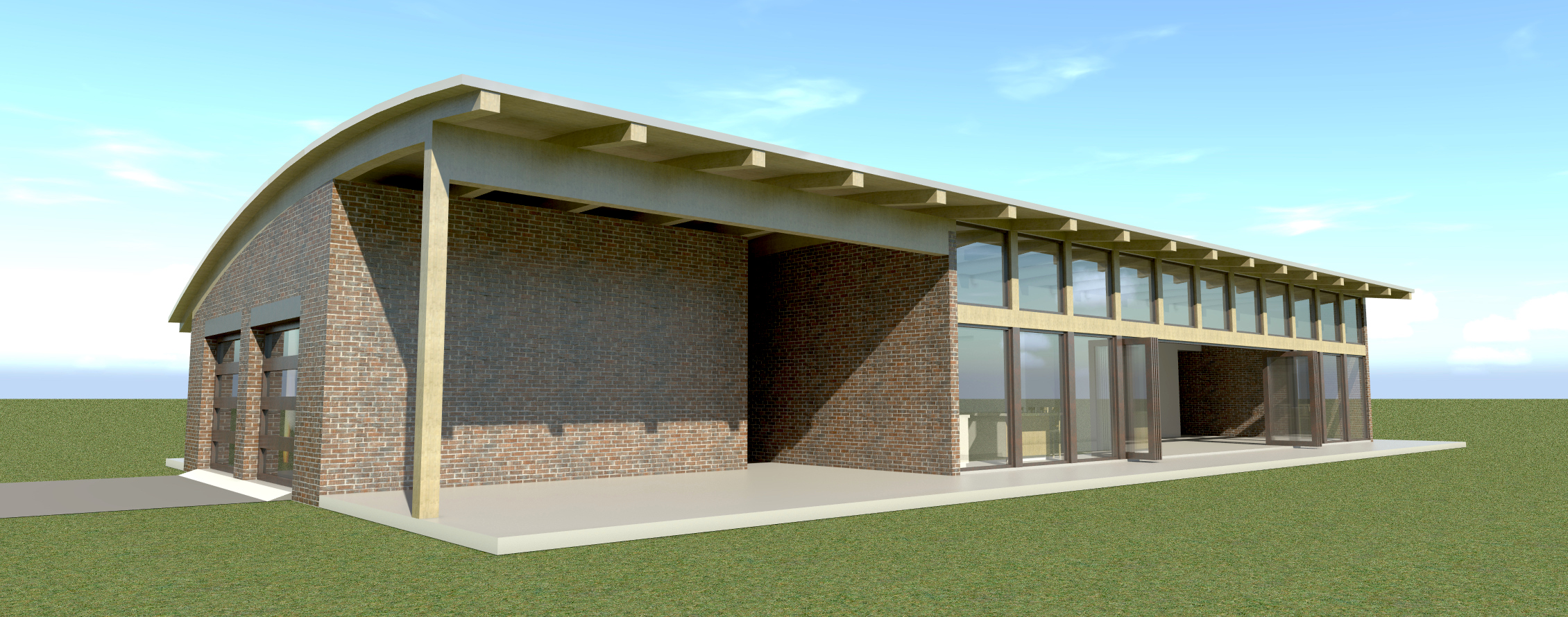

116-1037: Home Plan Rendering

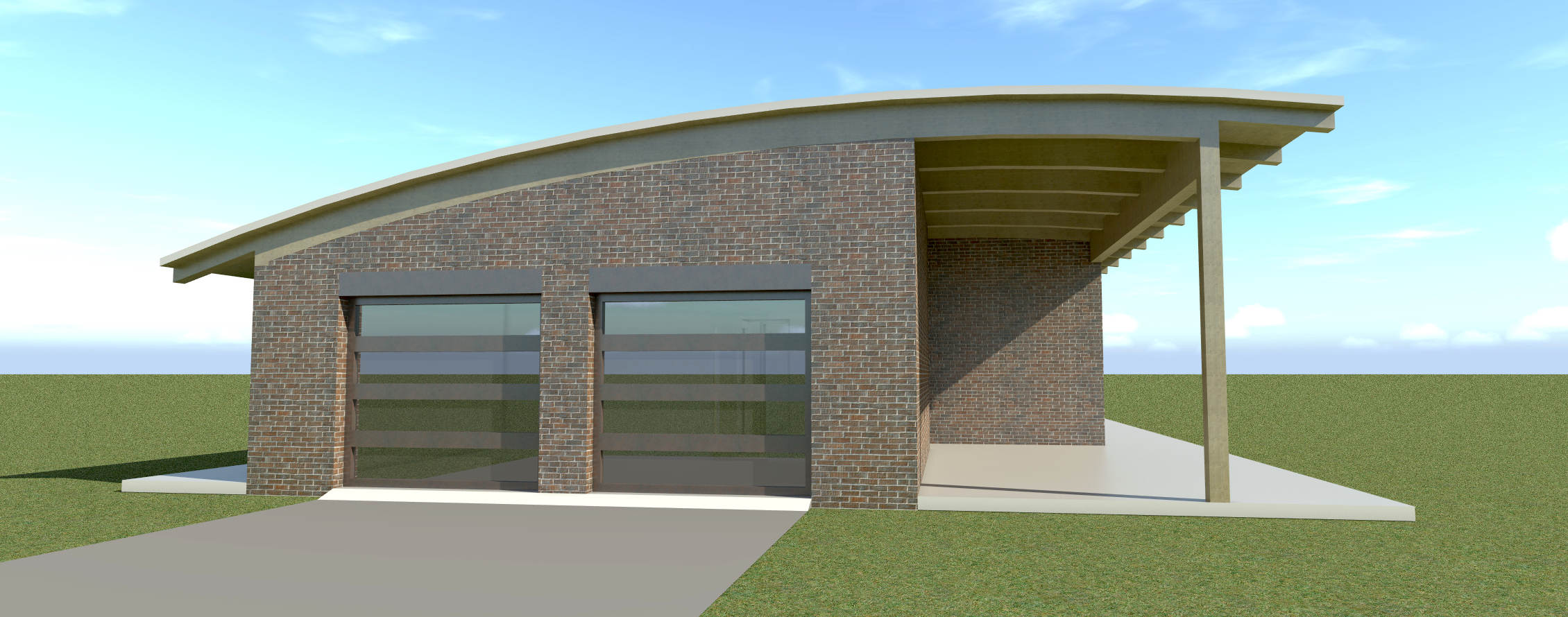

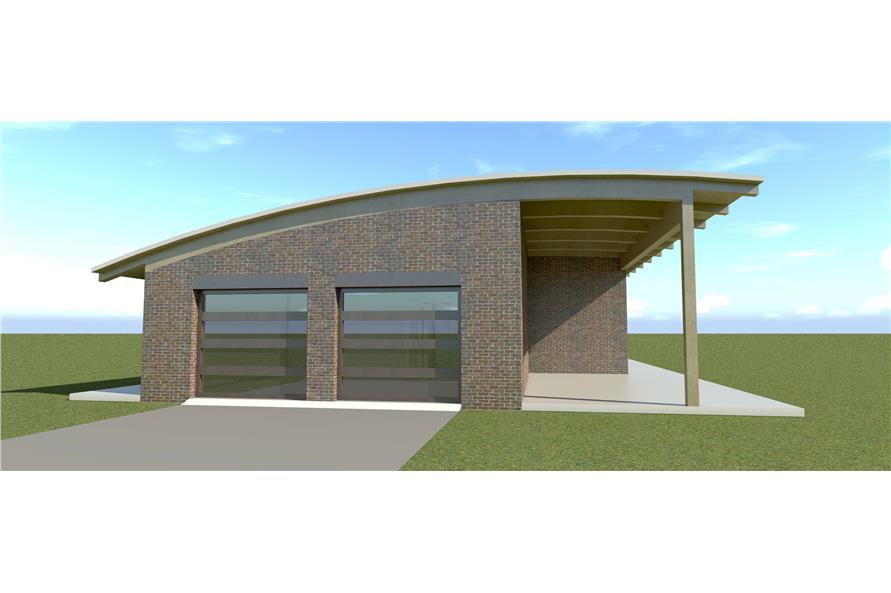

4-Bedroom, 2457 Sq Ft Modern House Plan - 116-1037 - Front Exterior
Home Plan Rear Elevation
Home Plan Rendering
Home Plan Rendering
116-1037: Home Plan Rear Elevation
116-1037: Home Plan Rendering
116-1037: Home Plan Left Elevation

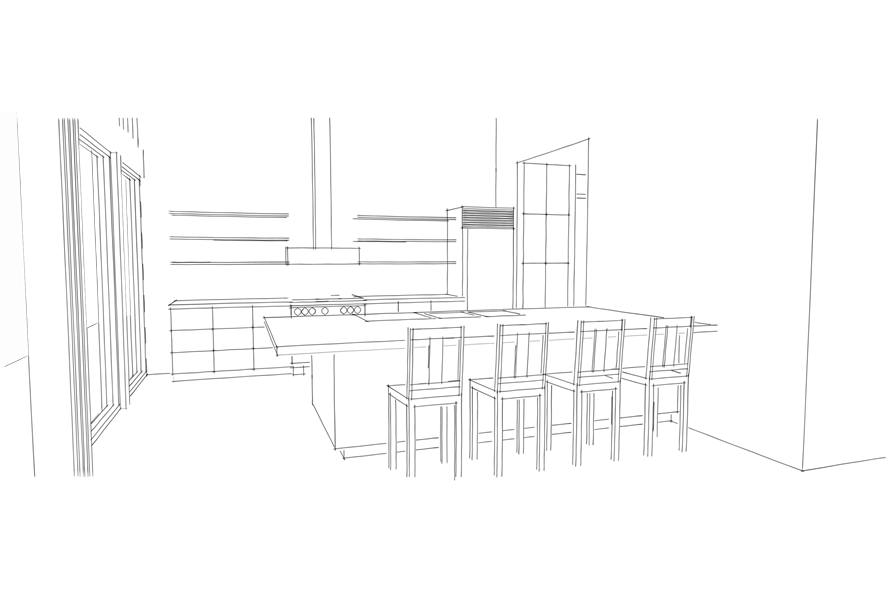

116-1037: Home Plan Aux Image-Kitchen
116-1037: Home Plan Rendering

About Plan # 116-1037

About Plan # 116-1037

2457 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 92' 0" WIDTH 39' 0" DEPTH 2 GARAGE BAY

Spades is a modern home with a 'loft' style living space. It has 4 bedrooms with lots of storage and the laundry area directly off the hall. The floors are colored concrete. Folding doors open the entire living space to the outdoors. In front of the garage is a covered sitting porch under a cantilever roof.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

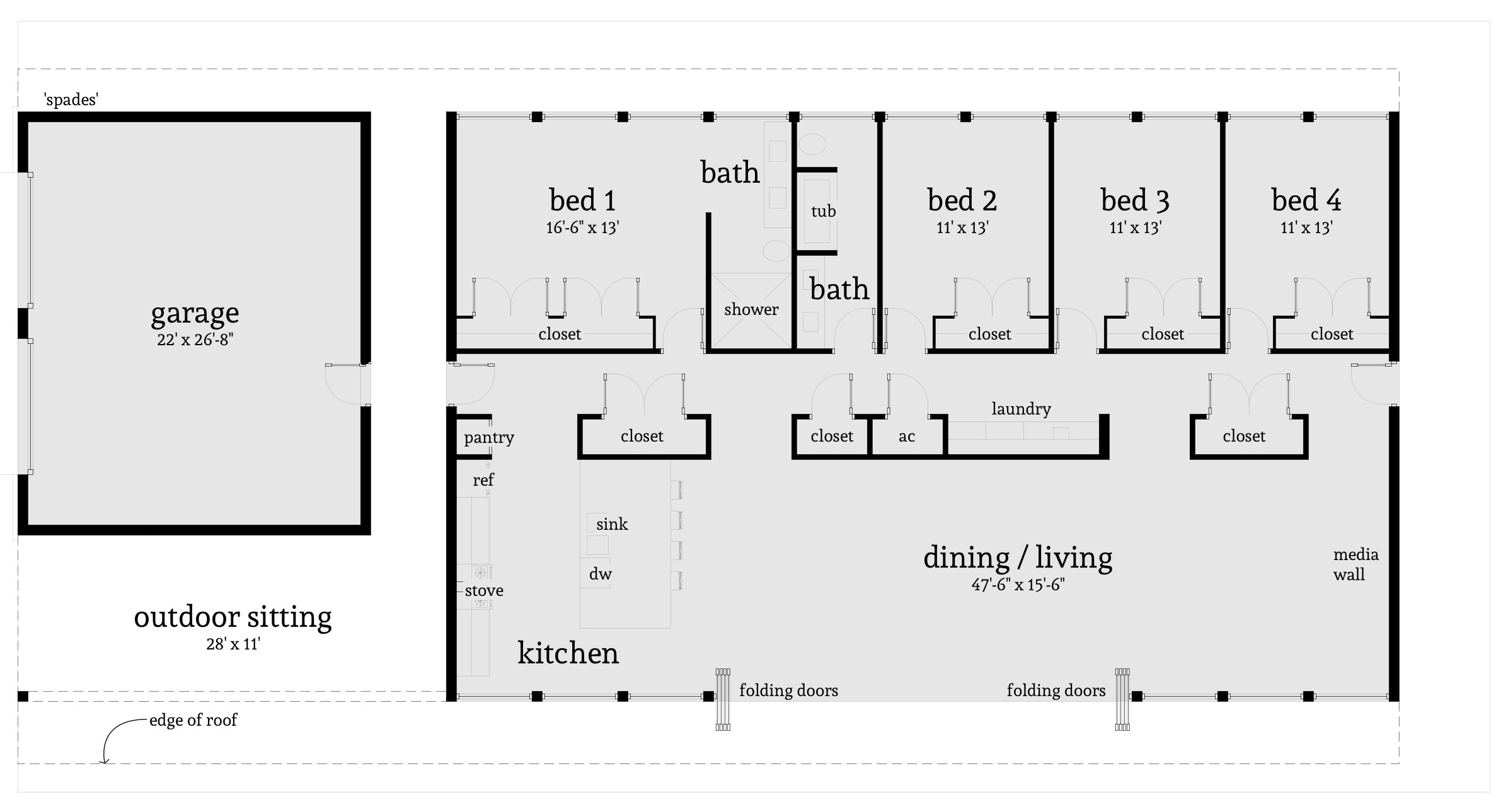

Home Plan: #116-1037 Floor Plan First Story - first story Floor Plan First Story of Modern Plan #116-1037
Home Plan: #116-1037 Floor Plan First Story - first story Floor Plan First Story of Modern Plan #116-1037
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1037
Floors:
1
Bedrooms:
4
Full Baths:
2

Square Footage

Heated Sq Feet:
2457
Main Floor:
2457
Unfinished Sq Ft:
Garage :
653

Dimensions

Width:
92' 0"
Depth:
39' 0"
Ridge Height:
15'0"' 0"

Architectural Styles

Contemporary
Modern

Exterior Wall Material

Brick

Roofing Material

Metal

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Main Level Laundry

Garage Type

Side Entry

Exterior Wall Framing

2x8

Building Lot Type

Flat Site

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Wrap Around Porch

Master Suite Features

Main Floor Master
Master Bathroom

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
