3-Bedroom, 2443 Sq Ft Country Plan with Covered Rear Porch

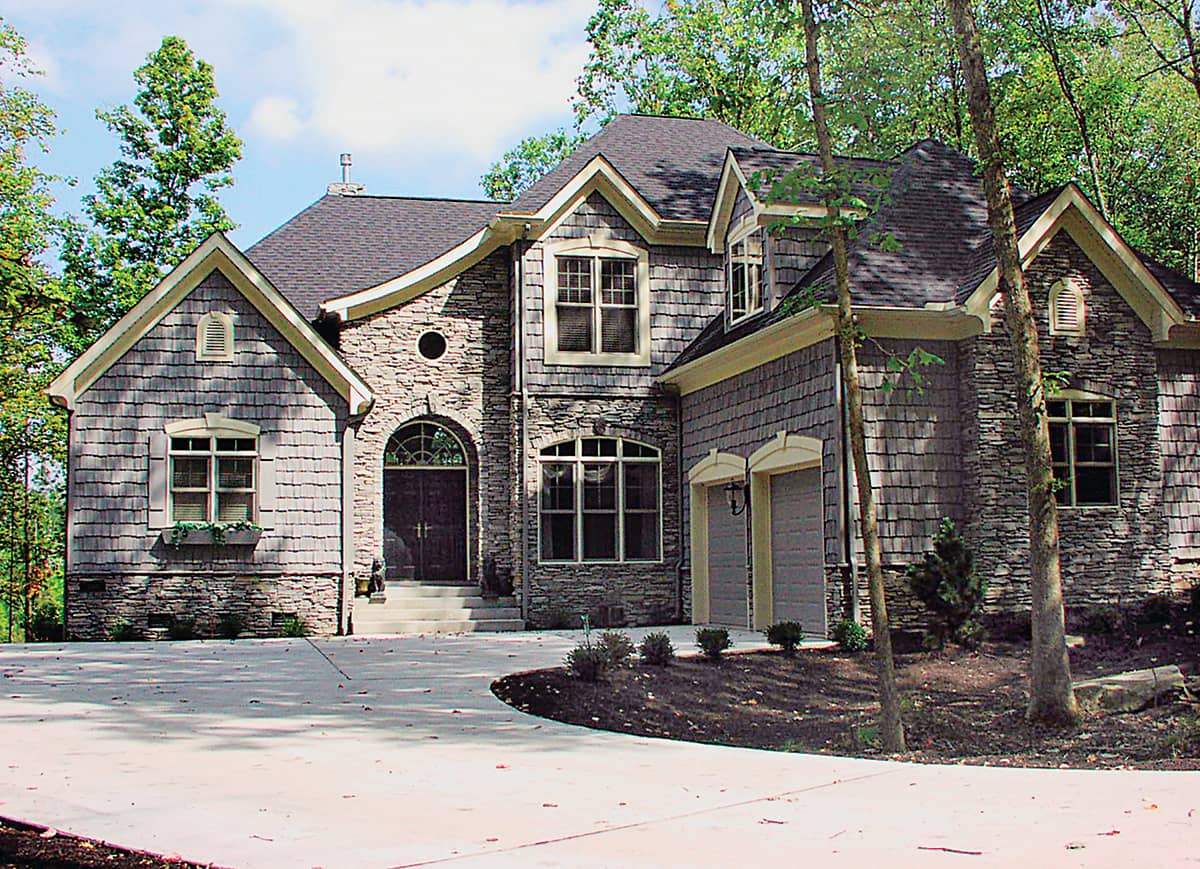

Front elevation of country Craftsman home (ThePlanCollection: House Plan #180-1009)
180-1009: Home Exterior Photograph-Rear View
180-1009: Home Plan Rendering-Front
180-1009: Home Plan Rendering - Rear View
3-Bedroom, 2443 Sq Ft Country House Plan - 180-1009 - Front Exterior
180-1009: Home Exterior Photograph-Rear View
180-1009: Home Plan Rendering-Front
180-1009: Home Plan Rendering - Rear View

About Plan # 180-1009

About Plan # 180-1009

2443 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 55' 10" WIDTH 63' 6" DEPTH 2 GARAGE BAY

This attractive country Craftsman home (House Plan #180-1009) has 2443 square feet of living space. The 2 story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRAMING PLANS

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

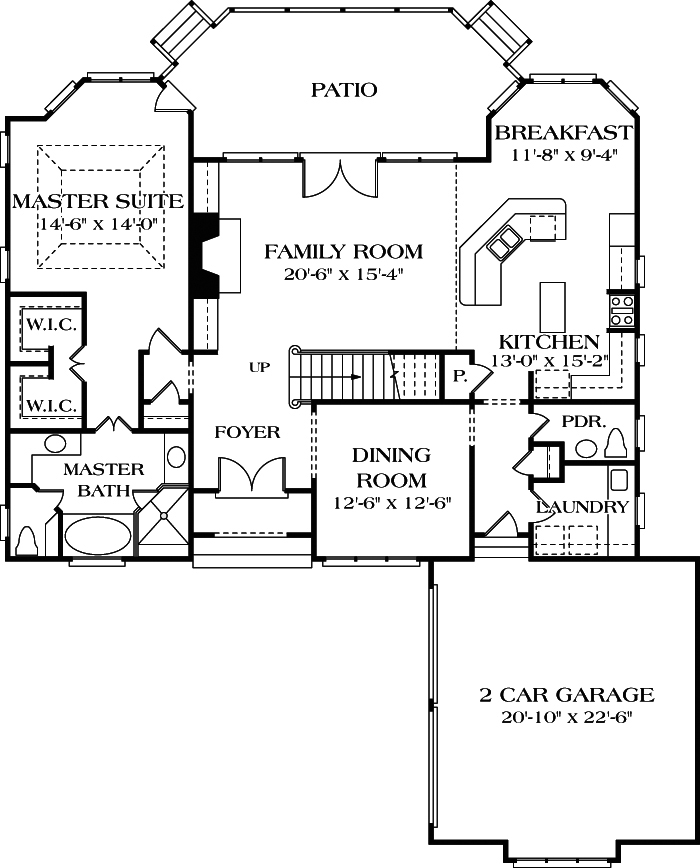

Home Plan: #180-1009 Floor Plan First Story - main level Floor Plan First Story of Country Plan #180-1009

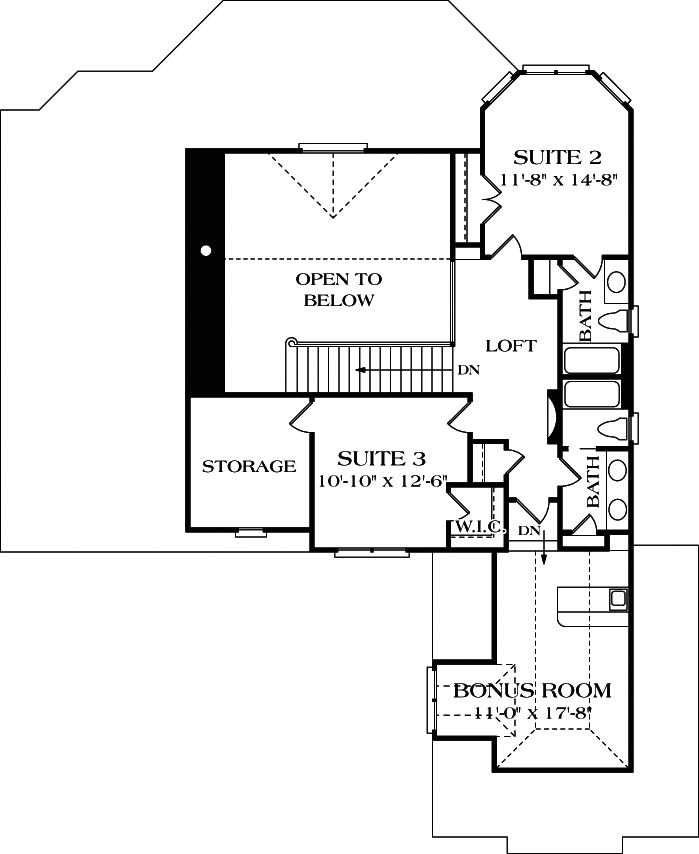

#180-1009 Floor Plan Second Story - upper level Floor Plan Second Story of Country Plan #180-1009
