3-Bedroom, 2393 Sq Ft Country Plan with Main Floor Master
| 2393 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 46' 0" WIDTH | 39' 0" DEPTH | 0 GARAGE BAY |

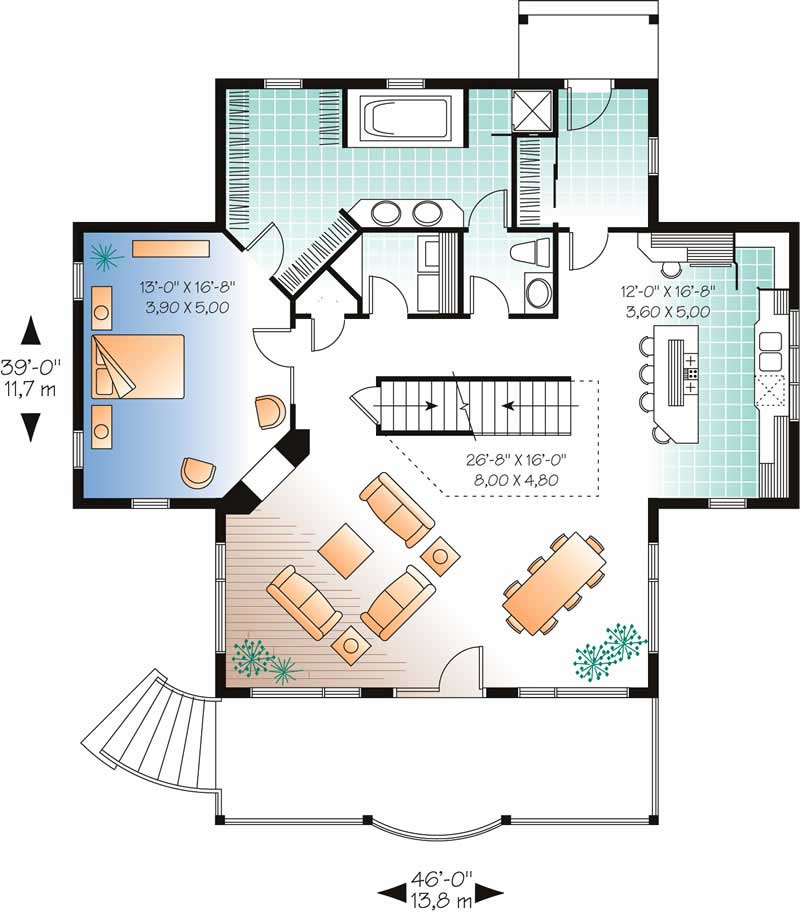

1st Level : Entry hall with coat closet, kitchen with snack-bar, dining room, living room with see-thru fireplace, master suite with fireplace, walk-in closet and private bathroom, half-bath,laundry room.2nd Level : 2 secondary bedrooms, 2 full bathrooms, family room (or bedroom #4) with balcony. See-thru fireplaceMezzanine9'''''''' ceiling on first floorSiting area in the master suiteLaundry chuteDecorative bracketsPlexiglas panelDecorative mouldingSloped ceiling
Each plan set includes the following:

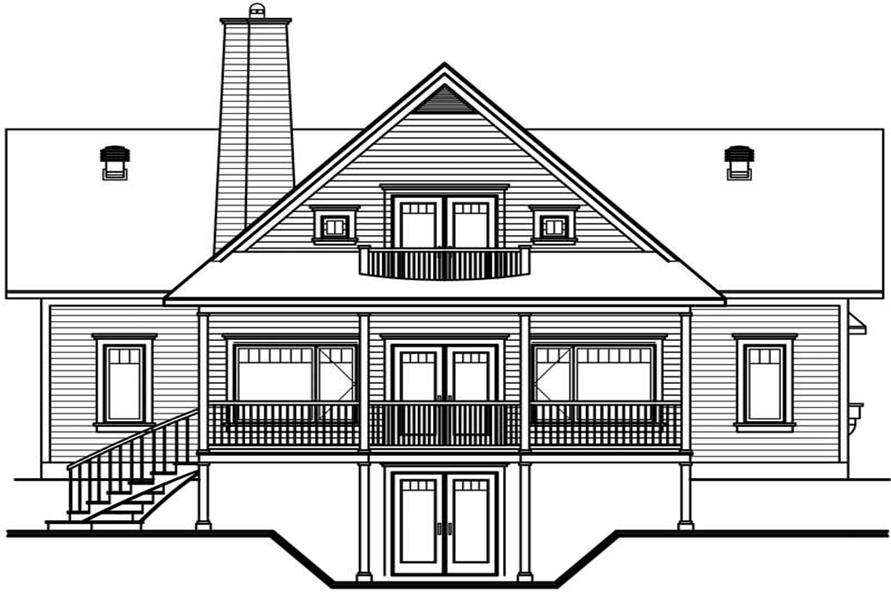

- EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
