Ranch home (ThePlanCollection: Plan #153-1200)

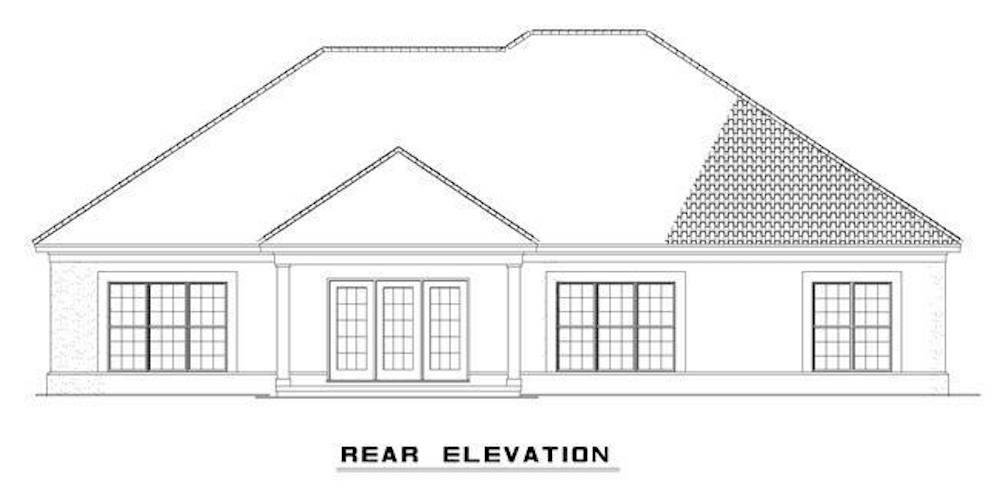

153-1200: Home Plan Rear Elevation

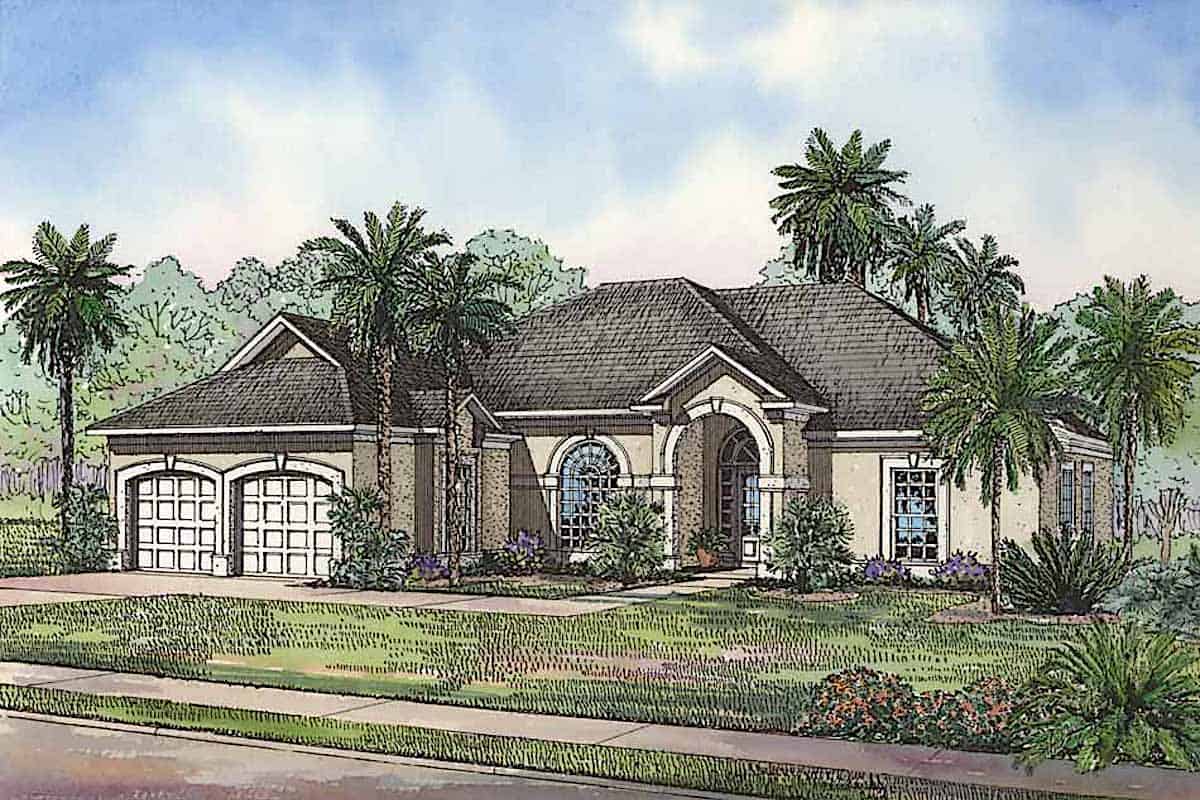

3-Bedroom, 2059 Sq Ft Ranch House - Plan #153-1200 - Front Exterior

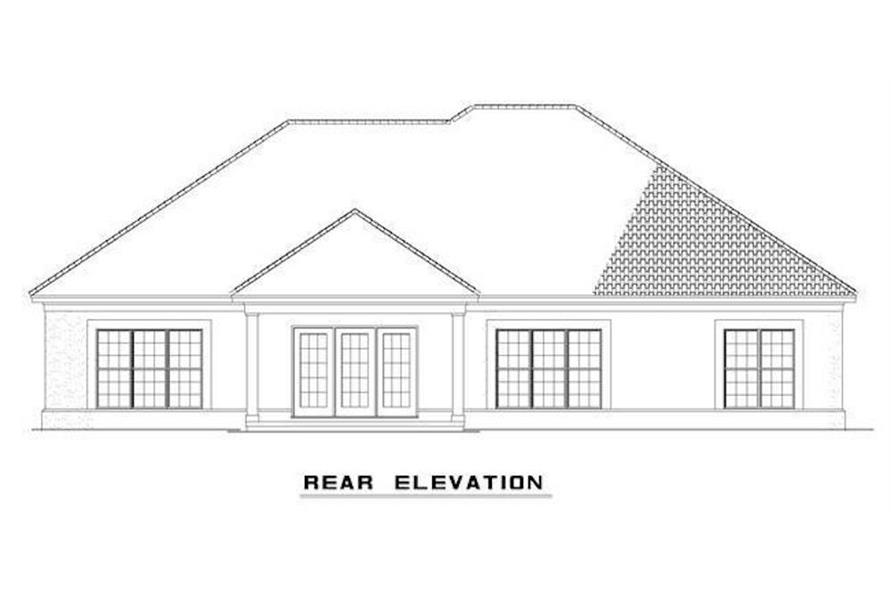

153-1200: Home Plan Rear Elevation

About Plan # 153-1200

About Plan # 153-1200

2059 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 60' 0" WIDTH 63' 4" DEPTH 2 GARAGE BAY

This appealing Ranch style home with Mediterranean aspects (Plan #153-1200) has 2059 square feet of living space. The 1-story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

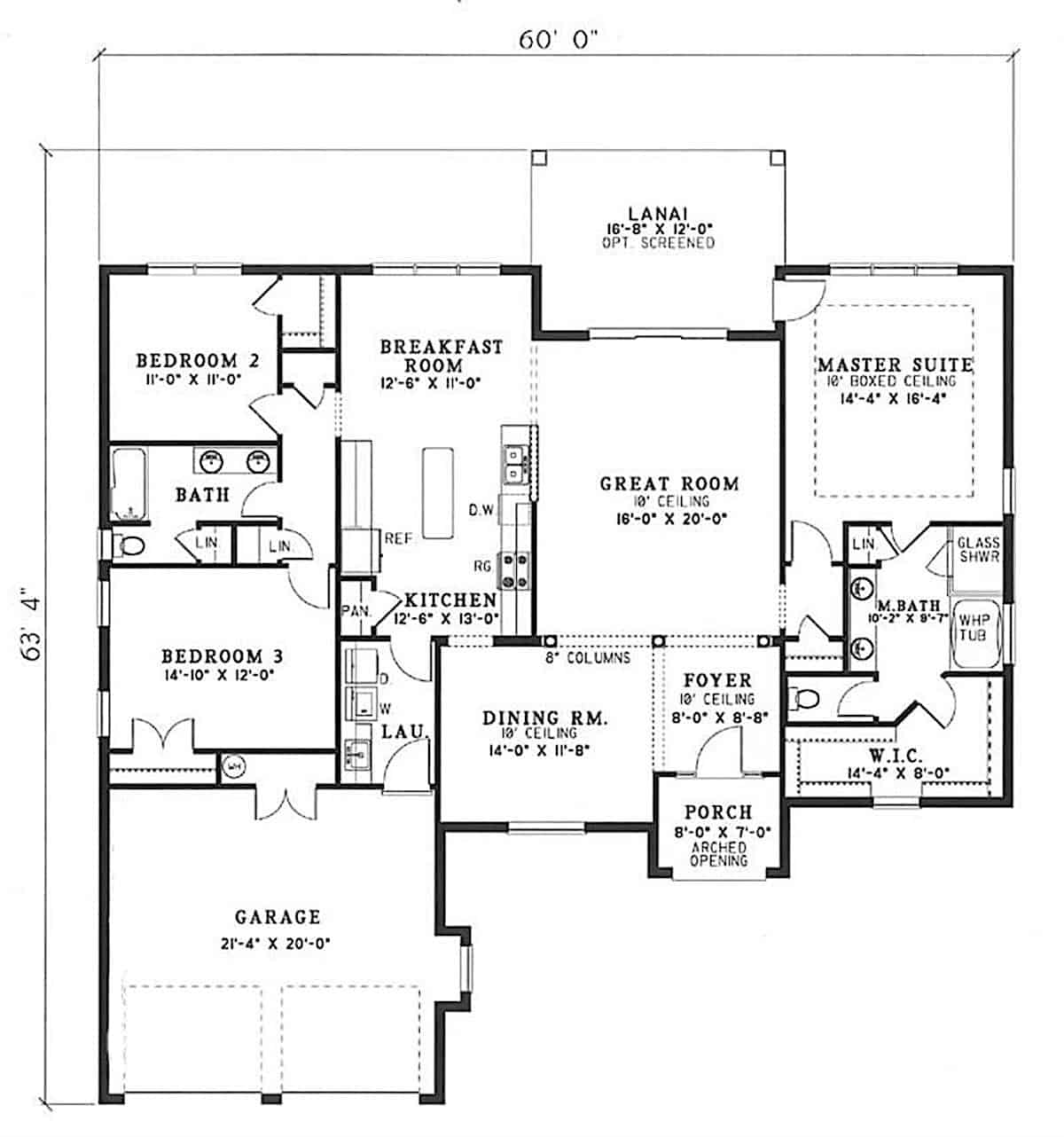

Home Plan: #153-1200 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #153-1200
Home Plan: #153-1200 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #153-1200
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1200
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
2059
Main Floor:
2059
Unfinished Sq Ft:
Garage :
554

Dimensions

Width:
60' 0"
Depth:
63' 4"
Ridge Height:
23' 4"

Architectural Styles

Ranch
Mediterranean
Transitional
Concrete Block/ ICF Design
California Style
Florida Style

Exterior Wall Material

Stucco

Roofing Type

Gable
Hip
Dutch Gable

Roofing Material

Tiles

Roof Pitch

8/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Dining Room
Family Room
Main Level Laundry
Split Bathroom
Open Floor Plan
L-Shaped

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

Concrete

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area

Porches and Exterior Features

Covered Lanai
Portico

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Note: 8" Concrete exterior walls


Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. The plans do not come with ICF specifications. If ICF construction method is desired, the CAD plan can be purchased and then forwarded to the ICF dealer and they’ll do a takeoff to assist with that specific projec

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
