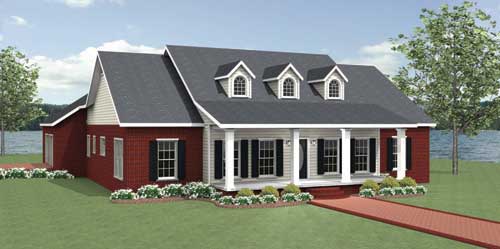

Front elevation of Lake home (ThePlanCollection: House Plan #123-1005)
3-Bedroom, 2048 Sq Ft Lake House Plan - 123-1005 - Front Exterior

About Plan # 123-1005

About Plan # 123-1005

2048 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 65' 0" WIDTH 80' 0" DEPTH 2 GARAGE BAY

This Lake house plan is very open and spacious. Enter the Great Room complete with built-in entertainment center and french doors that lead out onto the rear covered porch. The Kitchen is completely open with a large island and a raised snack bar. There are plenty of cabinets and countertops for storage. The Breakfast Area is located in the front of the house and adorned with windows that allow plenty of sunlight to start the day. The formal Dining Room is tucked up front and has grand arched openings. Just off the kitchen down the rear hall is a huge walk-in pantry with plenty of shelving. The Laundry room is great with room for the washer and dryer and even an upright freezer. A half Bath is located close for family or guests. A bench is conveniently placed to make removing muddy shoes/storage easier. The attached Two Car Garage has plenty of storage. The large Master Bedroom has a huge walk-in closet and french doors that lead you onto the rear covered porch. The Master Bath has dual sinks, a separate whirlpool tub, and custom shower and a separate toilet compartment. Bath 2 has dual sinks and shower/bath combo with a linen closet just outside in the hall. Bedrooms 2 & 3 are conveniently located on the same side of the house to accommodate someone with small children or elderly parents. Two magnificent covered porches encase this home to provide shelter from the elements.

Each plan set typically includes the following:

  • Floor plans - Included with your plans will be a detailed floor plan at 1/4" scale with a window and door schedule.
  • Foundation
  • Electrical Layout
  • Exterior and Interior Elevations
  • Building Sections
  • Details and Typical Specifications
  • Sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

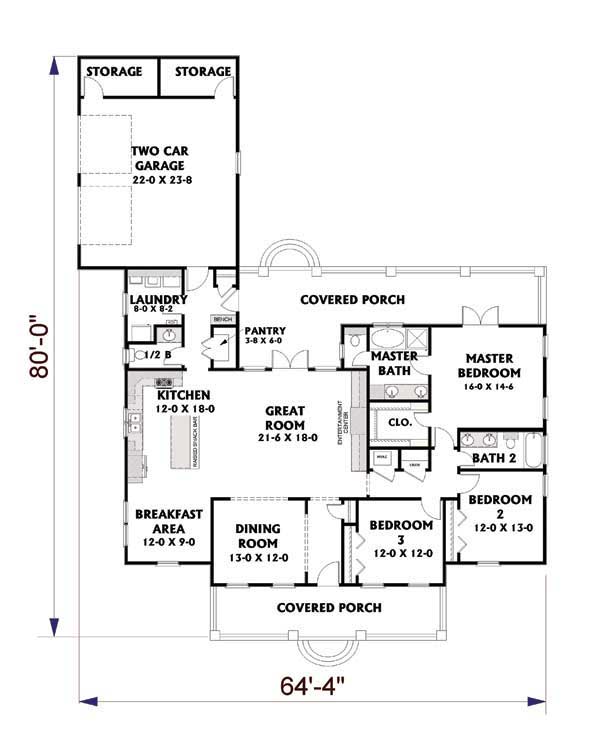

Home Plan: #123-1005 Floor Plan First Story - first story Floor Plan First Story of Cape Cod Plan #123-1005
Home Plan: #123-1005 Floor Plan First Story - first story Floor Plan First Story of Cape Cod Plan #123-1005
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 123-1005
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2048
Main Floor:
2048
Unfinished Sq Ft:

Dimensions

Width:
65' 0"
Depth:
80' 0"
Ridge Height:
23' 10"

Architectural Styles

Country
Traditional
Cape Cod
Lake

Exterior Wall Material

Brick
Wood Siding

Roofing Type

Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Mother in law apartment
Dining Room
Mud Room
Main Level Laundry
Split Bathroom
Storage

Garage Type

Attached Garage
Side Entry

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Three full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
