Main image for homeplans # 1810
3-Bedroom, 1887 Sq Ft European House Plan - 164-1233 - Front Exterior

About Plan # 164-1233

About Plan # 164-1233

1887 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 57' 10" WIDTH 54' 5" DEPTH 2 GARAGE BAY

European House Plans RG1806 has a unique exterior, but the interior is very unique as well. The ceilings are especially diverse. The master bedroom and dining room have raised ceilings, the living room has a four-way vault, and bedroom three has a half-vault. There is a CAD file available for this plan. (Call for Pricing)

Each plan set includes the following:

  • Cover sheet
  • Foundation plan
  • Floor plan
  • Electrical layout
  • Exterior elevations
  • Building sections
  • Specifications
  • Cabinet details
  • Roof plan
  • Miscellaneous details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

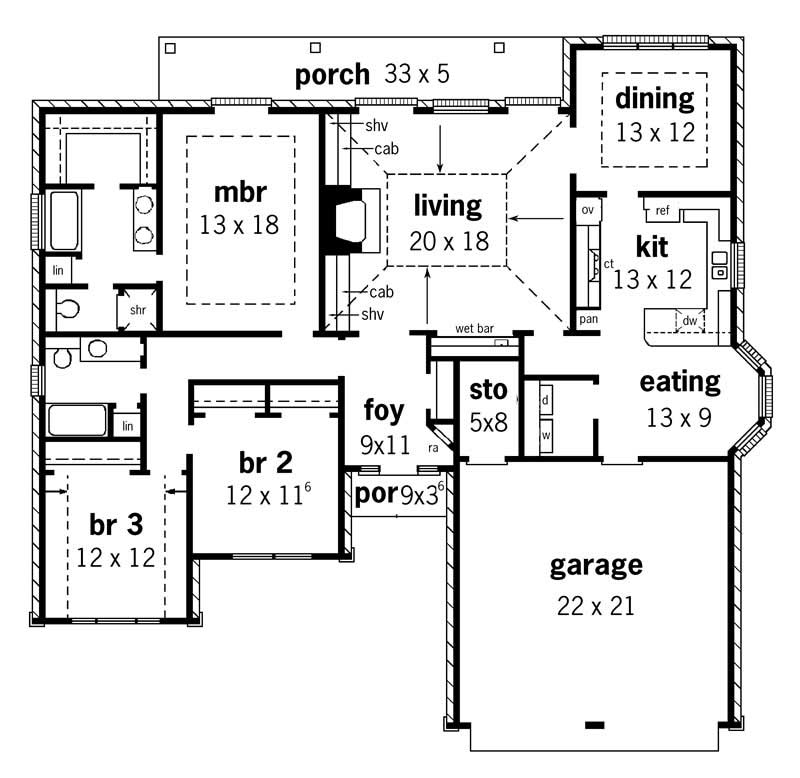

Home Plan: #164-1233 Floor Plan First Story - main Floor Plan First Story of European Plan #164-1233
Home Plan: #164-1233 Floor Plan First Story - main Floor Plan First Story of European Plan #164-1233
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 164-1233
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1887
Main Floor:
1887
Unfinished Sq Ft:
Garage :
462

Dimensions

Width:
57' 10"
Depth:
54' 5"
Ridge Height:
23'-6' 0"

Architectural Styles

European
French
Traditional
Acadian

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Main Level Laundry
Split Bathroom
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
