3-Bedroom, 1672 Sq Ft Country Plan with Courtyard

Main image for Traditional homeplans # 10238
3-Bedroom, 1672 Sq Ft Country Home Plan - 164-1257 - Main Exterior

About Plan # 164-1257

About Plan # 164-1257

1672 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 68' 6" WIDTH 46' 0" DEPTH 2 GARAGE BAY
Country Home Plans RG1629 offer two bedrooms with ample closet space, and a large master suite (peacefully located on the other side of the home) with a walk-in closet and a private bathroom. The Den is open and has a wonderful vaulted ceiling. The Kitchen has a cheerful bay window breakfast nook. The formal dining room has access to both the kitchen and the entry foyer. A bonus room above the garage and handsome front and rear covered porches add to the comfort and personality of this wonderful set of houseplans. There is a CAD file available for this plan. (Call for Pricing)

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes cabinet & miscellaneous details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

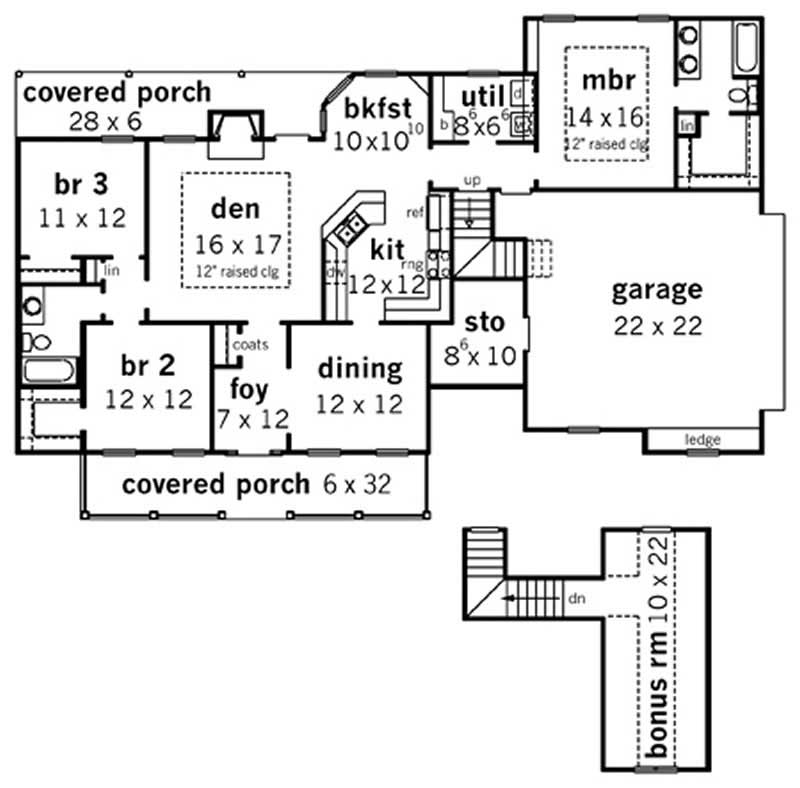

Home Plan: #164-1257 Floor Plan First Story Floor Plan First Story of Country Plan #164-1257
