3-Bedroom, 1672 Sq Ft European Plan with Walk In Closet

Main image for house plan # 1792

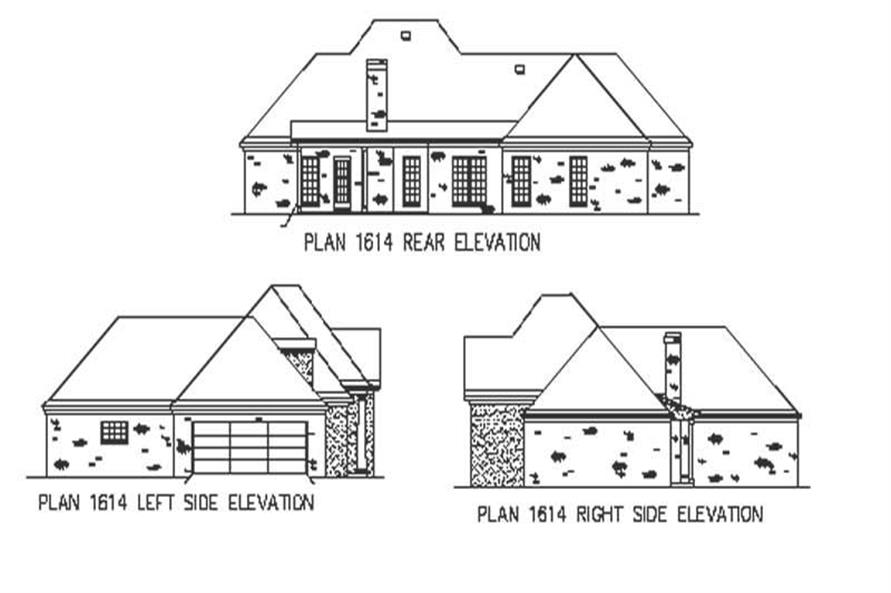

Rear Elevation
3-Bedroom, 1672 Sq Ft European House Plan - 164-1171 - Front Exterior
Rear Elevation

About Plan # 164-1171

About Plan # 164-1171

1672 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 69' 10" WIDTH 51' 5" DEPTH 2 GARAGE BAY
These European Home Plans have an Unfinished bonus room. The Covered back porch is very relaxing. There is a Separate shower and whirlpool tub in the master bath. There are Walk-in closets in all of the bedrooms. The Garage features ample storage space and a trash ledge. There is plenty of Open living area and two additional comfortably sized bedrooms. The large windows create additional lighting and a sense of openness in each area of the house. Ample storage space and larger utility areas add to the comfort and convenience. This home was Designed with the need for simplicity and the space for family in mind. There is a CAD file available for this plan. (Call for Pricing)

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes cabinet & miscellaneous details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

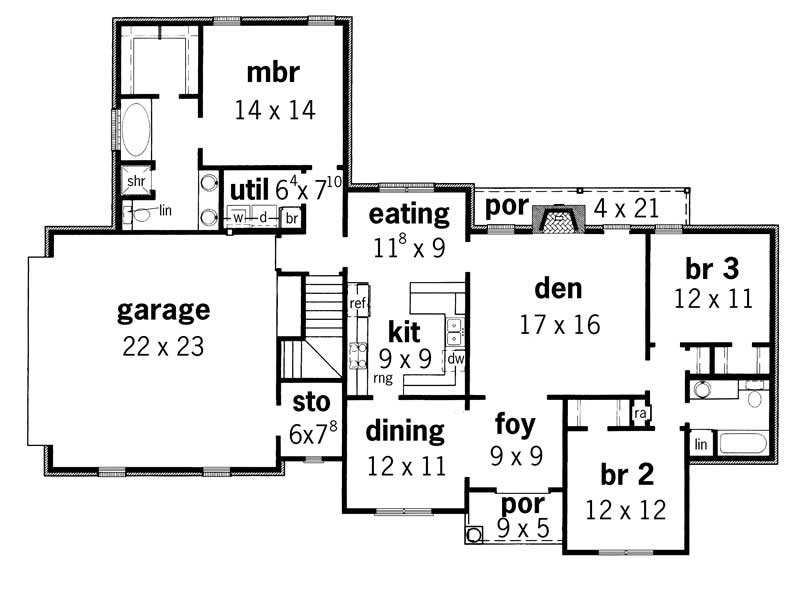

Home Plan: #164-1171 Floor Plan First Story - main Floor Plan First Story of European Plan #164-1171

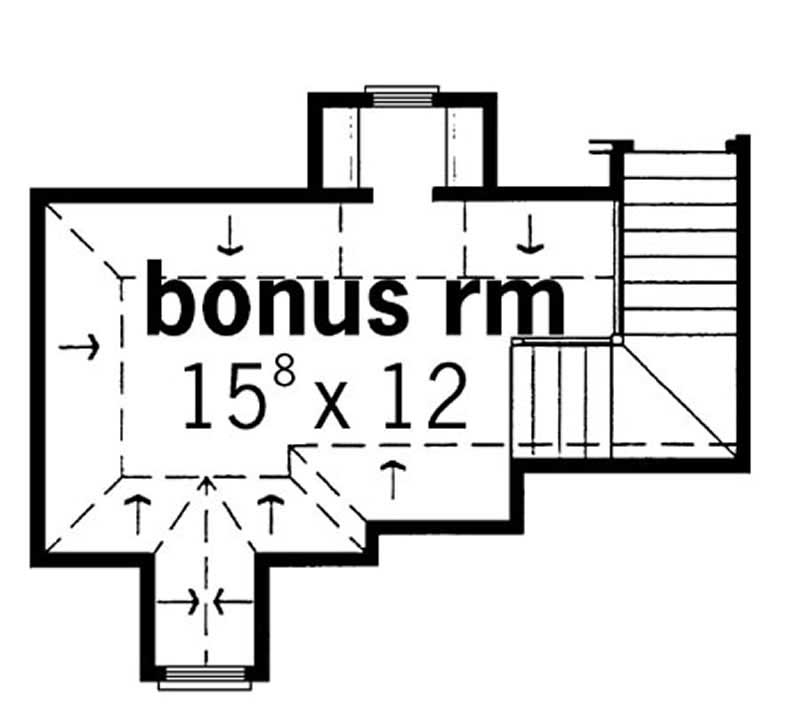

#164-1171 Floor Plan Second Story - upper floor Floor Plan Second Story of European Plan #164-1171
Home Plan: #164-1171 Floor Plan First Story - main Floor Plan First Story of European Plan #164-1171
#164-1171 Floor Plan Second Story - upper floor Floor Plan Second Story of European Plan #164-1171
