3-Bedroom, 1904 Sq Ft Victorian Plan with Master Bathroom

Main image for Victorian Home Plans # 1826
3-Bedroom, 1904 Sq Ft Victorian House Plan - 164-1097 - Front Exterior

About Plan # 164-1097

About Plan # 164-1097

1904 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 42' 6" WIDTH 57' 0" DEPTH 2 GARAGE BAY
With all the bay windows, the spire, and the covered front porch, these House Plans (RG1904) are very typical of Victorian Style. The main floor is dominated by the large great room with its fireplace and bay window sitting area. The Kitchen has a unique shape, and the dining room is also located in a bay window area. The bedrooms are located upstairs. The Master Suite also features a fireplace and a bay window sitting area. These plans have a classical old world feel, yet many modern conveniences. This Plan has a CAD file available for it. (Call for Pricing)

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes cabinet & miscellaneous details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

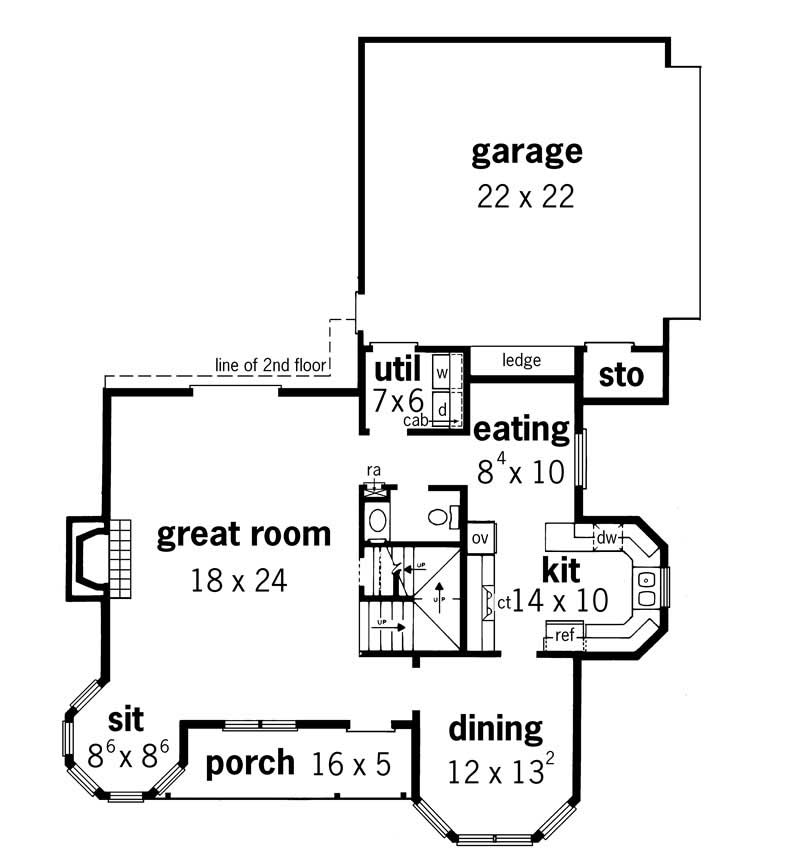

Home Plan: #164-1097 Floor Plan First Story - main Floor Plan First Story of Victorian Plan #164-1097

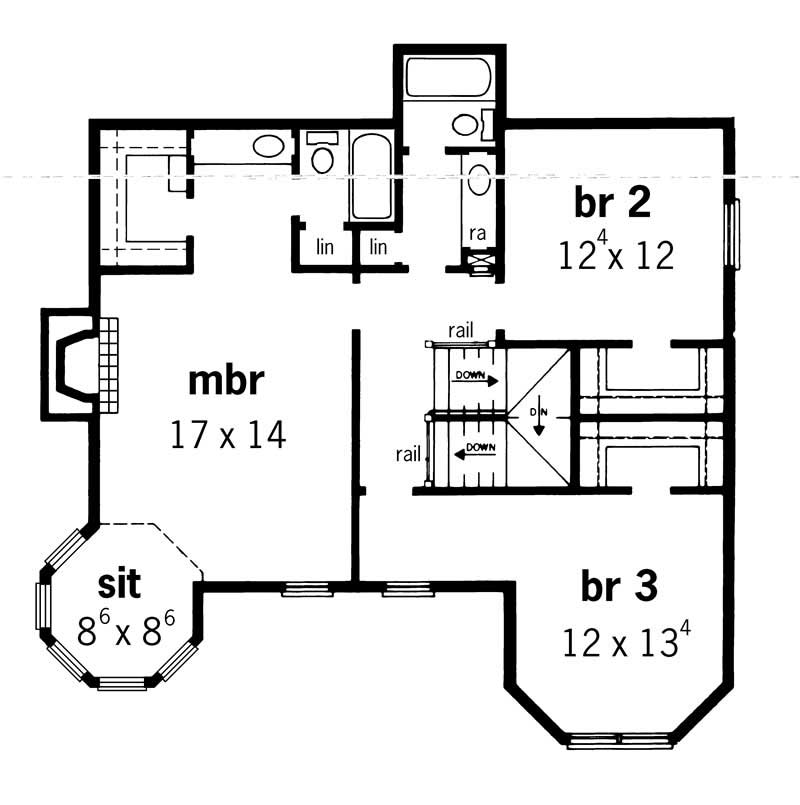

#164-1097 Floor Plan Second Story - upper Floor Plan Second Story of Victorian Plan #164-1097
Home Plan: #164-1097 Floor Plan First Story - main Floor Plan First Story of Victorian Plan #164-1097
#164-1097 Floor Plan Second Story - upper Floor Plan Second Story of Victorian Plan #164-1097
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 164-1097
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
1904
Main Floor:
1030
Upper Floor:
874
Unfinished Sq Ft:
Garage :
484

Dimensions

Width:
42' 6"
Depth:
57' 0"
Ridge Height:
31'-0' 0"

Architectural Styles

Victorian

Exterior Wall Material

Vinyl Siding

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Ceiling Height

8 Foot Ceiling

Special Feature

Den
Dining Room
Fireplace
Main Level Laundry
Split Bathroom
Storage

Garage Type

Attached Garage
Side Entry

Fireplaces

Two Fireplaces

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Fireplace in Master
Master Bathroom
Second Floor Master
Sitting Area
Walk In Closet

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
