About Plan # 146-2418

About Plan # 146-2418

1670 SQUARE FEET 1 BEDROOMS 1 FULL BATH 1 HALF BATH
1 FLOOR 72' 0" WIDTH 44' 0" DEPTH 3 GARAGE BAY
This is the perfect home for an empty-nest couple. All your daily living can be made on the main level, where an open kitchen and a Great Room are the heart of the home. Off the breakfast nook likes a computer center where you can plan meals, pay bills, or surf the Internet. With its large island, the kitchen offers plenty of cabinet space and a step-in pantry for storage. A bay window with sliding glass doors to a back deck is the breakfast nook's defining feature. A fireplace flanked by built-ins warm the adjoining family room. The formal dining room greets guests as they enter the home. The master suite features a fantastic bath with a garden tub, a separate shower, and a private toilet. A huge walk-in closet offers plenty of space for storage. The daylight basement incorporates many future spaces, including a billiard room, a family room, two bedrooms, and an office or exercise room.

Each plan set includes the following:



Foundation plan

Exterior elevations

Floor plans

Cross-sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

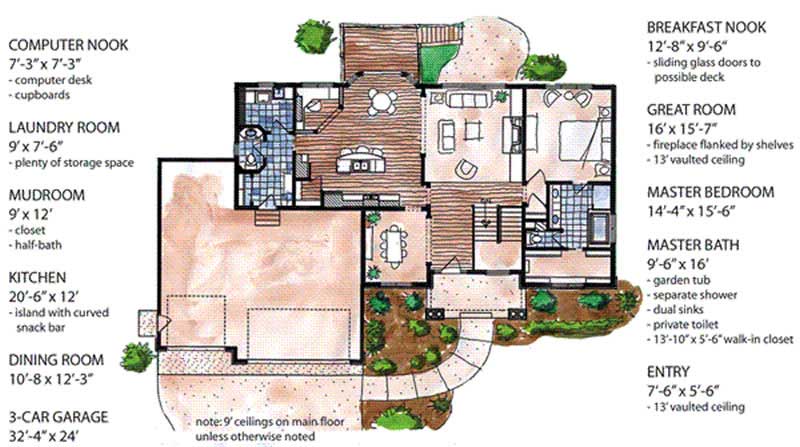

Home Plan: #146-2418 Floor Plan First Story - main level Floor Plan First Story of Plan #146-2418
Home Plan: #146-2418 Floor Plan First Story - main level Floor Plan First Story of Plan #146-2418
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 146-2418
Floors:
1
Bedrooms:
1
Full Baths:
1
Half Baths:
1

Square Footage

Heated Sq Feet:
1670
Main Floor:
1670
Lower Floor:
1670
Garage:
825
Unfinished Sq Ft:

Dimensions

Width:
72' 0"
Depth:
44' 0"
Ridge Height:
25' 0"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Brick
Wood Siding

Roofing Type

Hip

Roof Pitch

7/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace
Dining Room
Guest Room
Family Room
Main Level Laundry

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Peninsula/Eating Bar

Master Suite Features

Main Floor Master
Master Bathroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals. This file may be available. Please call or email us first so we can confirm for you. This set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
