3-Bedroom, 1484 Sq Ft Ranch Plan with Master Bathroom

This is a very colorful rendering of these Ranch Home Plans.

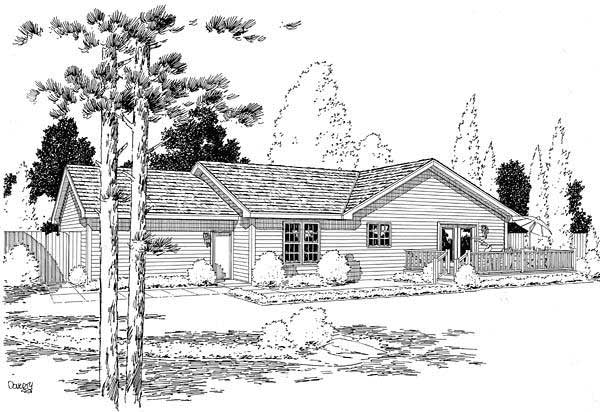

Home Plan Rear Elevation
3-Bedroom, 1484 Sq Ft Ranch Home Plan - 131-1168 - Main Exterior
Home Plan Rear Elevation

About Plan # 131-1168

About Plan # 131-1168

1484 SQUARE FEET 3 BEDROOMS 1 FULL BATH 1 HALF BATH
1 FLOOR 62' 0" WIDTH 42' 0" DEPTH 2 GARAGE BAY
A cute covered front porch warmly welcomes you home. The formal living room opens into the dining room, allowing traffic from those important dinner parties to flow easily. A fireplace warms the family room, which also accesses the rear deck. U-shaped counters enhance the kitchens efficiency. An attached private bath and a generous walk-in closet are amenities to the large master bedroom. Two secondary bedrooms share a full bath in the nearby hall. A handy laundry room conveniently sits near all the bedrooms. This home is designed with basement, slab, and crawlspace foundation options.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes interior elevations.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

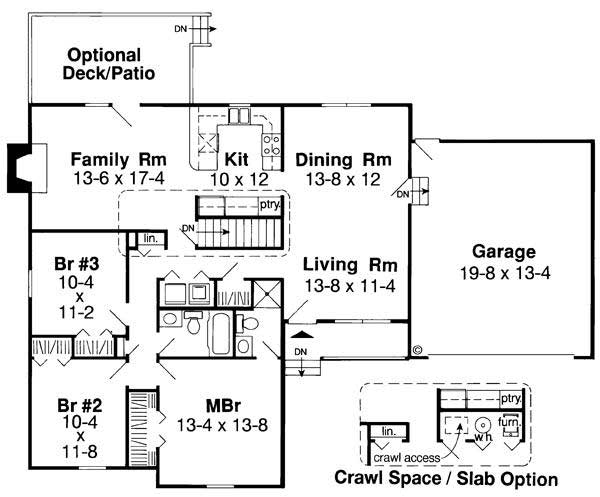

Home Plan: #131-1168 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #131-1168
Home Plan: #131-1168 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #131-1168
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 131-1168
Floors:
1
Bedrooms:
3
Full Baths:
1
Half Baths:
1

Square Footage

Heated Sq Feet:
1484
Main Floor:
1484
Unfinished Sq Ft:

Dimensions

Width:
62' 0"
Depth:
42' 0"
Ridge Height:
16' 0"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

5/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room
Family Room
Fireplace
Main Level Laundry
Split Bathroom

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x4
2x6

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom

PRICING OPTIONS

Three full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
