About Plan # 101-1060

About Plan # 101-1060

1694 SQUARE FEET 3 BEDROOMS 1 FULL BATH 1 HALF BATH
1 FLOOR 71' 0" WIDTH 50' 4" DEPTH 3 GARAGE BAY

This ranch home features a large porch flanked with massive columns large enough for enjoying a cool summer evening with your family and friends. Upon entering the foyer, you’ll be greeted by a spacious great room with large windows providing a view to the back yard. The kitchen has a breakfast bar that overlooks the dining room where you’ll love to relax with the morning paper. The master suite is tucked behind the kitchen for maximum privacy and features a tray ceiling and a walk-in closet. On the opposite side of the home, you’ll find two additional bedrooms and a full bath. The three-stall garage provides ample storage making this home appealing to many families.

Each plan set includes the following:

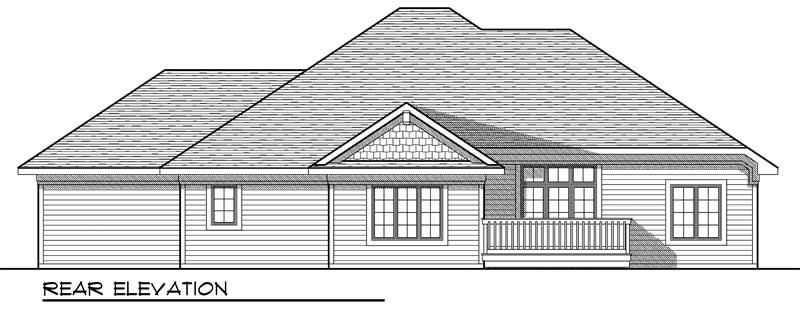

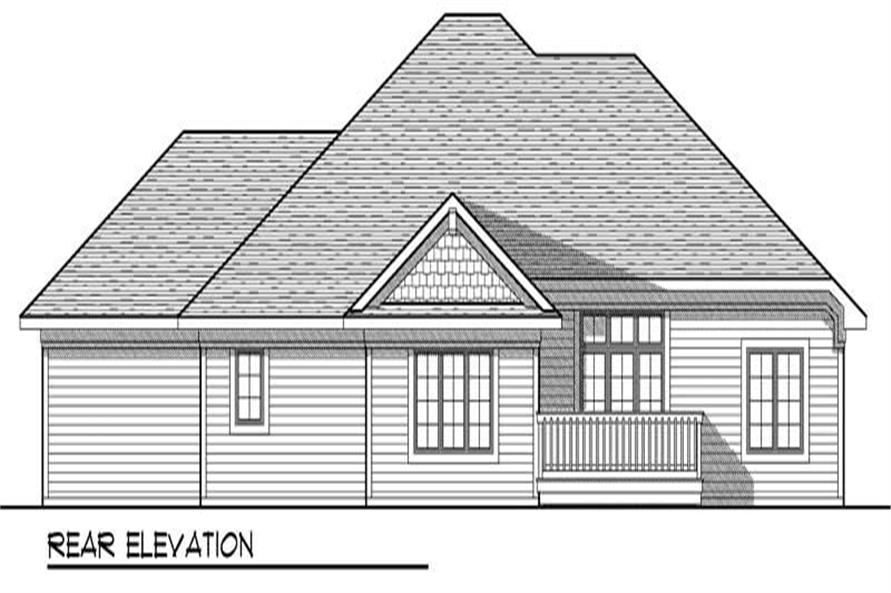

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

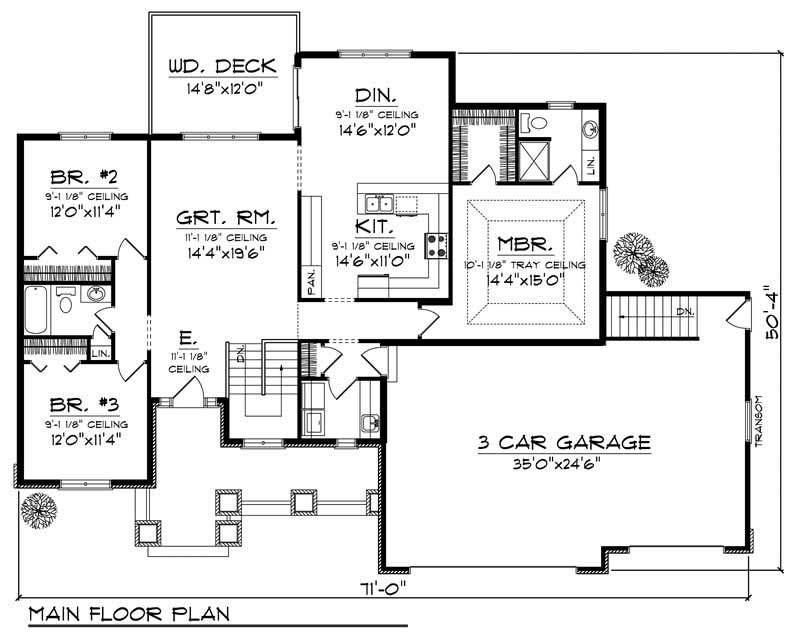

Home Plan: #101-1060 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1060
