3-Bedroom, 1479 Sq Ft Small House Plans Plan with Peninsula/Eating Bar

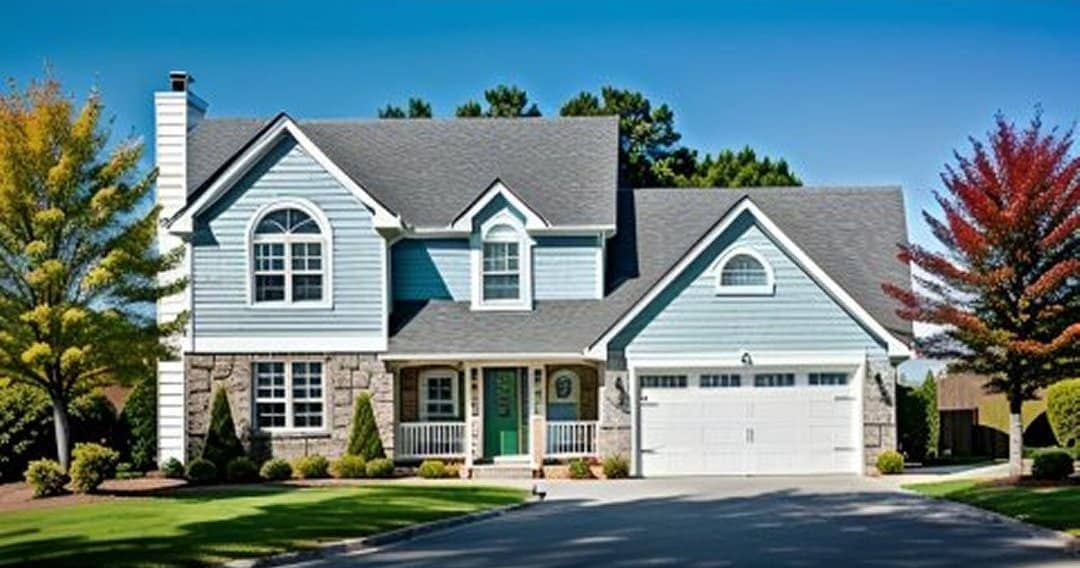

Main image for house plan # 16606

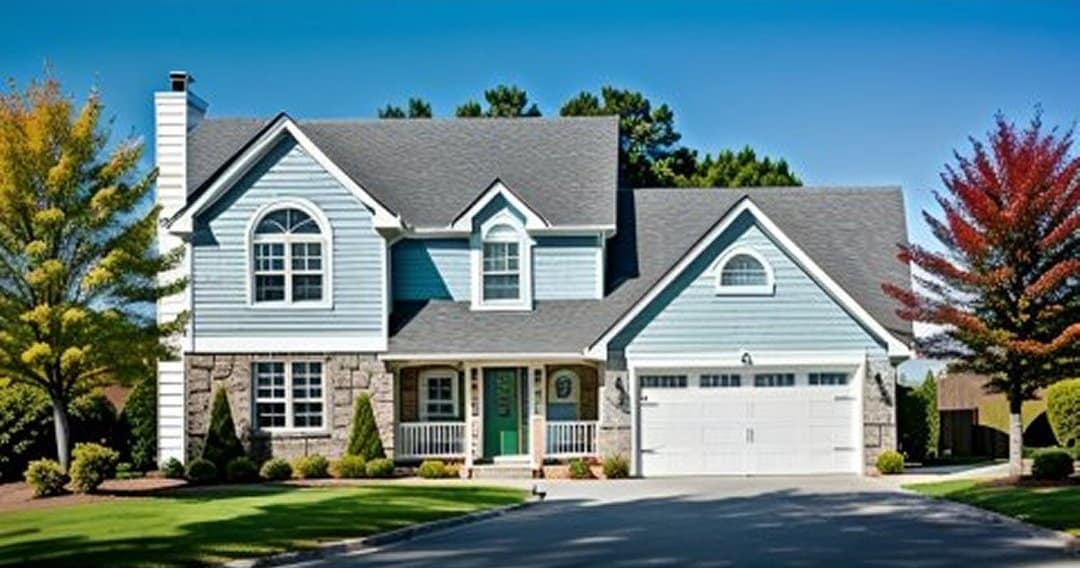

3-Bedroom, 1479 Sq Ft Small House Plans - 103-1051 - Front Exterior

About Plan # 103-1051

About Plan # 103-1051

1479 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 48' 0" WIDTH 28' 0" DEPTH 2 GARAGE BAY
This home has vaulted master bed, Jacuzzi tub, walk-in closet, optional family room, fireplace, optional bed #4, covered porch, and an optional finish basement which includes: rec room, one bed, and 3/4 bath.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: BIrd's-eye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics. Shown right on the floor plan.

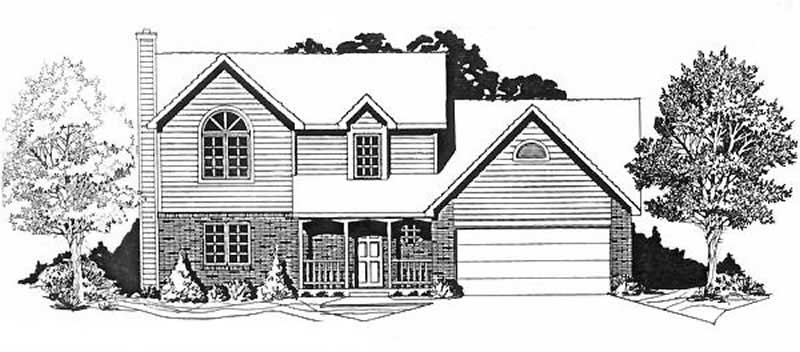

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall section and building cross section. Also includes stair details and cabinet details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

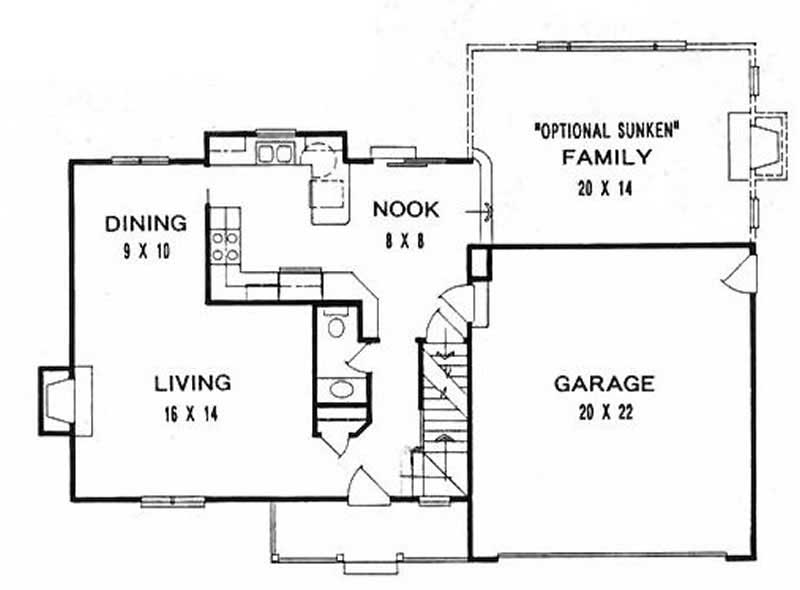

Home Plan: #103-1051 Floor Plan First Story - main Floor Plan First Story of Small House Plans #103-1051

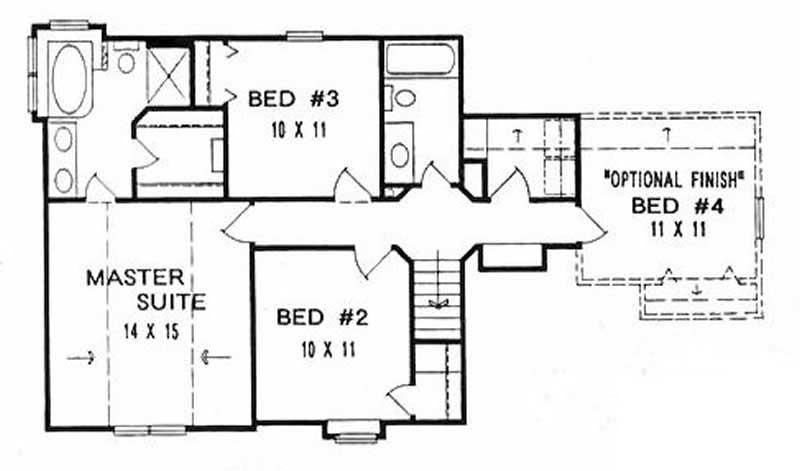

#103-1051 Floor Plan Second Story - second Floor Plan Second Story of Small House Plans #103-1051
Home Plan: #103-1051 Floor Plan First Story - main Floor Plan First Story of Small House Plans #103-1051
#103-1051 Floor Plan Second Story - second Floor Plan Second Story of Small House Plans #103-1051
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 103-1051
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1479
Main Floor:
692
Upper Floor:
787
Unfinished Sq Ft:
Lower Floor:
618
Garage :
440

Dimensions

Width:
48' 0"
Depth:
28' 0"
Ridge Height:
24' 0"

Architectural Styles

Small House Plans
Traditional

Exterior Wall Material

Aluminum Siding
Brick
Vinyl Siding
Wood Siding

Roofing Type

Gable

Roof Pitch

12/12
6/12

Ceiling Height

8 Foot Ceiling

Special Feature

Family Room

Garage Type

Attached Garage

Additional Notes from Designer

PLEASE NOTE: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. if you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
