3-Bedroom, 1375 Sq Ft Country Plan with Second Floor Master

Main image for house plan # 4047
EXTERIOR ELEVATIONS
3-Bedroom, 1375 Sq Ft Country House Plan - 153-1583 - Front Exterior

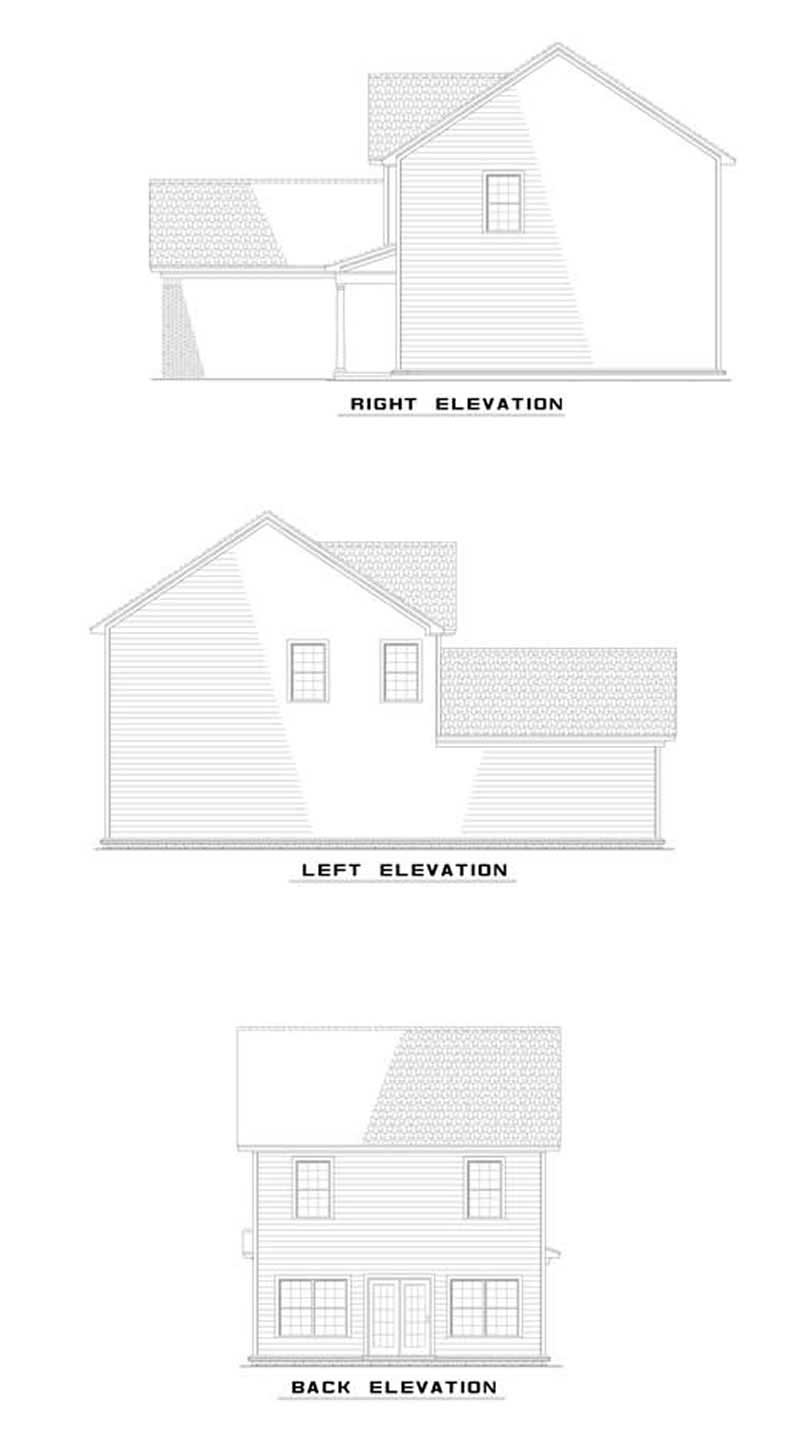

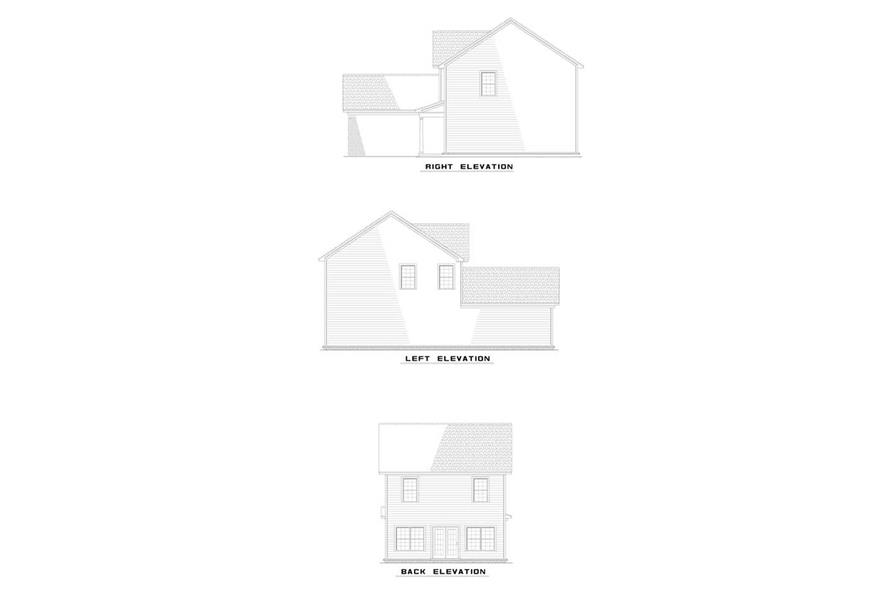

EXTERIOR ELEVATIONS

About Plan # 153-1583

About Plan # 153-1583

1375 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 25' 6" WIDTH 56' 8" DEPTH 2 GARAGE BAY
Nelson Design Group has designed this two-story home with consideration for a growing family. The main level contains all family areas, which flow together to create a wonderful family environment. The Kitchen opens the Dining Room and has a handy island for extra counter space as well as additional seating. The foyer has a convenient half bath near the stairs, that lead up to all three bedrooms including the Master Suite. A space saver laundry area is located in the Master Suite bathroom.

For a similar Log Cabin House Plan, check out House Plan NDG-1110 For a similar Log Cabin House Plan, check out House Plan NDG-1181 For a similar Log Cabin House Plan, check out House Plan NDG-1188 For a similar Log Cabin House Plan, check out House Plan NDG-1191 For a similar Log Cabin House Plan, check out House Plan NDG-416 For a similar Log Cabin House Plan, check out House Plan NDG-417 For a similar Log Cabin House Plan, check out House Plan NDG-421 For a similar Log Cabin House Plan, check out House Plan NDG-422 For a similar Log Cabin House Plan, check out House Plan NDG-649

Each plan set includes the following:

  • FLOOR PLAN(S): Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF OVERVIEW PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • BUILDING SECTIONS AND MISCELLANEOUS DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • KITCHEN AND BATH ELEVATIONS: Showing the kitchen and bath details such as cabinets.
  • ELECTRICAL DIAGRAM: Bird's-eye view of rooms defining the location of lights, fans, switches, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

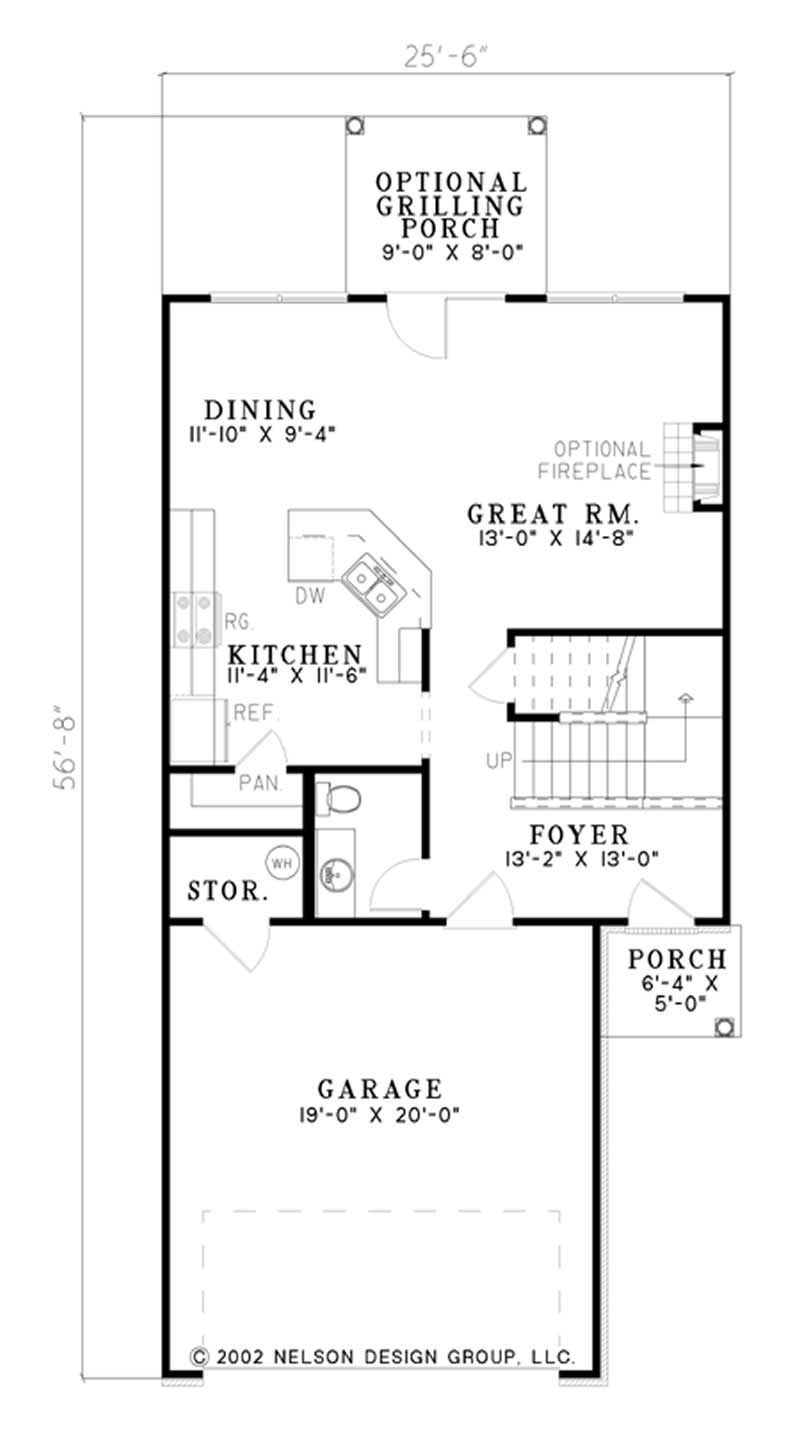

Home Plan: #153-1583 Floor Plan First Story - main Floor Plan First Story of Country Plan #153-1583

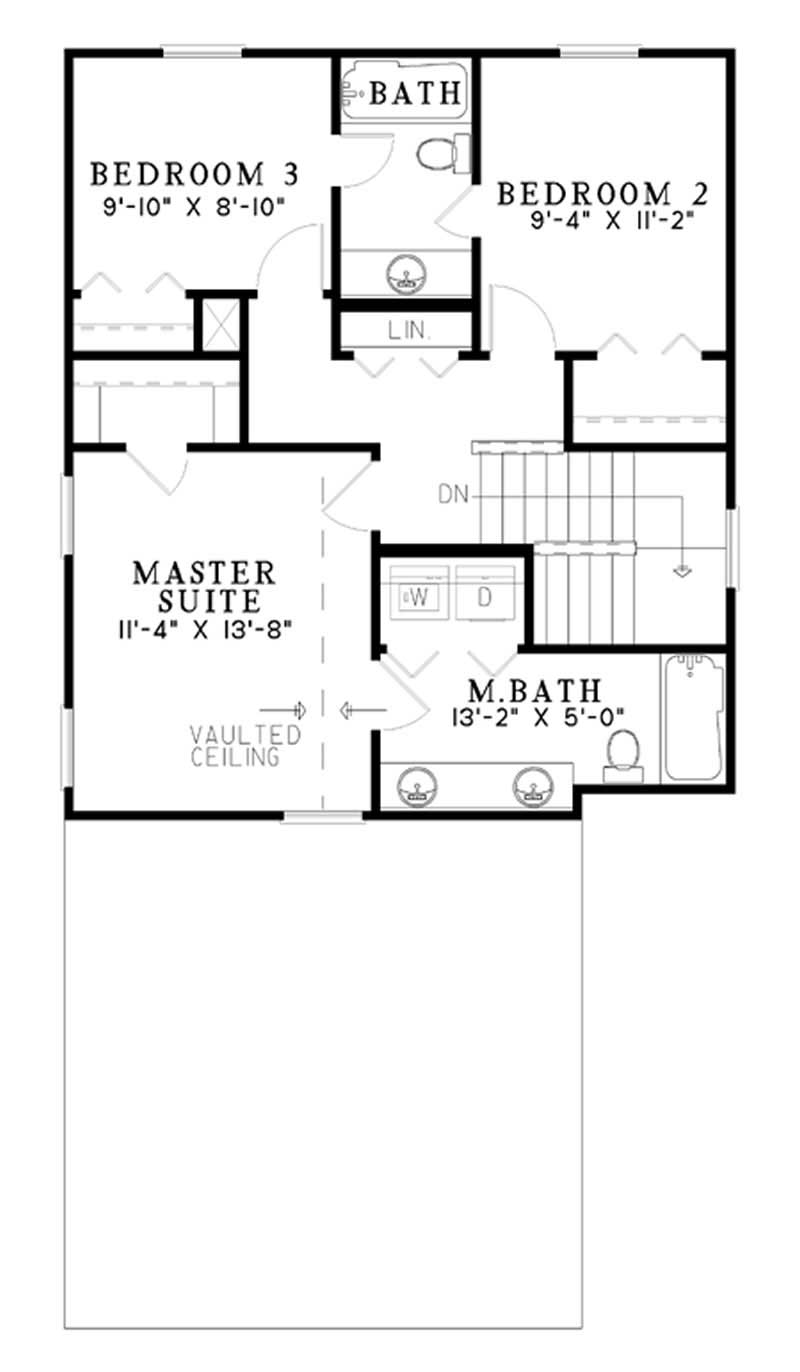

#153-1583 Floor Plan Second Story - upper level Floor Plan Second Story of Country Plan #153-1583
Home Plan: #153-1583 Floor Plan First Story - main Floor Plan First Story of Country Plan #153-1583
#153-1583 Floor Plan Second Story - upper level Floor Plan Second Story of Country Plan #153-1583
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1583
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
1375
Main Floor:
697
Upper Floor:
678
Unfinished Sq Ft:
Garage :
425

Dimensions

Width:
25' 6"
Depth:
56' 8"

Architectural Styles

Country
Small House Plans
Traditional

Exterior Wall Material

Brick
Vinyl Siding

Roofing Type

Gable

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room

Garage Type

Attached Garage

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

PLEASE NOTE: Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. Please contact us with any questions.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
