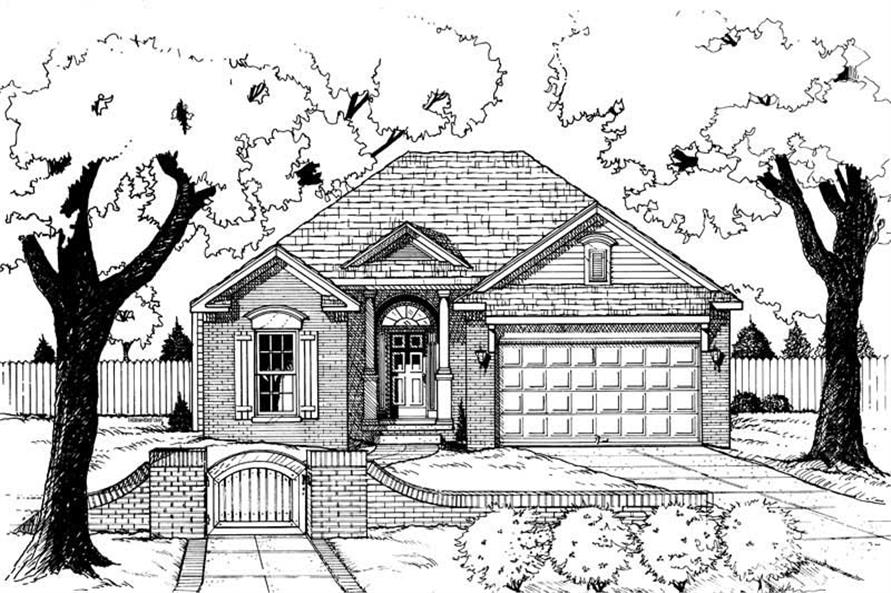

Front elevation of Ranch home (ThePlanCollection: House Plan #120-1664)

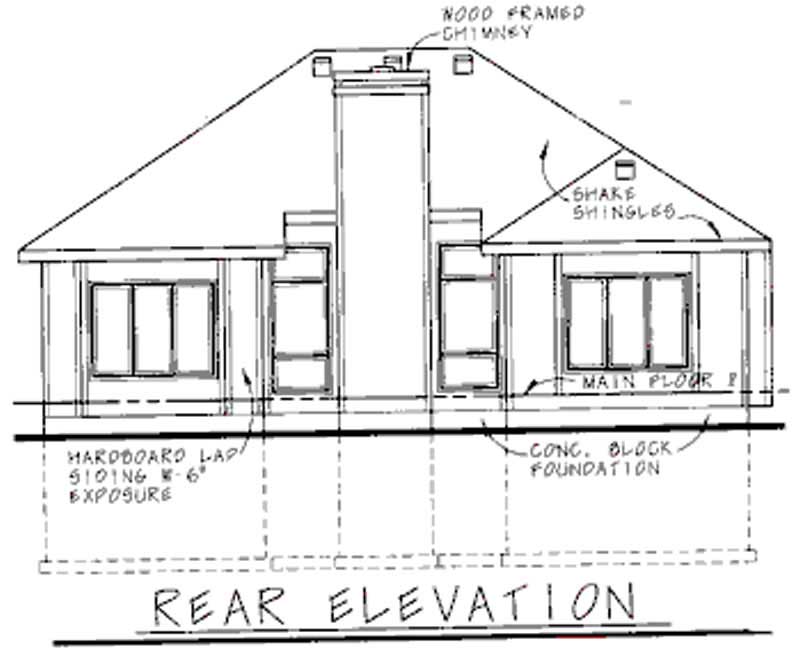

REAR ELEVATION
2-Bedroom, 1339 Sq Ft Ranch Home Plan - 120-1664 - Main Exterior
REAR ELEVATION

About Plan # 120-1664

About Plan # 120-1664

1339 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 42' 0" WIDTH 54' 0" DEPTH 2 GARAGE BAY

Garage Information Front Load Garage: 2 stalls Kitchen Information Kitchen Size: 12'-0" x 11'-11" Pantry Type: In Cabinet Eating Area Size: 12'-0" x 9'-4" Laundry Information Laundry Size: 5'-8" x 5'-8" Laundry Location: Main Level Master Bedroom Information Closet Size: 9'-11" x 8'-0" Master Bath Size: 9'-11" x 11'-3"

Most plan sets include the following:

  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are fully engineered for each design, whether slab or basement.
  • Main Level Floor Plan
  • Second Level Floor Plan
  • Electrical layout
  • Wall & Stair Sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

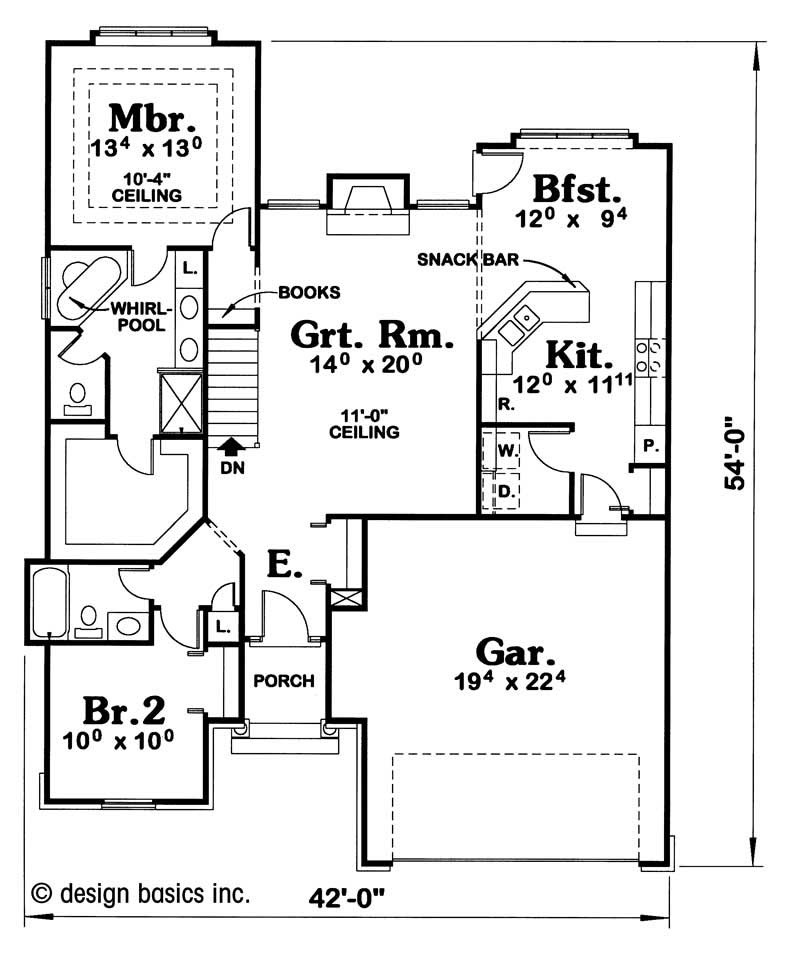

Home Plan: #120-1664 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #120-1664
Home Plan: #120-1664 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #120-1664
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 120-1664
Floors:
1
Bedrooms:
2
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1339
Main Floor:
1339
Unfinished Sq Ft:

Dimensions

Width:
42' 0"
Depth:
54' 0"

Architectural Styles

Ranch
Traditional
Transitional
Small House Plans

Exterior Wall Material

Brick

Roofing Type

Gable

Special Feature

Main Level Laundry
Split Bathroom

Garage Type

Attached Garage

Fireplaces

One Fireplace

Building Lot Type

Narrow Lot Design

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
