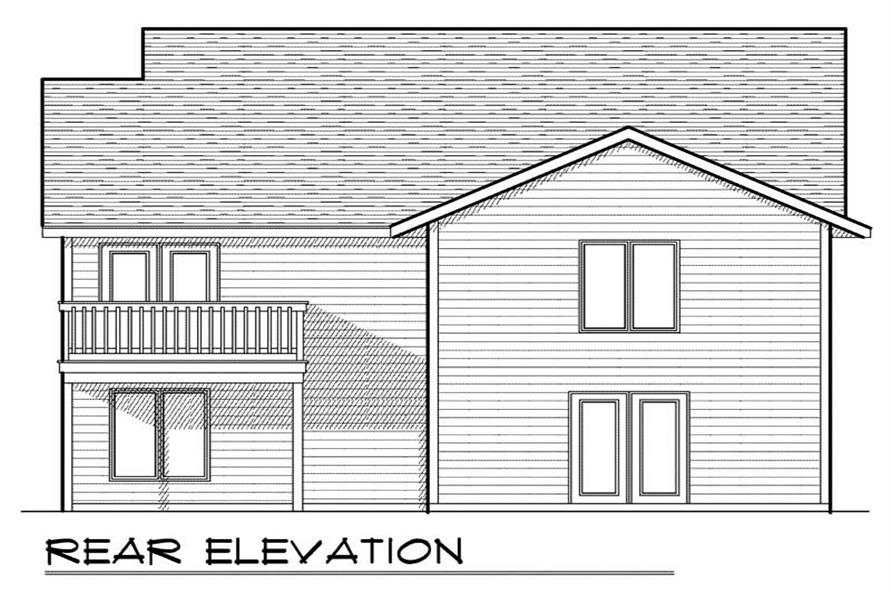

REAR ELEVATION
2-Bedroom, 1334 Sq Ft Ranch Home Plan - 101-1842 - Main Exterior
REAR ELEVATION

About Plan # 101-1842

About Plan # 101-1842

1334 SQUARE FEET 2 BEDROOMS 1 FULL BATH 0 HALF BATH
1 FLOOR 38' 0" WIDTH 53' 0" DEPTH 2 GARAGE BAY
This adorable ranch home was designed to be easy to build, affordable to buy, and attractive to a wide audience. Vaulted ceilings throughout the living areas add volume to the home making it seem larger than only 1334 square feet. The living room features a corner fireplace, and patio doors that lead to a deck for outside enjoyment. The master, complete with private bath and walk-in closet and one additional bedroom is located on the left side of the home behind the garage. A main floor laundry and two-stall garage makes this the perfect home for a family that's just starting out.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

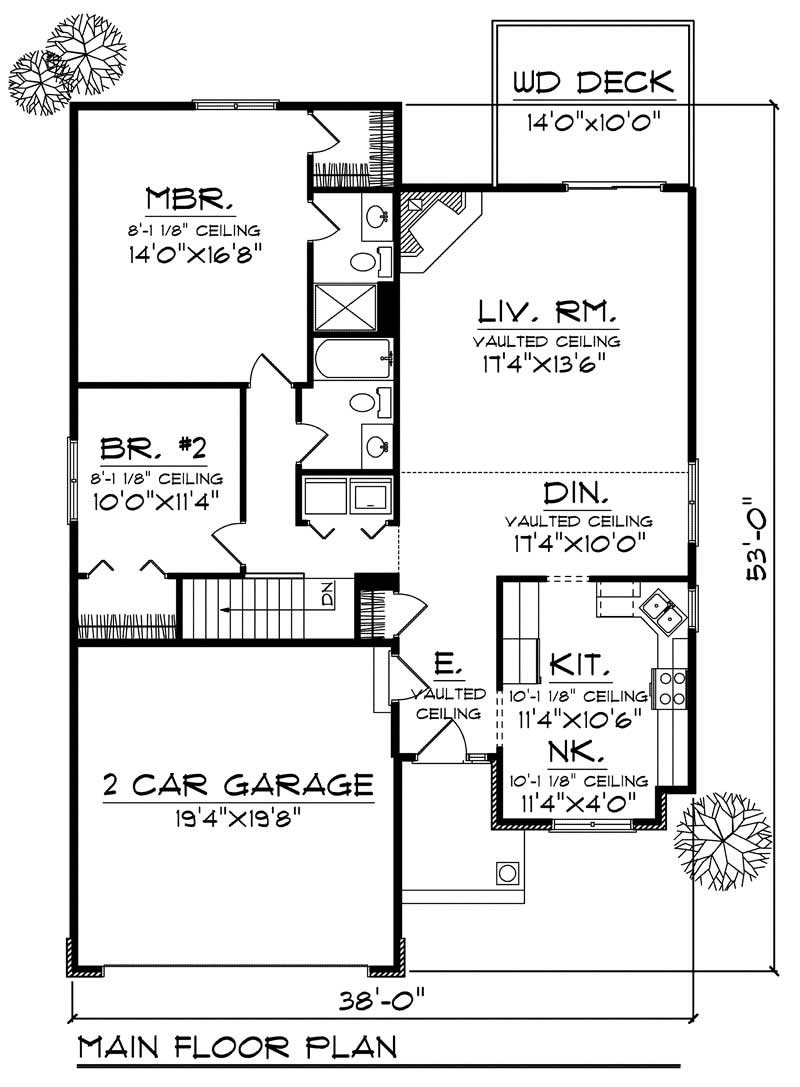

Home Plan: #101-1842 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1842
