3-Bedroom, 1317 Sq Ft Craftsman Plan with Kitchen Island

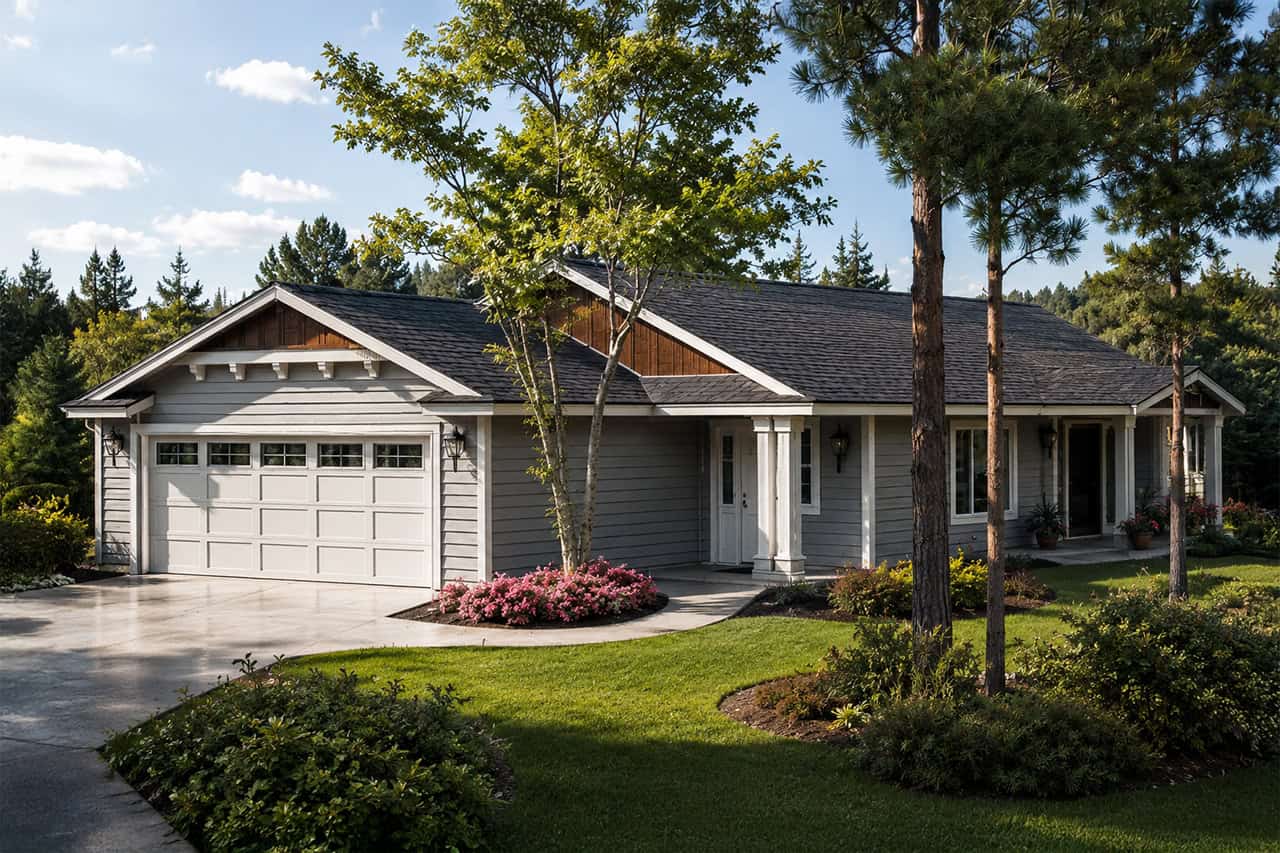

Main image for house plan # 13205
3-Bedroom, 1317 Sq Ft Craftsman House Plan - 108-1628 - Front Exterior

About Plan # 108-1628

About Plan # 108-1628

1317 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 38' 0" WIDTH 64' 0" DEPTH 0 GARAGE BAY
The Lindley is a ranch-style cottage with eye-catching Craftsman accents. Its slender profile allows it to fit neatly on a narrow width lot. The open, single-level floor plan makes it well-suited for wheelchair accessibility. Raised trim ornaments the clean-lined wooden posts that support and highlight the front porch. Board and bat siding fills the ends of the low-sloped gables, and decorative corbels underscore the gable-end projections. As you enter, the three interconnected family gathering spaces spread out before you, creating a surprising sense of spaciousness. A coat closet is to the right while the opposite door offers a direct link to the garage. The living room flows into a dining area that is open to the kitchen. Each of these three areas has a side window, with the sliding glass doors in the dining room being the largest. These offer access to a covered patio. Twin sets of slender wooden posts support the patio roof. A long eating bar rims one edge of the peninsular kitchen counter. This feature is also ideal for the supervision of homework, and for keeping family members and guests out from underfoot while they chat with the kitchen crew. Kitchen counter space wraps around four sides, providing expansive work surfaces for families that enjoy cooking together. A small pantry adds to the already generous cupboard space, and a door at the rear opens onto a stoop. The family dog will love this feature. Three bedrooms, two bathrooms and a utility alcove fill the left side. The plan's owners suite has a large walk-in closet and private bathroom with oversized shower.

Each plan set includes the following:

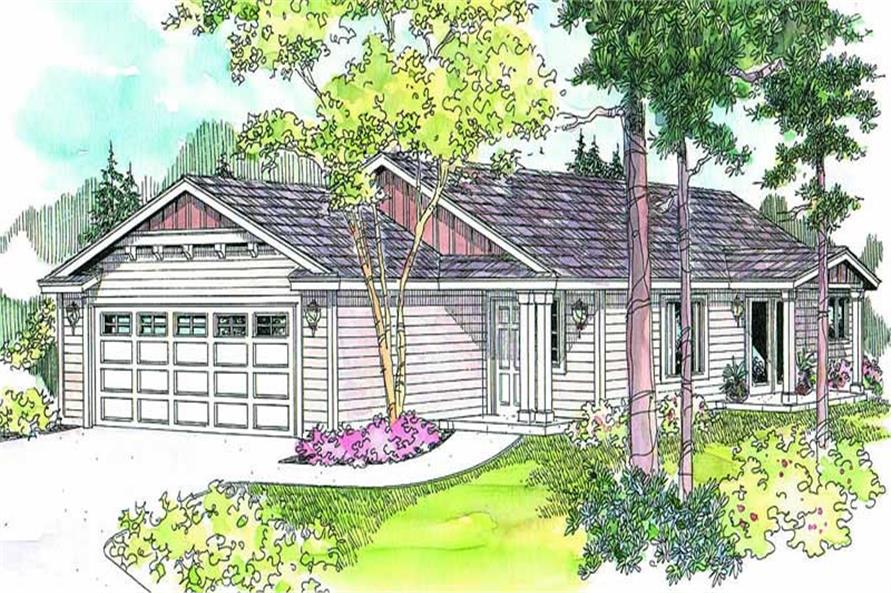

  • ARTIST'S RENDERING: An artist's drawing of the home, usually viewed from the front, and general construction notes.

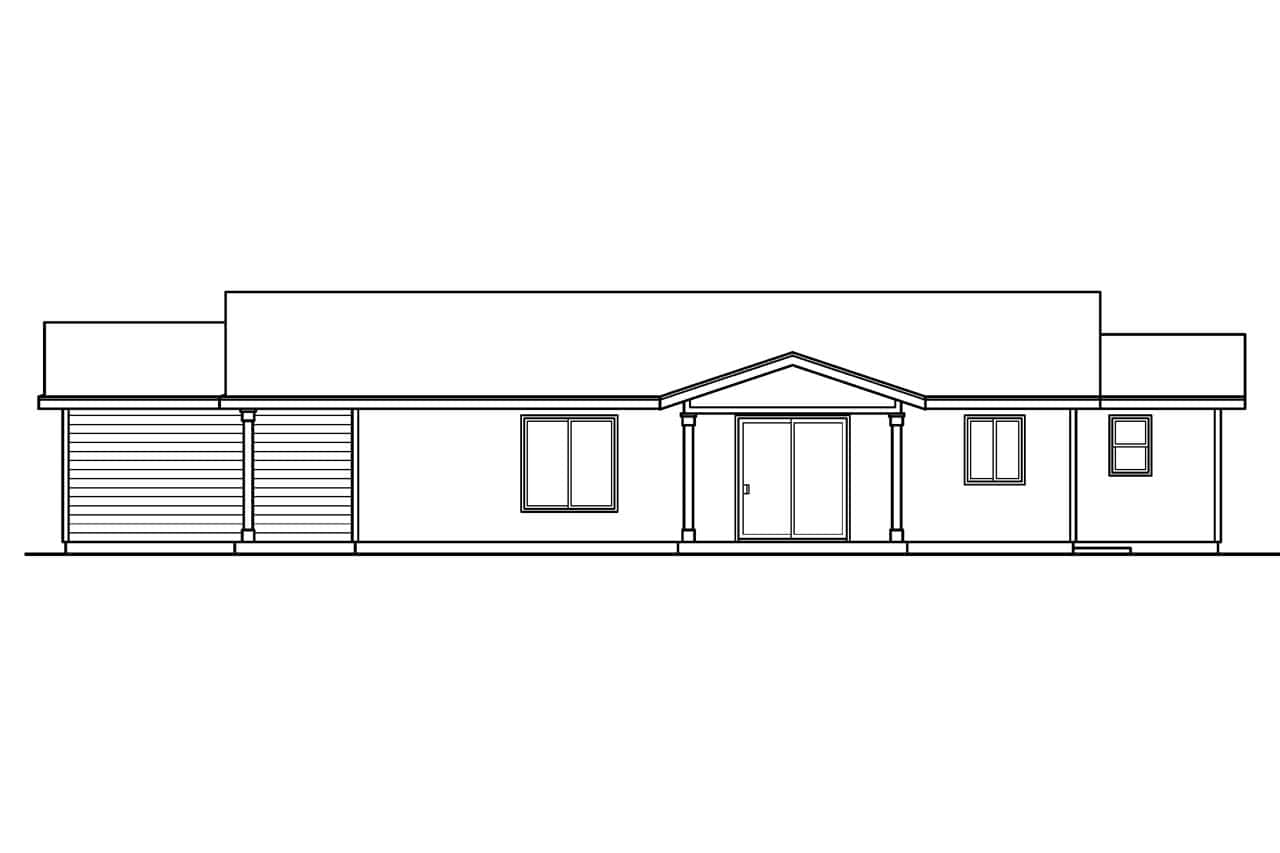

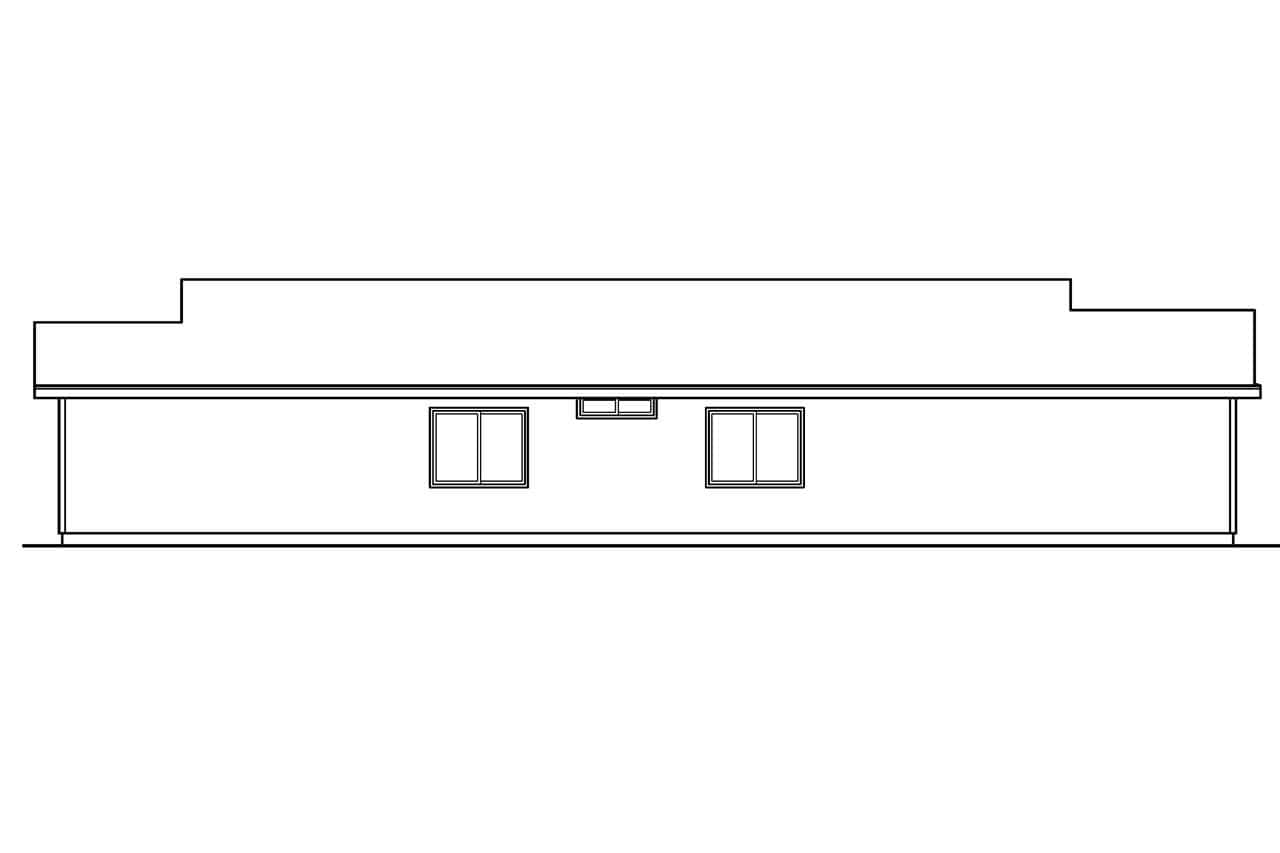

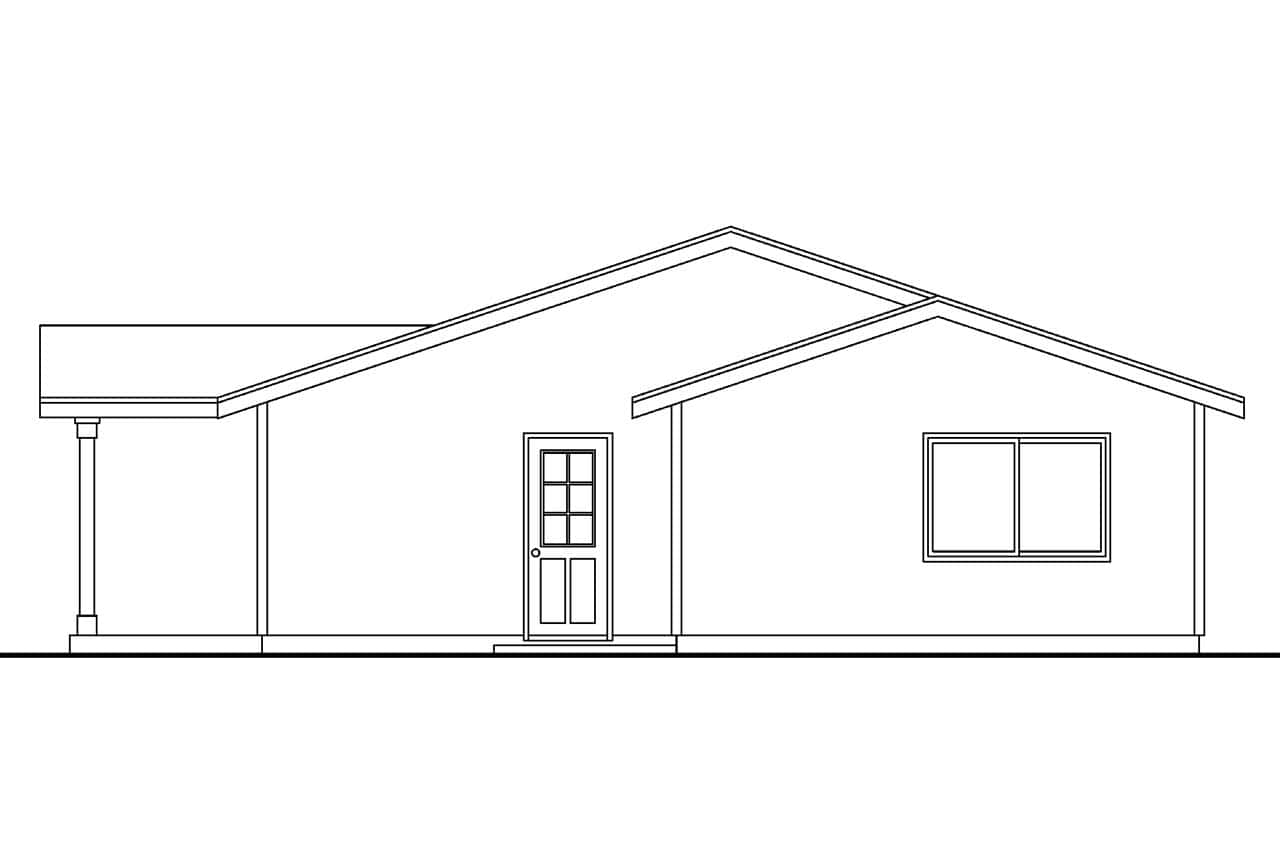

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Each plan set is drawn at 1/4"=1' scale. Showing the placement and dimensions of all walls, windows, and doors. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • SECOND FLOOR PLAN (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • FOUNDATION PLAN: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • ROOF FRAMING PLAN: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
  • SECTIONS AND DETAILS: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: A schematic layout of all lighting, switches, and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

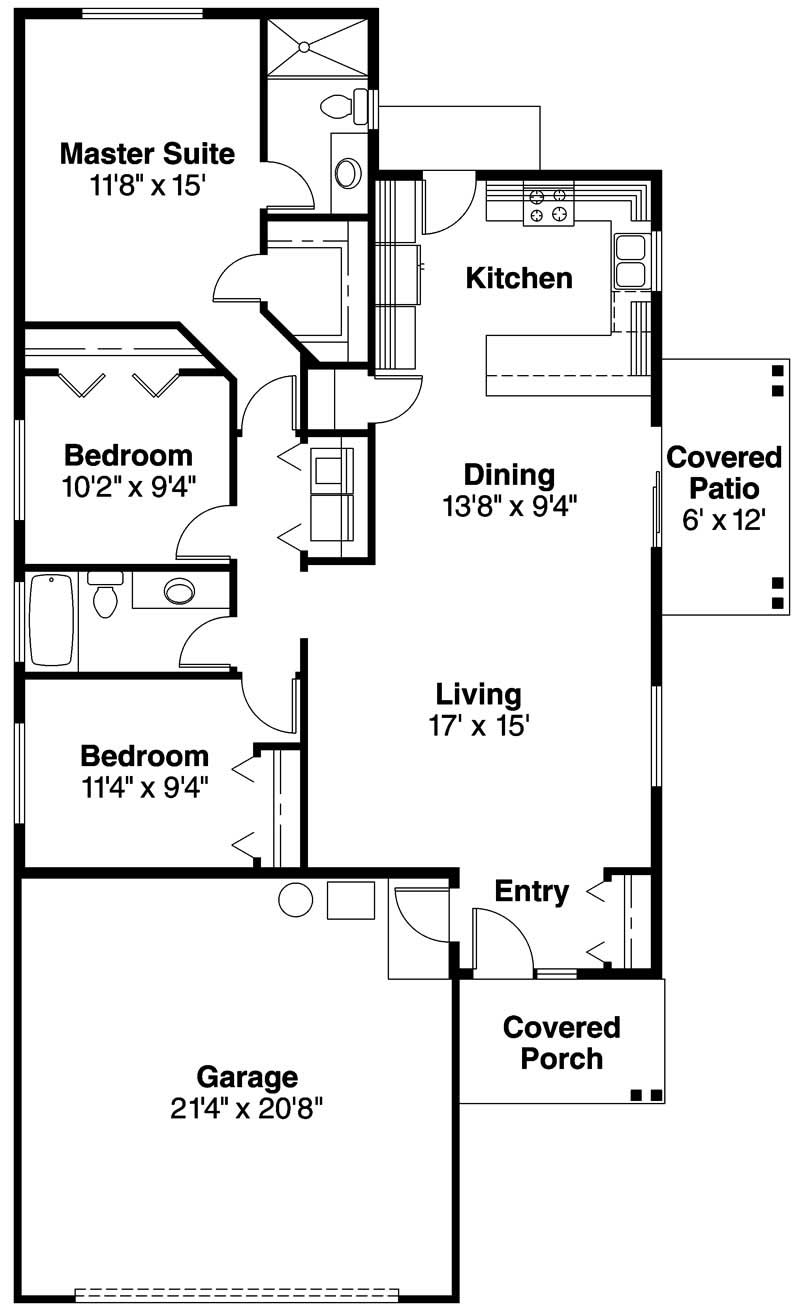

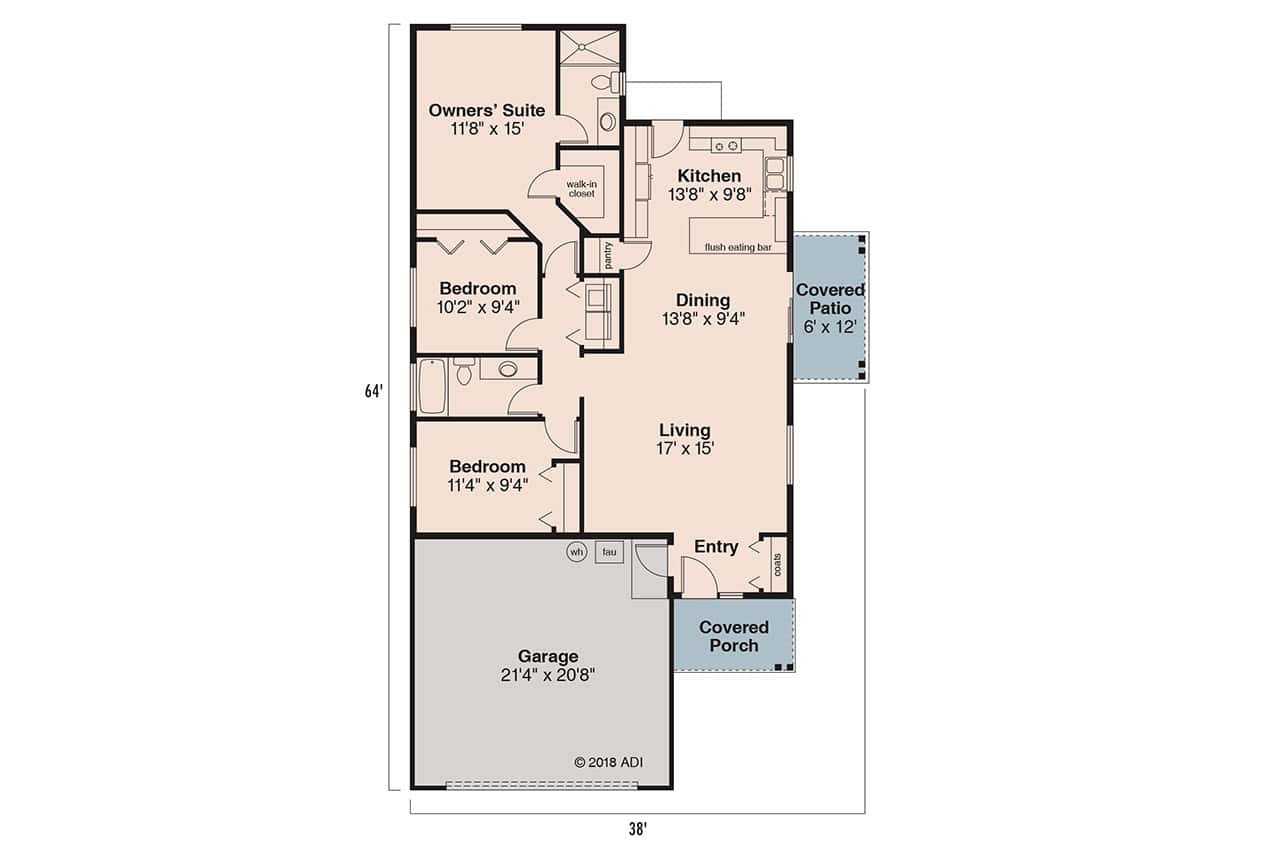

Home Plan: #108-1628 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #108-1628
Home Plan: #108-1628 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #108-1628
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1628
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1317
Main Floor:
1317
Unfinished Sq Ft:

Dimensions

Width:
38' 0"
Depth:
64' 0"

Architectural Styles

Craftsman
Log Cabin
Small House Plans

Exterior Wall Material

Aluminum Siding

Roof Pitch

4/12

Ceiling Height

8 Foot Ceiling

Garage Type

Front Entry

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
