3-Bedroom, 1244 Sq Ft Ranch Plan with High Ceilings

Ranch home (ThePlanCollection: Plan #177-1055)

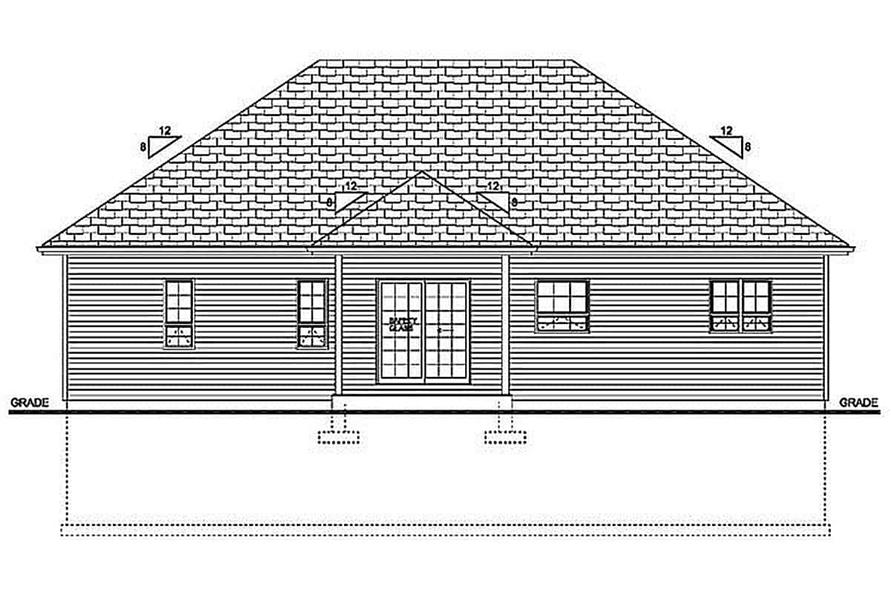

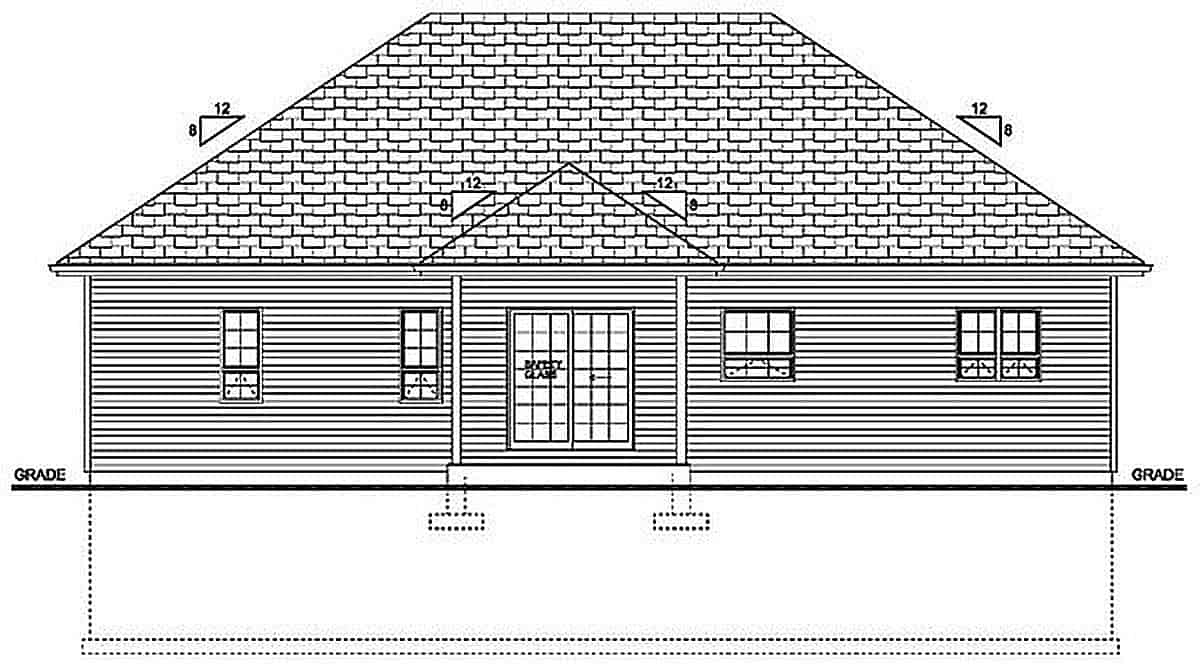

177-1055: Home Plan Rear Elevation

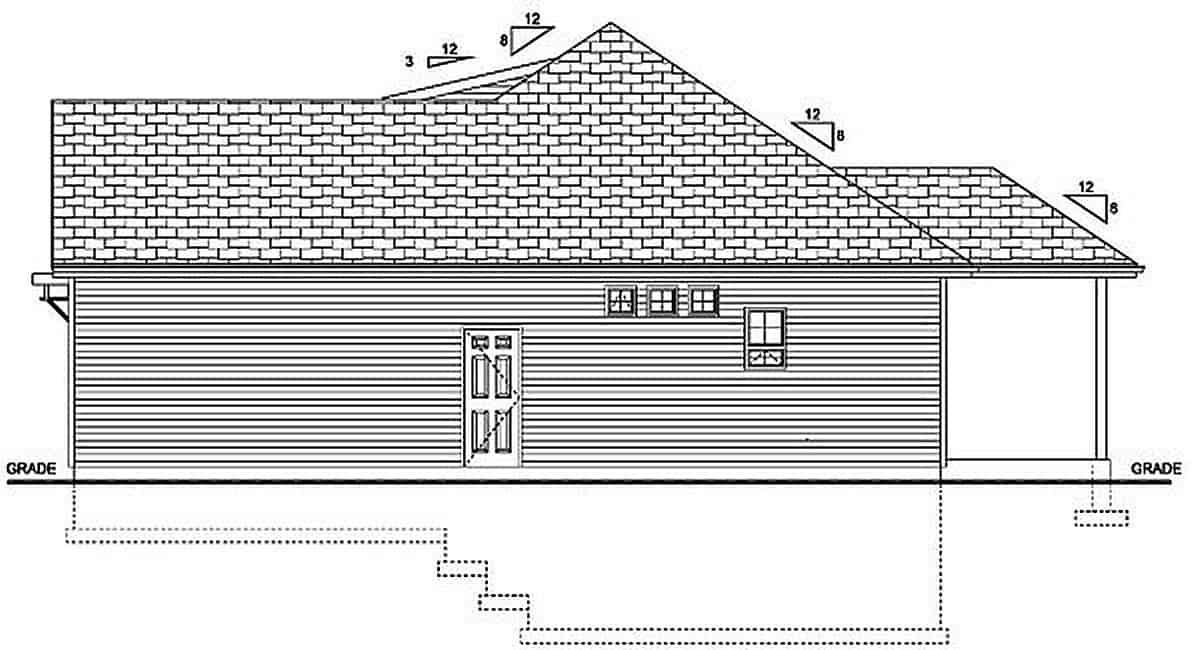

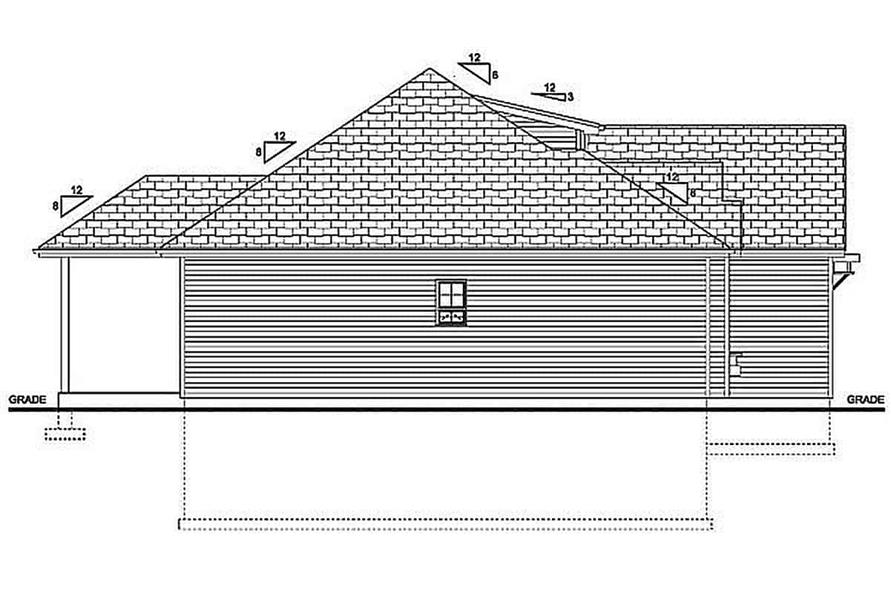

177-1055: Home Plan Left Elevation

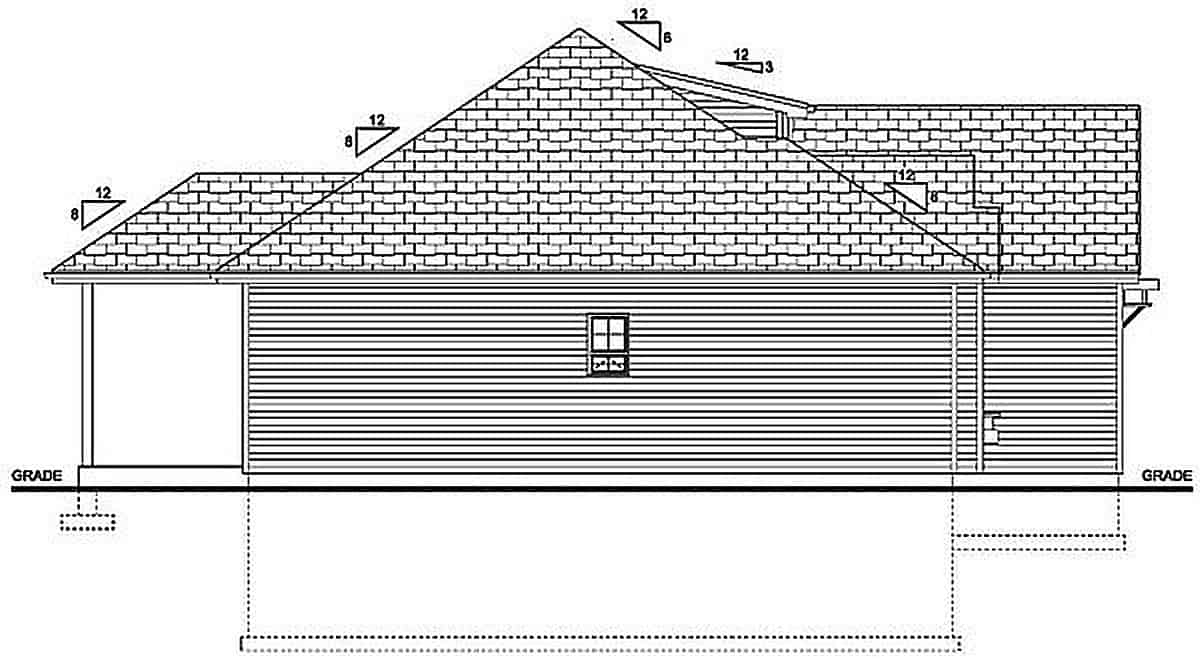

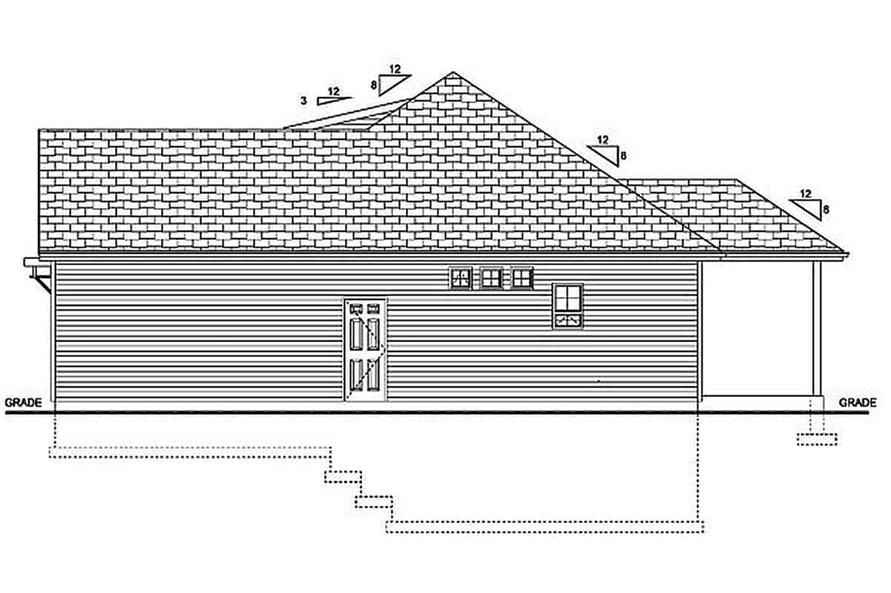

177-1055: Home Plan Right Elevation
177-1055: Home Plan Rendering-Great Room
3-Bedroom, 1244 Sq Ft Ranch House - Plan #177-1055 - Front Exterior
177-1055: Home Plan Rear Elevation
177-1055: Home Plan Left Elevation
177-1055: Home Plan Right Elevation
177-1055: Home Plan Rendering-Great Room

About Plan # 177-1055

About Plan # 177-1055

1244 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 48' 0" WIDTH 50' 0" DEPTH 1 GARAGE BAY

Enjoy the comfort and convenience that this Ranch-Country style home provides. Modest in size but large in living, the house has tall ceilings for a voluminous feel and a functional design that gets the most out of the square footage, not the least because of its open floor plan. The elegant 1-story floor plan has 1244  square feet of living space and includes 3 bedrooms and 2 full bathrooms.





Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

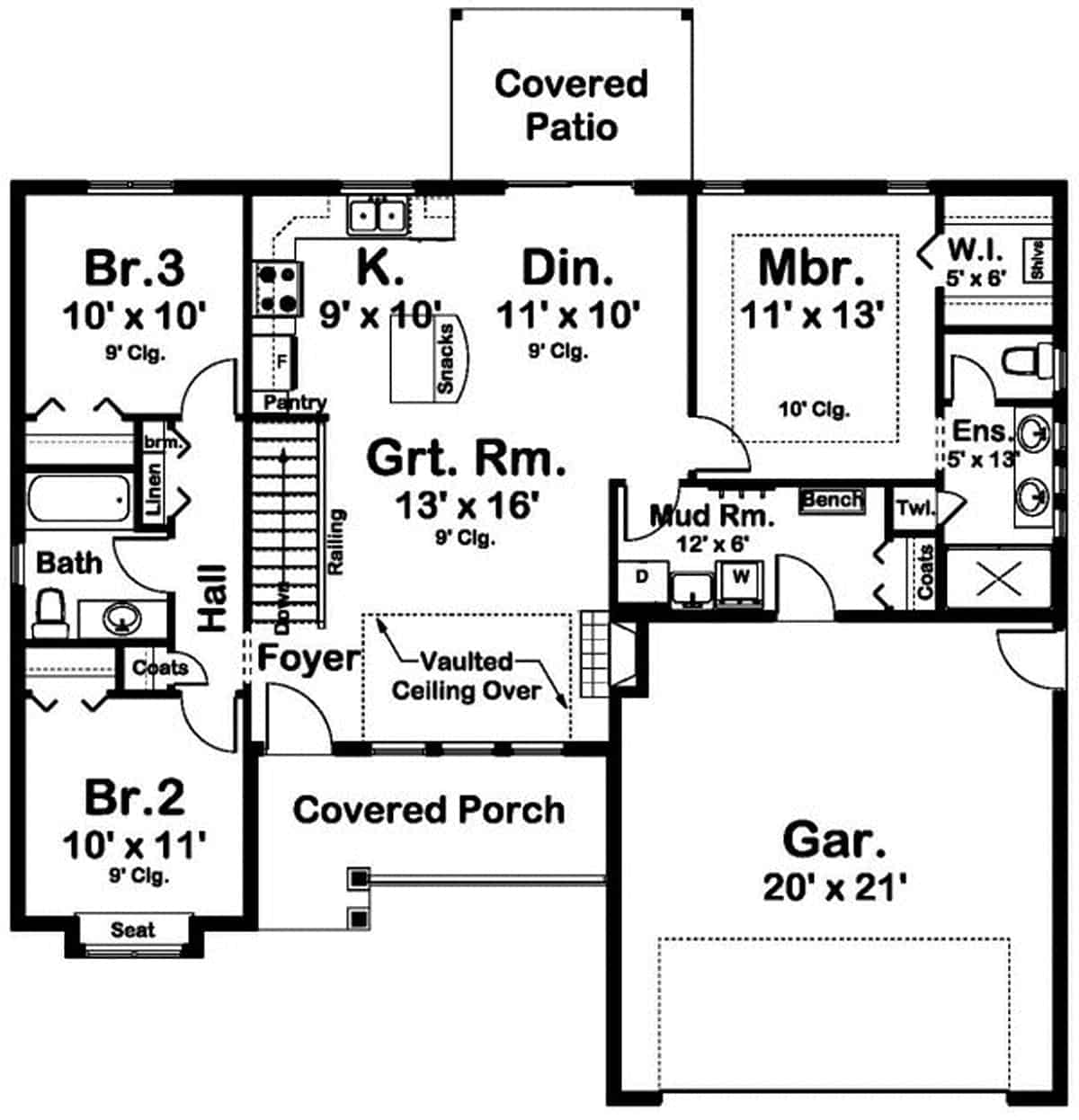

Home Plan: #177-1055 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #177-1055
Home Plan: #177-1055 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #177-1055
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 177-1055
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
1

Square Footage

Heated Sq Feet:
1244
Main Floor:
1244
Unfinished Sq Ft:
Porch :
195

Dimensions

Width:
48' 0"
Depth:
50' 0"
Ridge Height:
20' 7"

Architectural Styles

Country
Ranch
Small House Plans
Traditional

Exterior Wall Material

Shakes
Vinyl Siding
Wood Siding

Roofing Type

Gable
Gable/Shed Dormer
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

3/12
8/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Family Room
Fireplace
Main Level Laundry
Mud Room
Open Floor Plan
Split Bathroom
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Kitchen Features

Kitchen Island
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please send us a mod request to receive a quote.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.

Package & Price Help
Select Plan Package
Select Foundation
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}

How much will this plan cost to build?

- OR -

Modify this plan

This plan can be customized
Contact us for free quote

Modify this plan

This plan can be customized
Contact us for free quote
