0-Bedroom, 1058 Sq Ft Garage w/Apartments Plan with Peninsula/Eating Bar

This is a computer rendering of these Garage Home Plans.

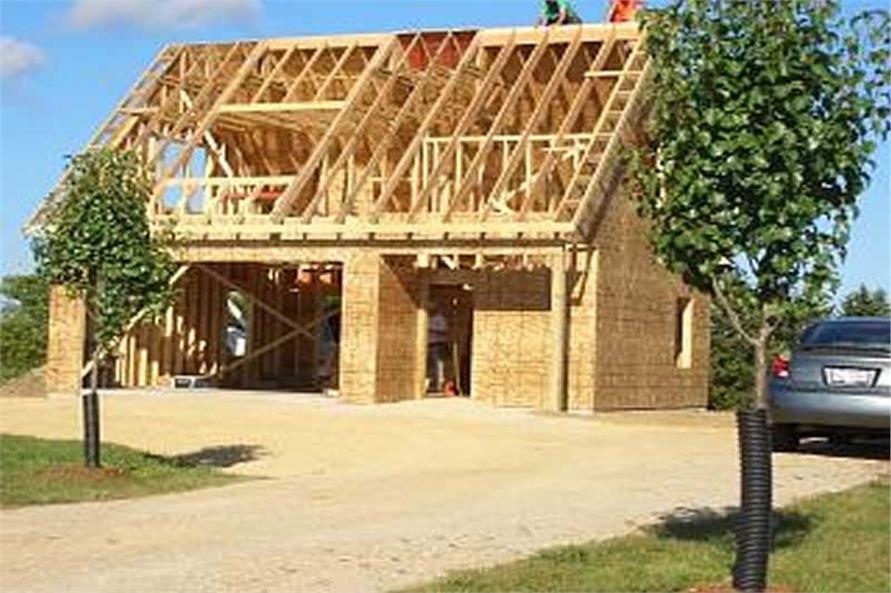

Home Exterior Photograph
Home Exterior Photograph
Home Exterior Photograph
Home Exterior Photograph
Home Exterior Photograph
Home Exterior Photograph
0-Bedroom, 1058 Sq Ft Garage w/Apartments Home Plan - 160-1023 - Main Exterior
Home Exterior Photograph
Home Exterior Photograph
Home Exterior Photograph
Home Exterior Photograph
Home Exterior Photograph
Home Exterior Photograph

About Plan # 160-1023

About Plan # 160-1023

1058 SQUARE FEET 0 BEDROOMS 0 FULL BATH 0 HALF BATH
2 FLOOR 30' 0" WIDTH 25' 0" DEPTH 2 GARAGE BAY
The spacious open workshop and volume ceiling accommodates everyone from the hobby enthusiast up to the energetic rock wall climber. The oversized garage depth easily handles larger vehicles or incorporate a full width workbench to create additional storage space. The second level unfinished storage loft is presently accessed by a ladder. Add a staircase to transform this bonus area into a quaint home office or exercise room retreat enhanced with a large view dormer and generous window openings.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

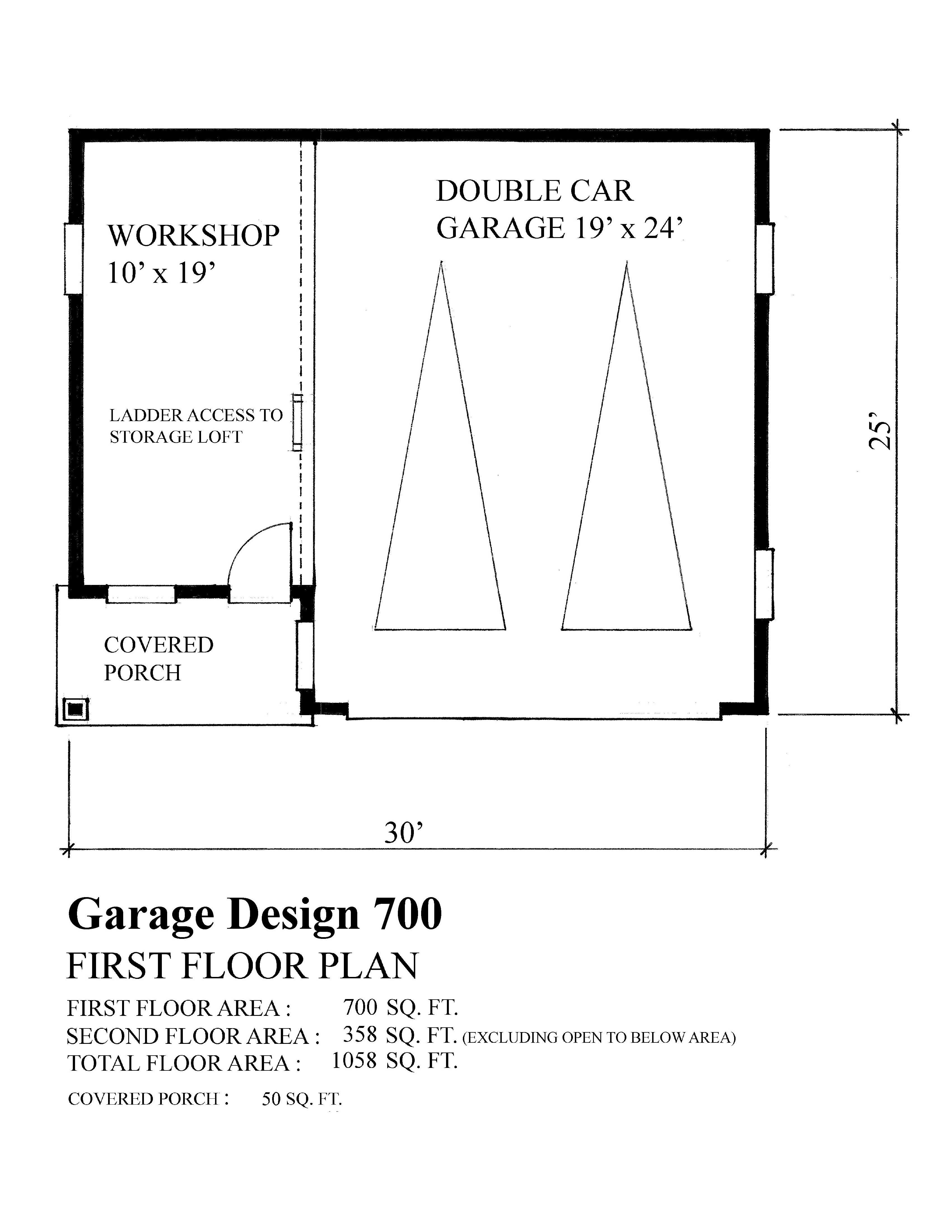

Home Plan: #160-1023 Floor Plan First Story - first story Floor Plan First Story of Garage w/Apartments Plan #160-1023

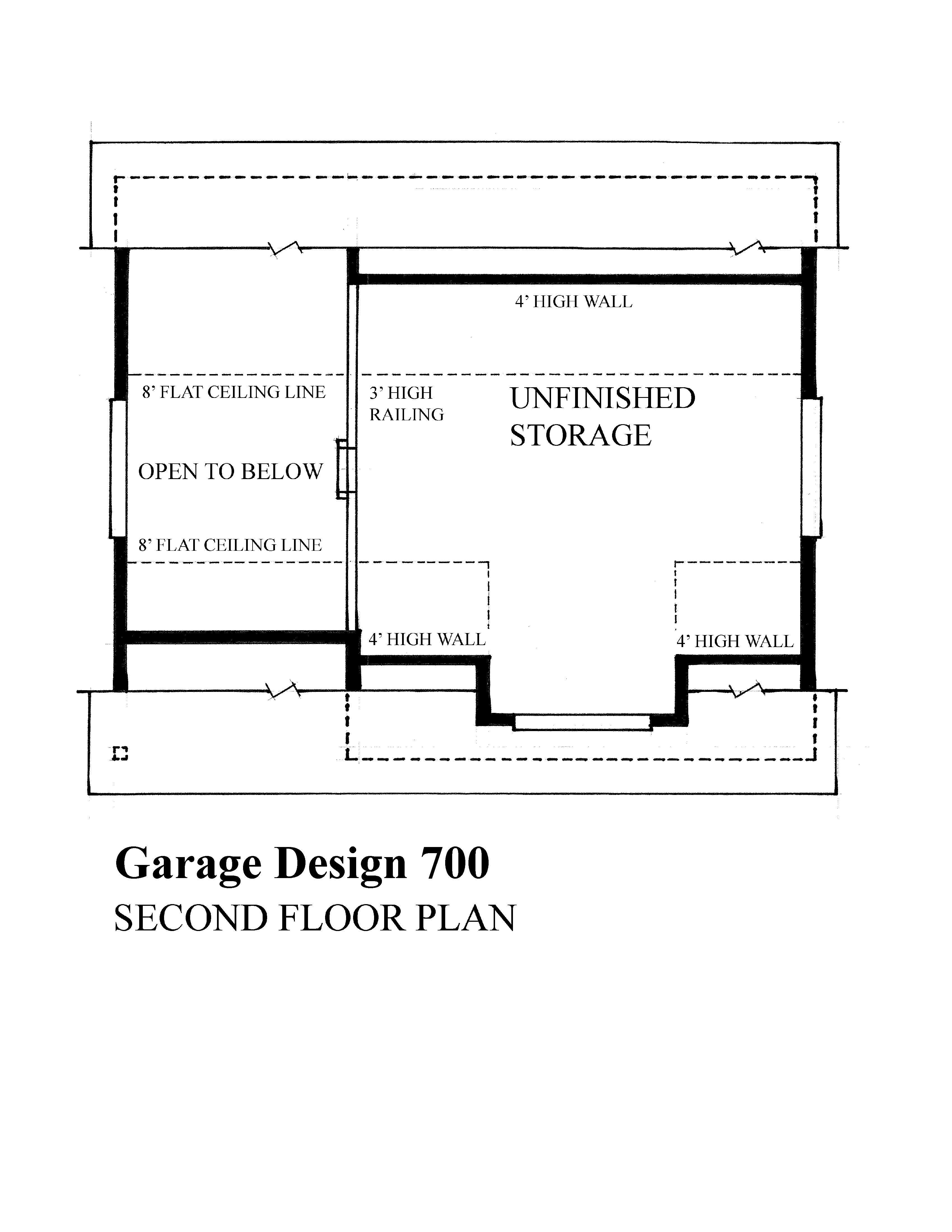

#160-1023 Floor Plan Second Story - second story Floor Plan Second Story of Garage w/Apartments Plan #160-1023
