4-Bedroom, 2266 Sq Ft European Plan with Walk In Closet

Main image for house plan # 9877
4-Bedroom, 2266 Sq Ft European House Plan - 105-1005 - Front Exterior

About Plan # 105-1005

About Plan # 105-1005

2266 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 55' 0" WIDTH 65' 0" DEPTH 2 GARAGE BAY
This home's elaborate arched entry and round-top windows create a magnificent exterior, while the interior flow creates space and surprises around every corner. The central Great Room boasts a cathedral ceiling and a corner fireplace incorporated into a unique octagonal design. The modern kitchen serves the dinette and the formal dining room. The family room boasts access to the backyard patio. The master bedroom provides a tray ceiling, a walk-in closet and a private bath with a garden tub and a dual-sink vanity. Three additional bedrooms share the two full hall baths.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes a typical wall section, special detail sections, and kitchen cabinet elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and location
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

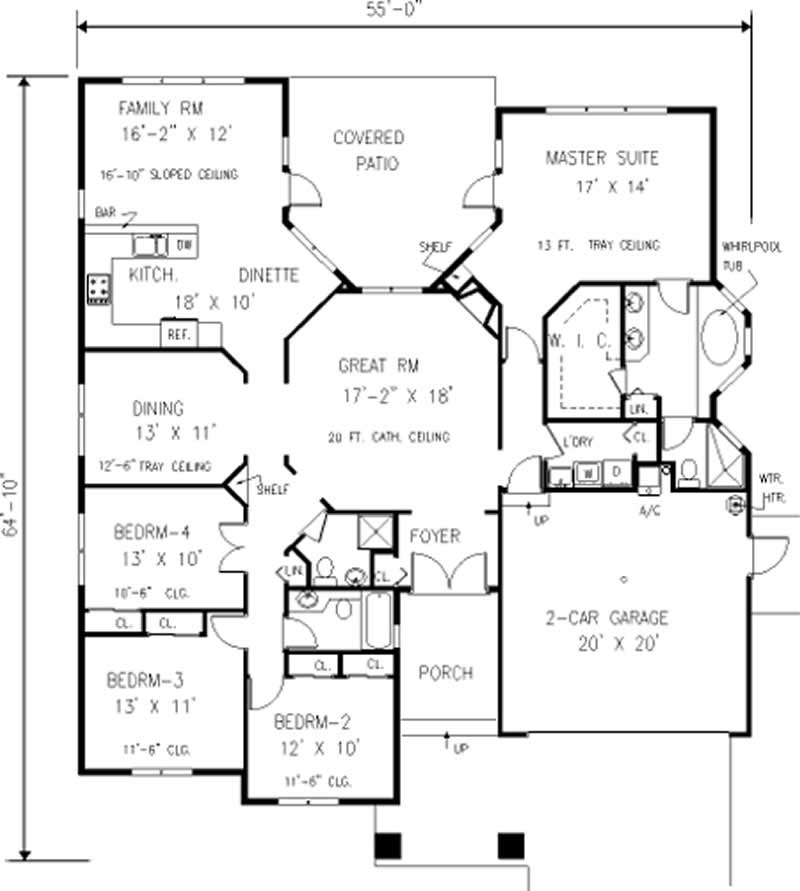

Home Plan: #105-1005 Floor Plan First Story - first Floor Plan First Story of European Plan #105-1005
