10433 Sq Ft, 7 Bedroom Floor Plan with Eat-In Kitchen

Front elevation of Luxury home (ThePlanCollection: House Plan #107-1189)
107-1189: Home Plan Front Elevation
7-Bedroom, 10433 Sq Ft Luxury Home Plan - 107-1189 - Main Exterior
107-1189: Home Plan Front Elevation

About Plan # 107-1189

About Plan # 107-1189

10433 SQUARE FEET 7 BEDROOMS 7 FULL BATH 2 HALF BATH
1 FLOOR 99' 2" WIDTH 127' 10" DEPTH 4 GARAGE BAY

This home plan provides the following relaxing qualities: Concrete block exterior construction, Covered Entry with round columns Foyer open to above with grand staircase Living Room open to above with access to Rear Covered Patio Sliding doors to Lounge with bar Dining Room with French doors to 3 entrances and Serving Room/Butler's Pantry Family Room with access to Covered Patio and open to Breakfast Room and Kitchen Kitchen with snack bar, island and walk-in Pantry Library with coffered ceiling Living Room with Kitchenette for Maid's Quarters Maid's Bedroom with walk-in closet and private bath Laundry Room with ample counter space and built-in ironing board Exercise Room with French doors to Rear Patio Steam Room Media Room Princess Suite with whirlpool tub, corner shower and walk-in closet Elevator Master Suite with Sitting Area, coffered ceiling and access to Covered Balcony Two walk-in closets Master Bath with whirlpool tub and shower -- two baths Bedrooms 2,3,4 and 5 with walk-in closets and private baths

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

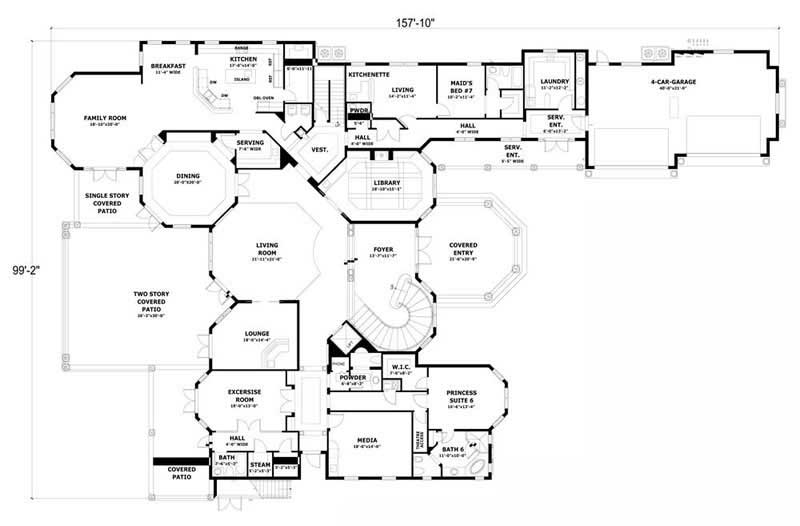

Home Plan: #107-1189 Floor Plan First Story - main level Floor Plan Main Level of Luxury Plan #107-1189

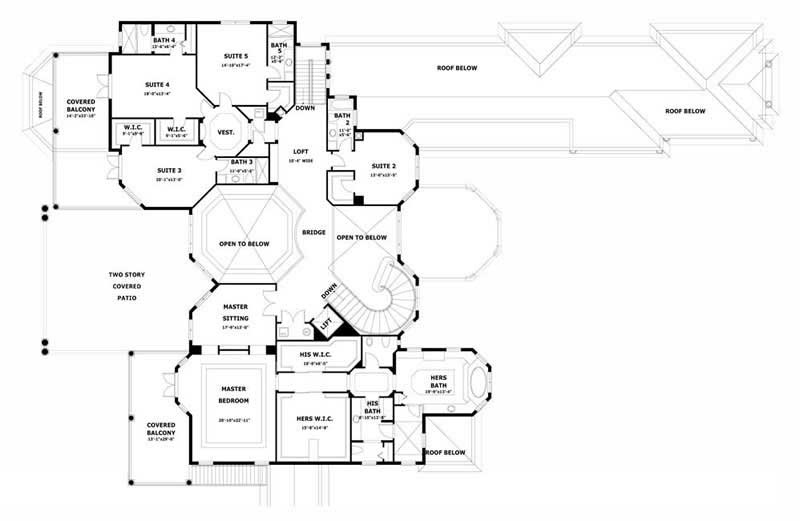

#107-1189 Floor Plan Second Story - upper level Floor Plan Upper Level of Luxury Plan #107-1189

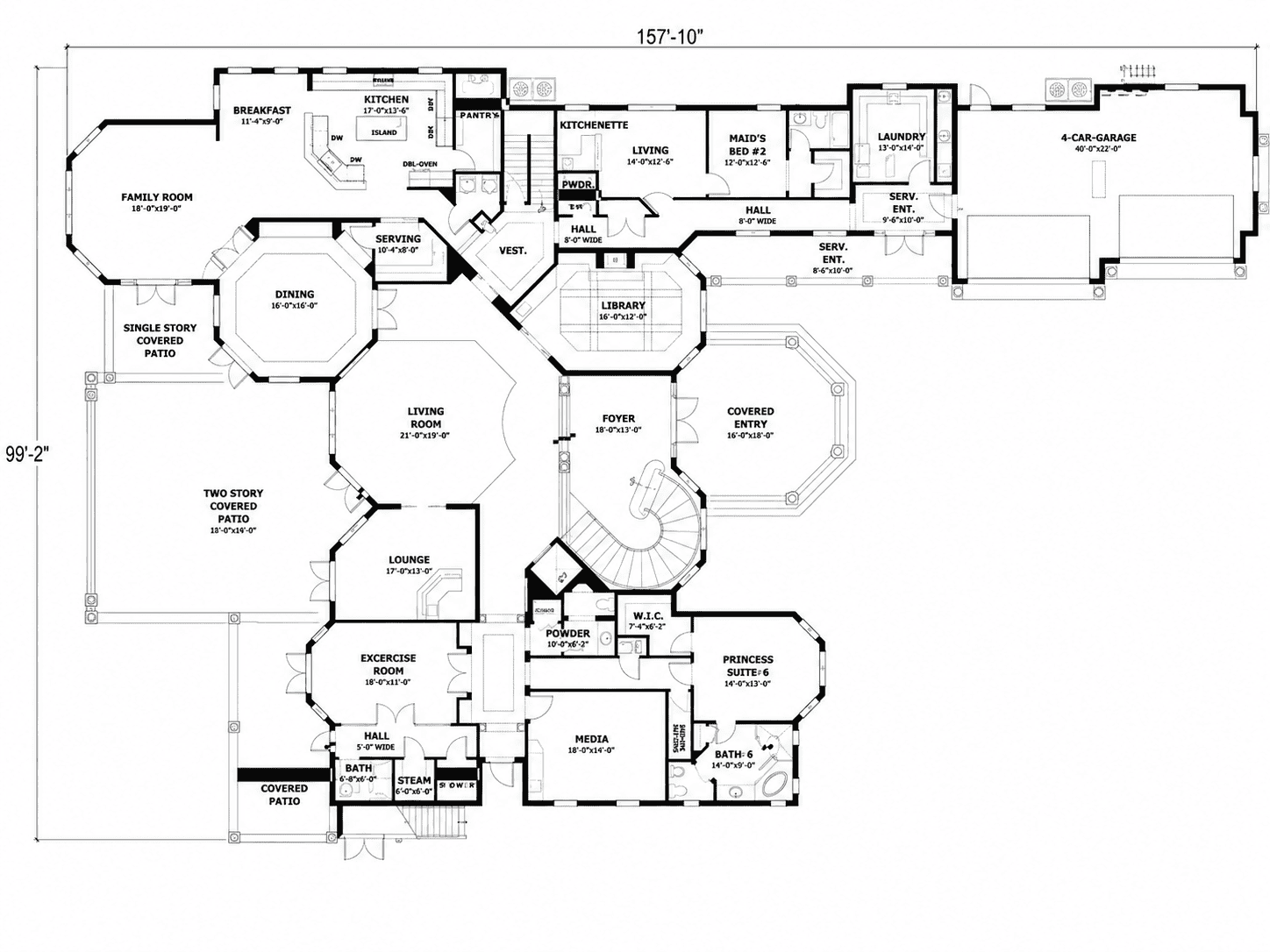

Home Plan: #107-1189 Floor Plan First Story - main level Floor Plan Main Level of Luxury Plan #107-1189

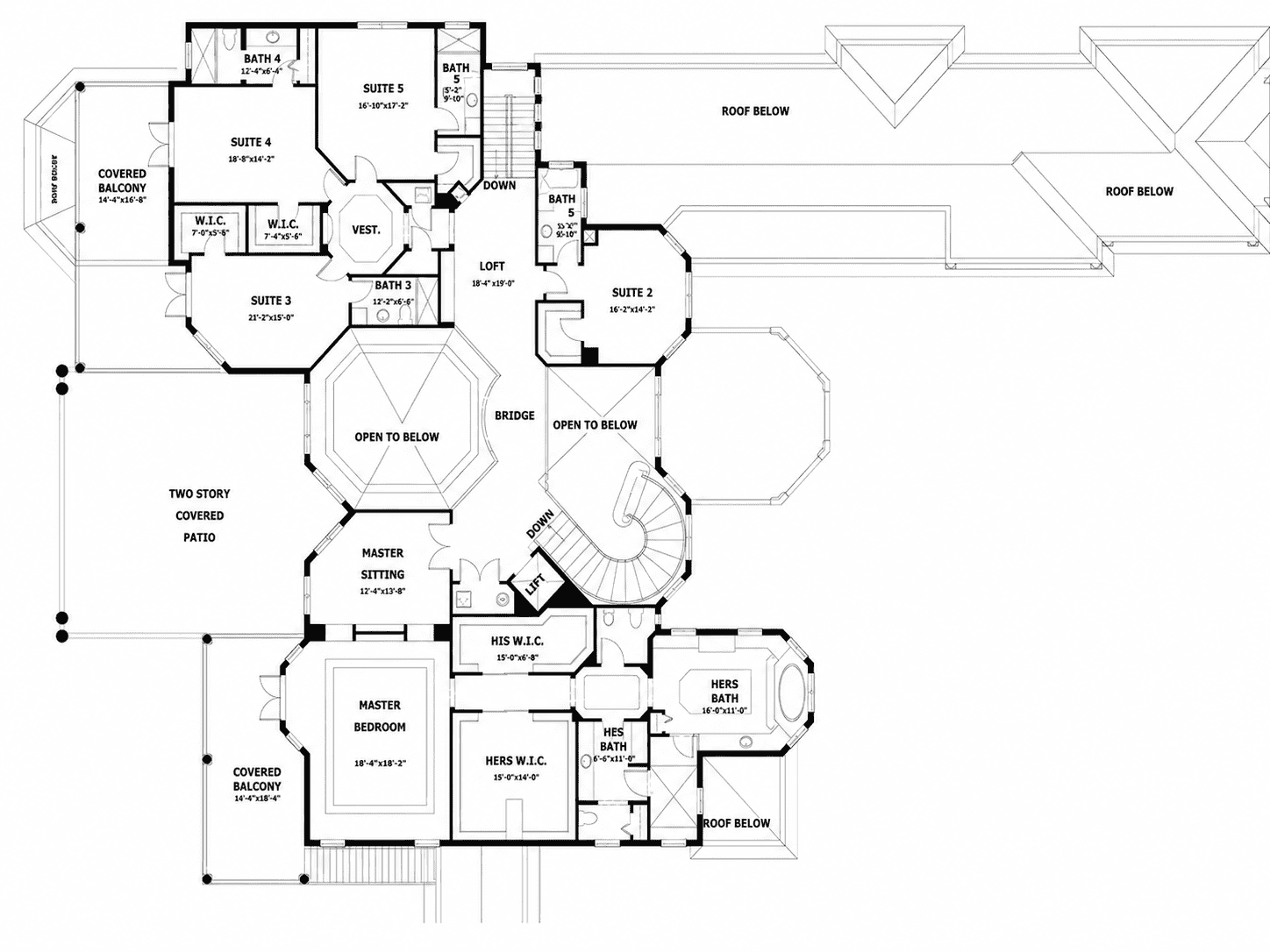

#107-1189 Floor Plan Second Story - upper level Floor Plan Upper Level of Luxury Plan #107-1189
