About Plan # 160-1035

About Plan # 160-1035

2432 SQUARE FEET 2 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 44' 0" WIDTH 38' 0" DEPTH 0 GARAGE BAY

This lovely Cottage style home plan with Vacation Homes influences (House Plan #160-1035) has 2432 square feet of living space. The 2 story floor plan includes 2 bedrooms.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

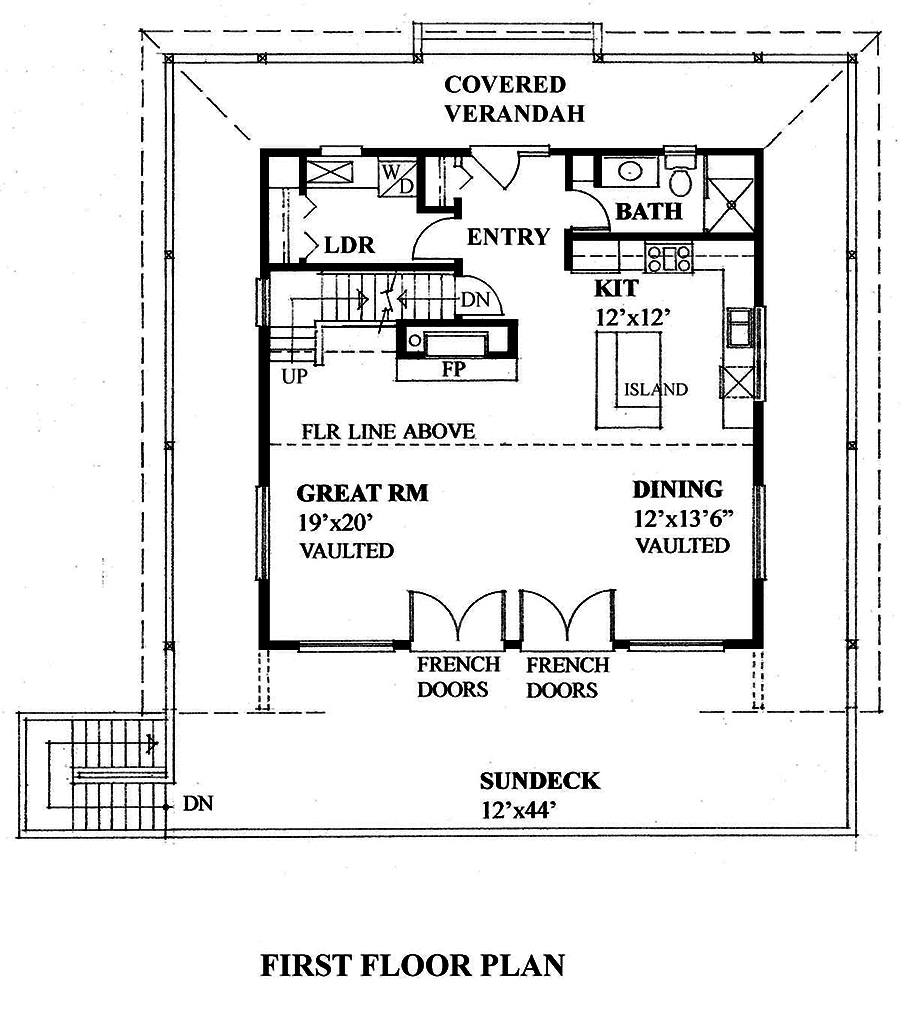

Home Plan: #160-1035 Floor Plan First Story - main level Floor Plan First Story of Cottage Plan #160-1035

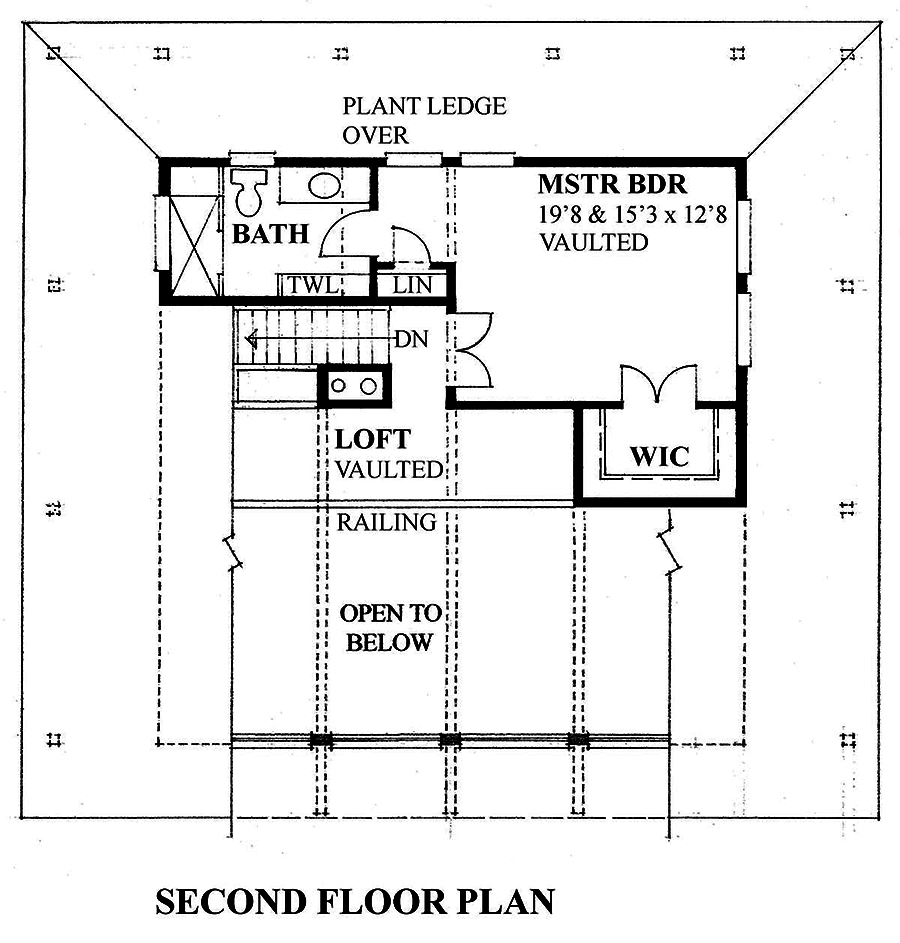

#160-1035 Floor Plan Second Story - upper level Floor Plan Second Story of Cottage Plan #160-1035

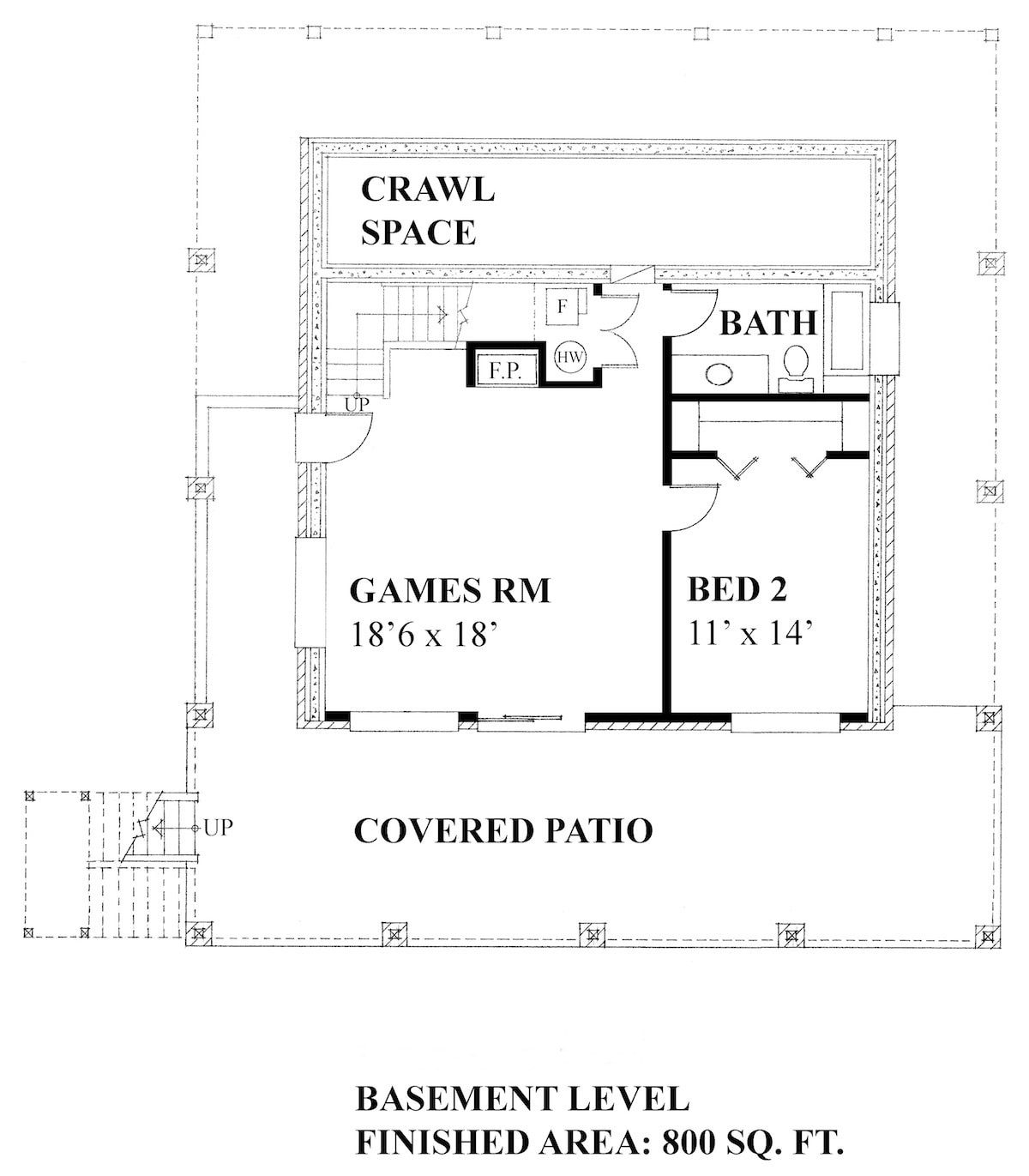

#160-1035 Floor Plan Basement - lower level Floor Plan Basement of Cottage Plan #160-1035
Home Plan: #160-1035 Floor Plan First Story - main level Floor Plan First Story of Cottage Plan #160-1035
#160-1035 Floor Plan Second Story - upper level Floor Plan Second Story of Cottage Plan #160-1035
#160-1035 Floor Plan Basement - lower level Floor Plan Basement of Cottage Plan #160-1035
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1035
Floors:
2
Bedrooms:
2
Full Baths:
3

Square Footage

Heated Sq Feet:
2432
Main Floor:
1024
Upper Floor:
608
Lower Floor:
800
Unfinished Sq Ft:
Porch :
528

Dimensions

Width:
44' 0"
Depth:
38' 0"
Ridge Height:
23' 6"

Architectural Styles

Vacation Homes
Traditional
Cottage
Lake

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable
Hip

Roofing Material

Metal

Roof Pitch

9/12

Ceiling Height

8 Foot Ceiling
11 Foot Ceiling

Special Feature

Fireplace
Game Room
Main Level Laundry
Loft
Vaulted Ceilings
Open Floor Plan

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Kitchen Island
Peninsula/Eating Bar

Porches and Exterior Features

Sundeck

Master Suite Features

Master Bathroom
Walk In Closet
Second Floor Master
Split Master Bedroom

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
