3-Bedroom, 3618 Sq Ft Southern Plan with Master Bathroom

Front elevation of Southern home (ThePlanCollection: House Plan #132-1605)
132-1605: Home Plan Rear Elevation
132-1605: Home Plan Left Elevation
132-1605: Home Plan Right Elevation

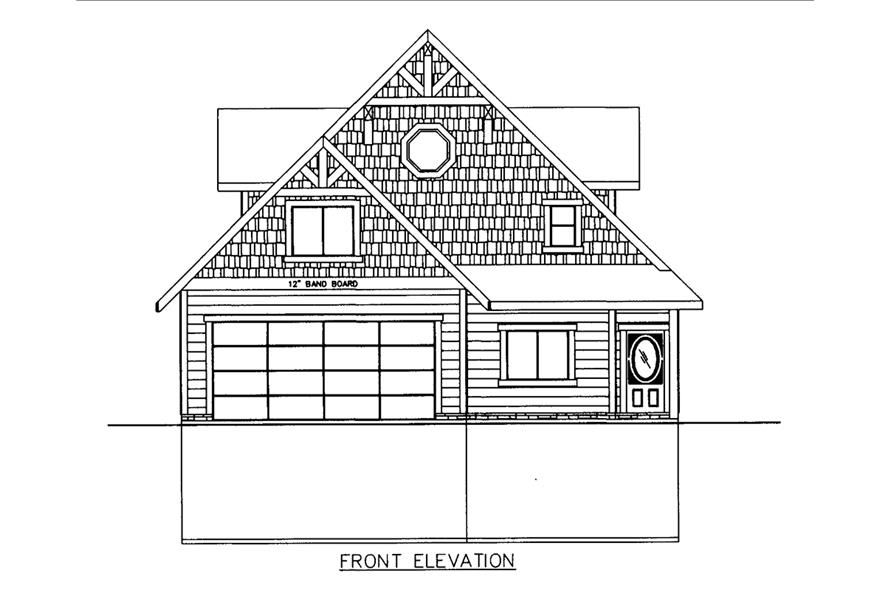

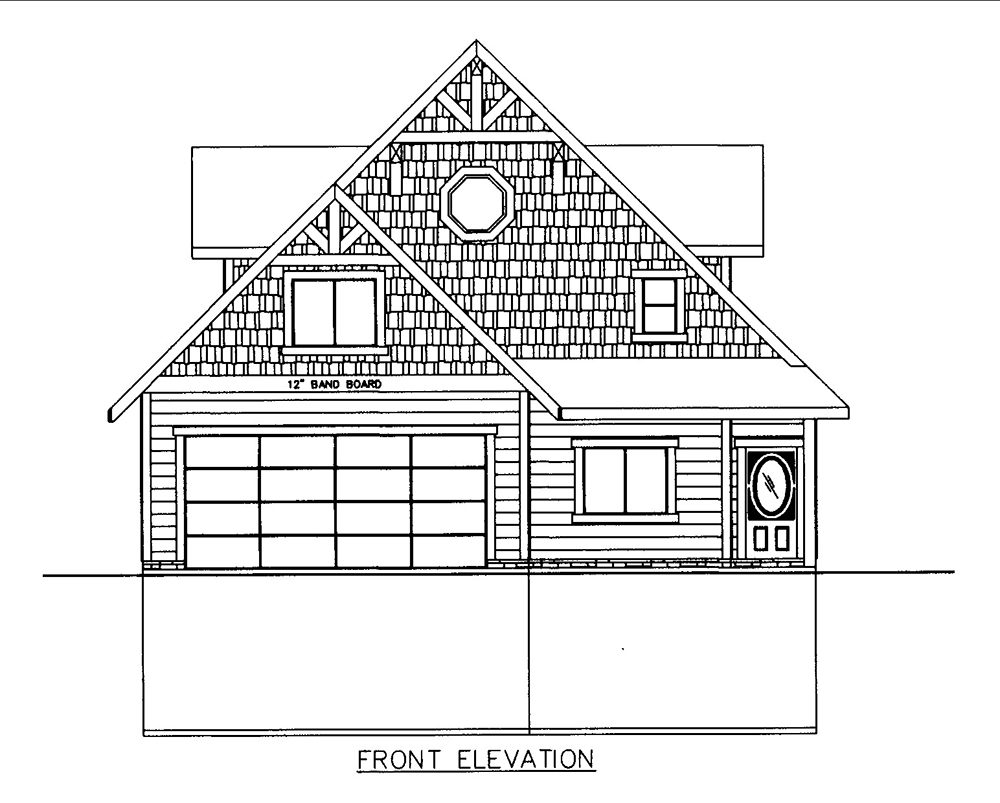

132-1605: Home Plan Front Elevation
3-Bedroom, 3618 Sq Ft Southern Home Plan - 132-1605 - Main Exterior

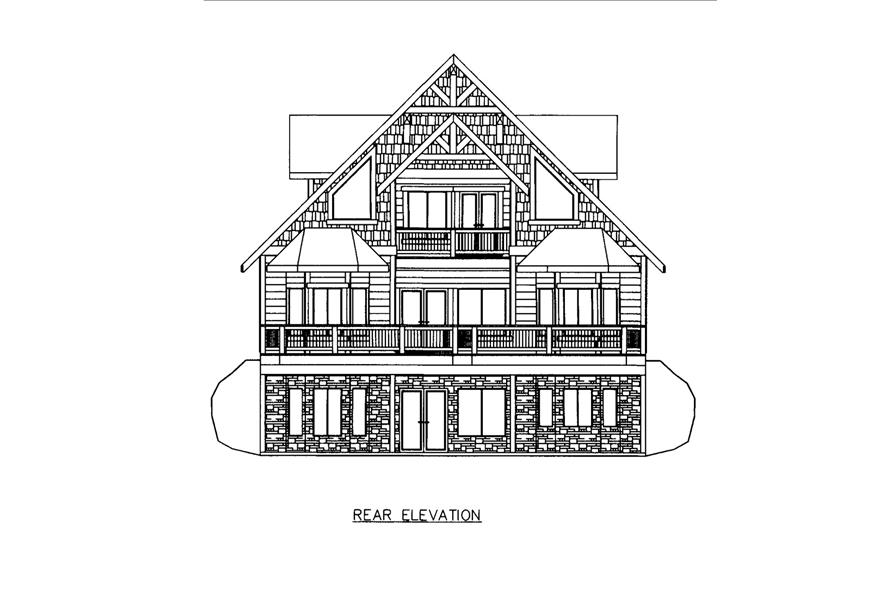

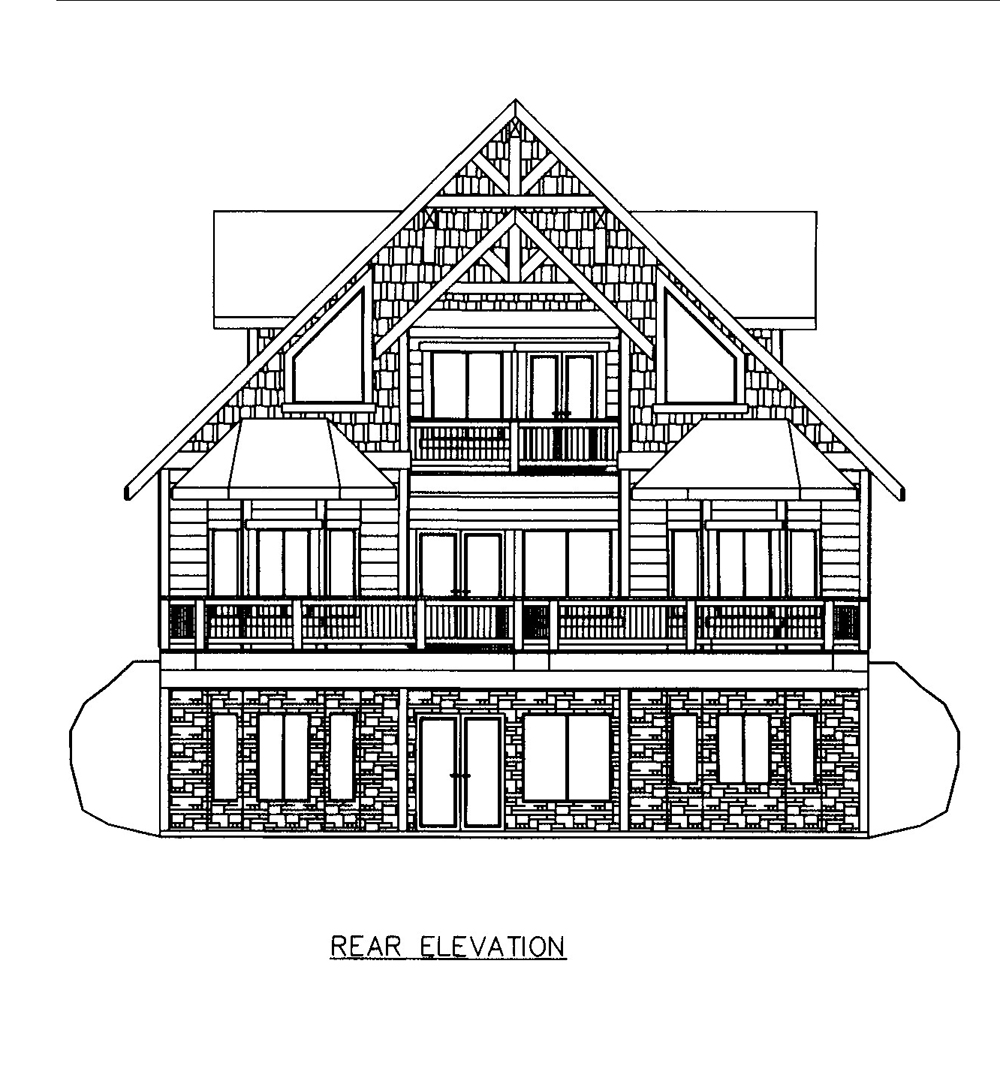

132-1605: Home Plan Rear Elevation

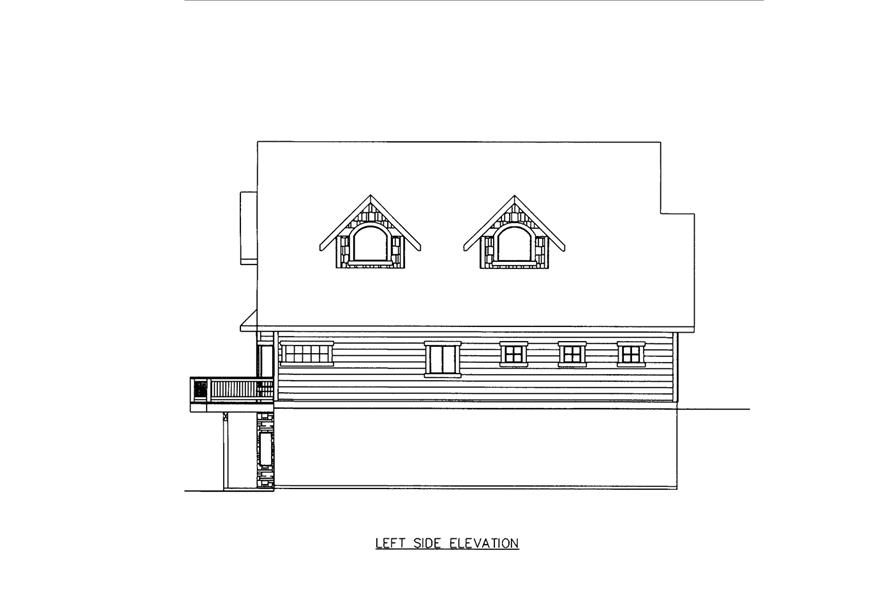

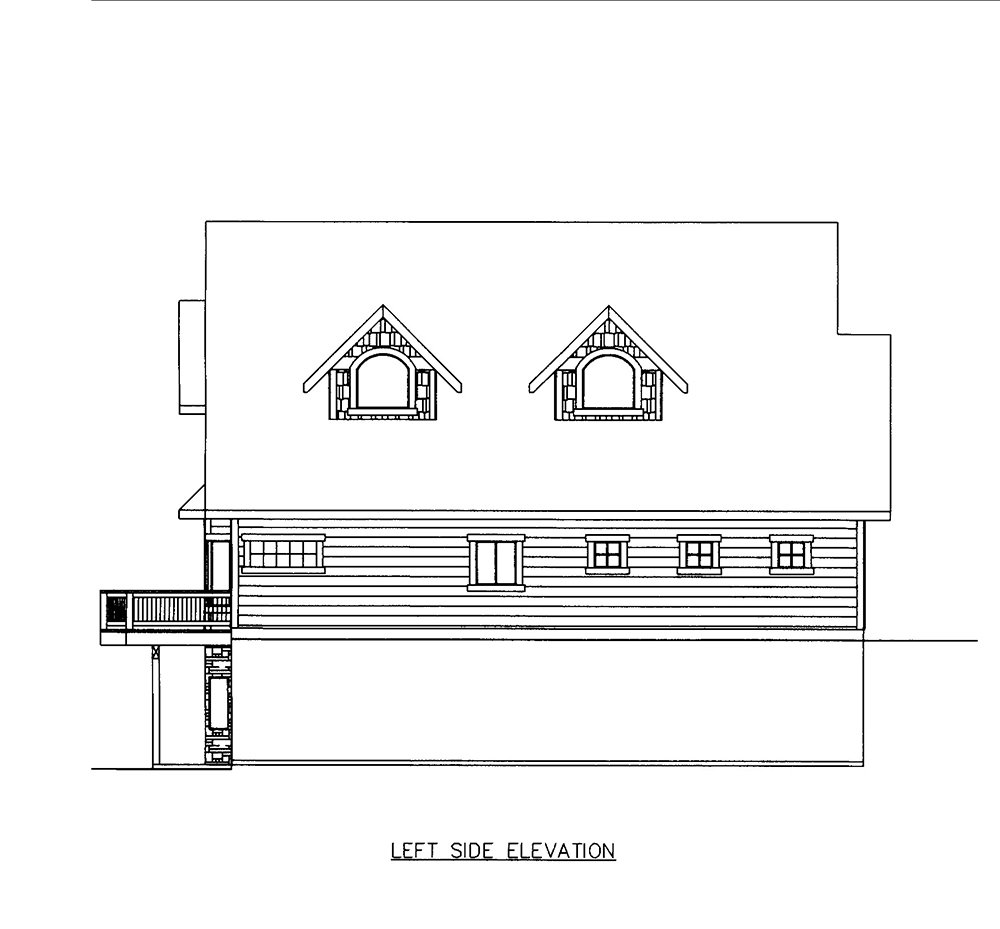

132-1605: Home Plan Left Elevation

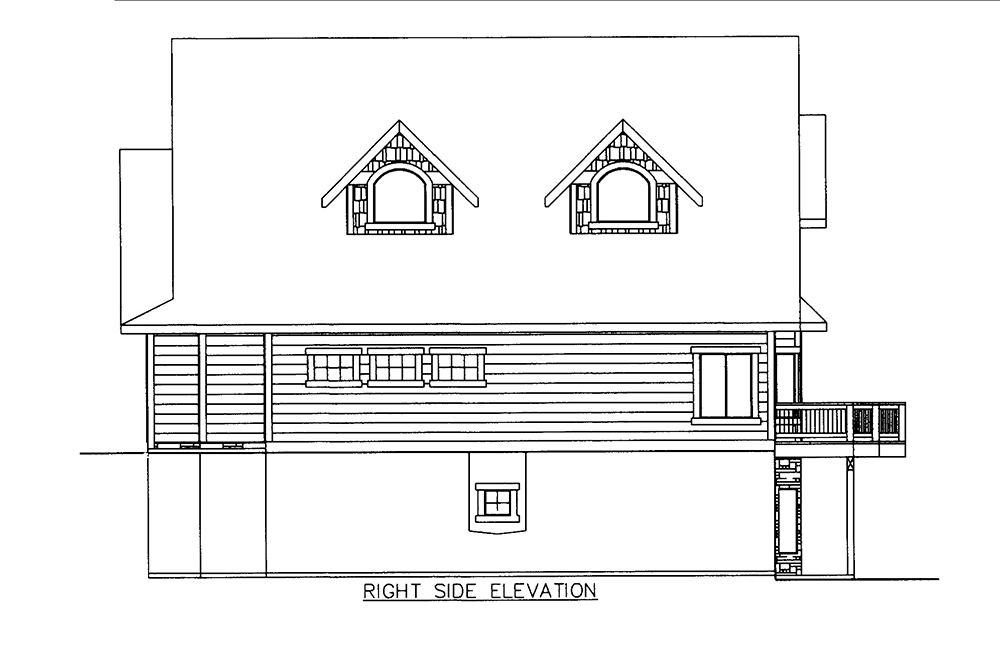

132-1605: Home Plan Right Elevation
132-1605: Home Plan Front Elevation

About Plan # 132-1605

About Plan # 132-1605

3618 SQUARE FEET 3 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 40' 0" WIDTH 48' 0" DEPTH 2 GARAGE BAY

This lovely Southern style home with Craftsman influences (House Plan #132-1605) has 4603 square feet of living space. The 2 story floor plan includes 5 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Includes interior and exterior dimensions, window/door schedule, wall framing details.
  • FOUNDATION PLAN: Shows footing, stem wall, and slab placement; includes all connection details.
  • ROOF & FLOOR FRAMING PLANS: Shows truss/rafter placements, including all beams/connection details.
  • ELECTRICAL LAYOUT
  • FRONT, REAR, AND SIDE ELEVATIONS: Shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • CROSS SECTIONS: Cut through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc. Includes general notes/details to cover the entirety of the project.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

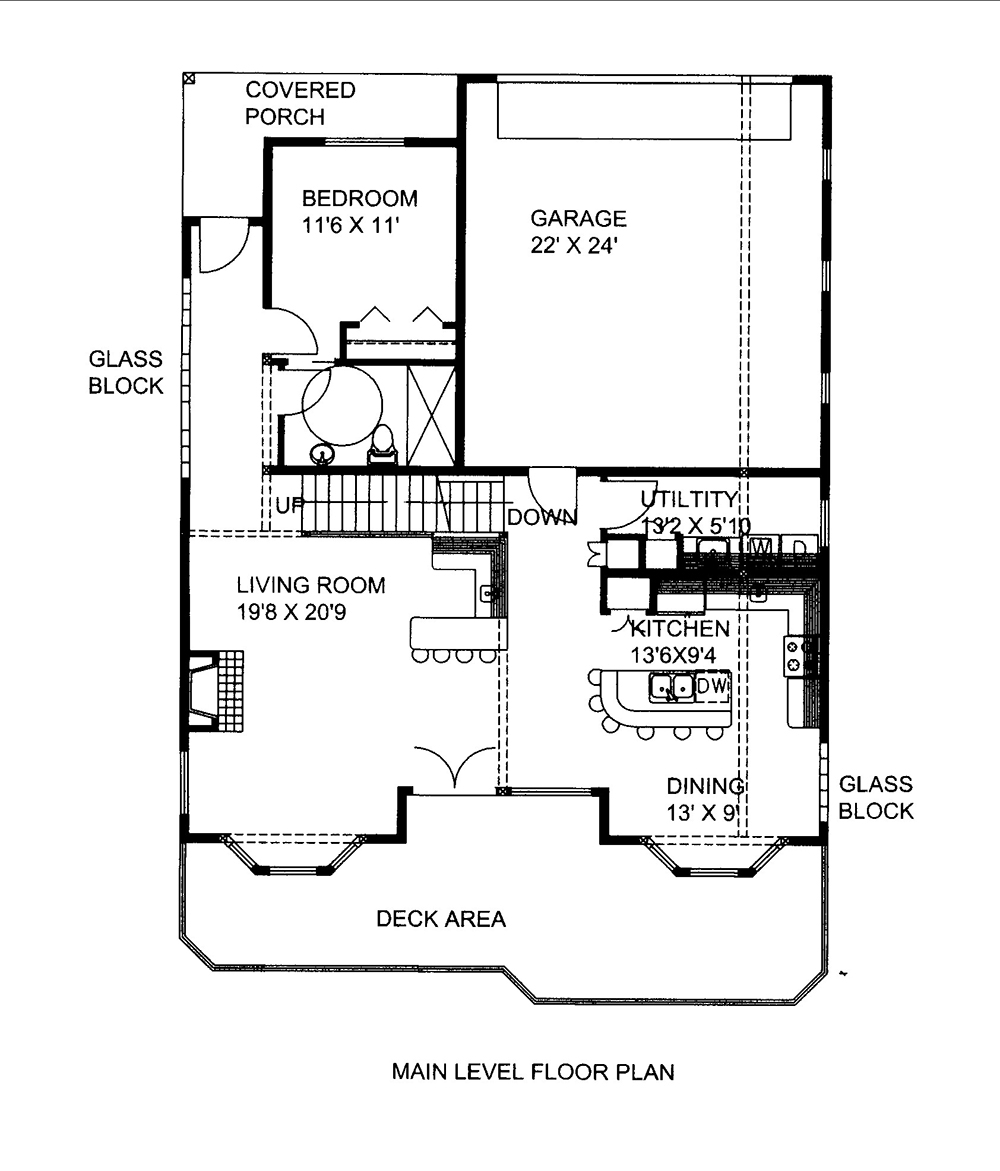

Home Plan: #132-1605 Floor Plan First Story - main level Floor Plan First Story of Southern Plan #132-1605

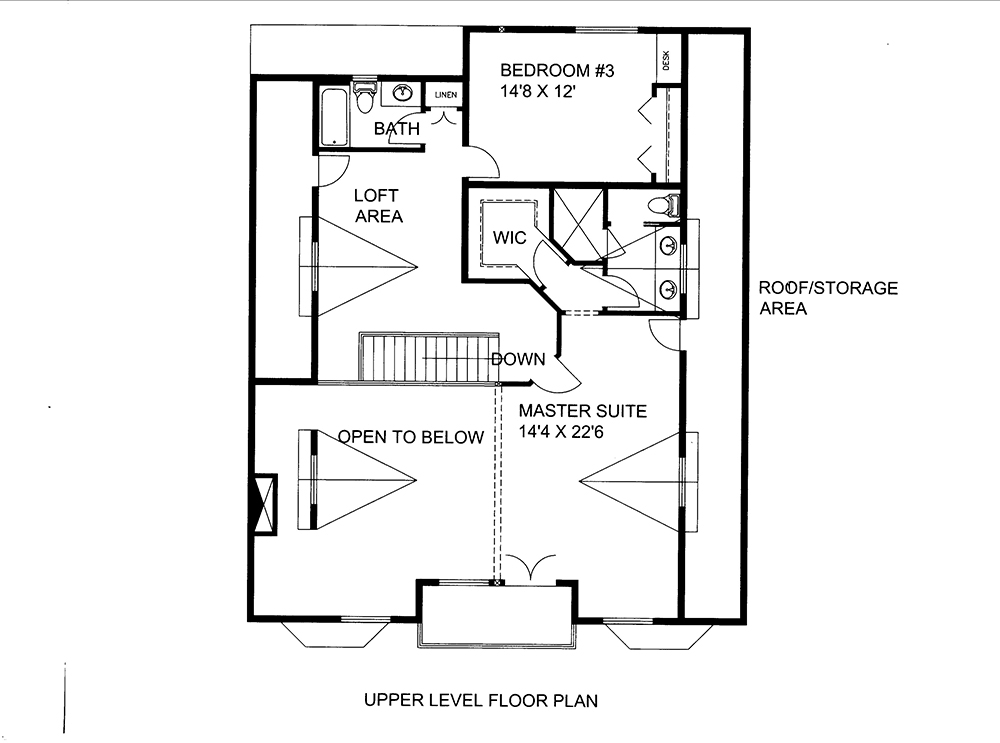

#132-1605 Floor Plan Second Story - upper level Floor Plan Second Story of Southern Plan #132-1605

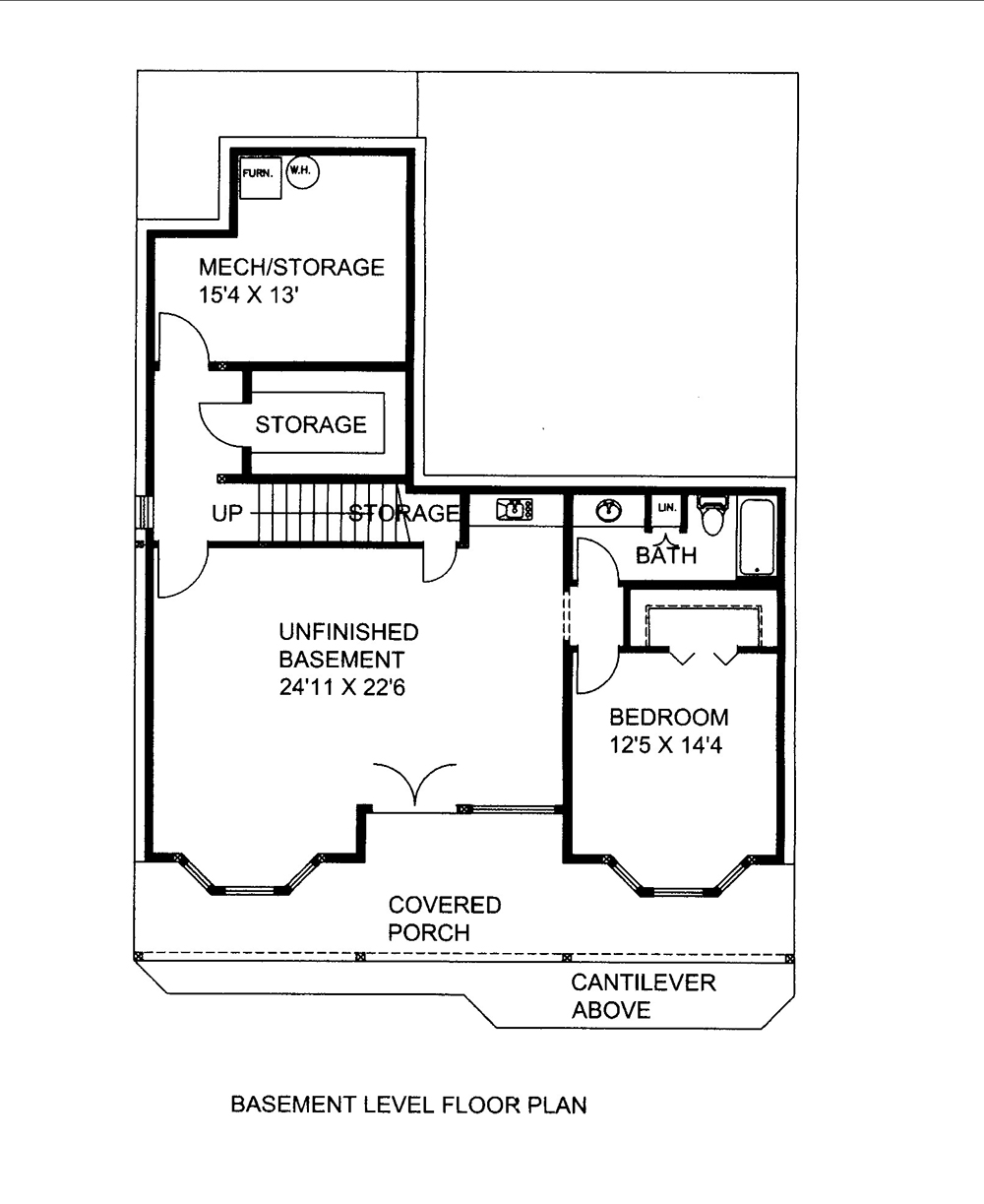

#132-1605 Floor Plan Basement - basement Floor Plan Basement of Southern Plan #132-1605
