3-Bedroom, 1657 Sq Ft Craftsman with Client Photos

Transitional Craftsman home (ThePlanCollection: Plan #142-1176)
142-1176: Home Plan Rear Elevation
142-1176: Home Exterior Photograph-Rear View

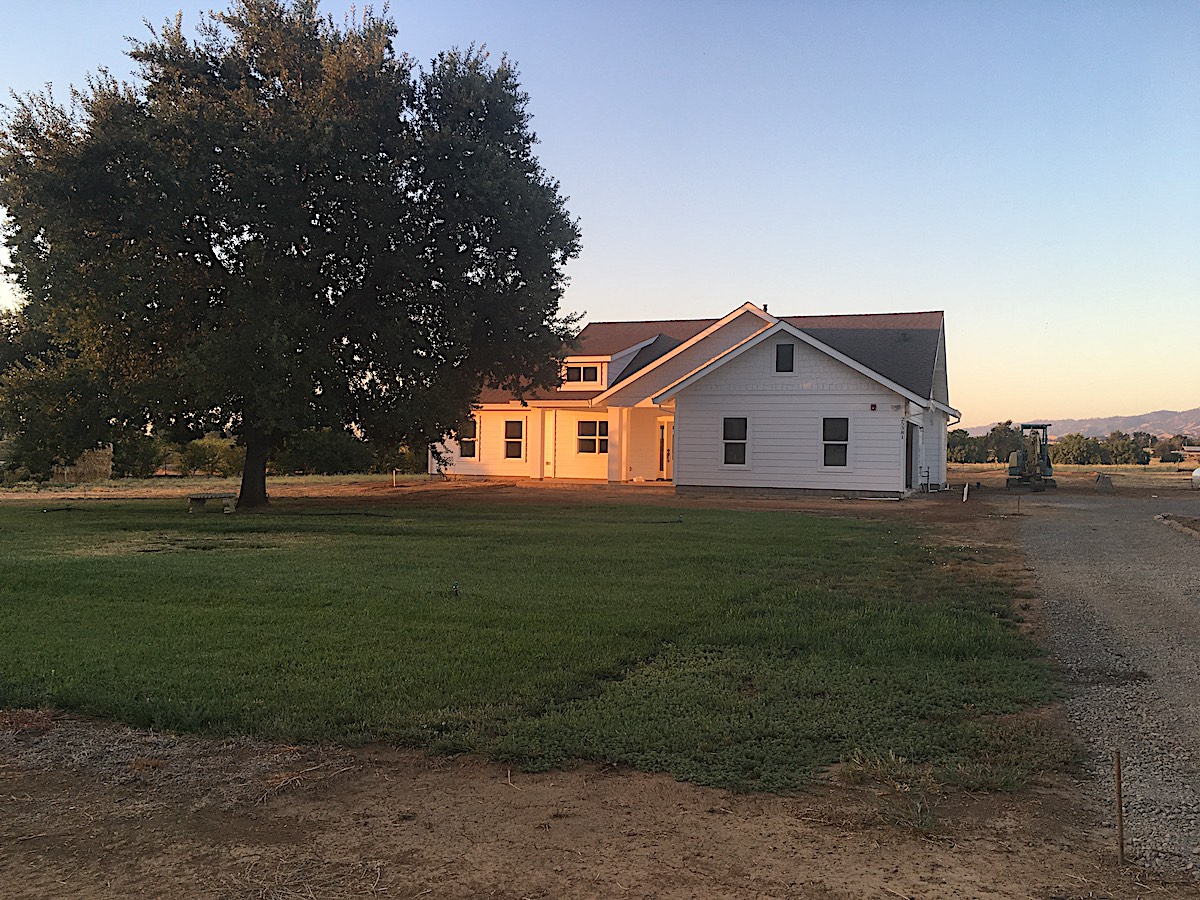

142-1176: Home Exterior Photograph-Right Side View

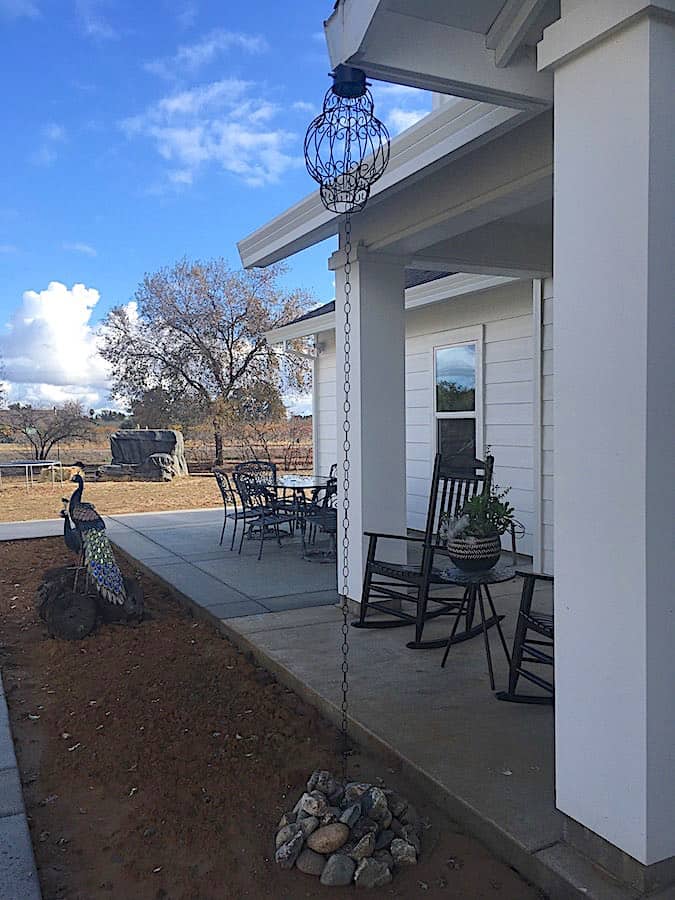

142-1176: Home Exterior Photograph-Porch

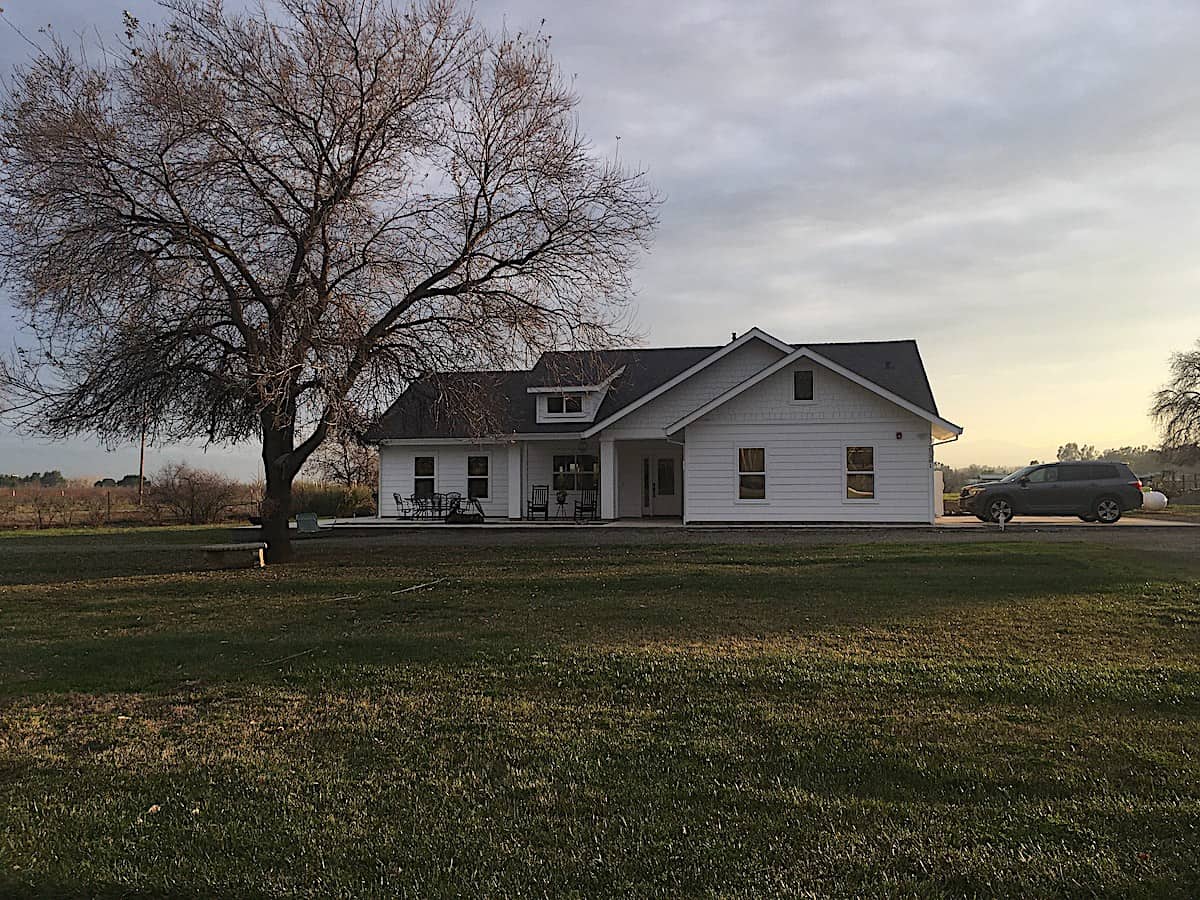

142-1176: Home Exterior Photograph-Front View

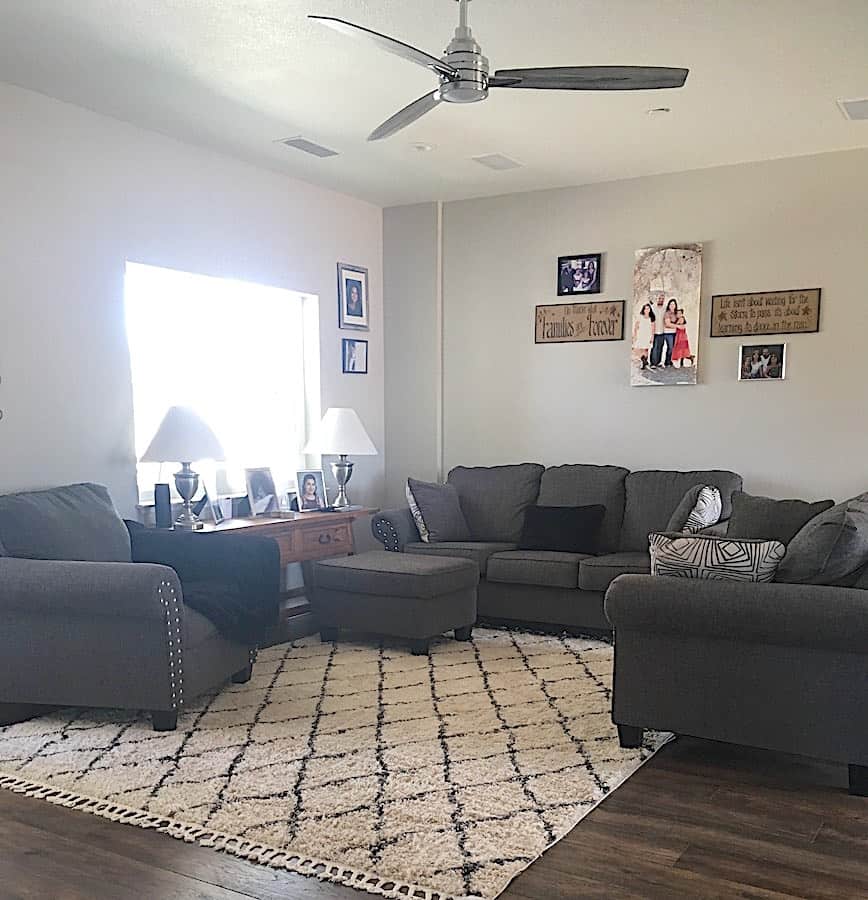

142-1176: Home Interior Photograph-Great Room

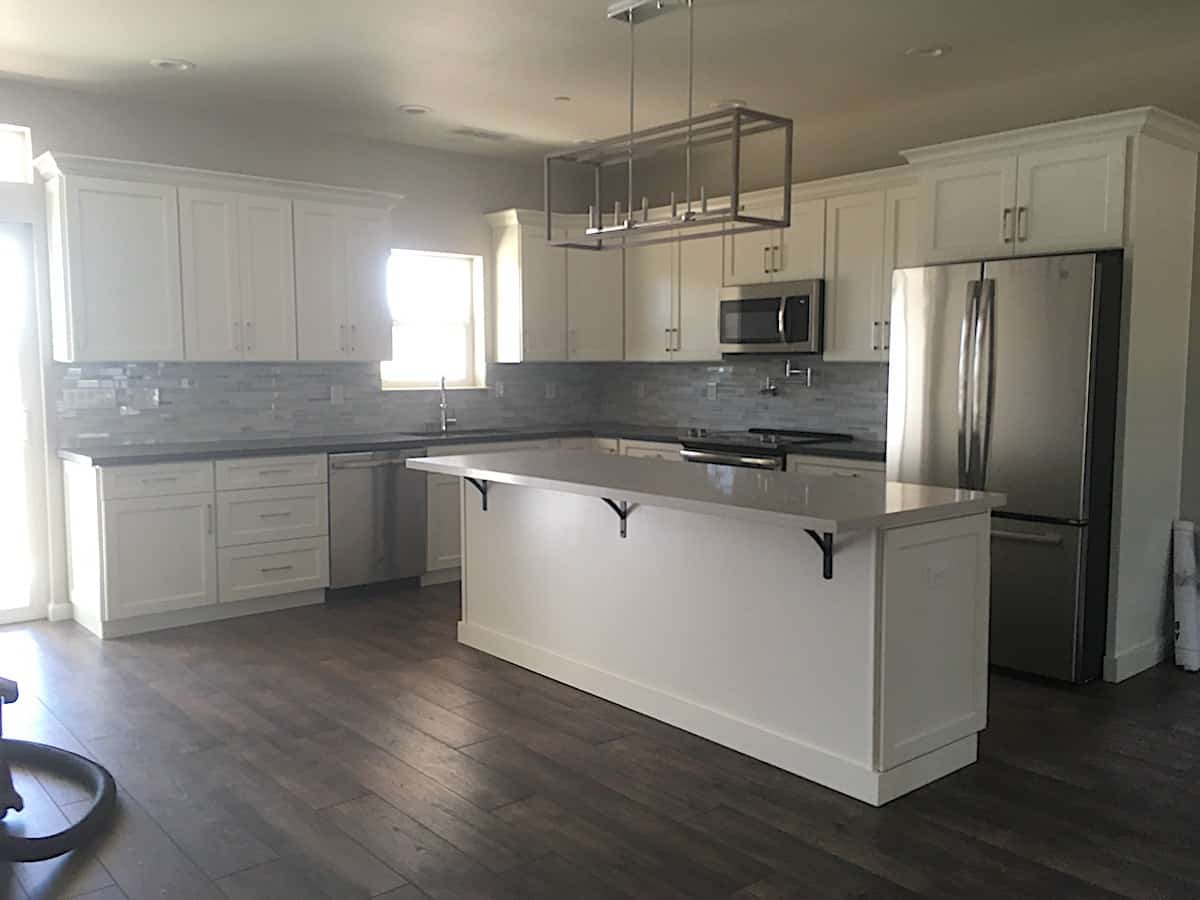

142-1176: Home Interior Photograph-Kitchen

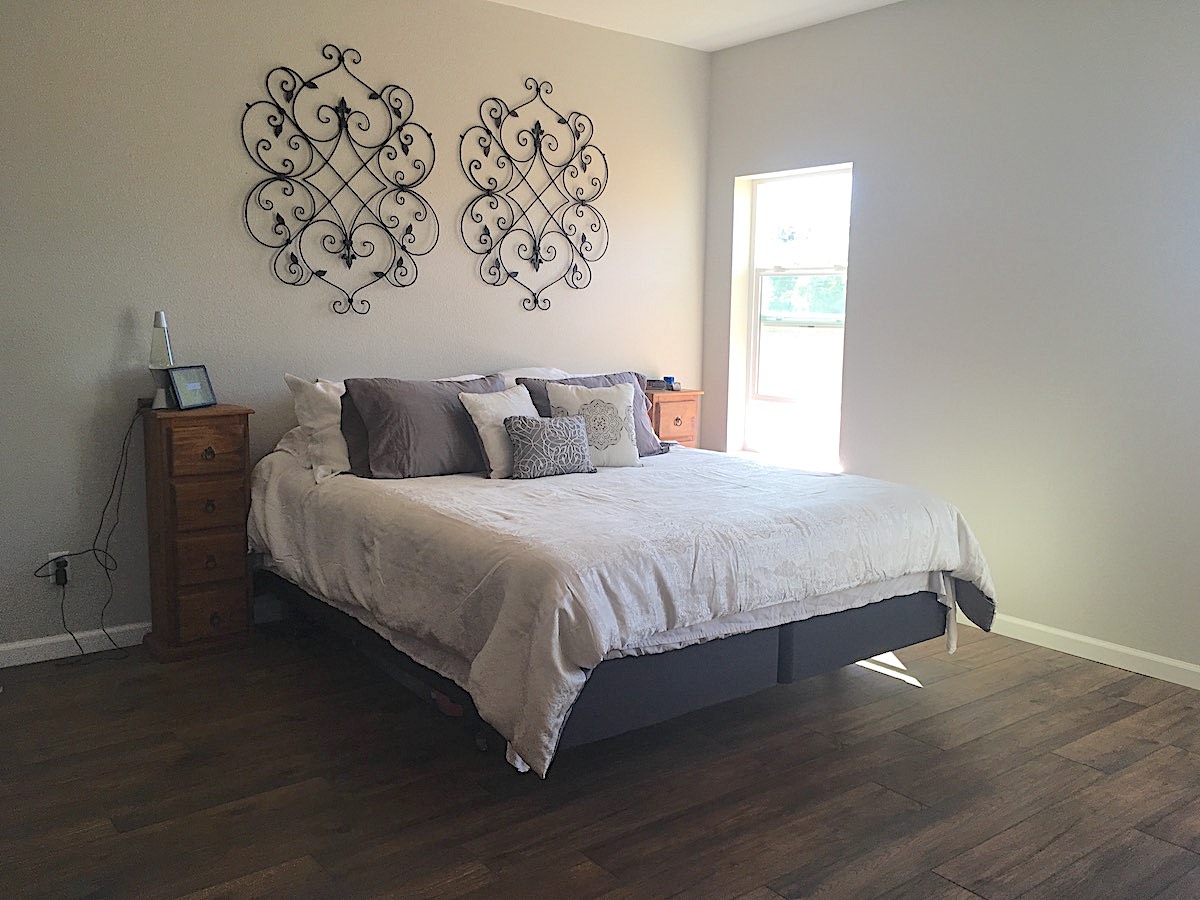

142-1176: Home Interior Photograph-Bedroom
142-1176: Home Interior Photograph-Kitchen: Breakfast Bar
3-Bedroom, 1657 Sq Ft Craftsman House - Plan #142-1176 - Front Exterior
142-1176: Home Plan Rear Elevation
142-1176: Home Exterior Photograph-Rear View
142-1176: Home Exterior Photograph-Right Side View
142-1176: Home Exterior Photograph-Porch
142-1176: Home Exterior Photograph-Front View
142-1176: Home Interior Photograph-Great Room
142-1176: Home Interior Photograph-Kitchen
142-1176: Home Interior Photograph-Bedroom
142-1176: Home Interior Photograph-Kitchen: Breakfast Bar

About Plan # 142-1176

About Plan # 142-1176

1657 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 55' 0" WIDTH 51' 2" DEPTH 2 GARAGE BAY

Impeccable features are to your family’s advantage in this Craftsman style ranch. Shakes, brick, siding, rock, and stone mesh beautifully to give this home a fantasic and inviting curb appeal. Its luxury features, like a walk-in kitchen pantry and outdoor kitchen, are usually found only in homes much larger than the 1657 living square feet that this home offers. The front covered porch leads guests into the large Great Room with tray ceiling. The open floor plan layout allows the kitchen and dining area to be just steps away and gives the home an even bigger feel and great home traffic.

The kitchen has an island and eating bar steps away from the dining area. The master bedroom suite is split from the other bedrooms and offers a tray ceiling and walk-in closet. The master bath has dual vanities and a water closet, shower, and tub. There are also a laundry room / mudroom area with lockers and high ceilings throughout the home. All this and more with 3 beds and 2 full baths.

Each plan set includes the following:

  • COVER SHEET: Artist’s rendering of the residence to provide an idea of what the house would look like once built. May include index and definitions.
  • FOUNDATION PLAN: Dimensioned foundation plan detailing the location and size of footings and construction details.
  • FLOOR PLAN(S): Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • ROOF PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Displays lighting fixtures, outlets, and other necessary electrical items. These items may be shown on the floor plan(s). Switches are NOT shown and should be located by the contractor on site.
  • WALL SECTION(S): Detail of wall materials and assembly.
  • BUILDING SECTION(S): Section through the home displaying necessary information about framing and other miscellaneous data. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • CABINET ELEVATIONS: Displays the interior kitchen cabinet views.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

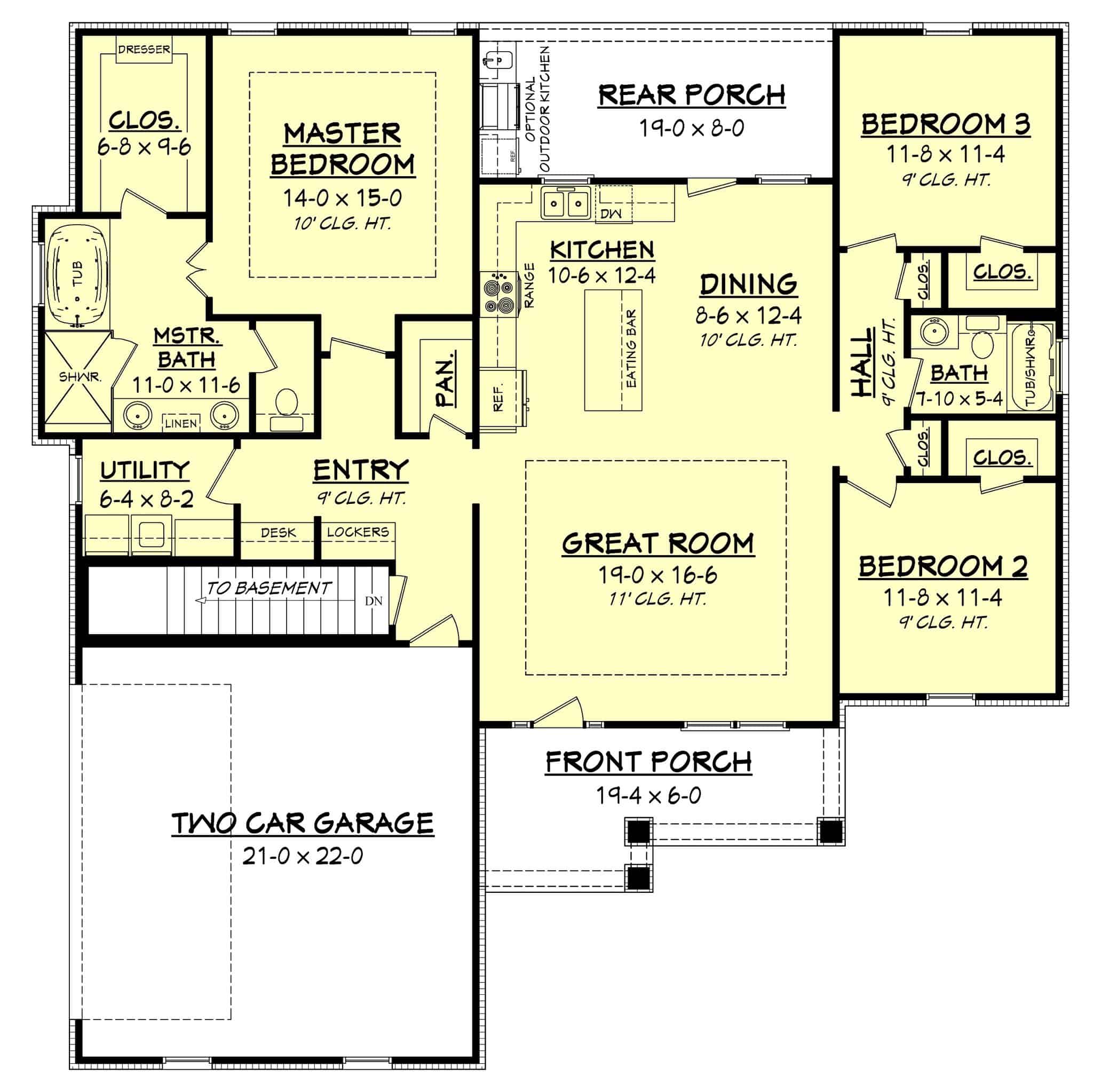

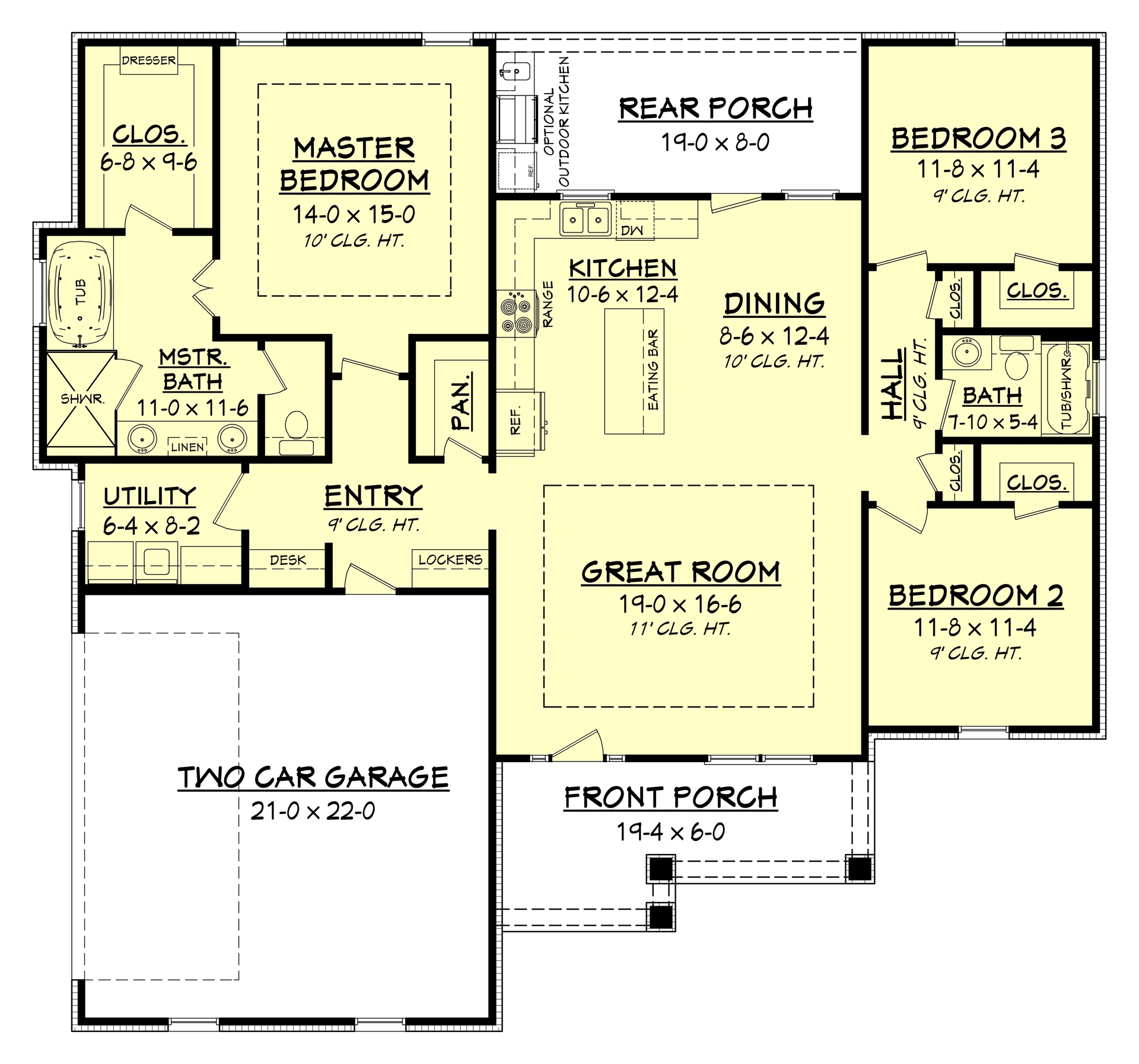

Home Plan: #142-1176 Floor Plan First Story - main level Floor Plan First Story of Traditional Plan #142-1176
