4-Bedroom, 5471 Sq Ft Tudor Plan with Main Floor Master

Front elevation of Tudor home (ThePlanCollection: House Plan #108-1739)

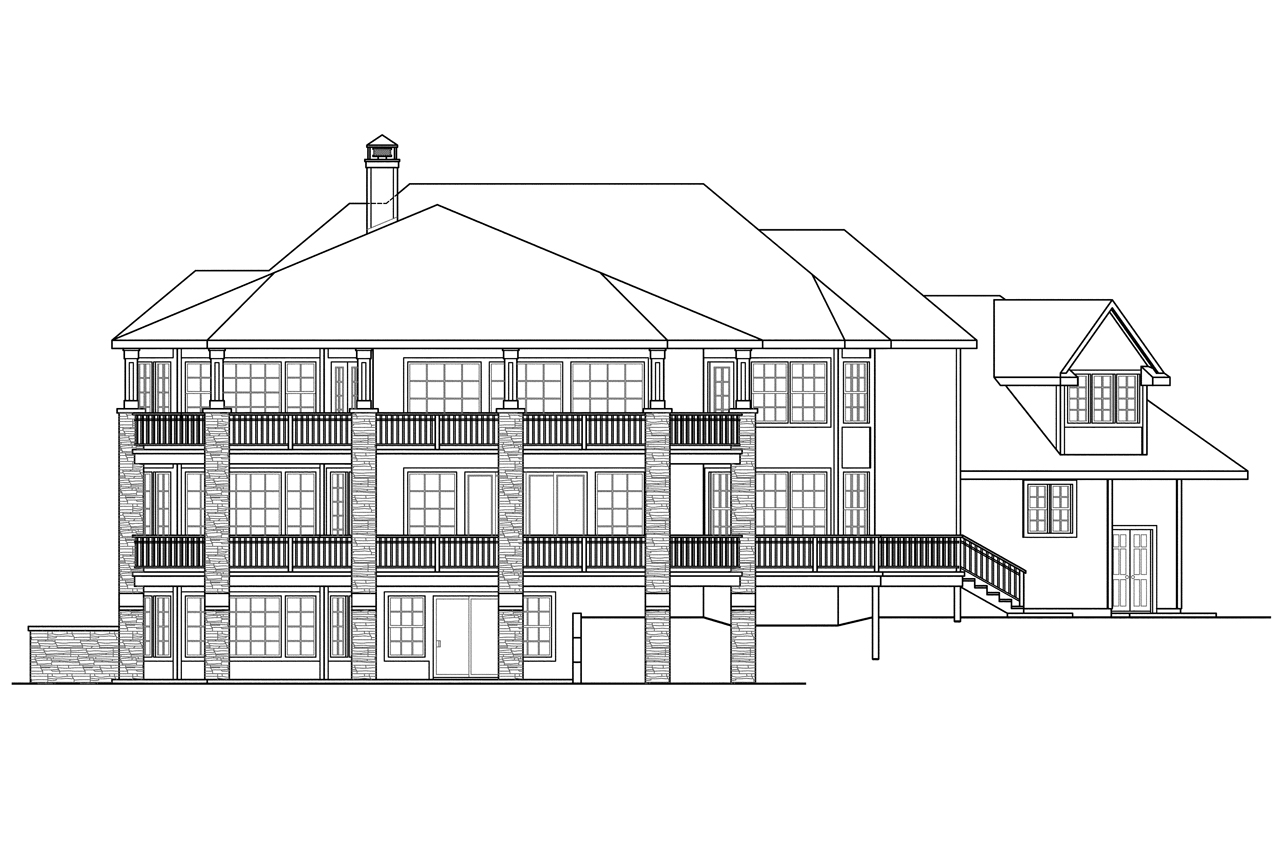

108-1739: Home Plan Rear Elevation

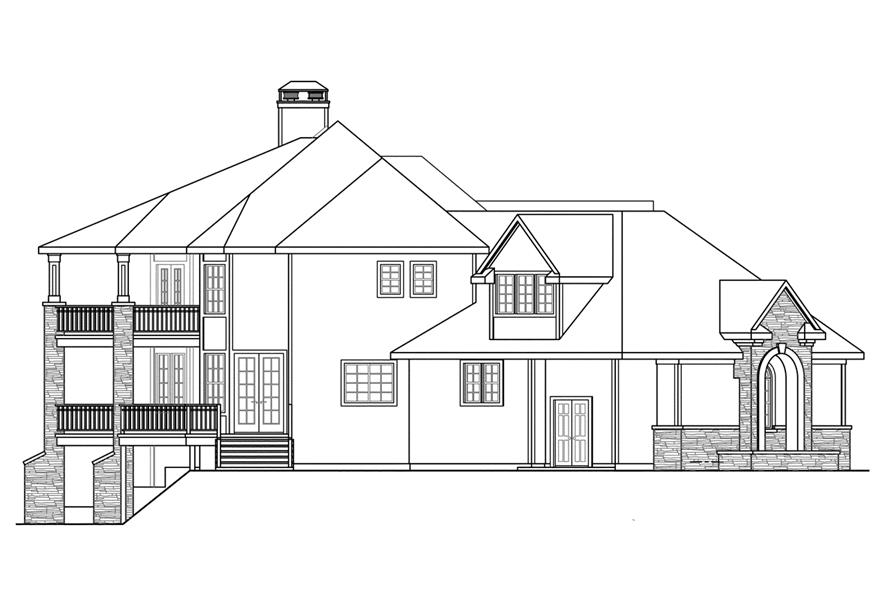

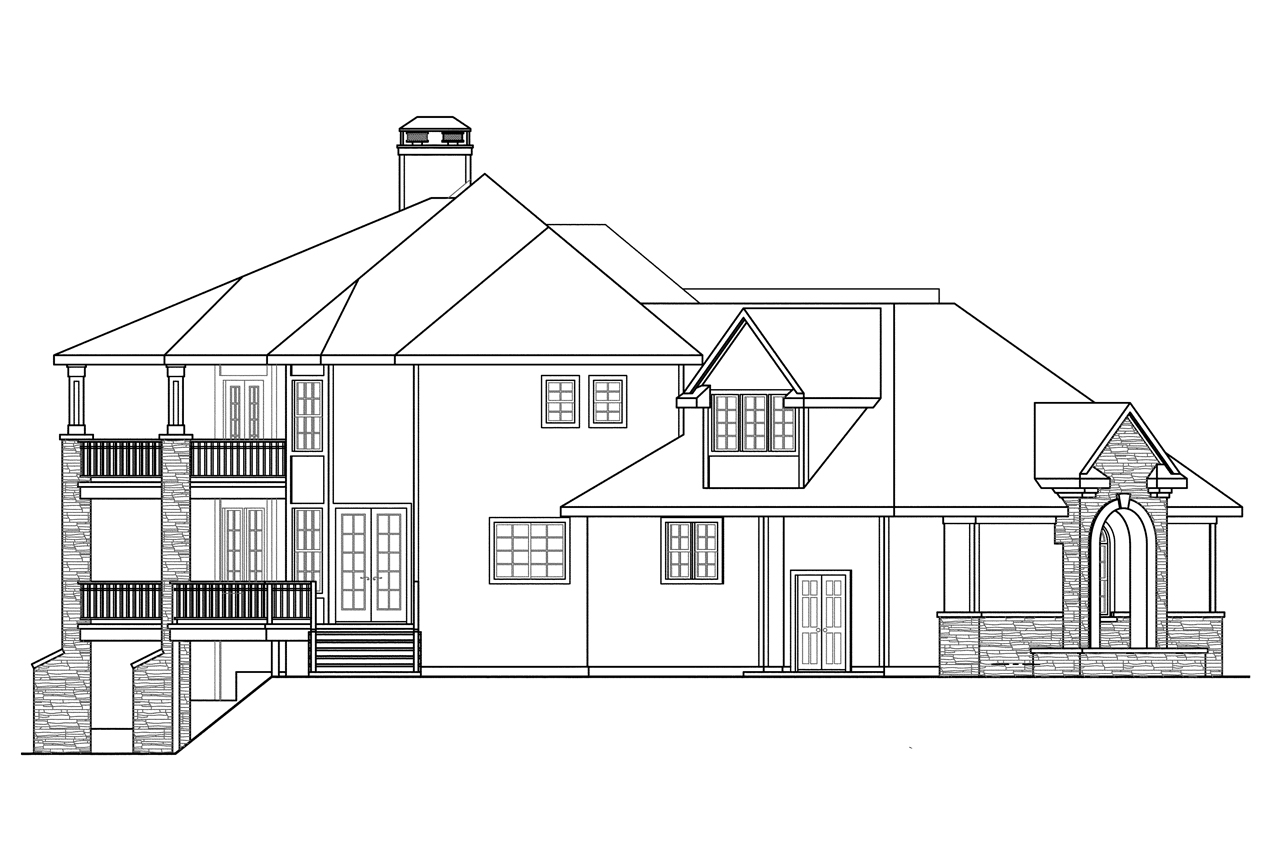

108-1739: Home Plan Left Elevation

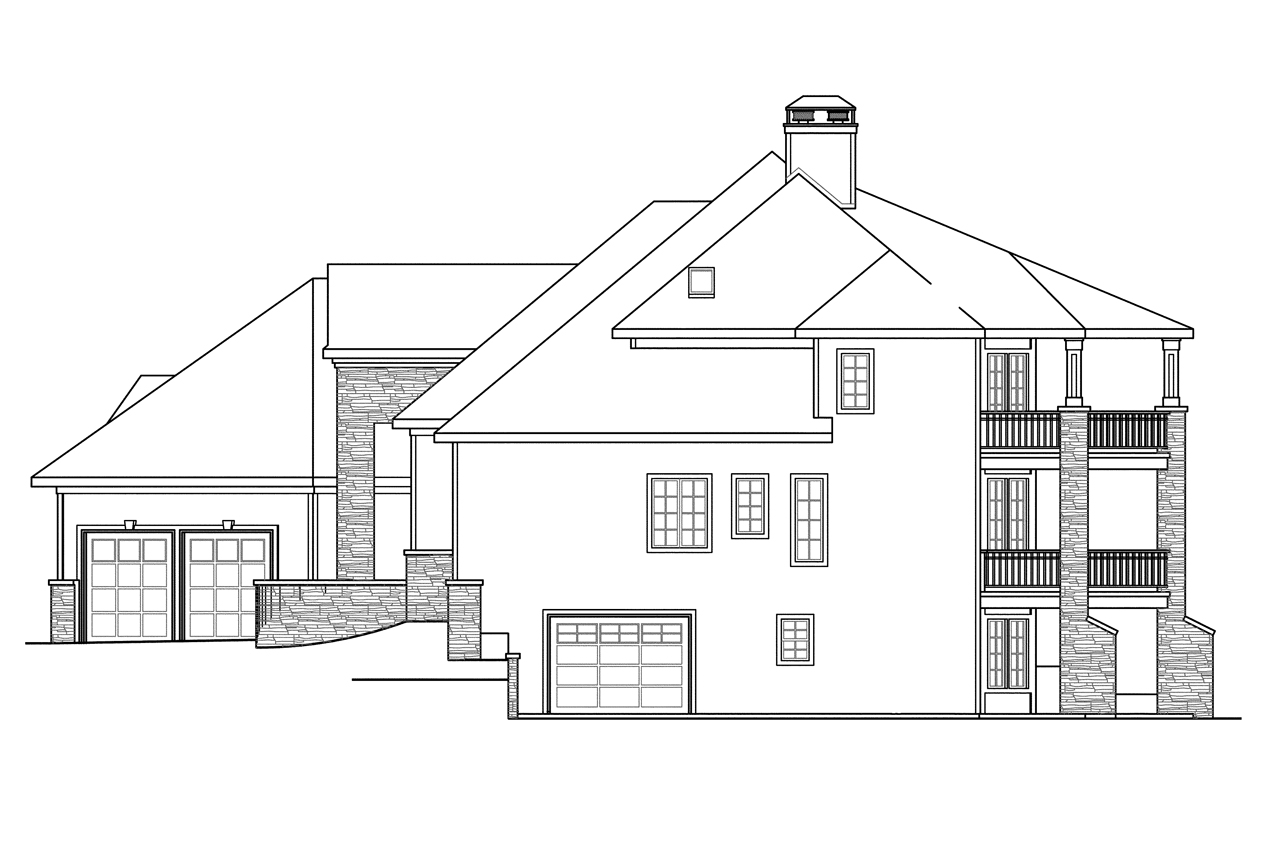

108-1739: Home Plan Right Elevation
4-Bedroom, 5471 Sq Ft Tudor Home Plan - 108-1739 - Main Exterior
108-1739: Home Plan Rear Elevation
108-1739: Home Plan Left Elevation
108-1739: Home Plan Right Elevation

About Plan # 108-1739

About Plan # 108-1739

5471 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
3 FLOOR 86' 1" WIDTH 80' 6" DEPTH 2 GARAGE BAY

This lovely Tudor style home with European influences (House Plan #108-1739) has 5471 square feet of living space. The 3 story floor plan includes 4 bedrooms.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

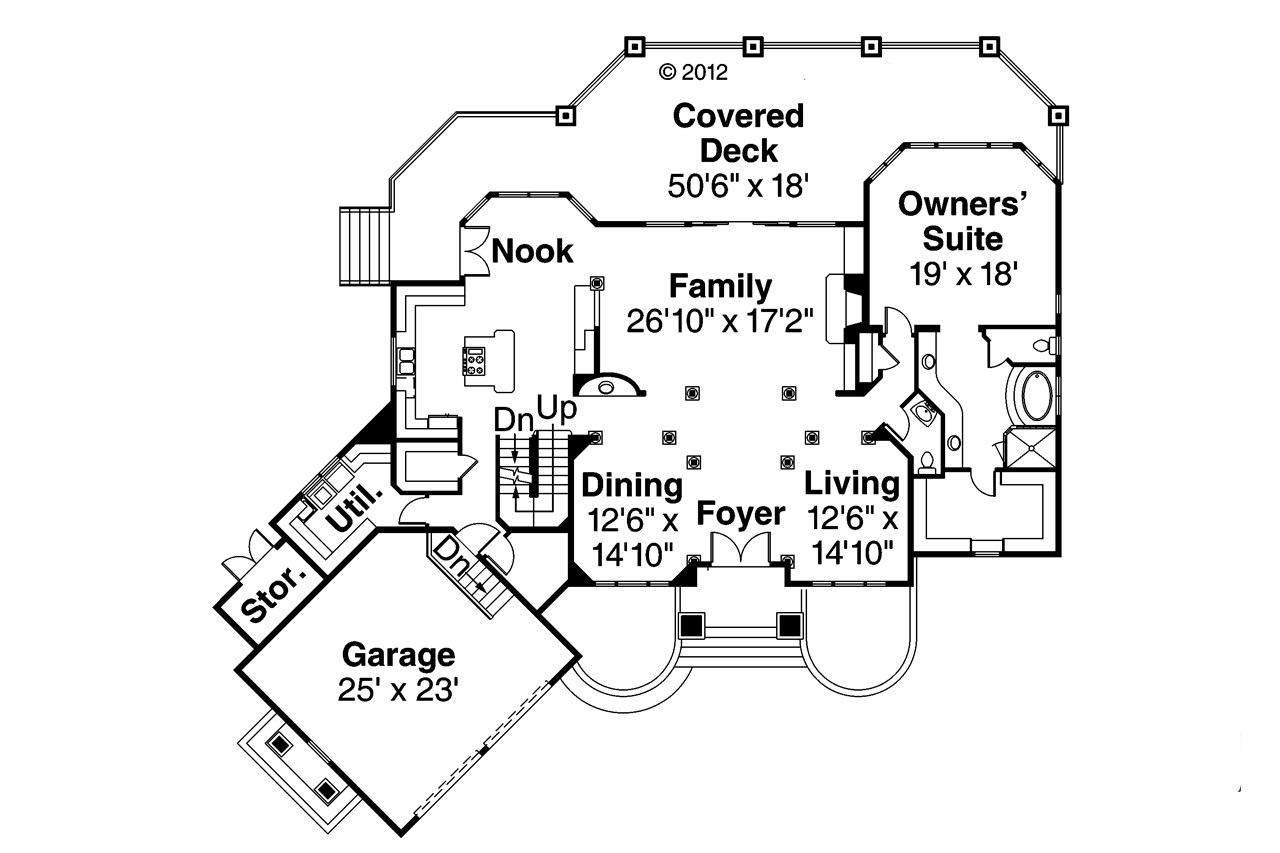

Home Plan: #108-1739 Floor Plan First Story - main level Floor Plan First Story of Tudor Plan #108-1739

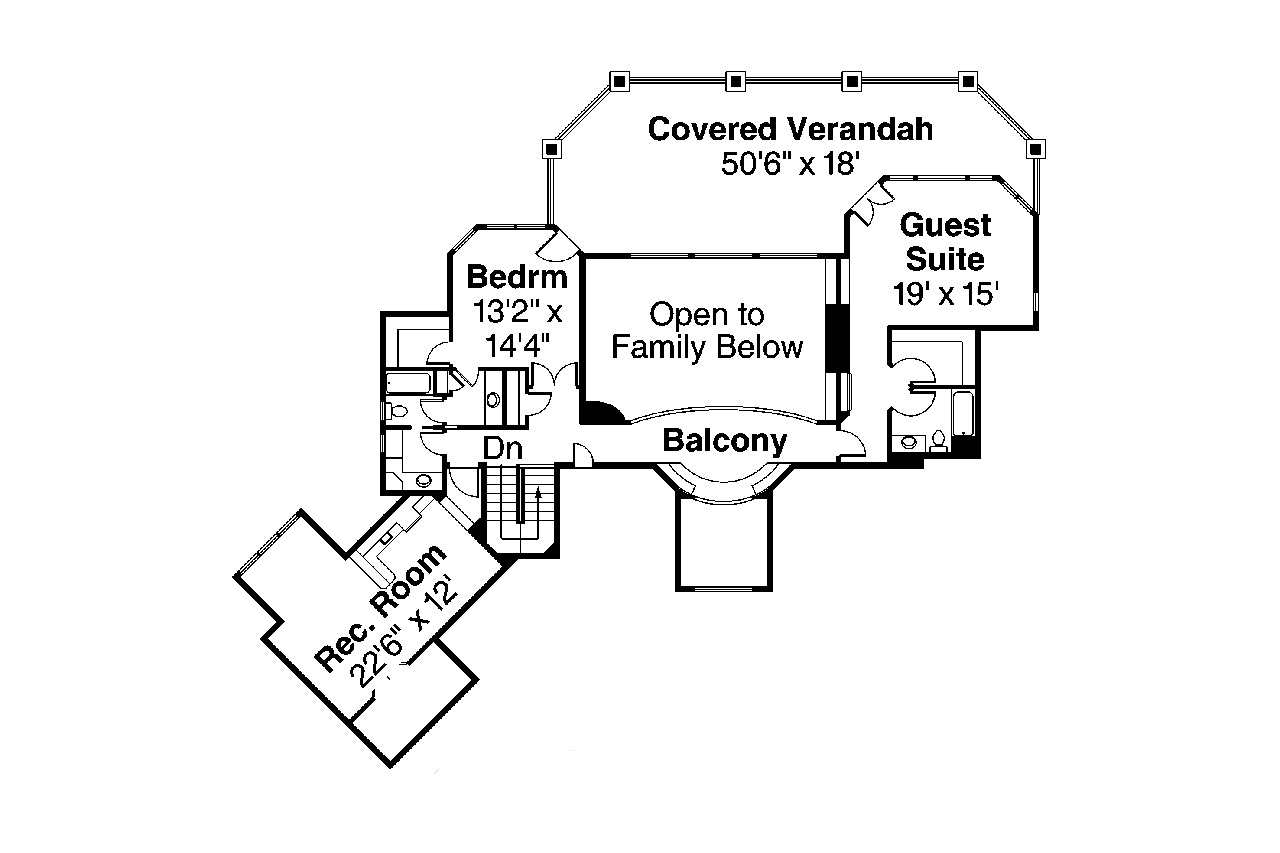

#108-1739 Floor Plan Second Story - upper level Floor Plan Second Story of Tudor Plan #108-1739

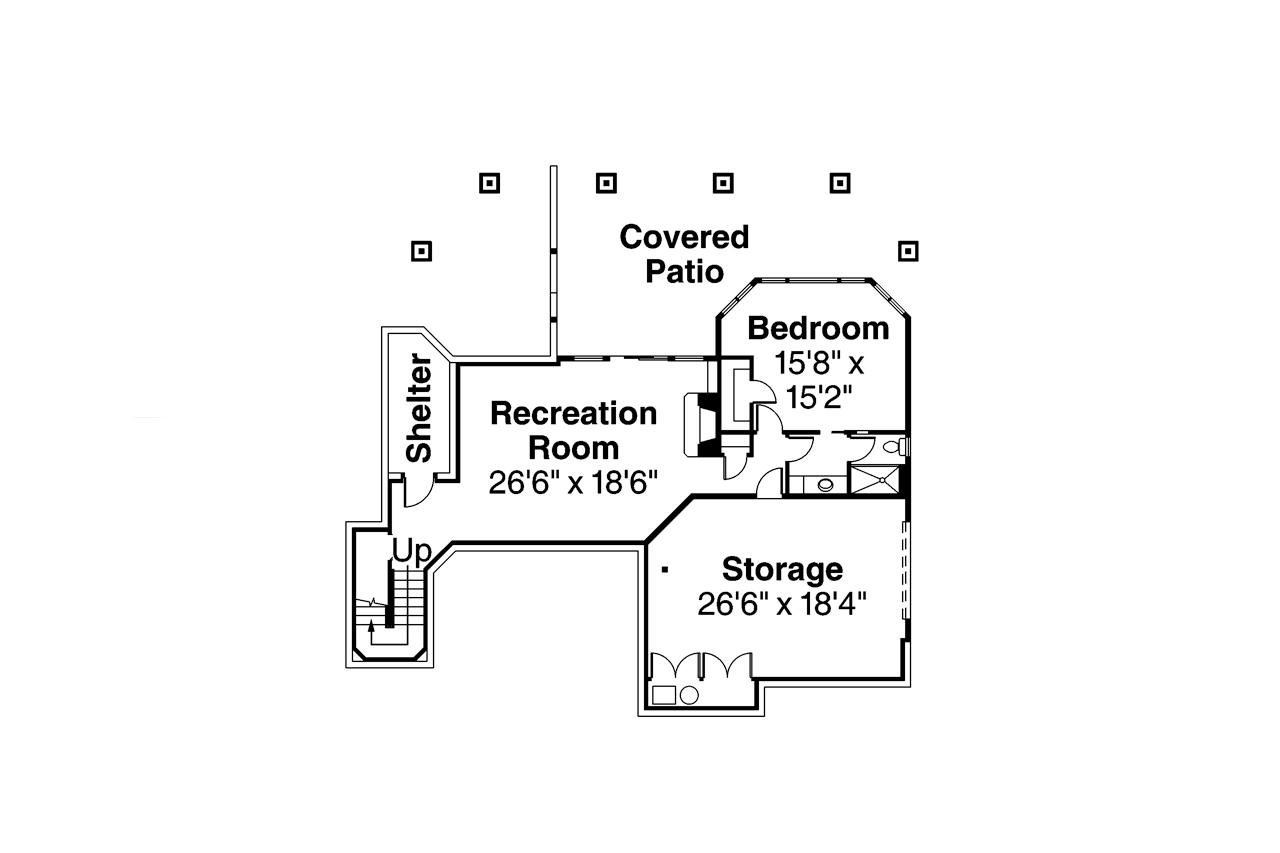

#108-1739 Floor Plan Basement - basement Floor Plan Basement of Tudor Plan #108-1739
Home Plan: #108-1739 Floor Plan First Story - main level Floor Plan First Story of Tudor Plan #108-1739
#108-1739 Floor Plan Second Story - upper level Floor Plan Second Story of Tudor Plan #108-1739
#108-1739 Floor Plan Basement - basement Floor Plan Basement of Tudor Plan #108-1739
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1739
Floors:
3
Bedrooms:
4
Full Baths:
4
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
5471
Main Floor:
2663
Upper Floor:
1638
Unfinished Sq Ft:
Lower Floor:
1170
Bonus Room:
530
Garage :
655

Dimensions

Width:
86' 1"
Depth:
80' 6"
Ridge Height:
34' 11"

Architectural Styles

European
Luxury
Traditional
Tudor

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Guest Room
Main Level Laundry
Storage
Balcony
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Building Lot Type

Down Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.
