3-Bedroom, 1609 Sq Ft Craftsman Plan with Kitchen Island

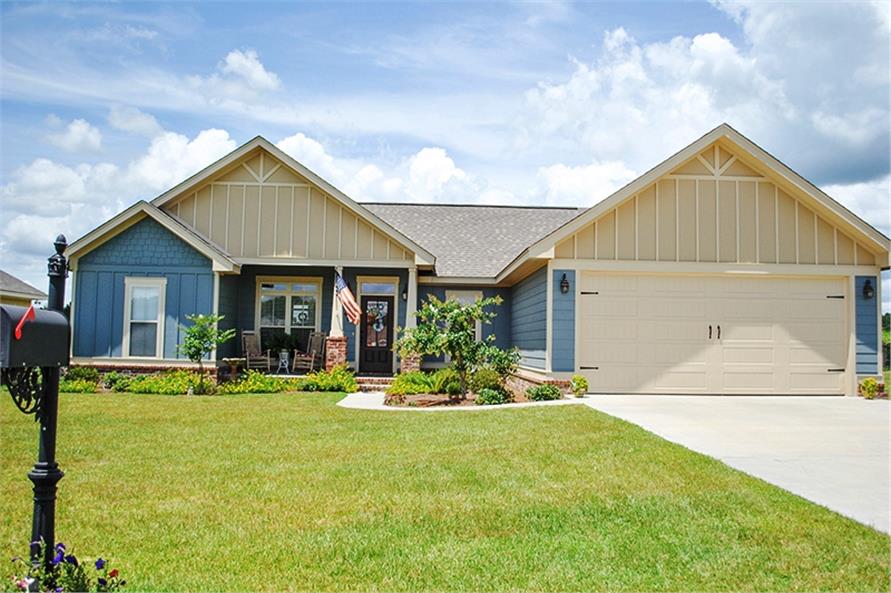

Front Elevation Photo of this Craftsman House (#142-1064) at The Plan Collection.
3-Bedroom, 1609 Sq Ft Craftsman House Plan - 142-1064 - Front Exterior

About Plan # 142-1064

About Plan # 142-1064

1609 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 62' 2" WIDTH 50' 0" DEPTH 2 GARAGE BAY

This striking Craftsman style ranch home (House Plan # 142-1064) has over 1600 square feet of living space. The one story floor plan includes 3 bedrooms and 2 bathrooms. The exterior of this home has graceful covered front and back porches. Inside, this house design's open floor plan includes a well-designed kitchen with an island and eating bar.

Each plan set includes the following:

  • Cover sheet
  • Foundation plan
  • Dimensional floor plan
  • Exterior views
  • Roof plan
  • Electrical layout
  • Wall section(s)
  • Building section(s)
  • Cabinet elevations

.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

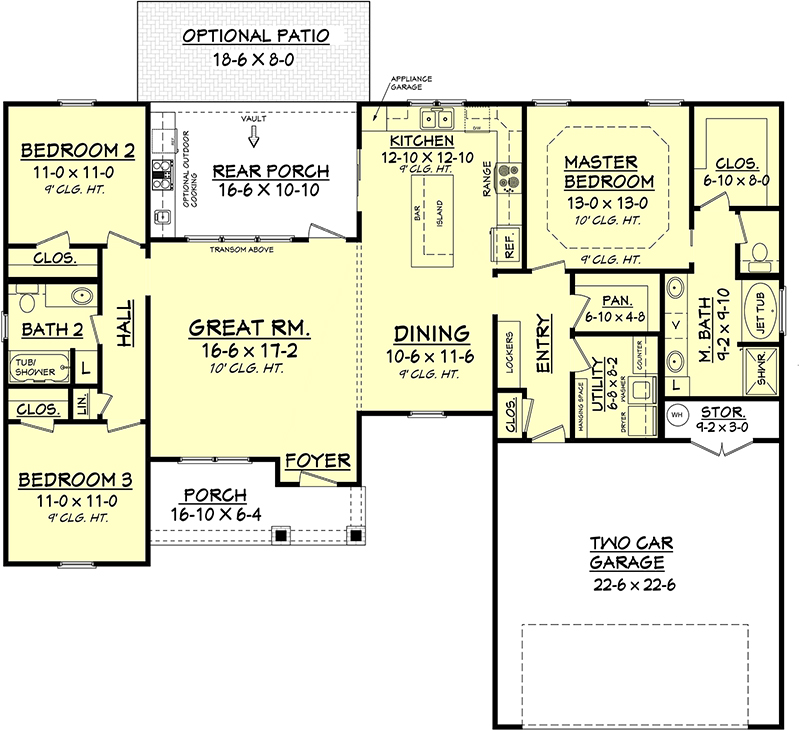

Home Plan: #142-1064 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #142-1064
Home Plan: #142-1064 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #142-1064
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 142-1064
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1609
Main Floor:
1609
Unfinished Sq Ft:
Main Floor:
32
Garage :
529
Porch :
272

Dimensions

Width:
62' 2"
Depth:
50' 0"
Ridge Height:
19' 6"

Architectural Styles

Country
Ranch
Arts and Crafts
Craftsman
Cottage

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Mud Room
Main Level Laundry
Color Photos
Storage
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Please Note: Ordering 2x6 Exterior Wall Framing option will require an additional 5 business days before plan can be shipped.


PLEASE NOTE! On some plans, Basement Foundations, Walkout Basement Foundations & 2x6 Conversions could take up to ONE WEEK to produce. Materials Lists could take up to FOUR WEEKS to produce and they will be for the ORIGINAL plan! Any modifications will NOT be reflected on the Materials List. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license - no need to purchase separately!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
