2-Bedroom, 970 Sq Ft A Frame Plan with Sundeck

Front elevation of A Frame home (ThePlanCollection: House Plan #146-1114)
2-Bedroom, 970 Sq Ft A Frame House Plan - 146-1114 - Front Exterior

About Plan # 146-1114

About Plan # 146-1114

970 SQUARE FEET 2 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 26' 0" WIDTH 53' 0" DEPTH 0 GARAGE BAY

With a flexible layout and a sunny wall of windows, this excellent A-frame is the perfect everyday getaway home. A glass door leads into the living room, where a curved, pre-fab fireplace adds a stylishly rustic tone to this wide-open space. The living room's unborken layout flows into the efficient kitchen, which includes a wide breakfast bar that is sure to be a favorite casual dining spot.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

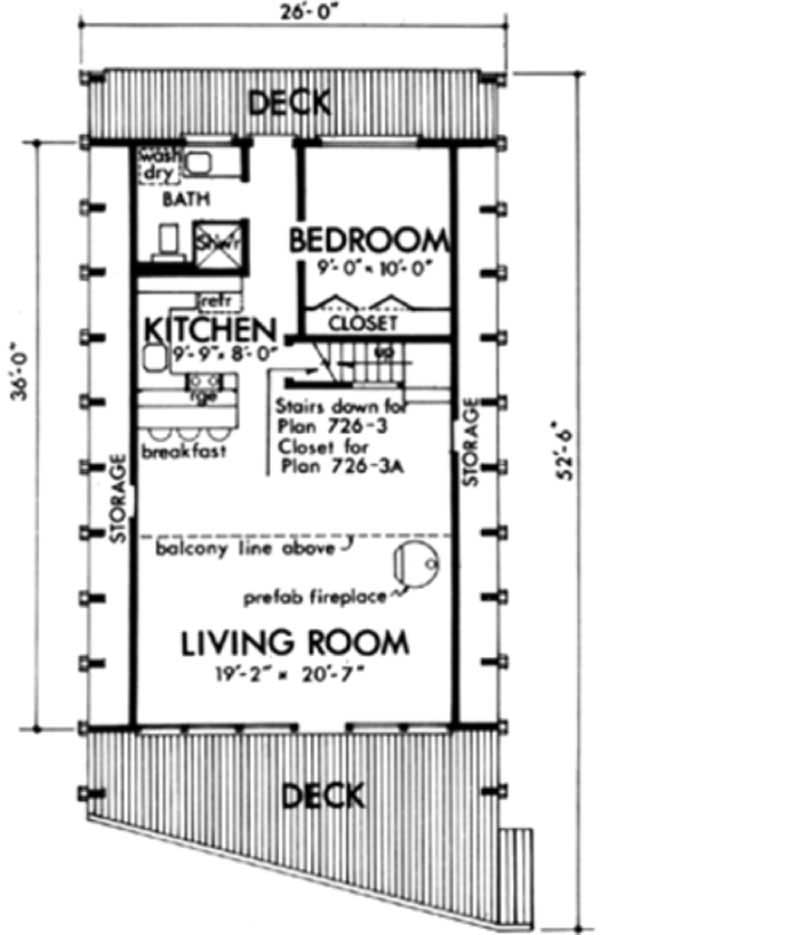

Home Plan: #146-1114 Floor Plan First Story - first story Floor Plan First Story of A Frame Plan #146-1114

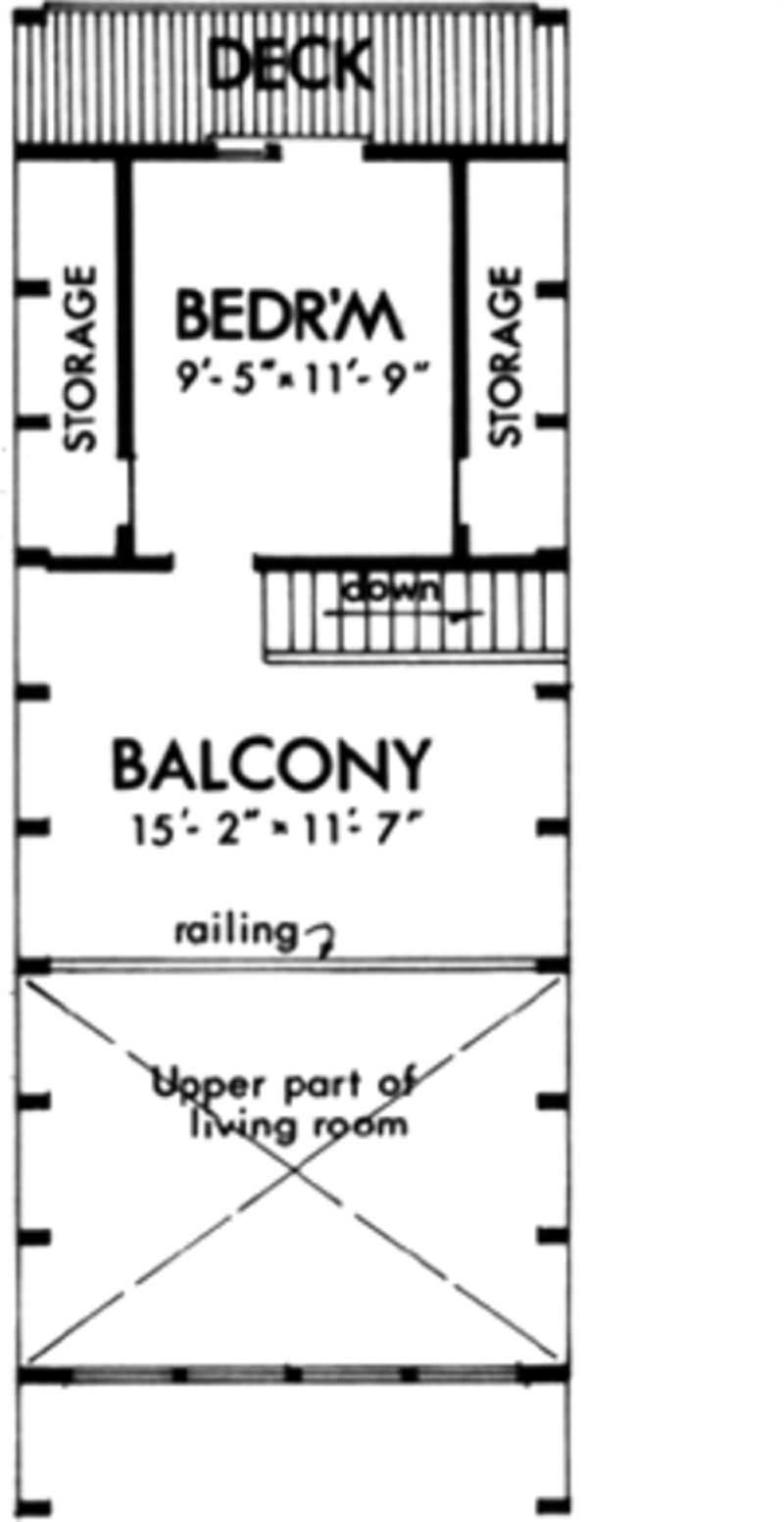

#146-1114 Floor Plan Second Story - second story Floor Plan Second Story of A Frame Plan #146-1114
Home Plan: #146-1114 Floor Plan First Story - first story Floor Plan First Story of A Frame Plan #146-1114
#146-1114 Floor Plan Second Story - second story Floor Plan Second Story of A Frame Plan #146-1114
