2-Bedroom, 796 Sq Ft Tiny House Plan with Loft

Small House Plans home (ThePlanCollection: Plan #177-1027)

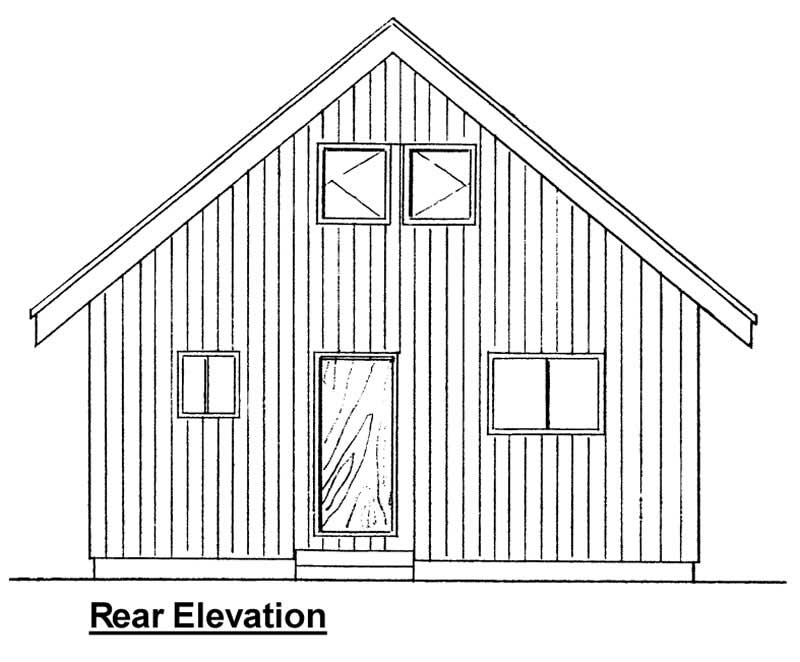

177-1027: Home Plan Rear Elevation

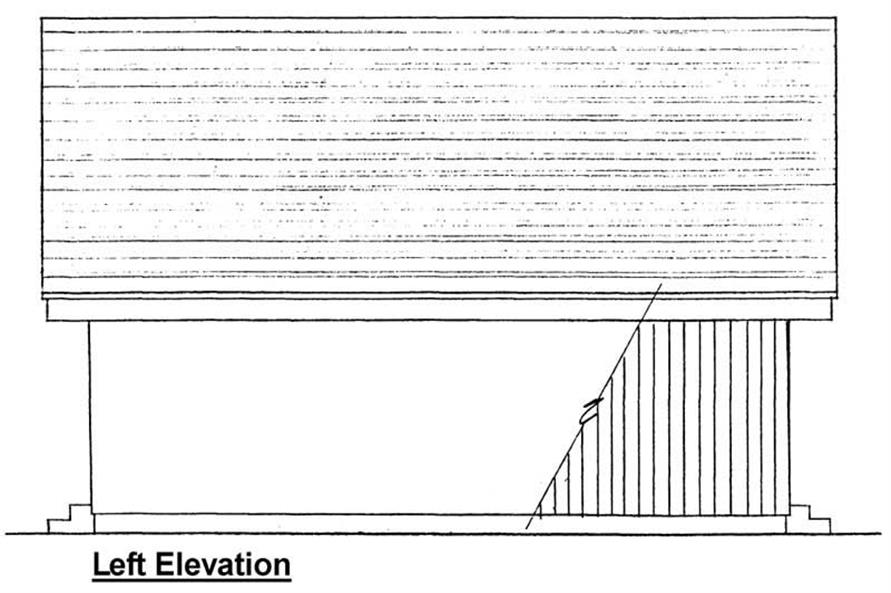

177-1027: Home Plan Left Elevation

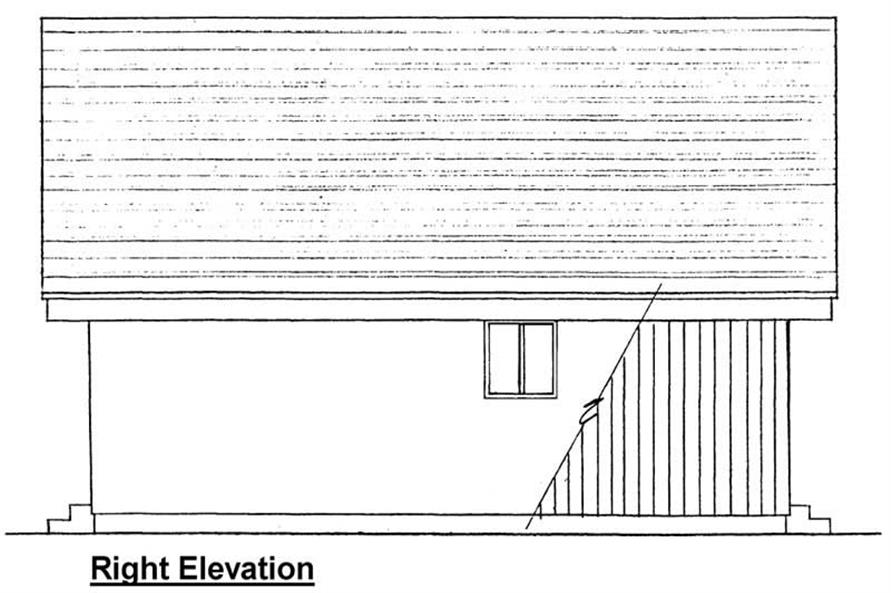

177-1027: Home Plan Right Elevation
177-1027: Home Plan Front Elevation
177-1027: Home Plan Rendering
2-Bedroom, 796 Sq Ft Small House Plans - 177-1027 - Main Exterior
177-1027: Home Plan Rear Elevation
177-1027: Home Plan Left Elevation
177-1027: Home Plan Right Elevation
177-1027: Home Plan Front Elevation
177-1027: Home Plan Rendering

About Plan # 177-1027

About Plan # 177-1027

796 SQUARE FEET 2 BEDROOMS 1 FULL BATH 0 HALF BATH
1 FLOOR 22' 0" WIDTH 28' 0" DEPTH 0 GARAGE BAY

This charming tiny house includes all the necessary features to provide its owners with countless hours of enjoyable relaxation. Its compact overall size will make it very economical to build and its simple design even easy for the novice builder to construct. Finished in cedar and shakes, this home will fit into any wooded setting quite well. The loft bedroom provides additional sleeping quarters (180 square feet) while also providing storage areas on both sides.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

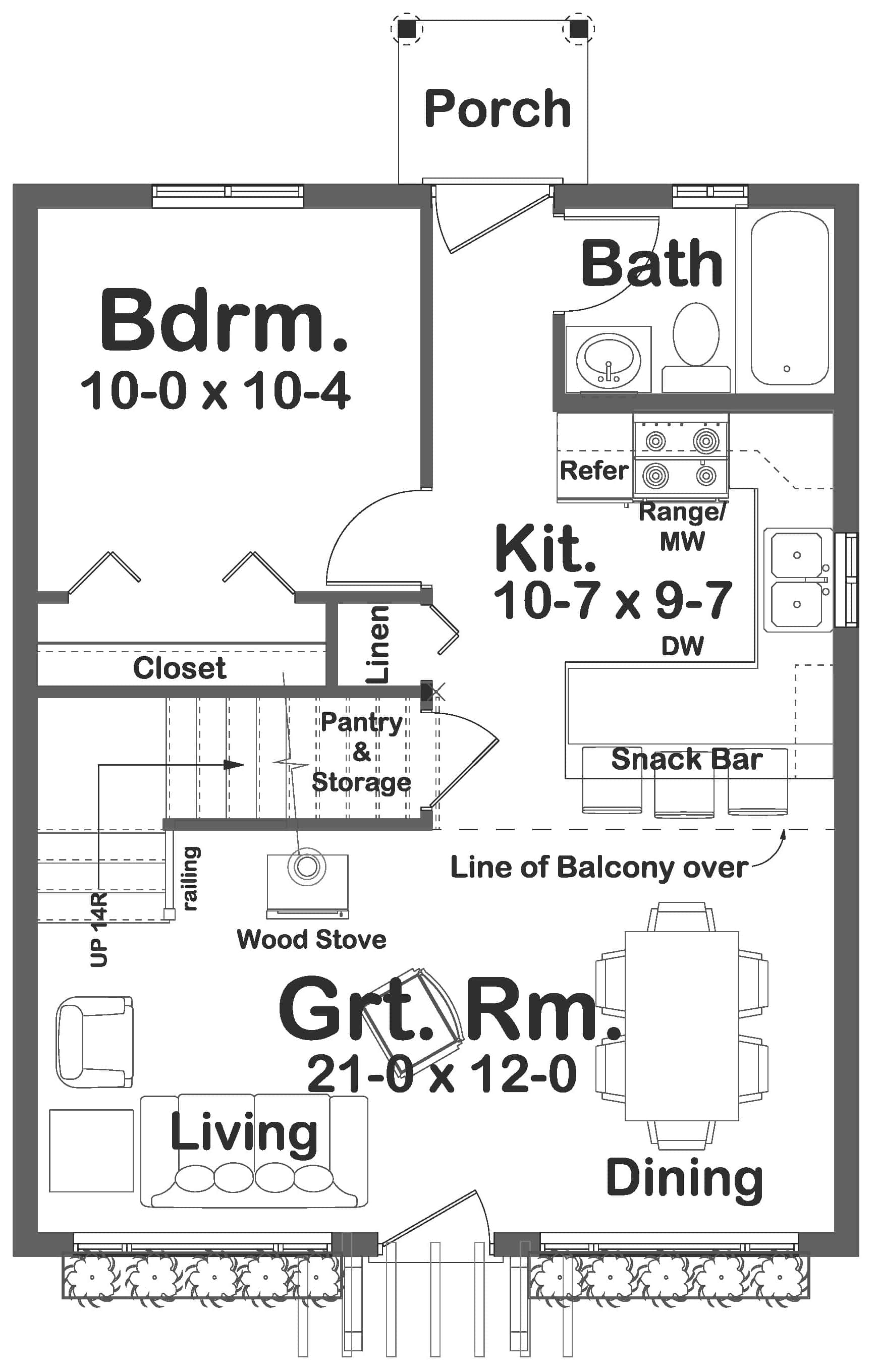

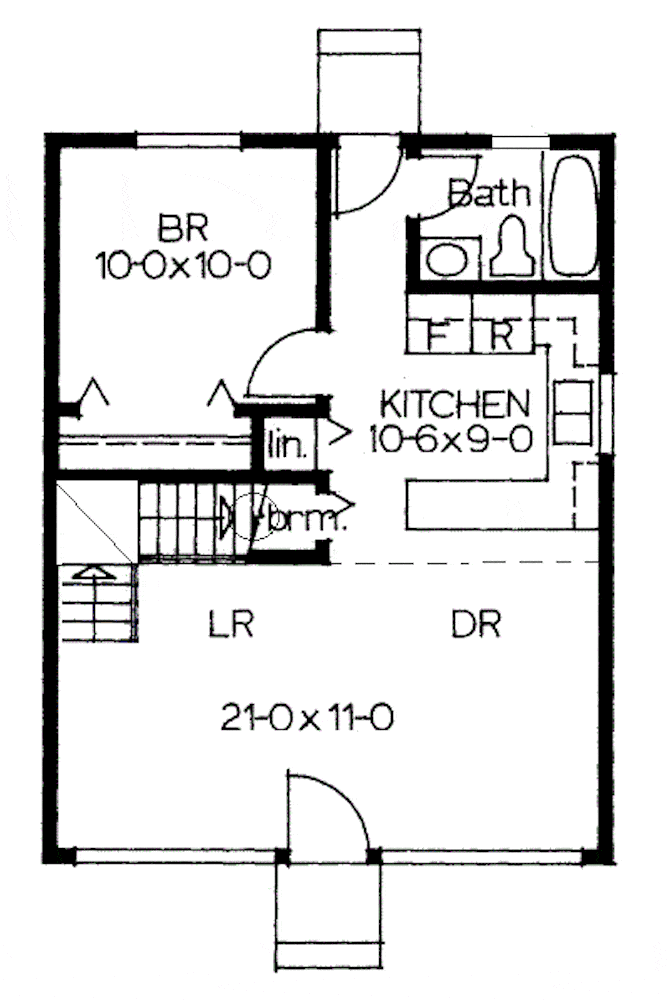

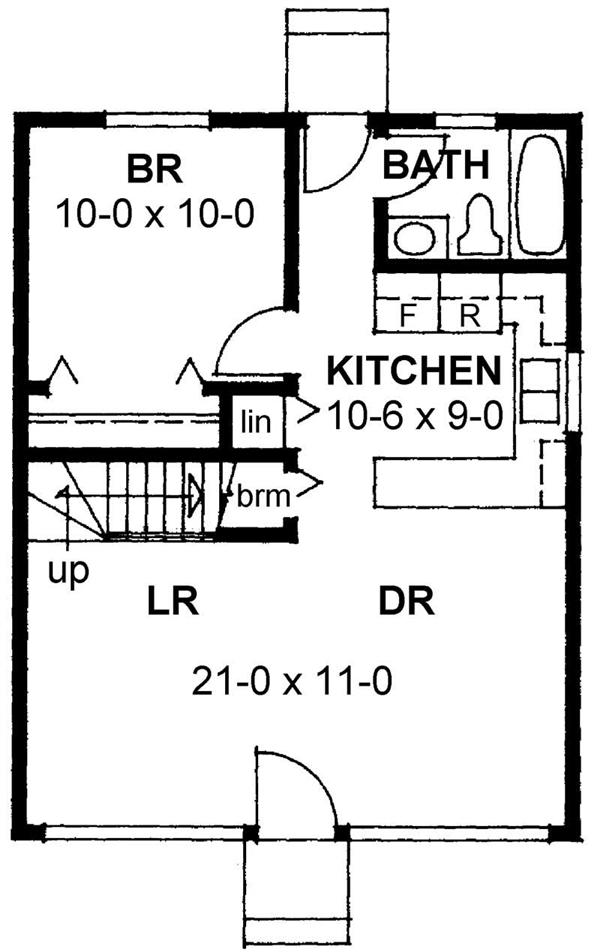

Home Plan: #177-1027 Floor Plan First Story - main level Main Level of Small House Plans #177-1027

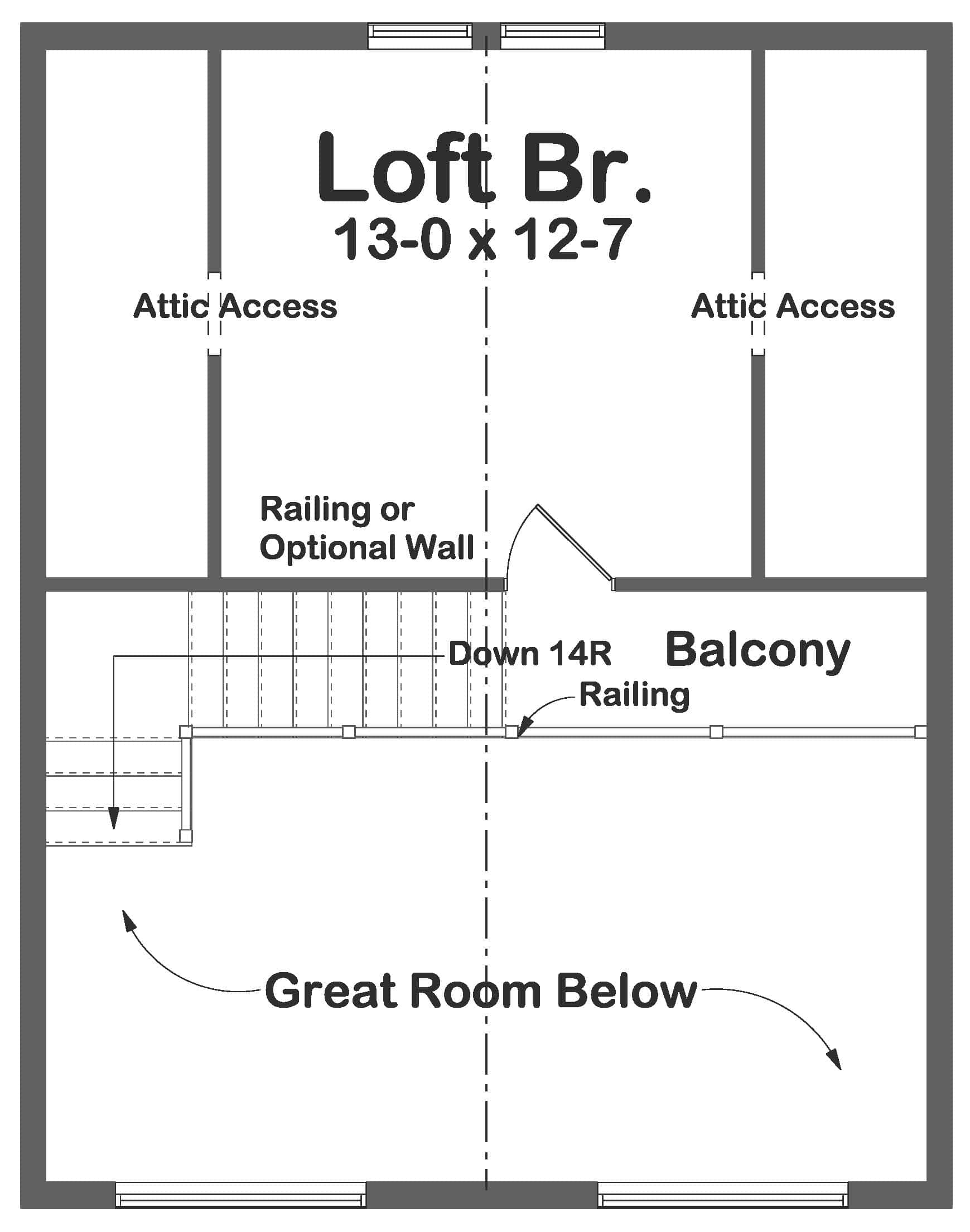

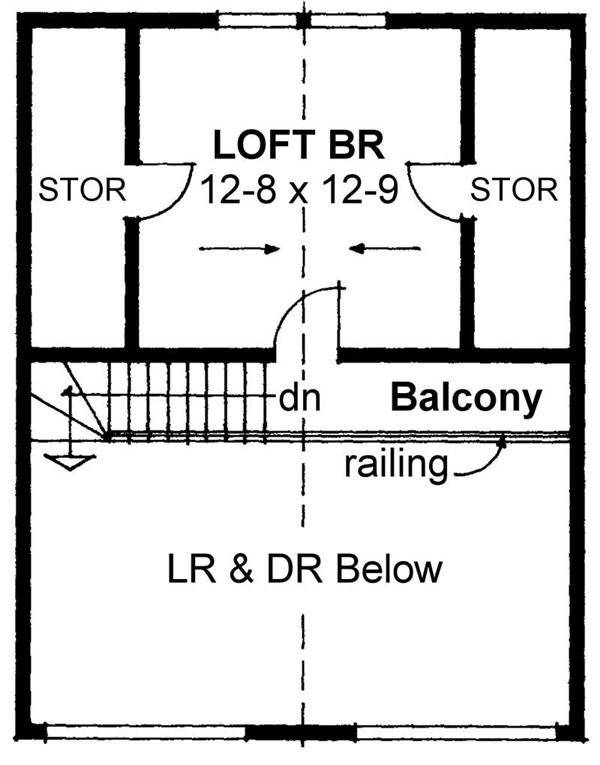

#177-1027 Floor Plan Second Story - upper level Upper Level of Small House Plans #177-1027
Home Plan: #177-1027 Floor Plan First Story - main level Main Level of Small House Plans #177-1027
#177-1027 Floor Plan Second Story - upper level Upper Level of Small House Plans #177-1027
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 177-1027
Floors:
1
Bedrooms:
2
Full Baths:
1

Square Footage

Heated Sq Feet:
796
Main Floor:
616
Upper Floor:
180
Unfinished Sq Ft:

Dimensions

Width:
22' 0"
Depth:
28' 0"
Ridge Height:
22' 6"

Architectural Styles

1 1/2 Story
A Frame
Small House Plans
Vacation Homes

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Special Feature

Family Room
Loft
Open Floor Plan
Storage
Vaulted Ceilings

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Peninsula/Eating Bar

Master Suite Features

Main Floor Master

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please send us a mod request to receive a quote.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
