3-Bedroom, 1220 Sq Ft A Frame Plan with Main Floor Master

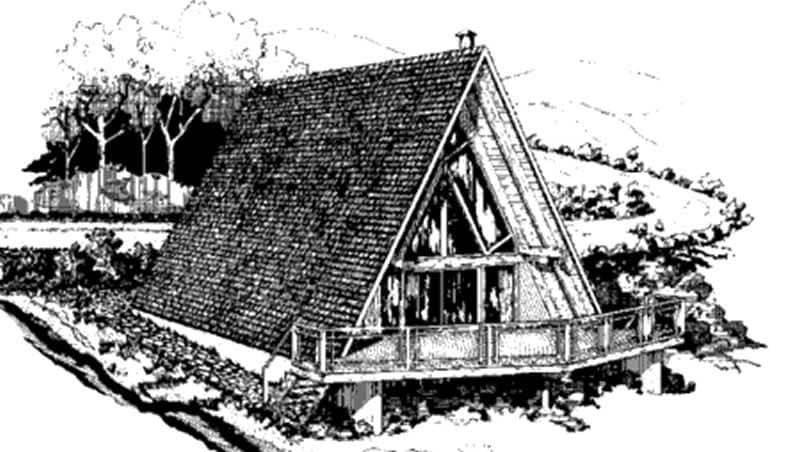

Front elevation of A Frame home (ThePlanCollection: House Plan #146-2565)
3-Bedroom, 1220 Sq Ft A Frame House Plan - 146-2565 - Front Exterior

About Plan # 146-2565

About Plan # 146-2565

1220 SQUARE FEET 3 BEDROOMS 1 FULL BATH 1 HALF BATH
2 FLOOR 28' 0" WIDTH 63' 0" DEPTH 0 GARAGE BAY

This traditional A-frame, which is designed for optimum comfort and minimum cost, can vary from plush to rustic, allowing the home to serve equally well as a weekend cabin, a summer retreat or a ski chalet. The highlight of the floor plan is the spacious living room, where a 22-ft. vaulted ceiling soars above. A stunning two-story wall of windows takes full advantage of surrounding views.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

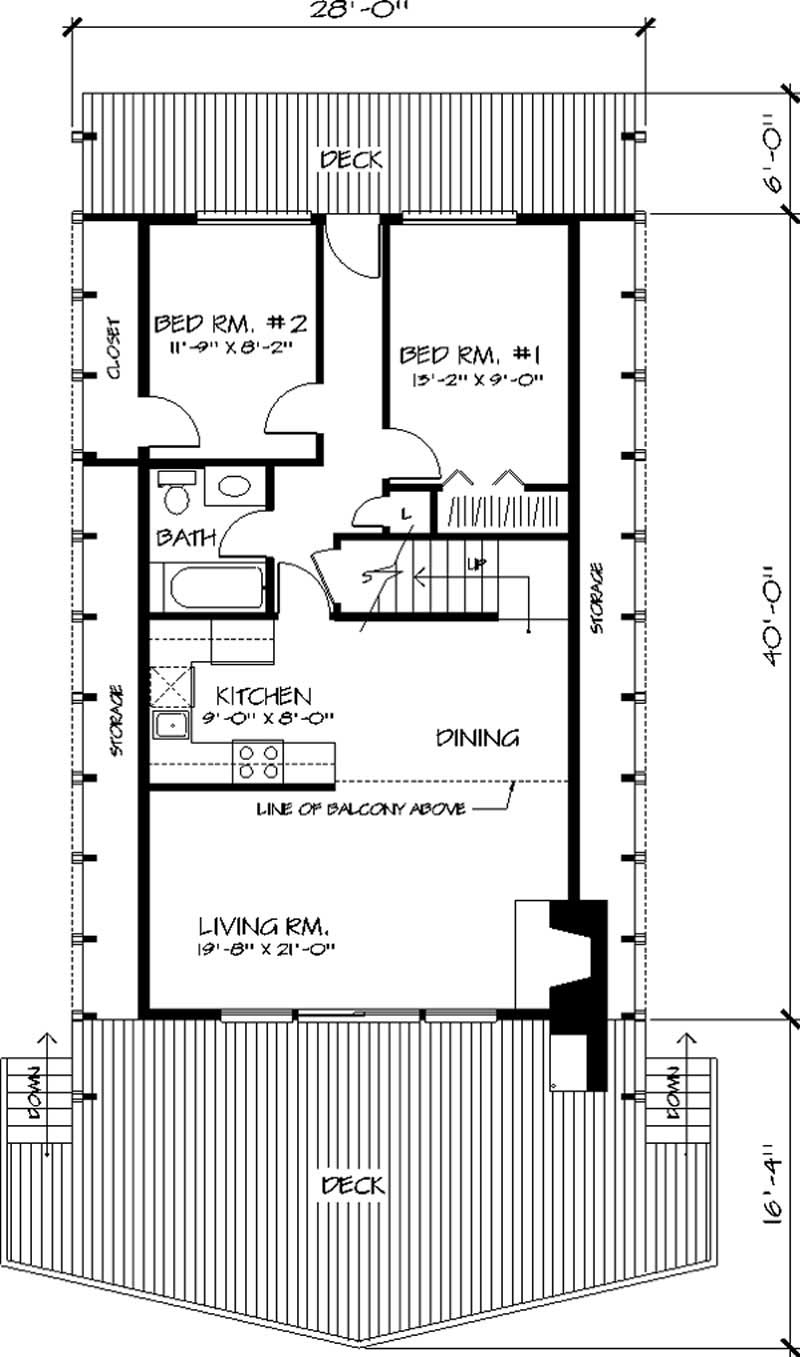

Home Plan: #146-2565 Floor Plan First Story - first story Floor Plan First Story of A Frame Plan #146-2565

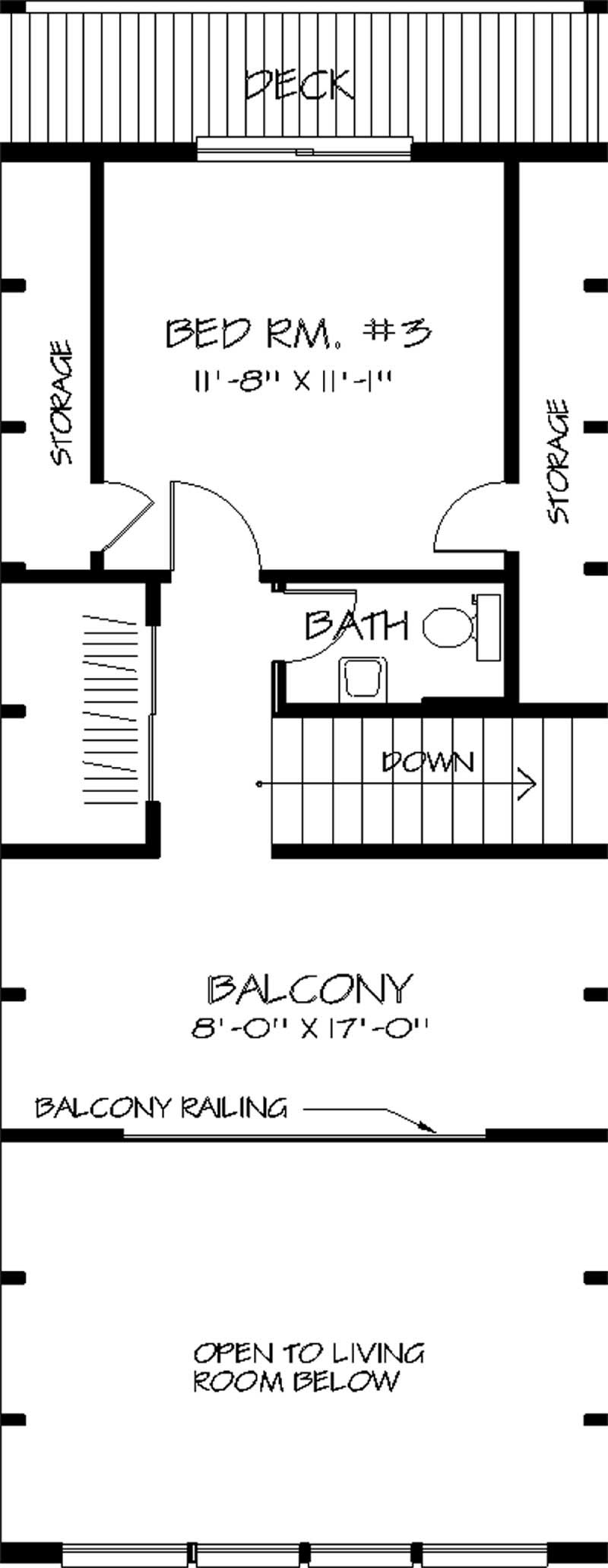

#146-2565 Floor Plan Second Story - second story Floor Plan Second Story of A Frame Plan #146-2565
Home Plan: #146-2565 Floor Plan First Story - first story Floor Plan First Story of A Frame Plan #146-2565
#146-2565 Floor Plan Second Story - second story Floor Plan Second Story of A Frame Plan #146-2565
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 146-2565
Floors:
2
Bedrooms:
3
Full Baths:
1
Half Baths:
1

Square Footage

Heated Sq Feet:
1220
Main Floor:
845
Upper Floor:
375
Unfinished Sq Ft:

Dimensions

Width:
28' 0"
Depth:
63' 0"
Ridge Height:
24' 0"

Architectural Styles

1 1/2 Story
A Frame
Small House Plans
Vacation Homes

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Special Feature

Balcony
Dining Room
Fireplace
Split Bathroom
Storage

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site
Narrow Lot Design
View Lot

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area

Porches and Exterior Features

Sundeck

Master Suite Features

Master Bathroom
Second Floor Master
Walk In Closet

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals. This file may be available. Please call or email us first so we can confirm for you. This set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
