2-3 Bedroom Cape Cod Colonial House Plan with 1245 Sq Ft

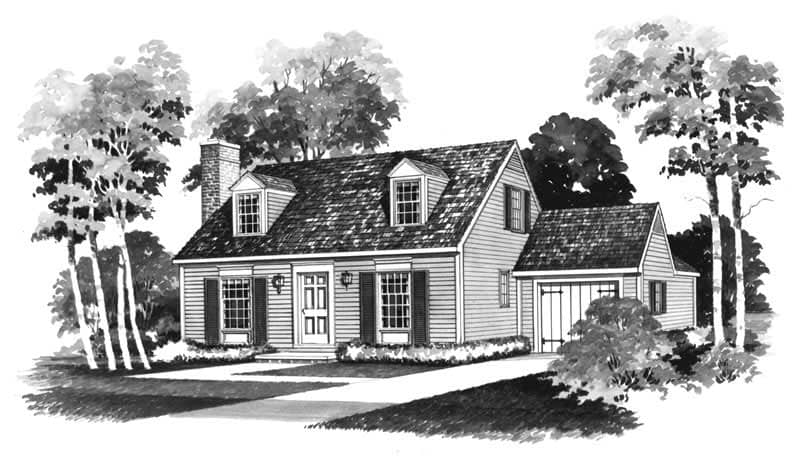

Front elevation of Cape Cod home (ThePlanCollection: House Plan #137-1758)

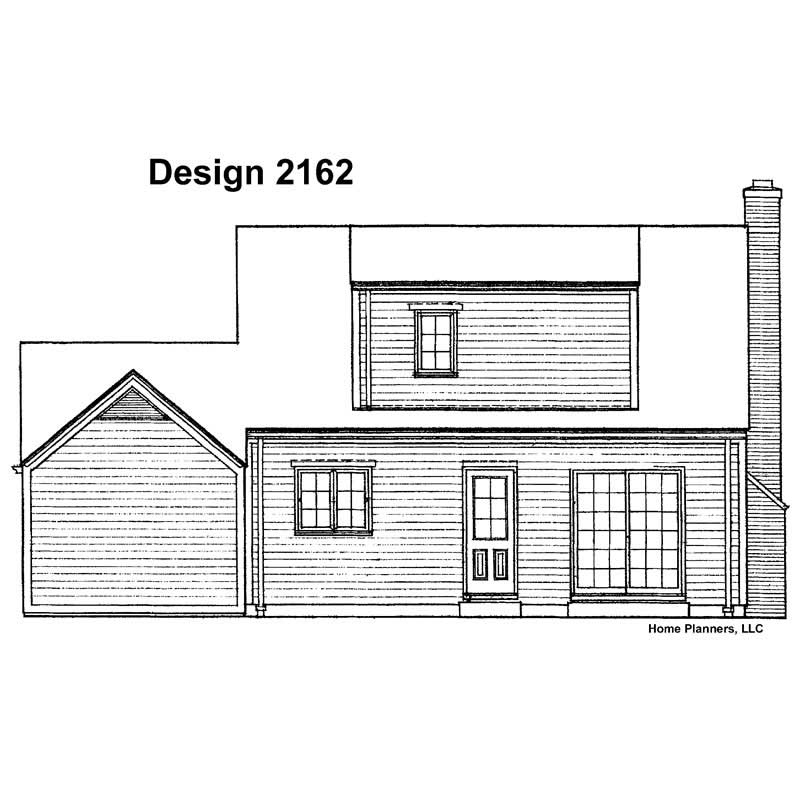

137-1758: Home Plan Rear Elevation

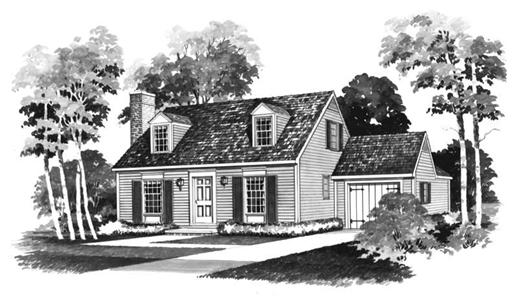

3-Bedroom, 1245 Sq Ft Cape Cod Home Plan - 137-1758 - Main Exterior

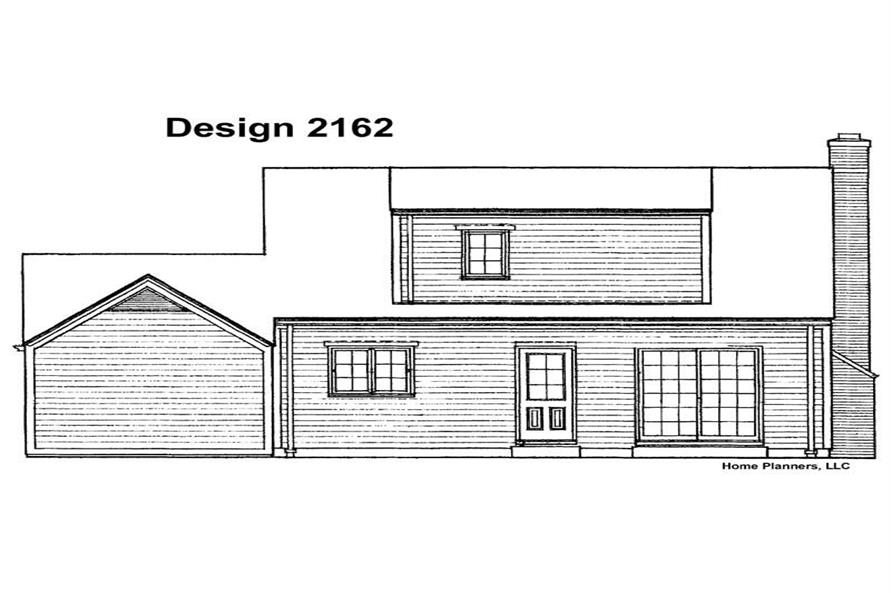

137-1758: Home Plan Rear Elevation

About Plan # 137-1758

About Plan # 137-1758

1245 SQUARE FEET 3 BEDROOMS 1 FULL BATH 1 HALF BATH
2 FLOOR 42' 8" WIDTH 37' 0" DEPTH 1 GARAGE BAY

This is truly a classicly-designed Cape Cod home. The simple front door leads to a cozy entry with stairs headed to the second floor. On one side of the entry hall is the living room with a fireplace. On the other side is the study which could be converted into a third bedroom. At the rear of the home are the eat-in kitchen and a formal dining room. Both rooms look out onto the rear terrace. Upstairs are two bedrooms (each with walk-in closets) and a full hallway bath.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

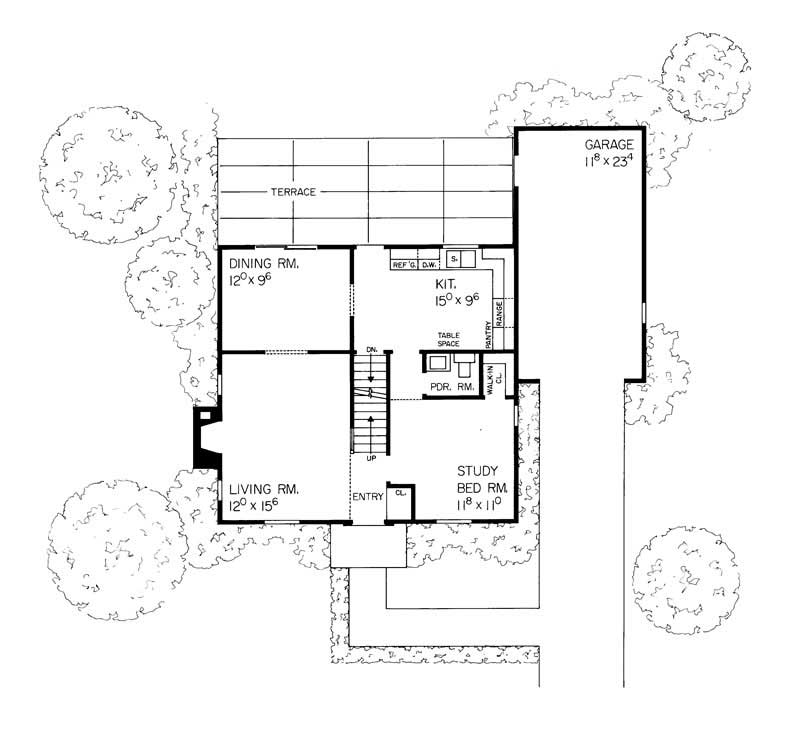

Home Plan: #137-1758 Floor Plan First Story - first story Floor Plan First Story of Cape Cod Plan #137-1758

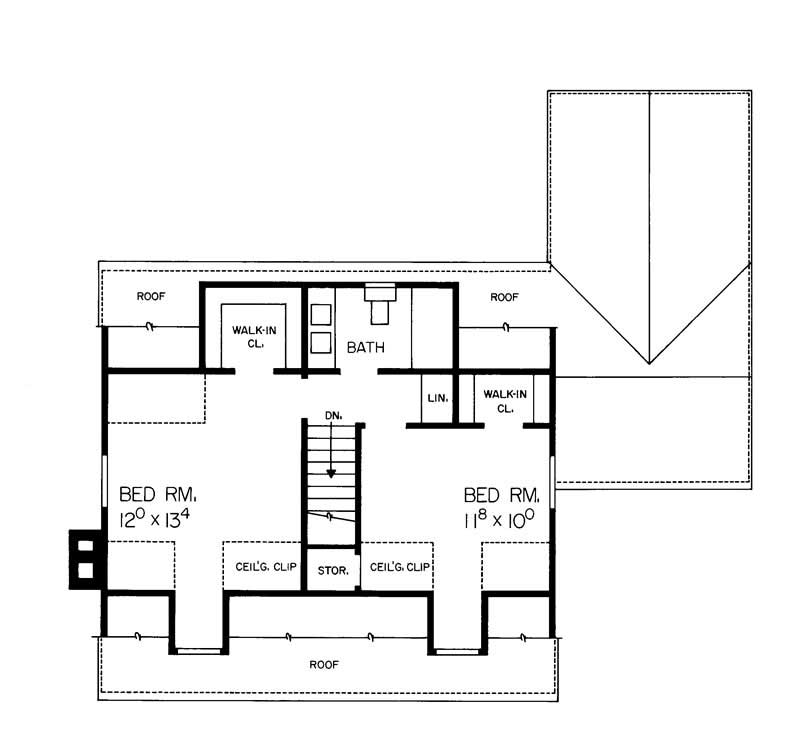

#137-1758 Floor Plan Second Story - second story Floor Plan Upper Level of Cape Cod Plan #137-1758
Home Plan: #137-1758 Floor Plan First Story - first story Floor Plan First Story of Cape Cod Plan #137-1758
#137-1758 Floor Plan Second Story - second story Floor Plan Upper Level of Cape Cod Plan #137-1758
