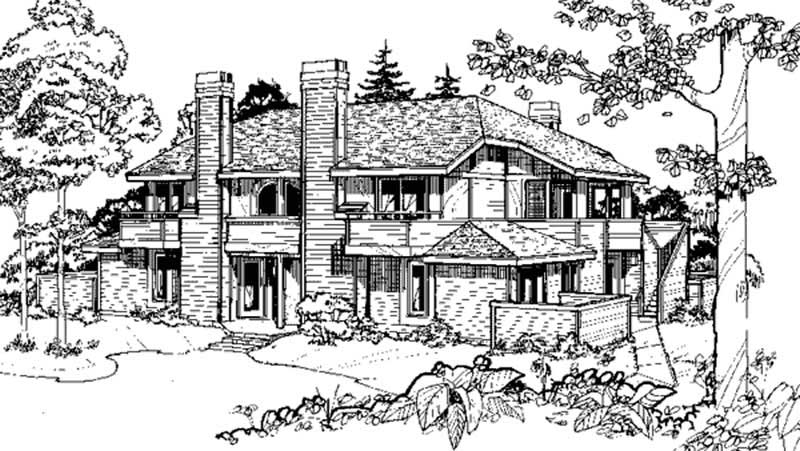

Front view of Duplex/Multi-Unit home (ThePlanCollection: House Plan #146-2469)
1-Bedroom, 1142 Sq Ft Duplex/Multi-Unit House Plan - 146-2469 - Front Exterior

About Plan # 146-2469

About Plan # 146-2469

1142 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 56' 0" WIDTH 48' 0" DEPTH 0 GARAGE BAY
This multi-unit design offers three different floor plans. Unit A features a Great Room warmed by an angled fireplace; sliding doors access a side patio enclosed by a privacy wall. A walk-through kitchen and a bedroom with a walk-in closet complete the floor plan. Unit B offers a Great Room with a cozy corner fireplace and access to a private patio. A snack bar makes it easy to serve guests directly from the kithcen. The bedroom has its own access to the home's full bath. The upper-level Unit C is a studio design. A snack bar connects the kitchen with the Great Room, which boasts a comforting fireplace. Sliding doors access a deck just off the sleeping area.

Each plan set includes the following:



Foundation plan

Exterior elevations

Floor plans

Cross-sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

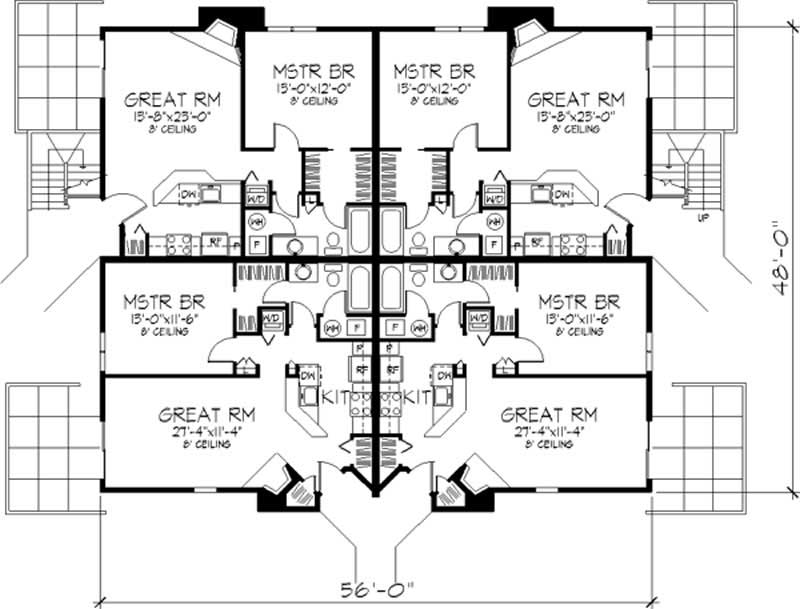

Home Plan: #146-2469 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #146-2469

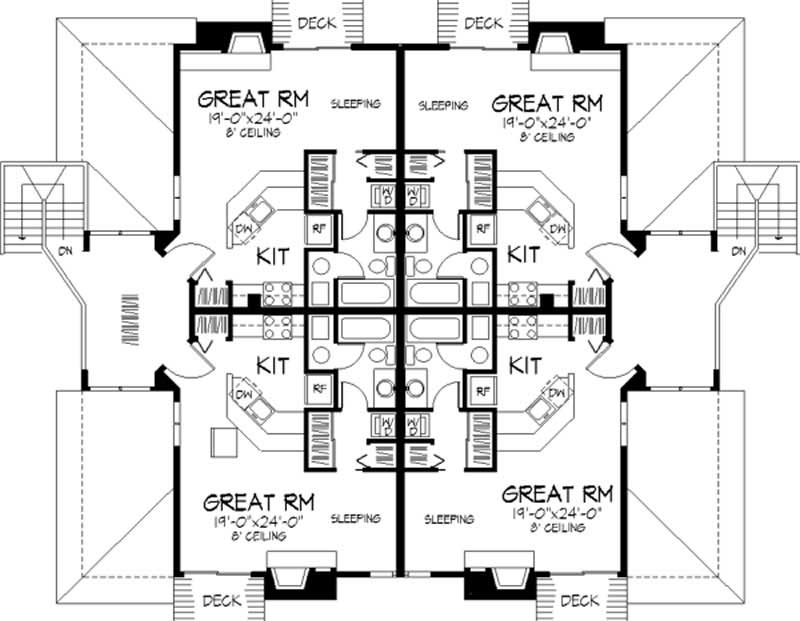

#146-2469 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #146-2469
Home Plan: #146-2469 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #146-2469
#146-2469 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #146-2469
