3-Bedroom, 1536 Sq Ft Ranch Plan with Peninsula/Eating Bar
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 1536 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 72' 0" WIDTH | 36' 0" DEPTH | 2 GARAGE BAY |
Home Plan HW-2810 is a comfortable ranch style house. The main rooms are large and welcoming. The family room is open to the kitchen and dining area, with access to the rear terrace. The exposed beams add interest and warmth to the space. The bedrooms are simple and private. The unfinished basement doubles the size of this home and offers plenty of space for expansion. See also House plan HW-2813, and HW-2817.
Each plan set includes the following:

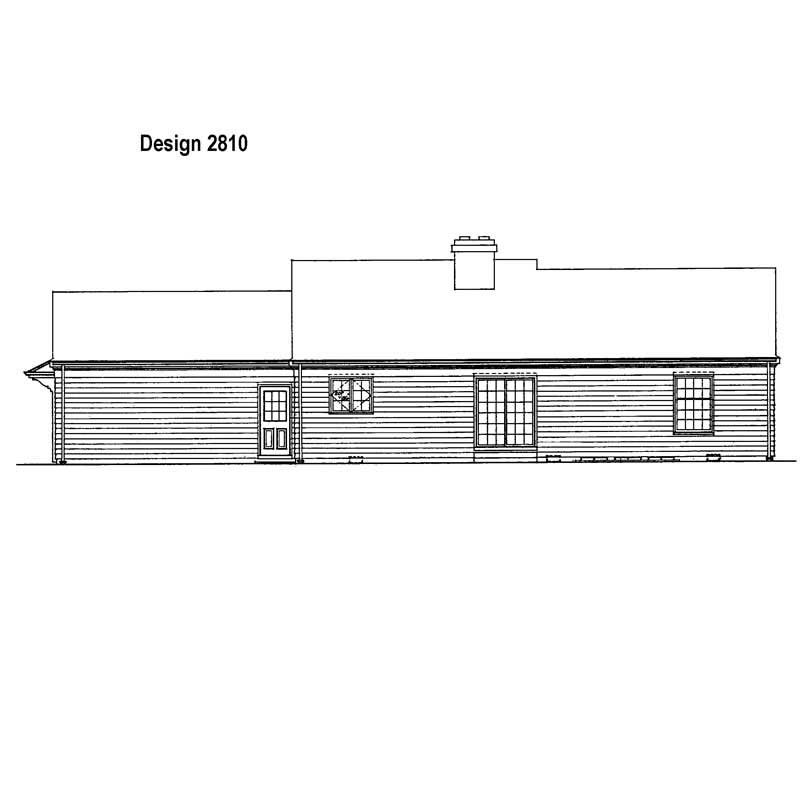

- All 4 elevations
- Floor plan
- Foundation plan
- Sections
- Interior elevations
- Detail page
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images
Home Plan: #137-1746 Floor Plan First Story
-

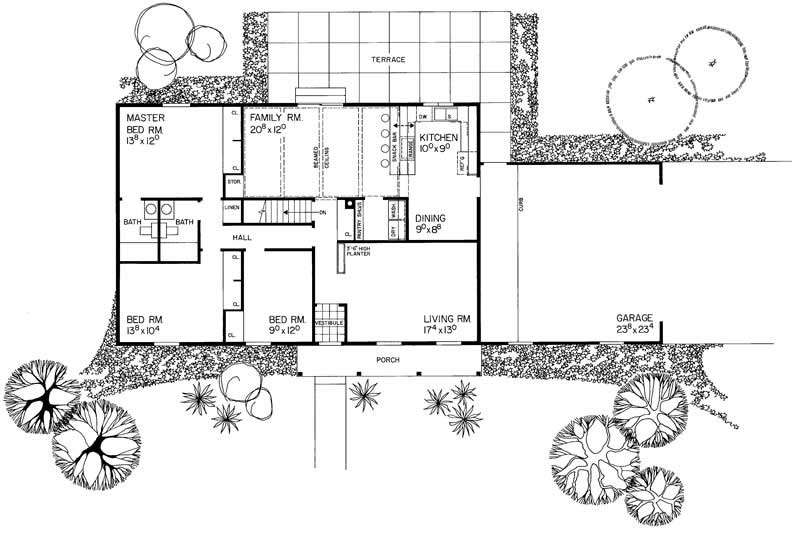

main floor ploor
![Floor Plan First Story of Ranch Plan #137-1746]( "House Plan HW-2810 Main Floor Ploor")
#137-1746 Floor Plan First Story
-

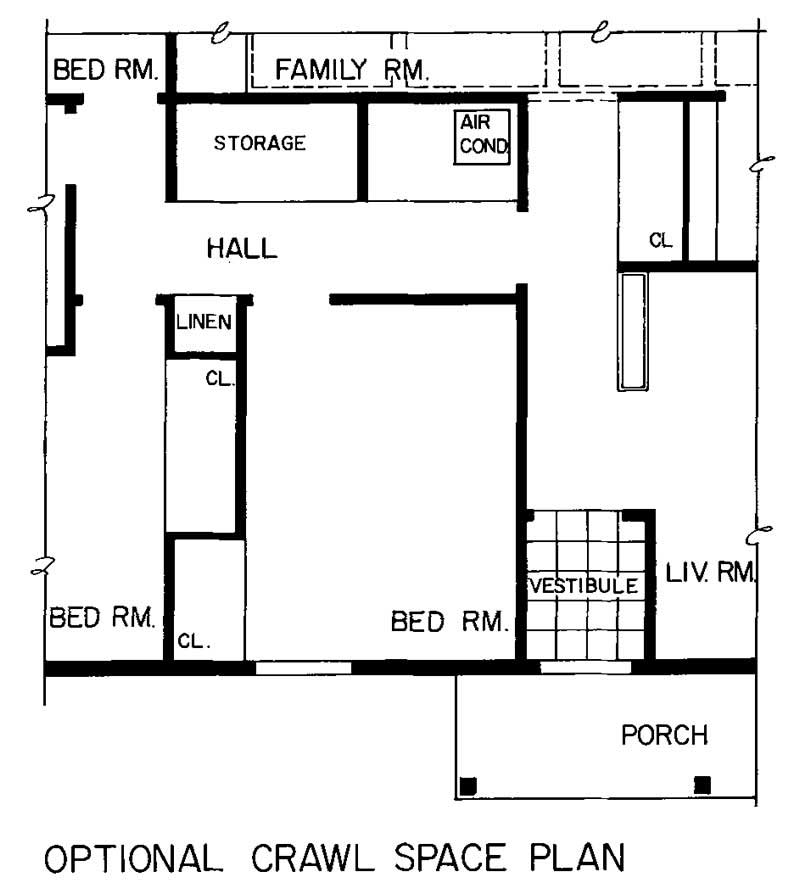

floor ploor option
![Floor Plan First Story of Ranch Plan #137-1746]( "House Plan HW-2810 Floor Ploor Option")
#137-1746 Floor Plan First Story
-

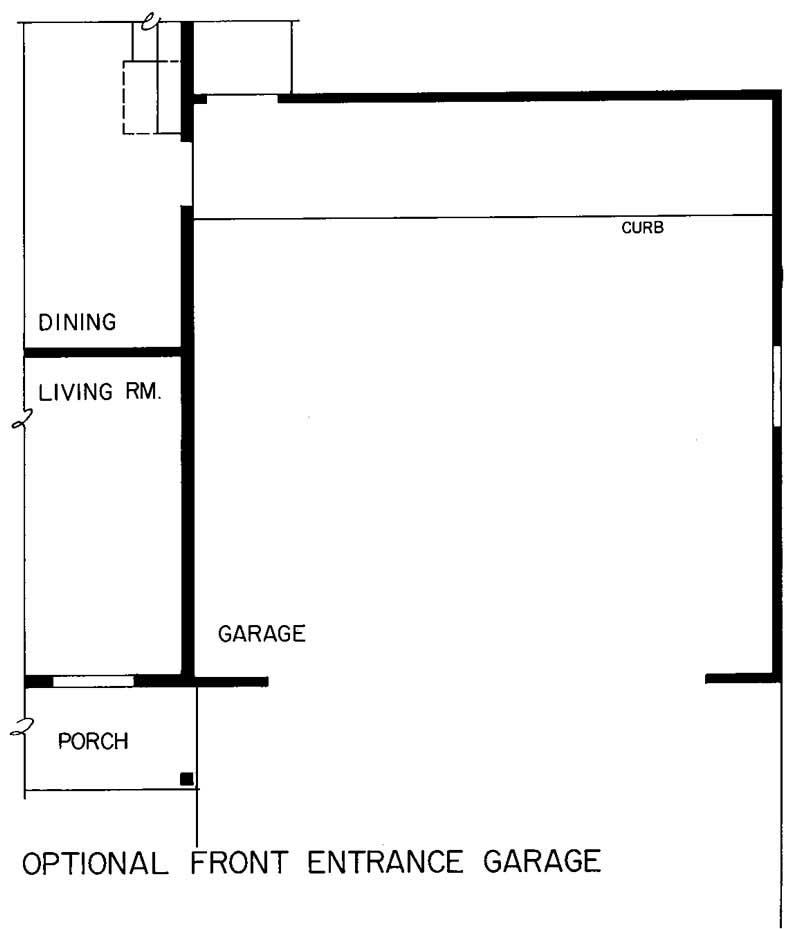

garage option
![Floor Plan First Story of Ranch Plan #137-1746]( "House Plan HW-2810 Garage Option")
Home Plan: #137-1746 Floor Plan First Story
-
main floor ploor
![Floor Plan First Story of Ranch Plan #137-1746]( "House Plan HW-2810 Main Floor Ploor")
#137-1746 Floor Plan First Story
-
floor ploor option
![Floor Plan First Story of Ranch Plan #137-1746]( "House Plan HW-2810 Floor Ploor Option")
#137-1746 Floor Plan First Story
-
garage option
![Floor Plan First Story of Ranch Plan #137-1746]( "House Plan HW-2810 Garage Option")
Special Offer
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Plan #:
# 137-1746
Floors:
1
Bedrooms:
3
Full Baths:
2
Square Footage
Heated Sq Feet:
1536
Main Floor:
1536
Unfinished Sq Ft:
Dimensions
Width:
72' 0"
Depth:
36' 0"
Ridge Height:
20'' 0"
Architectural Styles
Ranch
Exterior Wall Material
Wood Siding
Roofing Type
Gable
Roof Pitch
6/12
Special Feature
Family Room
Garage Type
Attached Garage
Side Entry
Exterior Wall Framing
2x6
Additional Notes from Designer
Plans from this designer could take up to 14 days to fulfill, regardless of the plan package that was ordered.
Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans.
PLEASE NOTE: For this designer, if you are ordering a CAD, the wait time could be 2-3 weeks, depending on the plan. If you need it sooner, please contact us to find out the wait time. Thank you!
PRICING OPTIONS
A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.
Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.
A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.
For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.
Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
