4-Bedroom, 3974 Sq Ft European Plan with Walk-in Pantry

Main image for house plan # 17345

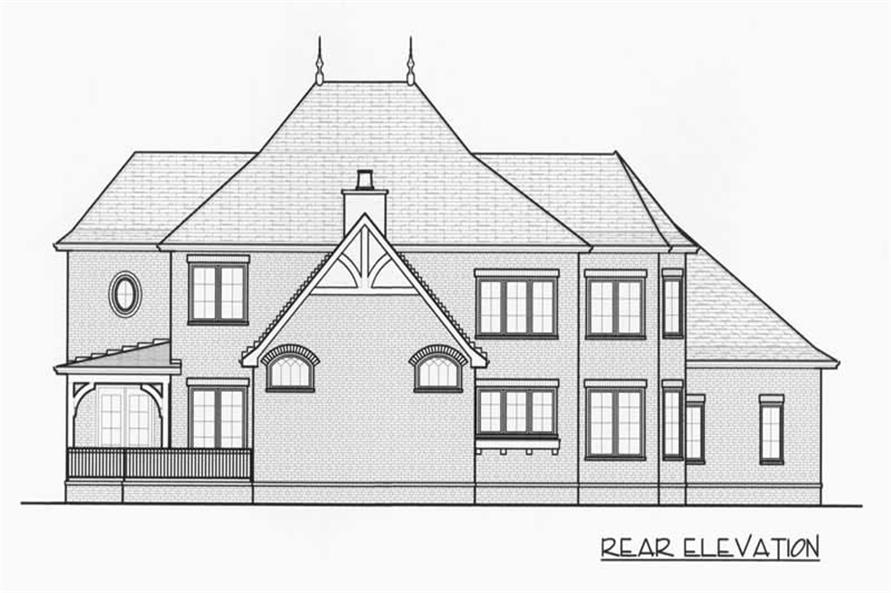

House Plan EDG-3794 Rear Elevation
4-Bedroom, 3974 Sq Ft European Home Plan - 127-1058 - Main Exterior
House Plan EDG-3794 Rear Elevation

About Plan # 127-1058

About Plan # 127-1058

3974 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 71' 10" WIDTH 93' 4" DEPTH 3 GARAGE BAY
House Plan EDG-3974 has an inviting floor plan for entertaining, yet offers all the privacy you need. The entrance is through an enclosed courtyard. The rooms open up progressively throughout the home. The great room, dining room, and kitchen share one large space separated only by columns and defined with vaulted ceilings with exposed beams. The master suite is spacious with a luxurious master bath with a deep shower, large tub, and a big walk-in closet. The upper floor houses the rest of the bedrooms, each with a walk-in closet. Other features are a game room, unfinished bonus room, large laundry room, three car garage, and covered and open terraces on the back. The roof pitch is 14/12. For a similar floor plan with a different style see house plan EDG-4334. Note: this plan is not available within a 50 mile radius of Charlotte, NC.

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

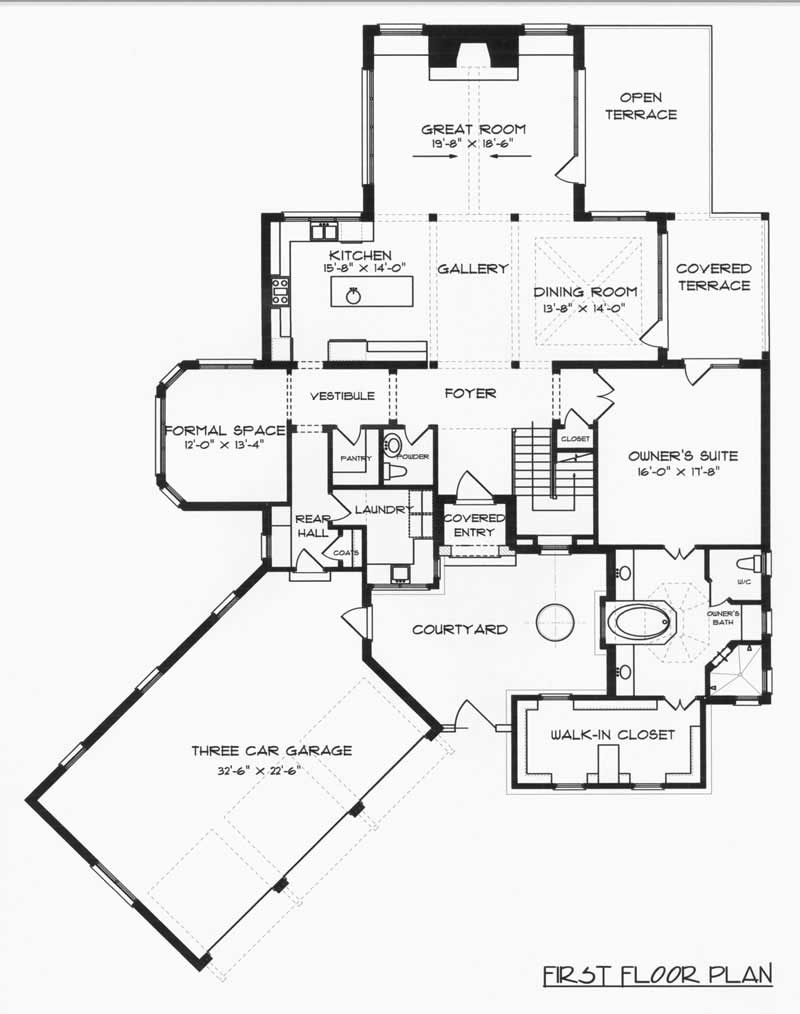

Home Plan: #127-1058 Floor Plan First Story - main Floor Plan First Story of European Plan #127-1058

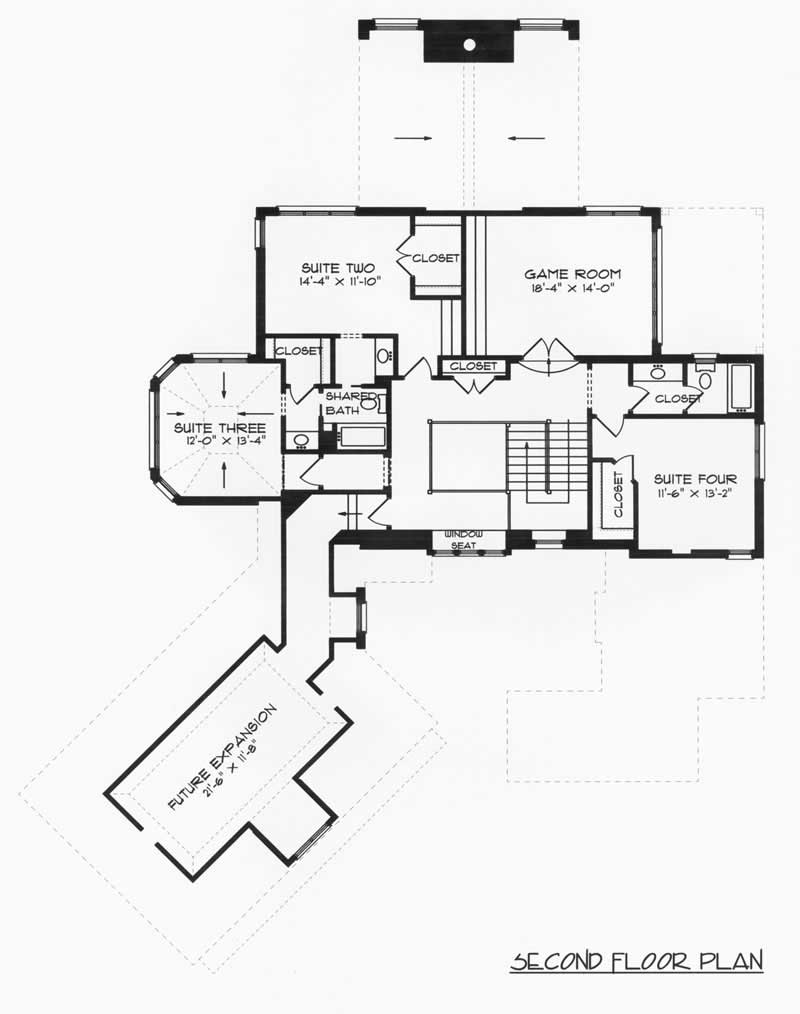

#127-1058 Floor Plan Second Story - second Floor Plan Second Story of European Plan #127-1058
