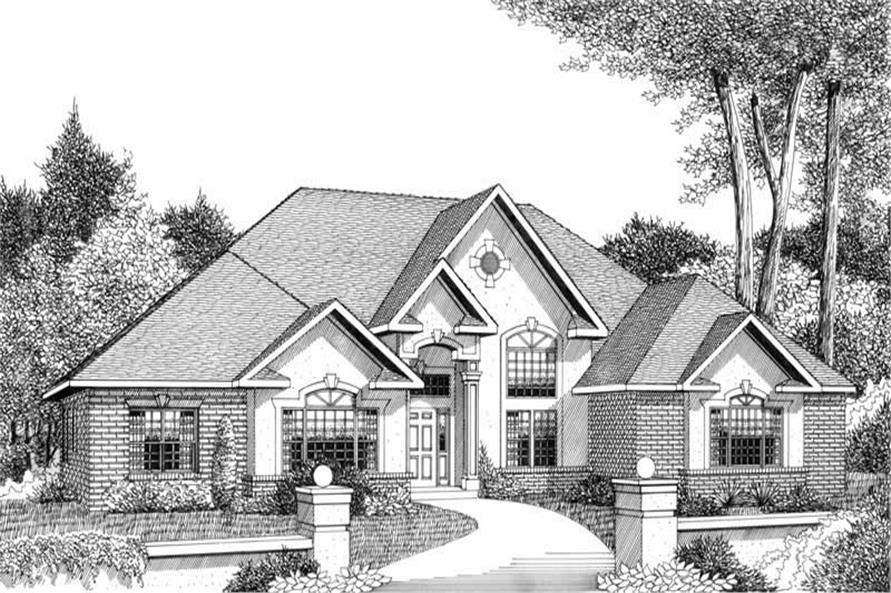

House Plan E160 Front Elevation

About Plan # 173-1050

About Plan # 173-1050

2836 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 69' 8" WIDTH 60' 10" DEPTH 2 GARAGE BAY
Plan E160 has a simple floor plan that is functional and divides spaces well. The secluded master bedroom is comfortable with a large master bath. This plan is essentiall the same as E159, but showing the basement option with large laundry room, half bath, and smaller garage. See plan E159.

Each plan set includes the following:

  • Foundation plan
  • Floor plan(s)
  • Electrical layout
  • Exterior elevations
  • Cabinet details
  • Interior elevations (when necessary)
  • Roof plan
  • Typical wall section
  • Standard detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

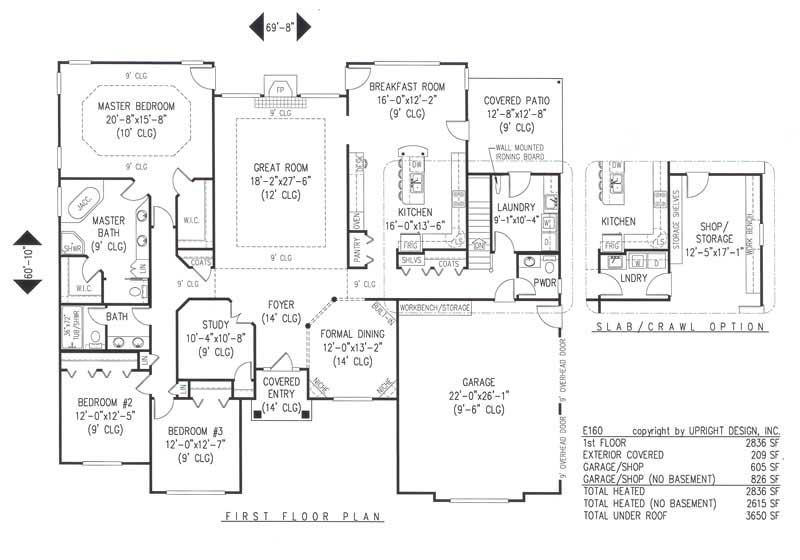

Home Plan: #173-1050 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #173-1050
