Front elevation of Contemporary home (ThePlanCollection: House Plan #119-1004)
This image shows the rear elevation of the home.
2-Bedroom, 1472 Sq Ft Contemporary House Plan - 119-1004 - Front Exterior
This image shows the rear elevation of the home.

About Plan # 119-1004

About Plan # 119-1004

1472 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 27' 0" WIDTH 58' 0" DEPTH 2 GARAGE BAY

Contemporary house plan 100-452 is a two story home plan with 1472 square feet. It has 2 bedrooms, 2 baths, and has a 2 car garage.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY

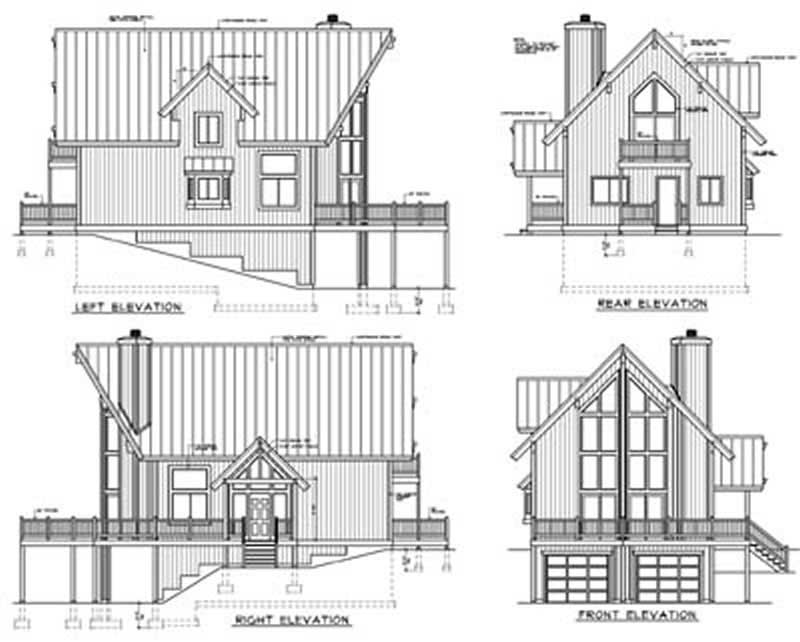

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

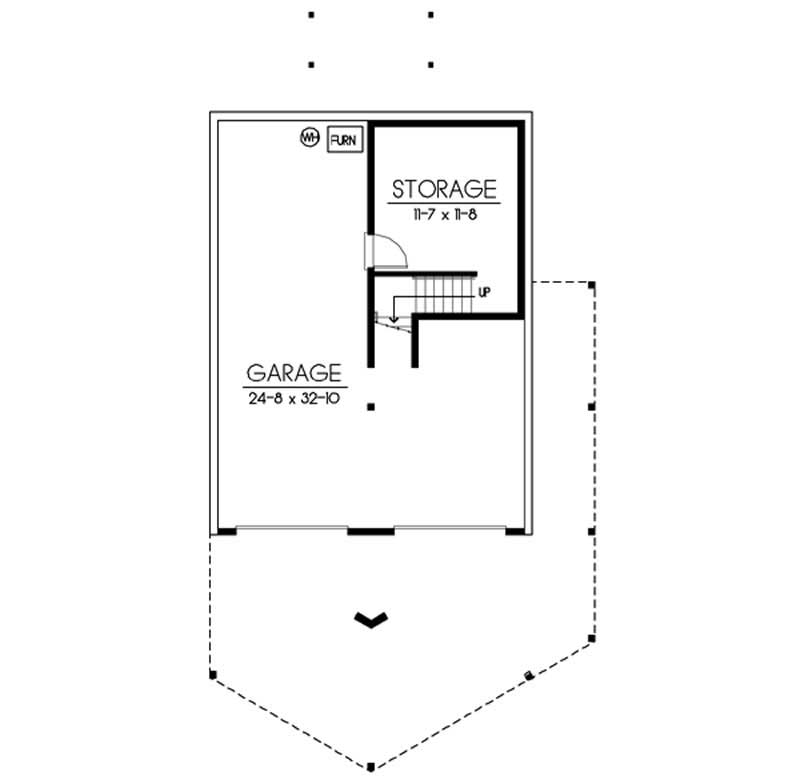

Home Plan: #119-1004 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #119-1004

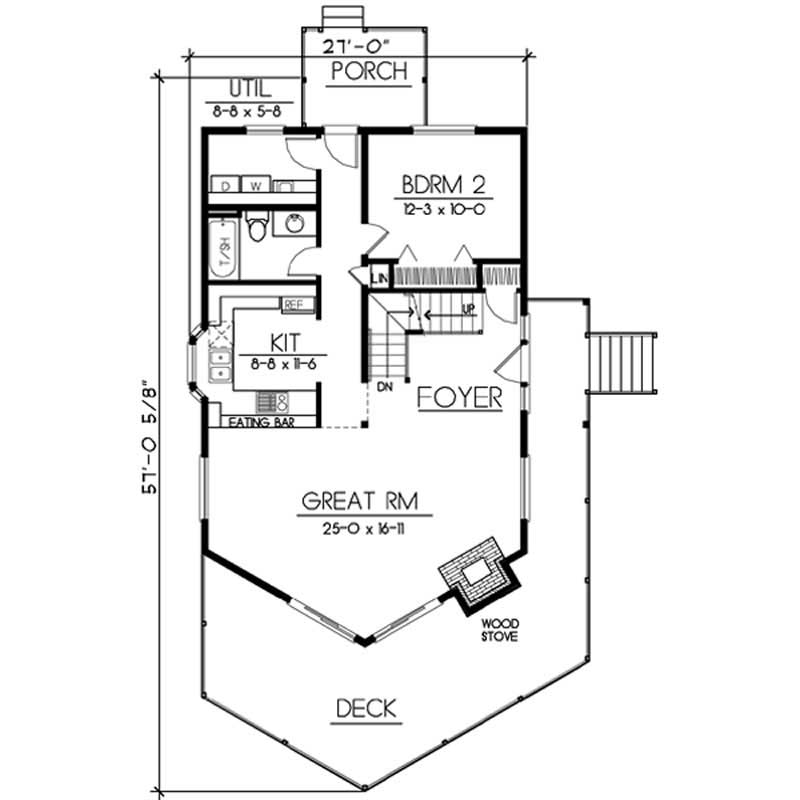

#119-1004 Floor Plan First Story - first Floor Plan First Story of Contemporary Plan #119-1004

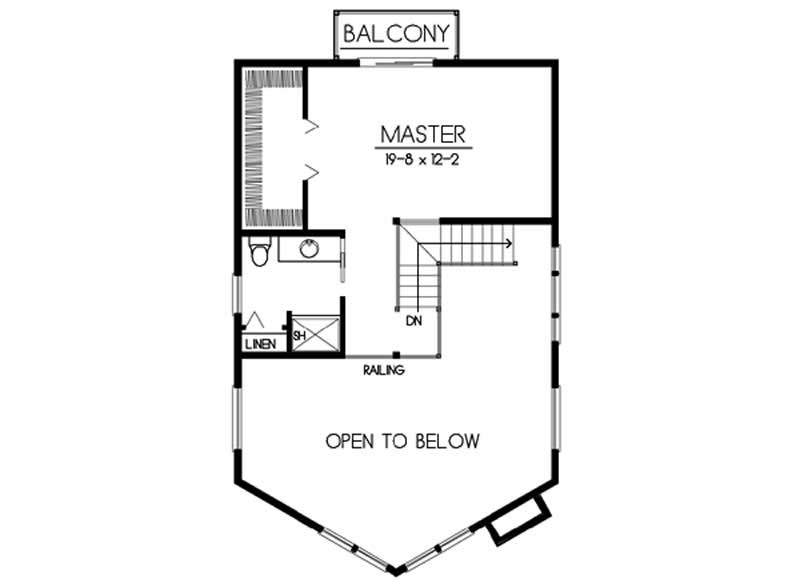

#119-1004 Floor Plan Second Story - second Floor Plan Second Story of Contemporary Plan #119-1004
Home Plan: #119-1004 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #119-1004
#119-1004 Floor Plan First Story - first Floor Plan First Story of Contemporary Plan #119-1004
#119-1004 Floor Plan Second Story - second Floor Plan Second Story of Contemporary Plan #119-1004
