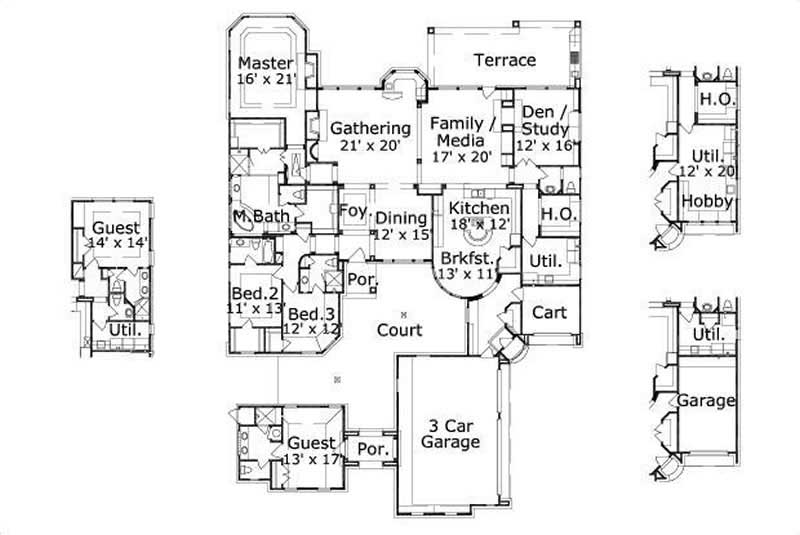

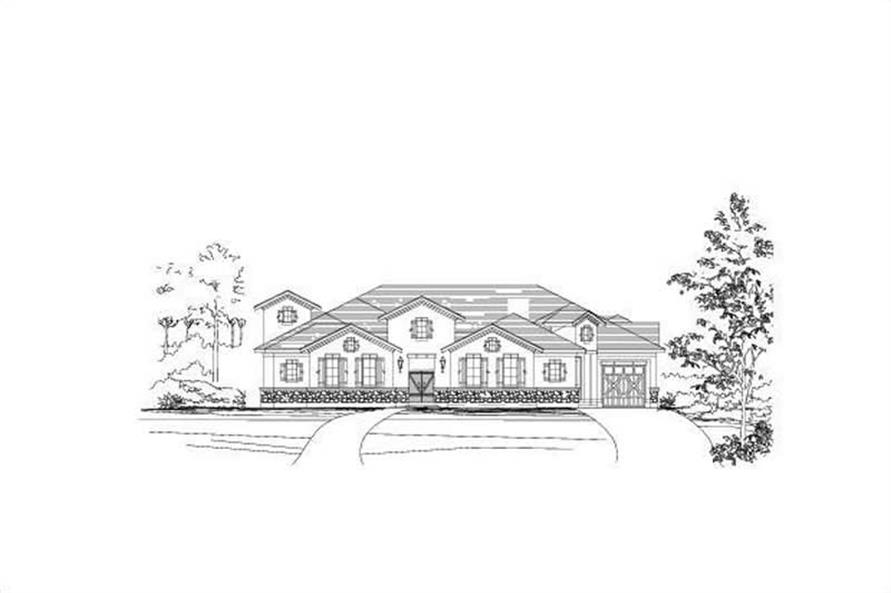

Home plan number 020427.3-01 is a single story, Tuscan style home with a total square footage of 4,237. There are 4 bedrooms and 4 and 1/2 bathrooms, along with a side entry, front loading, 3 car garage. The master bedroom includes a sitting area and seperate closet. Plan number 020427.3-01 has a covered rear porch and side porch. Special features include an entry courtyard, hobby room, outdoor fireplace, portico, bonus room, casita, golf cart storage, outdoor kitchen, quarters and a theater/media area. Other features include a bar, butler pantry, home office and a mud entry.
Each plan set includes the following:
- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
