4-Bedroom, 2316 Sq Ft Craftsman Plan with Covered Front Porch

Main image for house plan # 13385

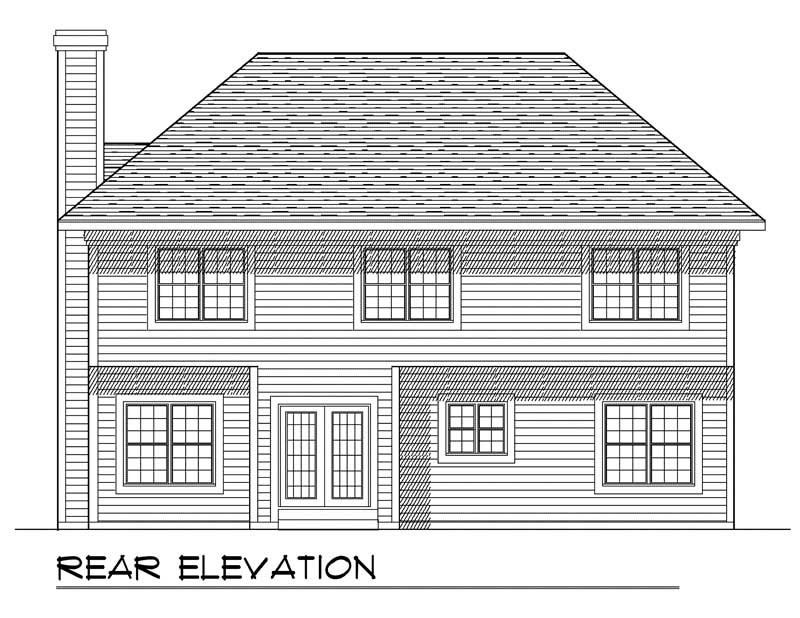

REAR ELEVATION
4-Bedroom, 2316 Sq Ft Craftsman House Plan - 101-1844 - Front Exterior
REAR ELEVATION

About Plan # 101-1844

About Plan # 101-1844

2316 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 44' 0" WIDTH 52' 0" DEPTH 2 GARAGE BAY
Not only does this home have an intriguing exterior, it has the versatility to entertain guests and give family members a comfortable place to relax. From the impressive two-story arched entry with a handy coatroom to the adjoining dining and living rooms, visitors will quickly feel at home. Family activities will be centered in the connected kitchen, breakfast nook, and hearth-warmed family room. The island bar in the kitchen will be a gathering place for light meals and snacks and the cheery box-bay windows in the breakfast area will make the morning's first cup of a coffee a joy. The sleeping quarters are located upstairs separate from the living areas. The deluxe master suite offers all the frills that relax you, including a large walk-in closet and double vanities. Three other bedrooms share a full bath. To the rear of the side-loading garage are the laundry area, a storage closet, and a half-bath.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

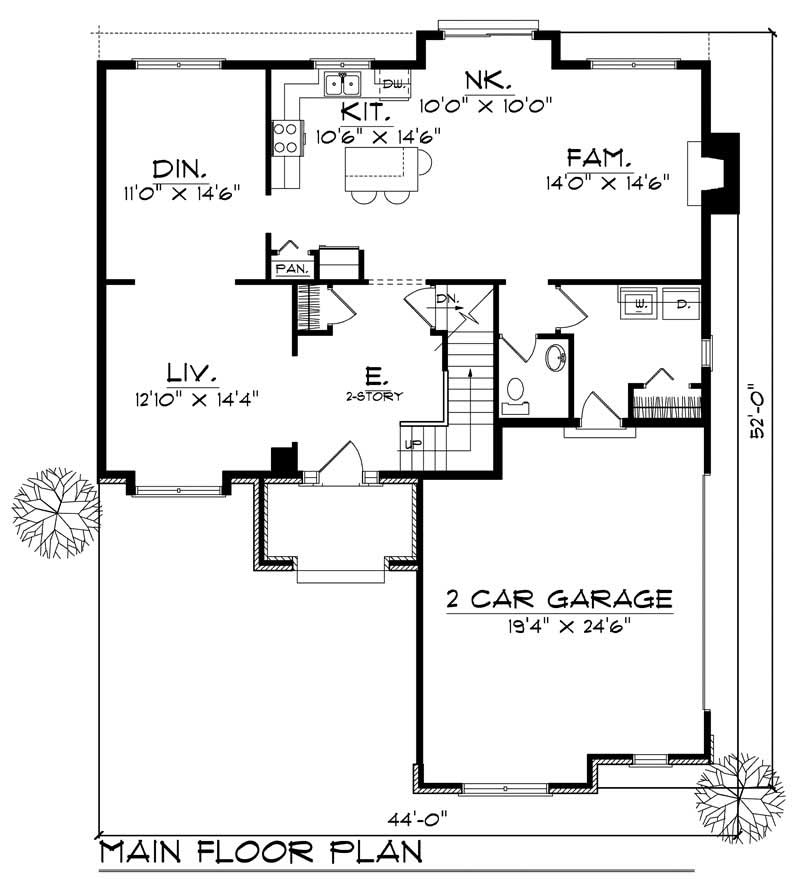

Home Plan: #101-1844 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1844

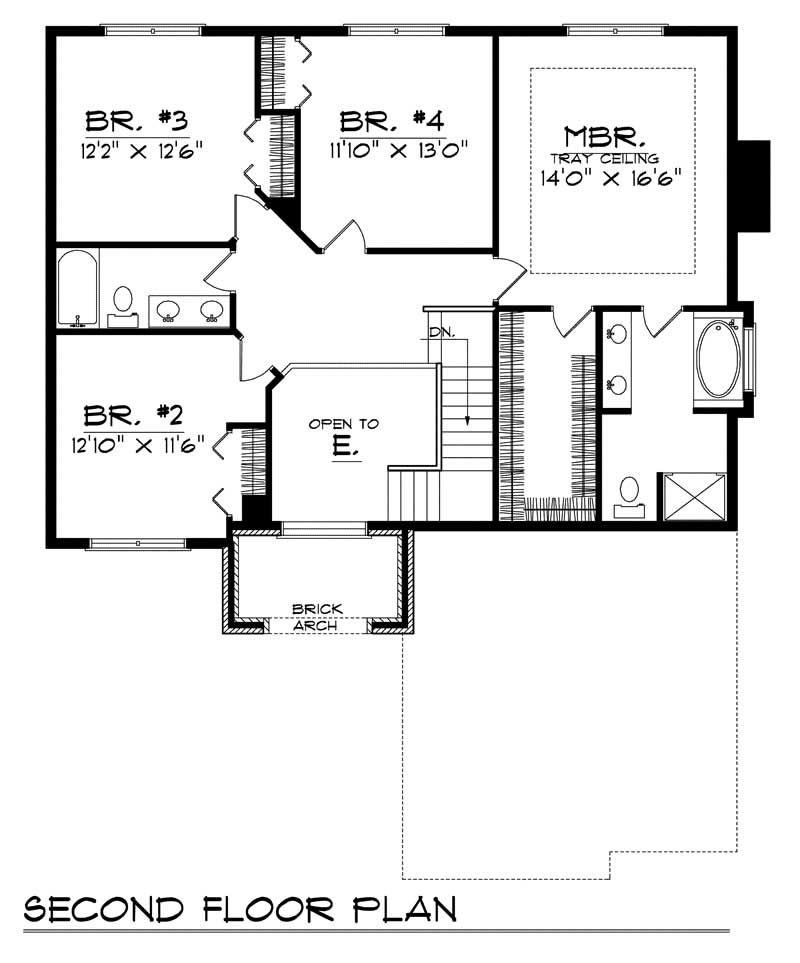

#101-1844 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #101-1844
Home Plan: #101-1844 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1844
#101-1844 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #101-1844
