4-Bedroom, 4378 Sq Ft Florida Style Plan with Peninsula/Eating Bar

Mediterranean Home Plans color rendering.
4-Bedroom, 4378 Sq Ft Florida Style Home Plan - 175-1053 - Main Exterior

About Plan # 175-1053

About Plan # 175-1053

4378 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 76' 8" WIDTH 89' 8" DEPTH 3 GARAGE BAY

Mediterranean House Plans Belle Chase are great for families. This sprawling house plan has a great wall of sliders for your view of the golf course or lake. This plan offers 3 bedrooms plus a study and 4 bathrooms. The bonus room is great for the pool table. You'll enjoy having friends over to enjoy a movie in your theatre room. This Mediterranean home plan is not available for sale in Orlando, FL.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

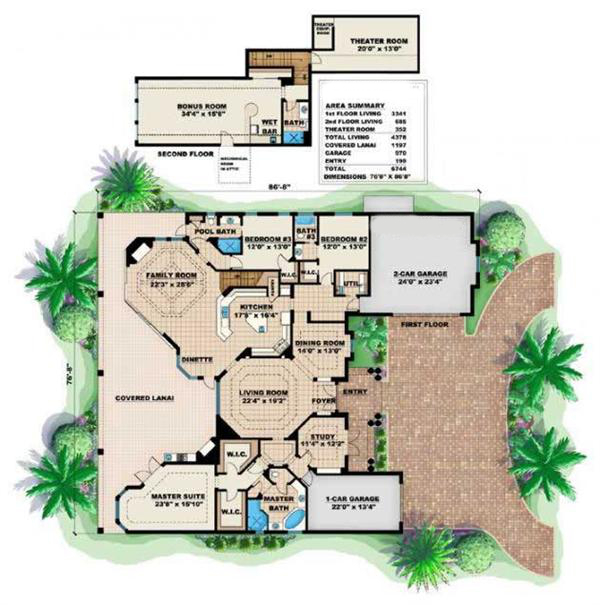

Home Plan: #175-1053 Floor Plan First Story - s Floor Plan First Story of Florida Style Plan #175-1053

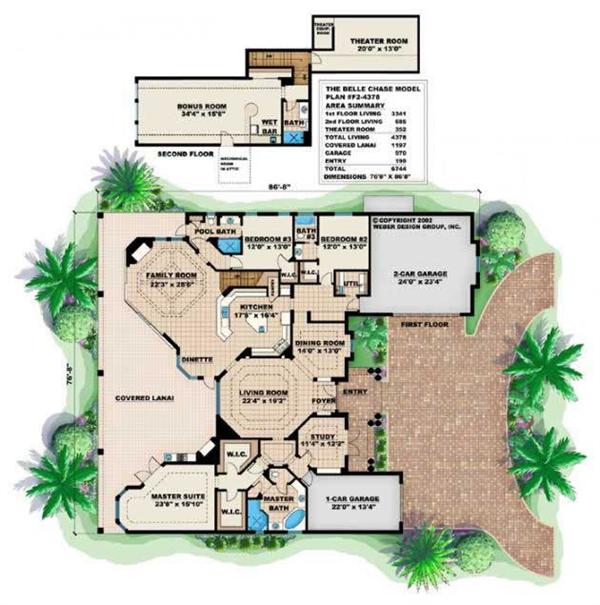

Home Plan: #175-1053 Floor Plan First Story - s Floor Plan First Story of Florida Style Plan #175-1053
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1053
Floors:
1
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
4378
Main Floor:
3341
Upper Floor:
685
Unfinished Sq Ft:

Dimensions

Width:
76' 8"
Depth:
89' 8"

Architectural Styles

Florida Style
In-Law Suite
Mediterranean
Wheelchair Accessible

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

7/12

Special Feature

Bonus Room
Family Room
Game Room
Home Office
Home Theater
Library
Main Level Laundry
Media Room
Split Bathroom
Vaulted Ceilings

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Front Porch
Covered Lanai
Covered Rear Porch
Screened in Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions on where their plans can be built!! Please contact us to see if you can purchase these plans BEFORE you order!! 2x6 and Right Reading Reverse are available. Please send in a modification request to receive a free quote. PLEASE NOTE: CAD files for this designer may take 2-3 business days to deliver. Thank you!
