4-Bedroom, 3500 Sq Ft European Plan with Kitchen Island

Main image for house plan # 11140

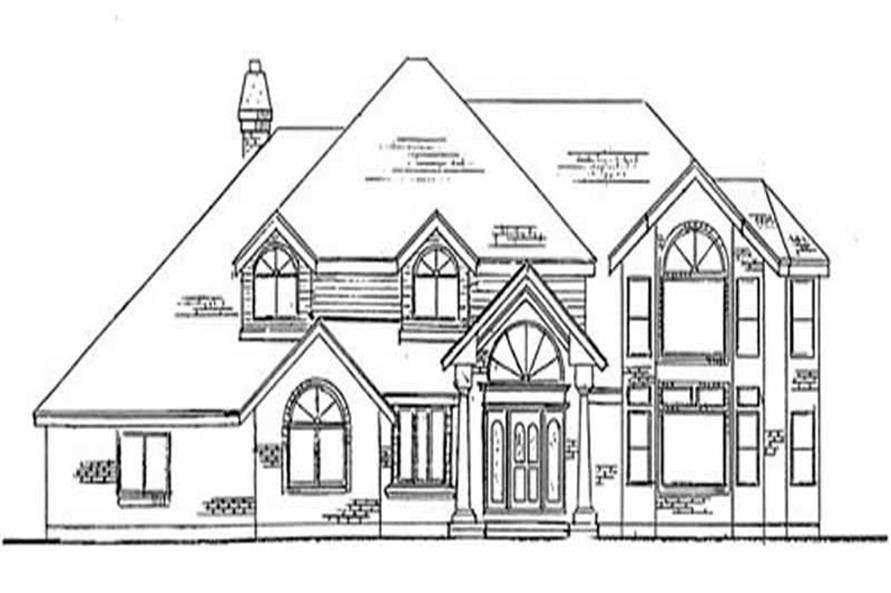

4-Bedroom, 3500 Sq Ft European House Plan - 135-1223 - Front Exterior

About Plan # 135-1223

About Plan # 135-1223

3500 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 72' 0" WIDTH 48' 0" DEPTH 4 GARAGE BAY

This is a big two story design that has rooflines that are well varied and a turret type corner.

Each plan set includes the following:

  • FLOOR FRAMING PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF FRAMING PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

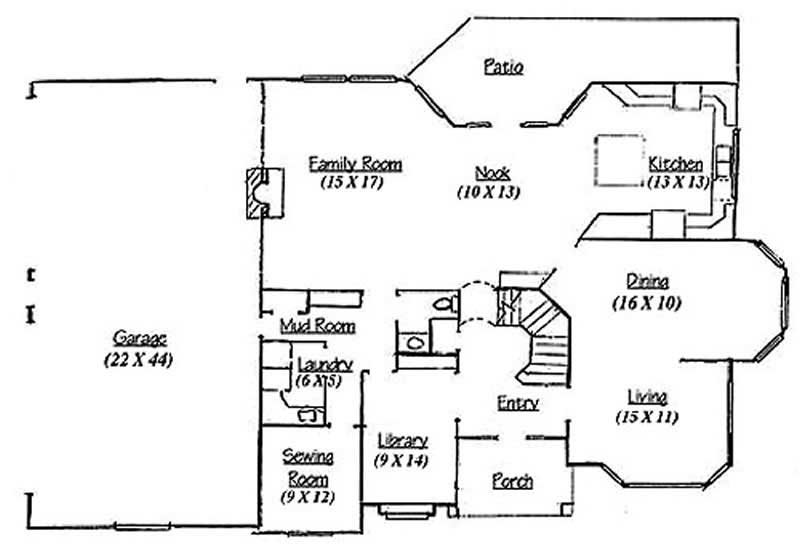

Home Plan: #135-1223 Floor Plan First Story - first Floor Plan First Story of European Plan #135-1223

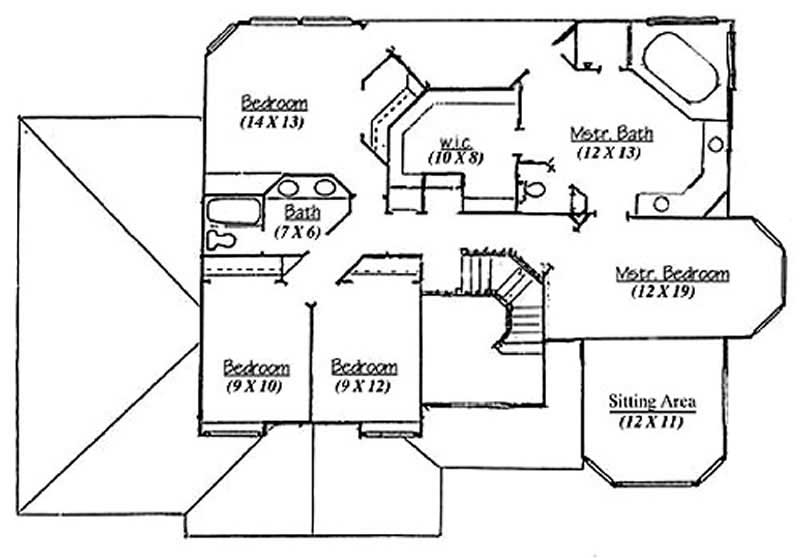

#135-1223 Floor Plan Second Story - second Floor Plan Second Story of European Plan #135-1223
Home Plan: #135-1223 Floor Plan First Story - first Floor Plan First Story of European Plan #135-1223
#135-1223 Floor Plan Second Story - second Floor Plan Second Story of European Plan #135-1223
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 135-1223
Floors:
2
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
3500
Main Floor:
2065
Upper Floor:
1435
Unfinished Sq Ft:

Dimensions

Width:
72' 0"
Depth:
48' 0"

Architectural Styles

European
Traditional

Exterior Wall Material

Brick
Stucco
Wood Siding

Garage Type

Attached Garage

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
