About Plan # 160-1011

About Plan # 160-1011

1333 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 36' 0" WIDTH 44' 6" DEPTH 0 GARAGE BAY

Perfectly suited to a narrow wooded lot with a rear view orientation, the multipurpose vaulted great room is up for all the challenges of evolving cottage activities. Separated bedrooms each with adjacent bathrooms ensure maximum privacy for guests or shared accommodations. Convert the thirteen-foot high vaulted studio loft into a third bedroom if preferred.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

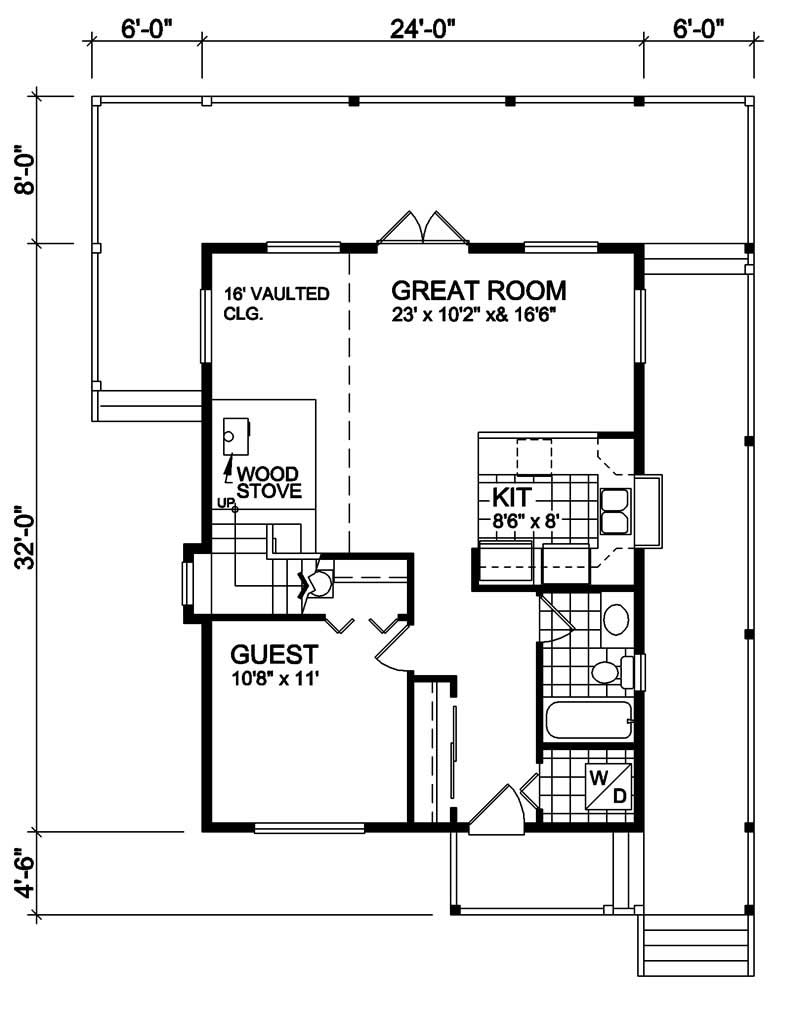

Home Plan: #160-1011 Floor Plan First Story - main Floor Plan First Story of Log Cabin Plan #160-1011

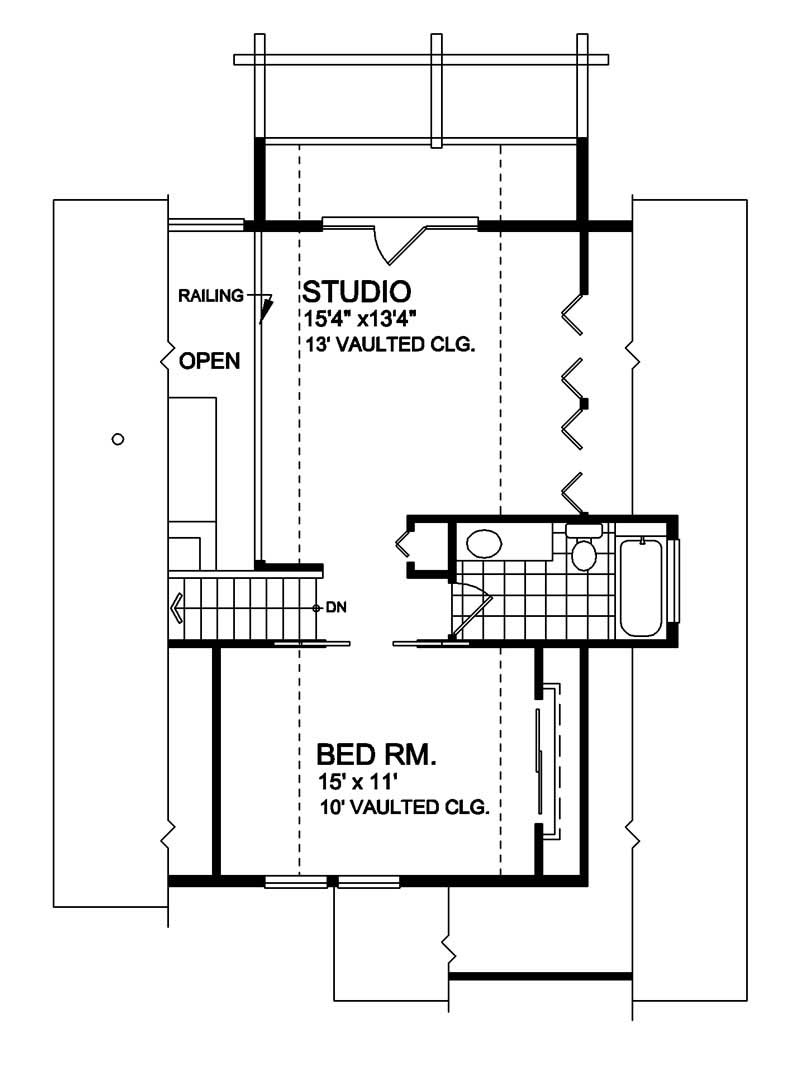

#160-1011 Floor Plan Second Story - second Floor Plan Second Story of Log Cabin Plan #160-1011
Home Plan: #160-1011 Floor Plan First Story - main Floor Plan First Story of Log Cabin Plan #160-1011
#160-1011 Floor Plan Second Story - second Floor Plan Second Story of Log Cabin Plan #160-1011
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1011
Floors:
2
Bedrooms:
2
Full Baths:
2

Square Footage

Heated Sq Feet:
1333
Main Floor:
768
Upper Floor:
565
Unfinished Sq Ft:

Dimensions

Width:
36' 0"
Depth:
44' 6"
Ridge Height:
25'' 0"

Architectural Styles

Vacation Homes
Cabin
Small House Plans
Lake

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roof Pitch

12/12

Ceiling Height

10 Foot Ceiling
8 Foot Ceiling

Special Feature

Guest Room
Vaulted Ceilings
Open Floor Plan

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Porches and Exterior Features

Wrap Around Porch

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.
