4-Bedroom, 5604 Sq Ft Luxury Plan with Covered Front Porch

Main image for luxury house plan # 18948
4-Bedroom, 5604 Sq Ft Luxury House Plan - 107-1042 - Front Exterior

About Plan # 107-1042

About Plan # 107-1042

5604 SQUARE FEET 4 BEDROOMS 5 FULL BATH 0 HALF BATH
1 FLOOR 90' 0" WIDTH 95' 8" DEPTH 3 GARAGE BAY
Luxury Homeplans #107-1042 have a beautiful Mediterranean design. This plan has Two Stories, Four Bedrooms, Four Bathrooms plus a Cabana bathroom, and a Two car Garage plus a one and a half car Garage. This Sprawling Spanish style manor offers an enormous amount of living space. Columns and arches provide a majestic appearance. These house plans are Luxurious inside and out, with Covered balconies and a Covered Patio with a summer kitchen. Each suite has its own bath. The Chef’s dream Kitchen has an island, eating bar and Breakfast Nook. The butler’s Pantry opens to the large Family Room, while the Formal Dining Room has a raised coffered ceiling. The Den provides a cozy retreat to entertain special guests. Eight foot French doors with arched transom accent the covered entrance The Luxurious first floor master Suite has an enormous Walk-In-Closets, tray ceilings and a splendid master bath with walk-thru shower. The large central Great Room has a fireplace which provides a great place to entertain. The Large second floor media room has a wet bar. Check these amazing Luxury houseplans out today!

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

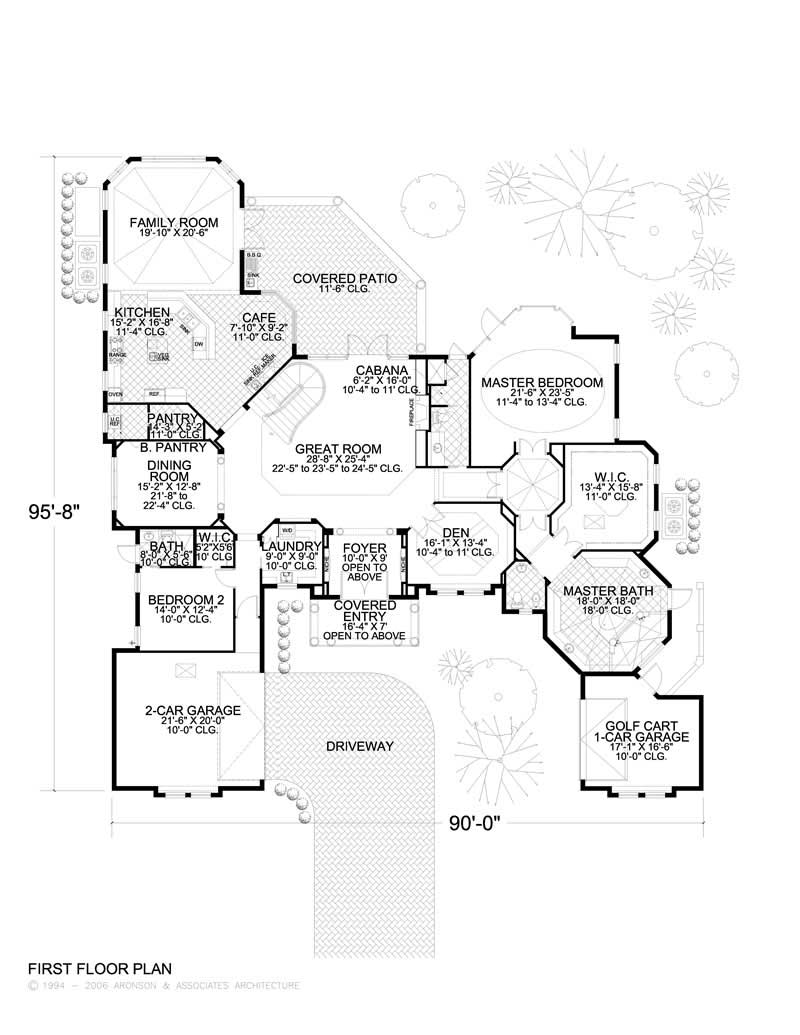

Home Plan: #107-1042 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #107-1042

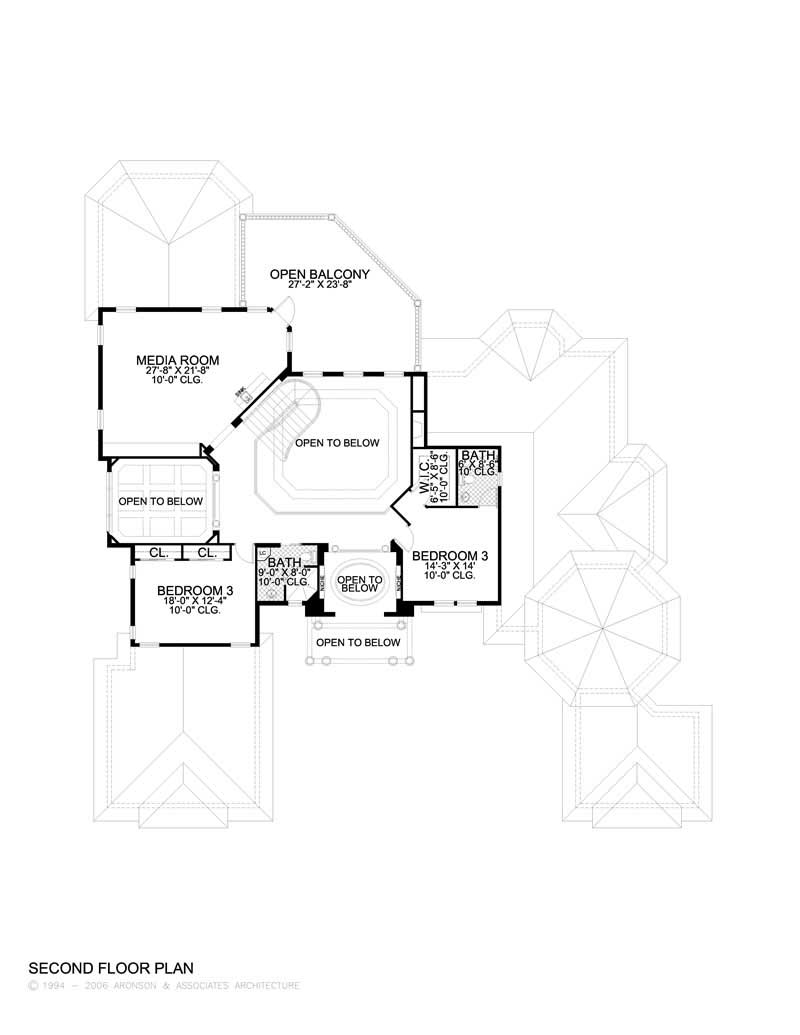

#107-1042 Floor Plan Second Story - second level Floor Plan Second Story of Luxury Plan #107-1042
Home Plan: #107-1042 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #107-1042
#107-1042 Floor Plan Second Story - second level Floor Plan Second Story of Luxury Plan #107-1042
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1042
Floors:
1
Bedrooms:
4
Full Baths:
5

Square Footage

Heated Sq Feet:
5604
Main Floor:
4014
Upper Floor:
1590
Unfinished Sq Ft:
Garage :
792

Dimensions

Width:
90' 0"
Depth:
95' 8"
Ridge Height:
32'7' 0"

Architectural Styles

Luxury
Mediterranean

Exterior Wall Material

Stucco

Roofing Type

Hip

Roof Pitch

6/12

Special Feature

Balcony
Dining Room
Family Room
Fireplace
Golf Cart Storage
Guest Room
Main Level Laundry
Media Room

Garage Type

Attached Garage
Courtyard Entry

Kitchen Features

Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
