3-Bedroom, 5376 Sq Ft Luxury Plan with Patio

Main image for house plan # 13593

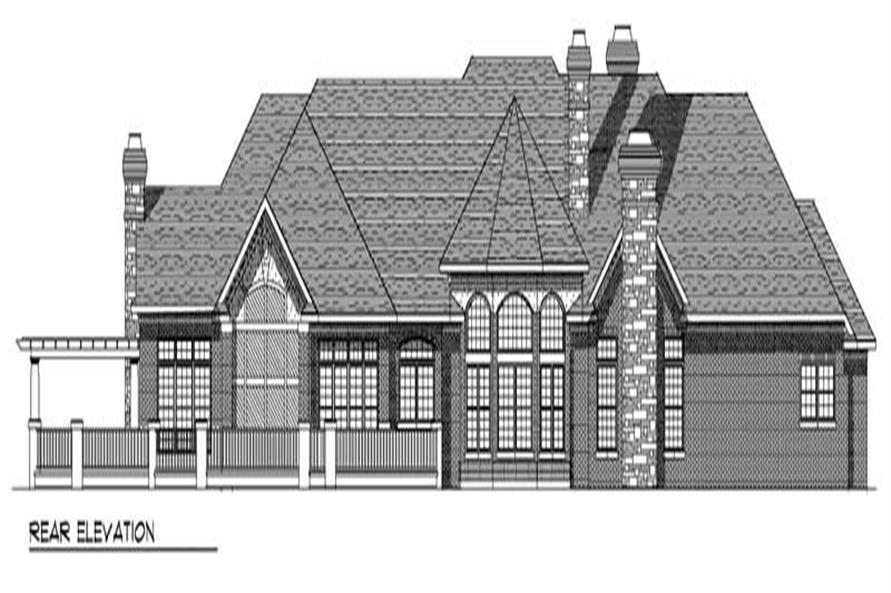

REAR ELEVATION
3-Bedroom, 5376 Sq Ft Luxury House Plan - 101-1386 - Front Exterior

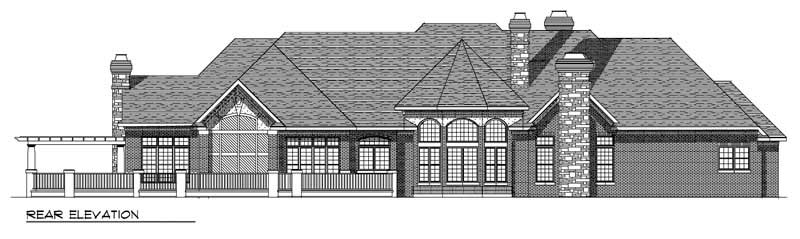

REAR ELEVATION

About Plan # 101-1386

About Plan # 101-1386

5376 SQUARE FEET 3 BEDROOMS 3 FULL BATH 2 HALF BATH
1 FLOOR 120' 0" WIDTH 80' 6" DEPTH 3 GARAGE BAY
The wonderful amenities found in this stunning French country ranch will amaze you. The living room, with its elegant wall of windows, is the first thing you notice upon entering while the family room, which has a wet bar, opens to a pergola. The kitchen features a walk-in pantry, an island, a nook, and a sitting area; it leads to a screen porch and a massive deck. The formal dining room is perfect for special occasions. When you have work to do, retire to the computer room or the exquisite library. On those chilly nights, fireplaces can be found in the master bedroom, living room, family room and library. French doors open to a striking master bedroom that provides two large walk-in closets and a luxurious master bath. Two additional bedrooms have walk-in closets and share a bathroom with separate, private vanities.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

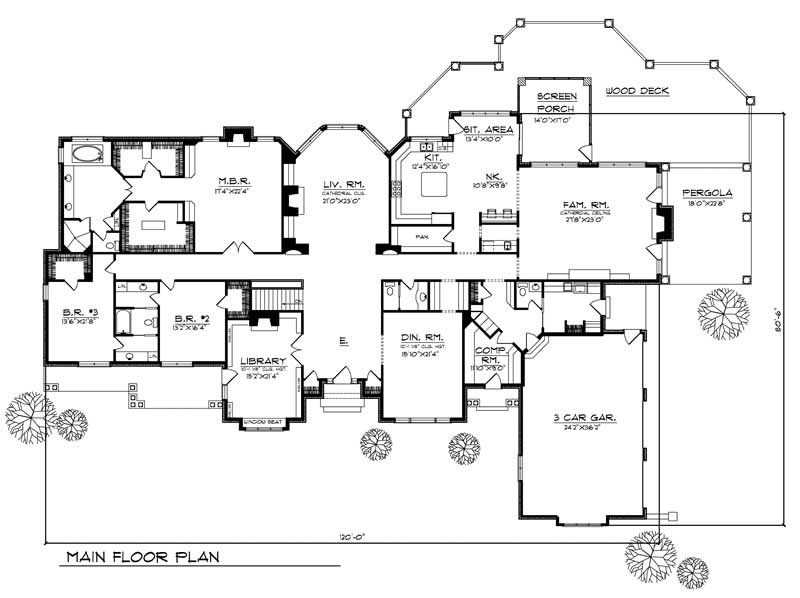

Home Plan: #101-1386 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #101-1386
Home Plan: #101-1386 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #101-1386
