2-Car, Craftsman-Style Garage with Covered Entry

Front elevation of Garage home (ThePlanCollection: House Plan #163-1059)

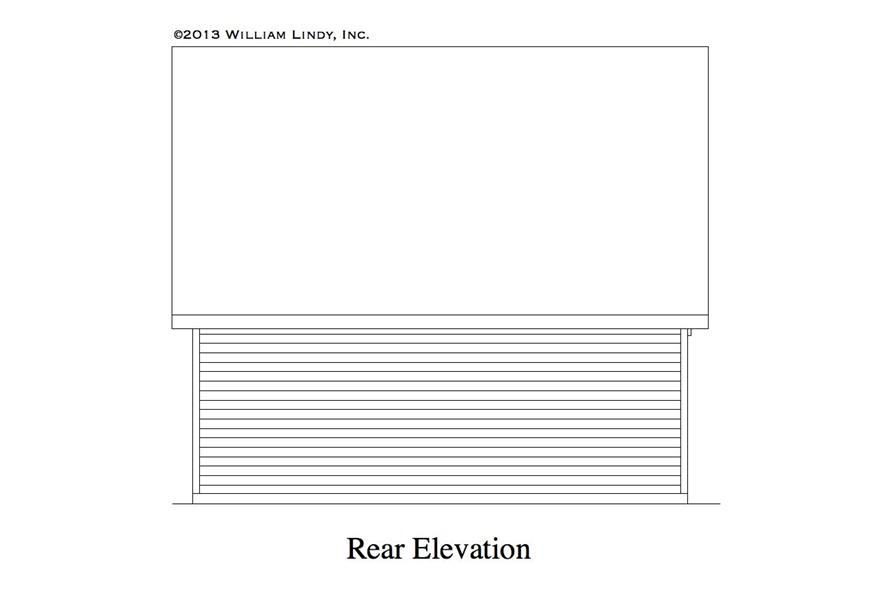

163-1059: Home Plan Rear Elevation

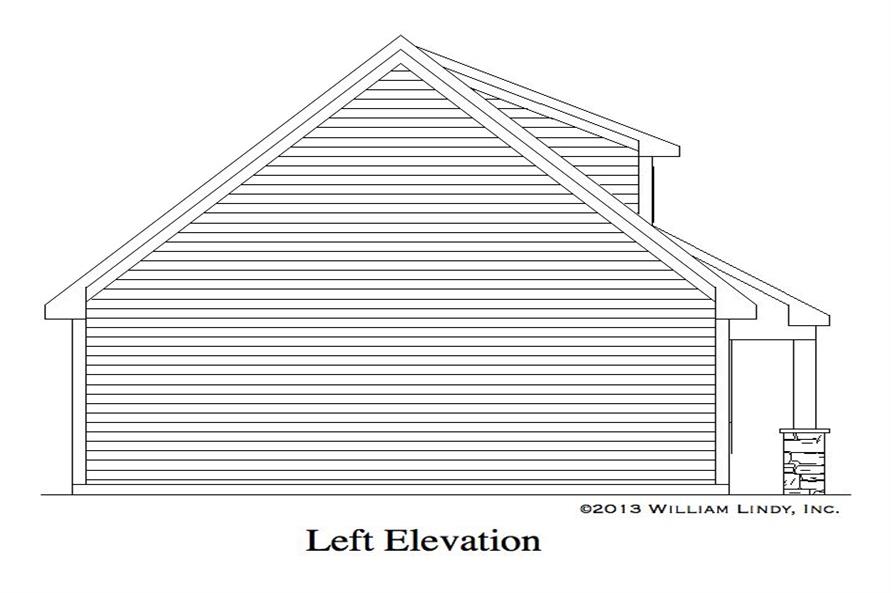

163-1059: Home Plan Left Elevation

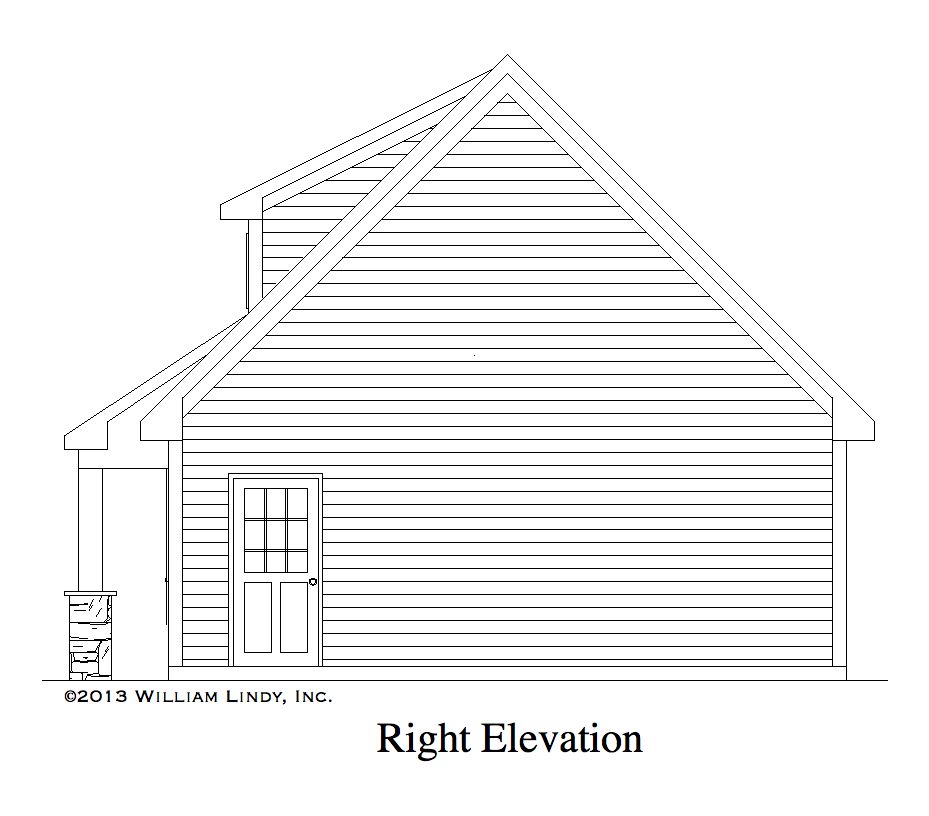

163-1059: Home Plan Right Elevation
0-Bedroom, 525 Sq Ft Garage Home Plan - 163-1059 - Main Exterior

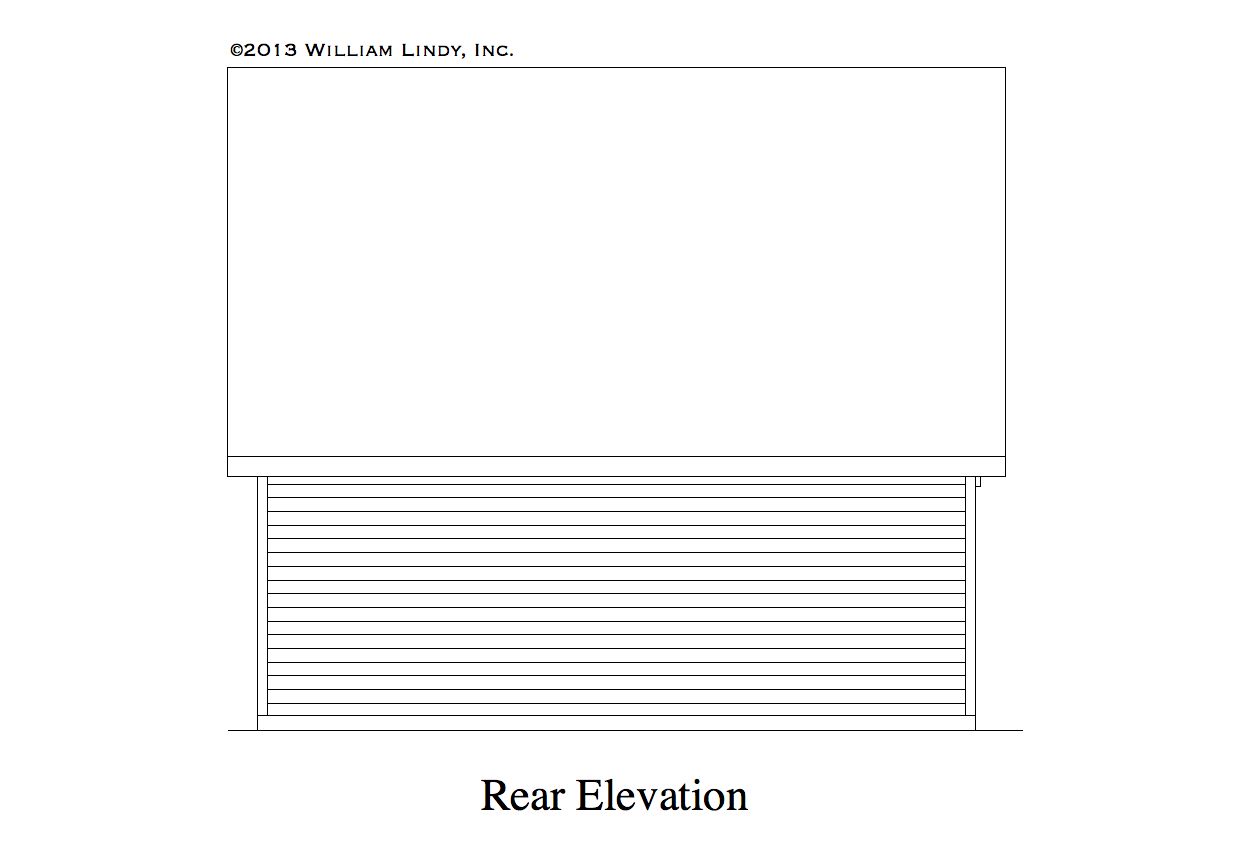

163-1059: Home Plan Rear Elevation
163-1059: Home Plan Left Elevation

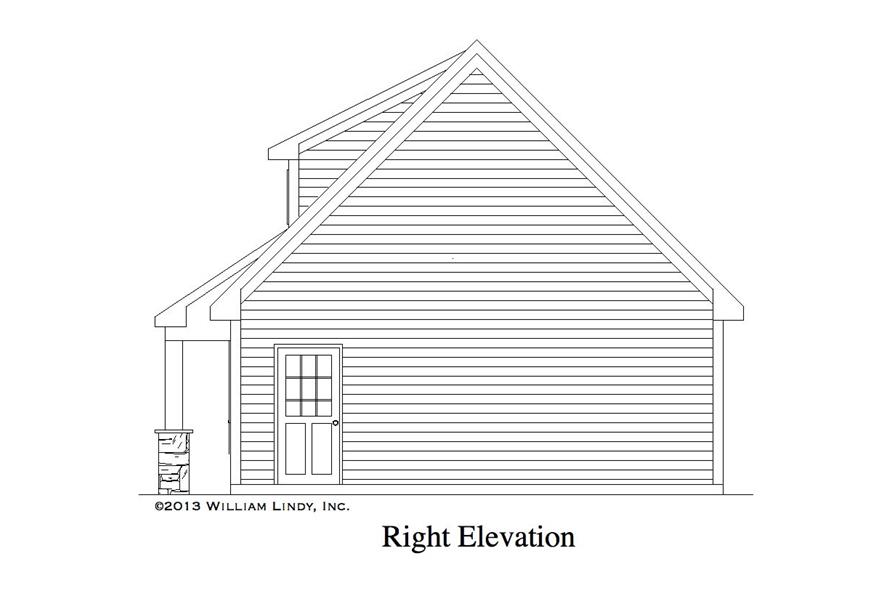

163-1059: Home Plan Right Elevation

About Plan # 163-1059

About Plan # 163-1059

525 SQUARE FEET 0 BEDROOMS 0 FULL BATH 0 HALF BATH
1 FLOOR 24' 0" WIDTH 27' 2" DEPTH 2 GARAGE BAY

This Craftsman-style garage has a 2-car garage and 525 square feet of space. The 1-story floor plan includes an attractive covered entry.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

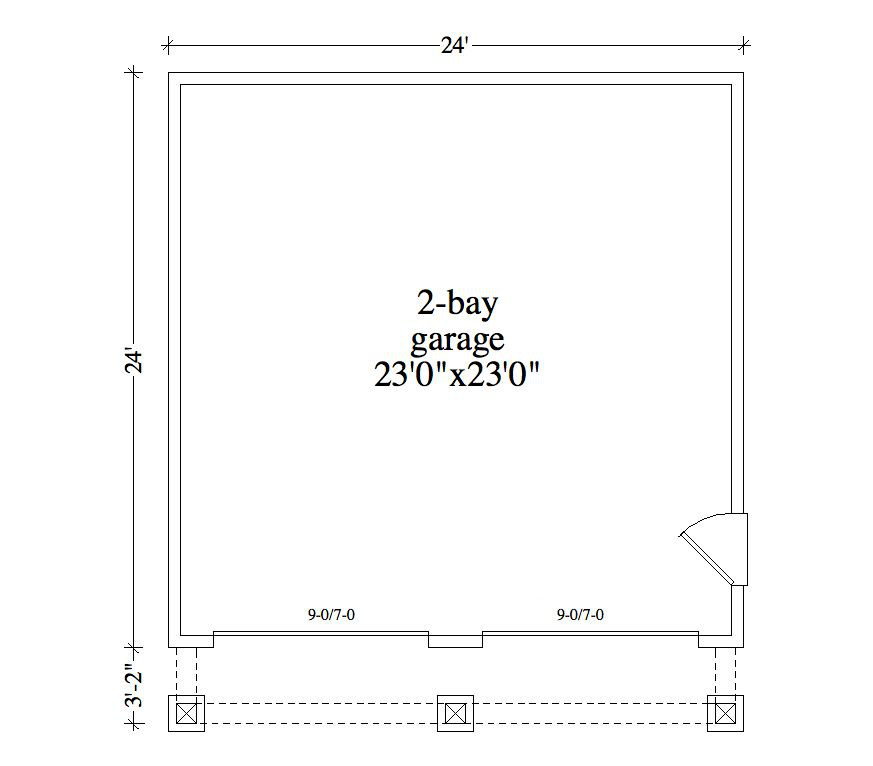

Home Plan: #163-1059 Floor Plan Garage - garage Floor Plan Garage of Garage Plan #163-1059
