6-Bedroom, 5084 Sq Ft Luxury Plan with Walk-in Pantry

Main image for luxury house plan # 17585
6-Bedroom, 5084 Sq Ft Luxury Home Plan - 107-1205 - Main Exterior

About Plan # 107-1205

About Plan # 107-1205

1 FLOOR 123' 1" WIDTH 106' 1" DEPTH 3 GARAGE BAY
These beautiful, one-story, classic, Spanish Mediterranean-style home plans features six bedrooms, six and one-half bathrooms, a three-car garage, grand covered entry with an eight-foot high front door with arched transom. Spectacular columns and arches provide a strong curb appeal. These well-designed house plans feature a large living room complete with a wet bar. The huge island kitchen has an eating bar and opens to the family room and formal dining room. The design includes a truly luxurious master suite with exceptionally large "His and Hers" walk-in closets and stylish tray ceiling that definitely add luxury to this design.

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

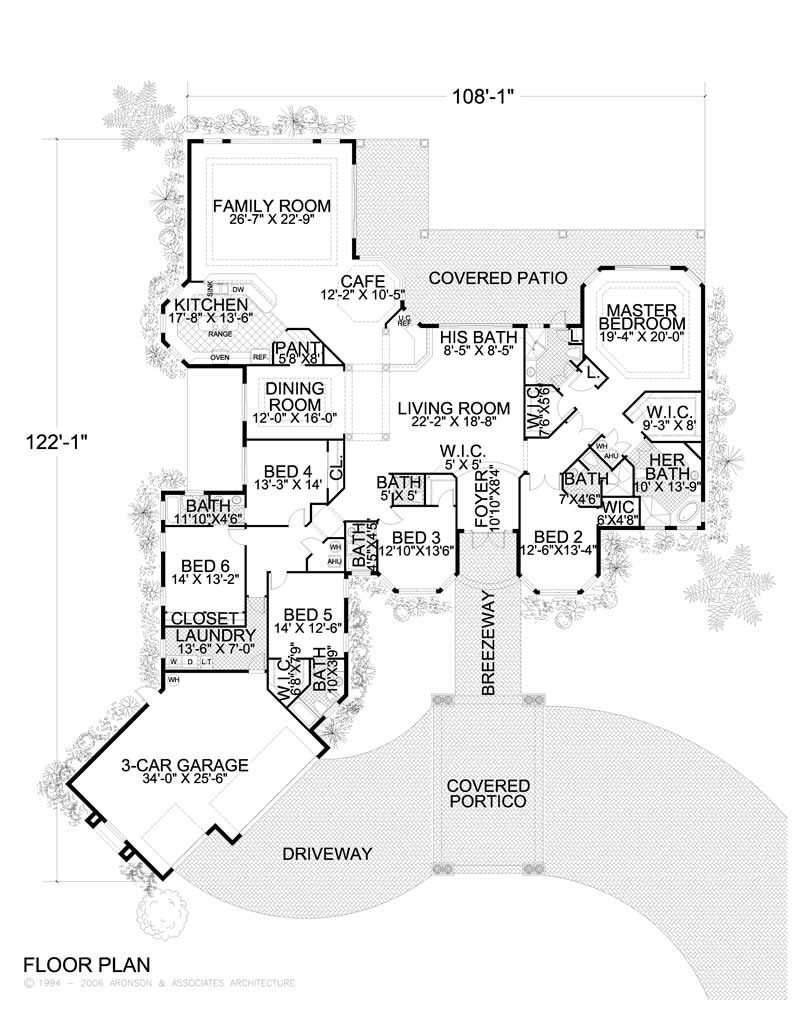

Home Plan: #107-1205 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1205
