3-Bedroom, 5024 Sq Ft European Plan with Walk-in Pantry

This is a colored image of these Chateau Homeplans.
108-1050 rear

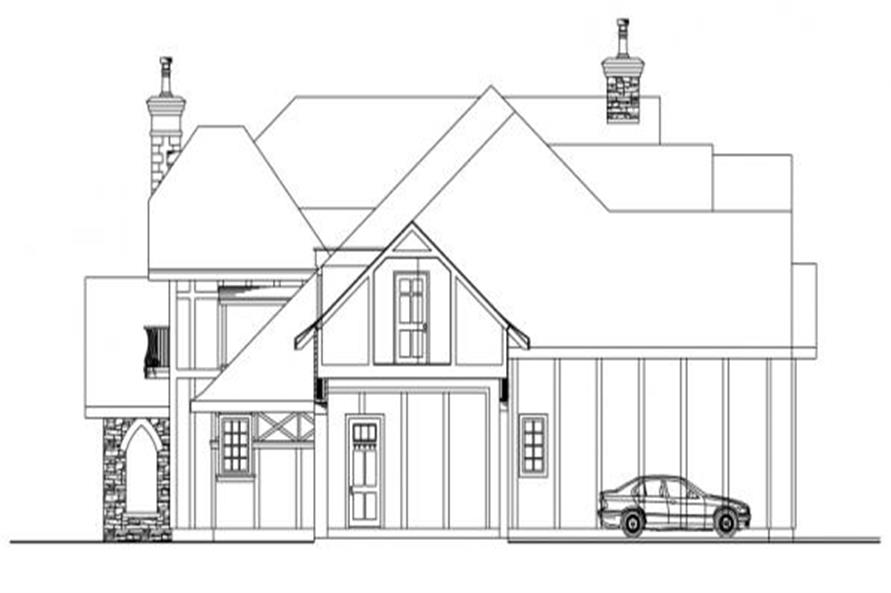

108-1050 right elevation

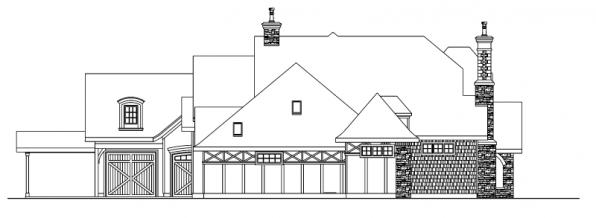

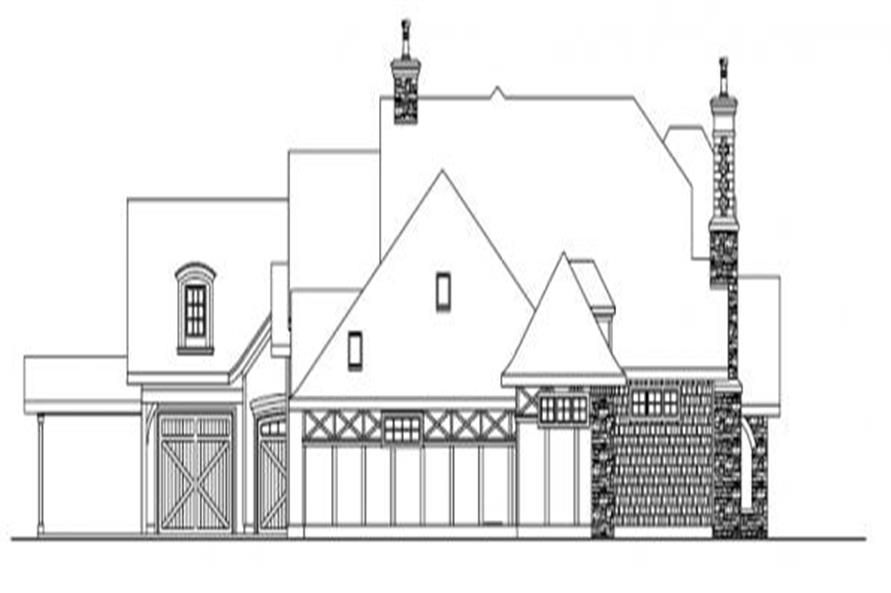

108-1050 Left elevation
3-Bedroom, 5024 Sq Ft European House Plan - 108-1050 - Front Exterior
108-1050 rear
108-1050 right elevation
108-1050 Left elevation

About Plan # 108-1050

About Plan # 108-1050

5024 SQUARE FEET 3 BEDROOMS 2 FULL BATH 2 HALF BATH
2 FLOOR 158' 4" WIDTH 99' 0" DEPTH 6 GARAGE BAY

Chateau Home Plans - This chateau home plan has a fascinating façade, luxurious two-story spread designed for living large, indoors and out. Two-sided fireplaces in living room and nook can also be enjoyed from patio and game room. A porte-cochere links the interior to a patio and a garage complex that can shelter six cars.

Each plan set includes the following:

  • ARTIST'S RENDERING: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Each plan set is drawn at 1/4"=1' scale. Showing the placement and dimensions of all walls, windows, and doors. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • SECOND FLOOR PLAN (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • FOUNDATION PLAN: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • ROOF FRAMING PLAN: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
  • SECTIONS AND DETAILS: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: A schematic layout of all lighting, switches, and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

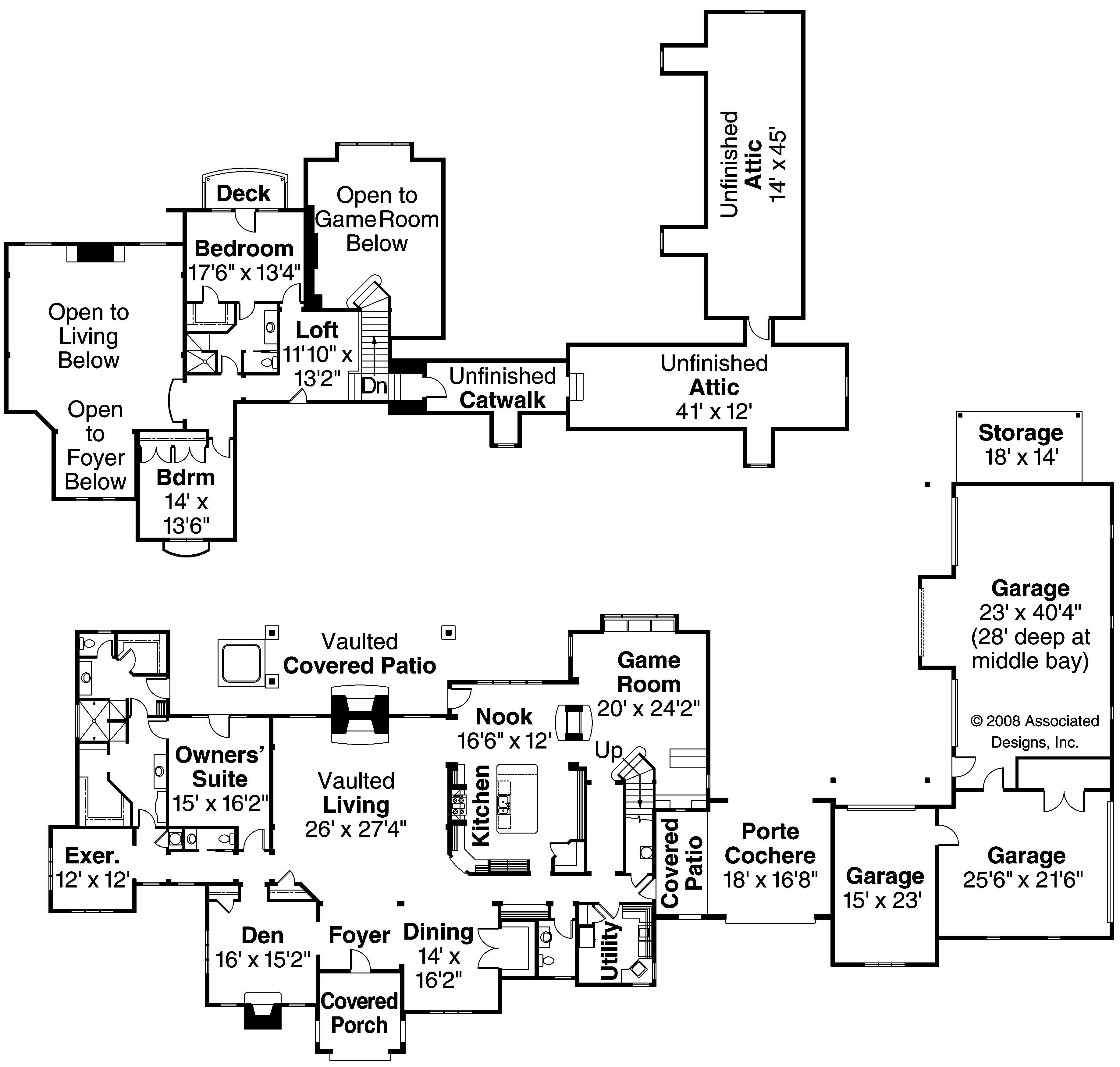

Home Plan: #108-1050 Floor Plan First Story - first story Floor Plan First Story of European Plan #108-1050
Home Plan: #108-1050 Floor Plan First Story - first story Floor Plan First Story of European Plan #108-1050
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1050
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
2

Square Footage

Heated Sq Feet:
5024
Main Floor:
4079
Upper Floor:
945
Unfinished Sq Ft:

Dimensions

Width:
158' 4"
Depth:
99' 0"
Ridge Height:
34' 0"

Architectural Styles

European
Luxury
Tudor

Exterior Wall Material

Rock/Stone
Shakes
Stucco
Wood Siding

Roofing Type

Dutch Gable
Hip

Roofing Material

Asphalt Shingles

Special Feature

Balcony
Den
Dining Room
Exercise Room
Fireplace
Game Room
Loft
Main Level Laundry
Mother in law apartment
Split Bathroom
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Courtyard Entry
Front Entry
Side Entry

Fireplaces

Three Fireplaces

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Porte-Cochere
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Private Deck
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
