4-Bedroom, 3763 Sq Ft Florida Style Plan with Walk In Closet

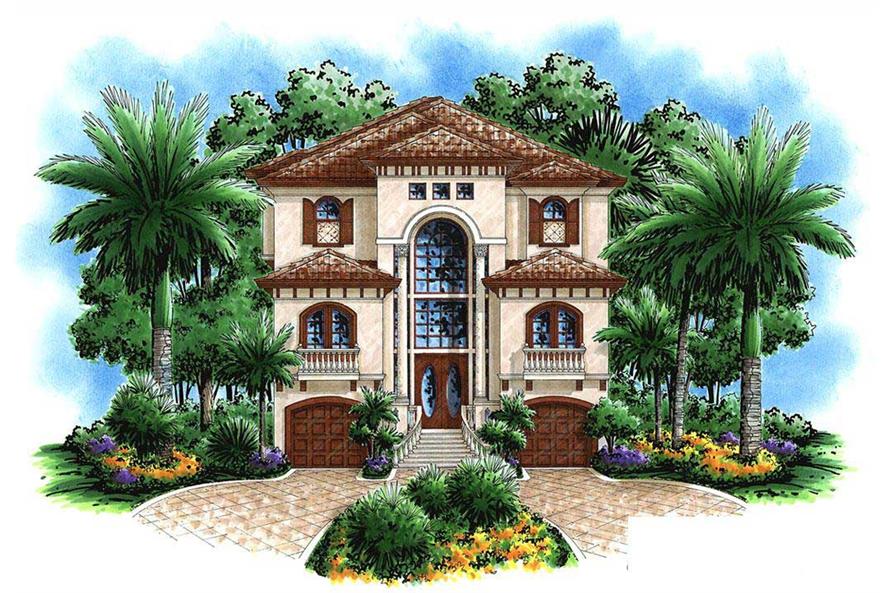

This image is a colored rendering of these Mediterranean Homeplans.

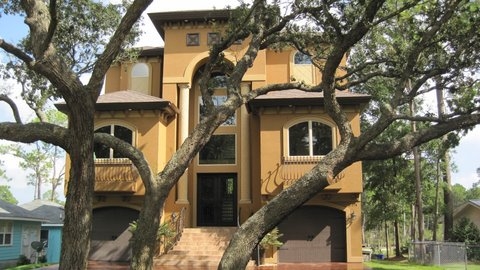

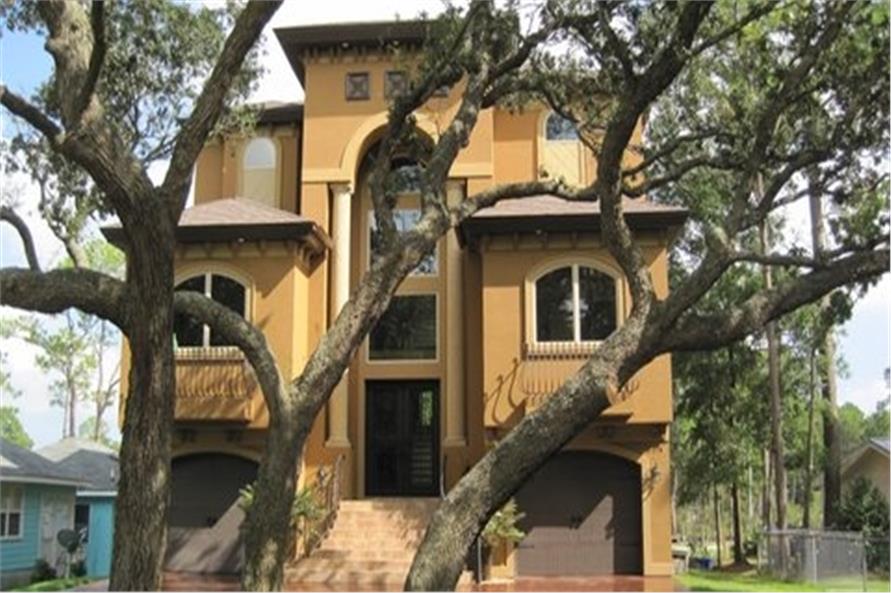

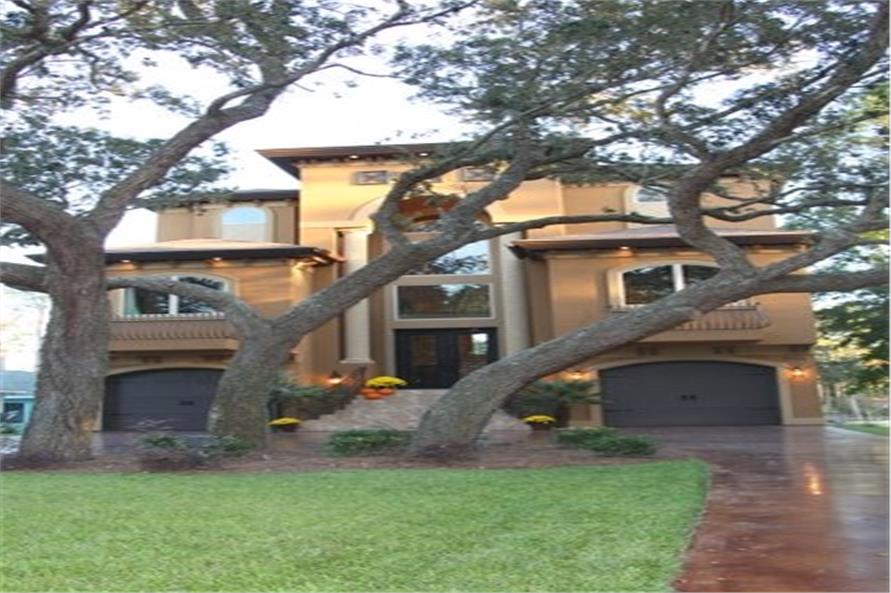

175-1036: Home Exterior Photograph
175-1036: Home Exterior Photograph

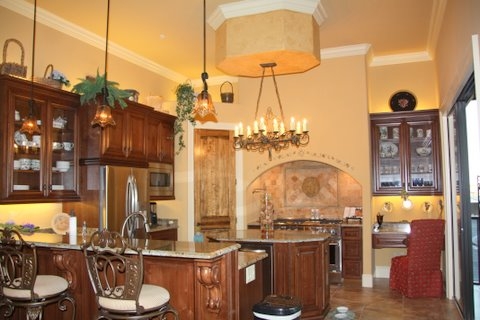

175-1036: Home Interior Photograph-Kitchen

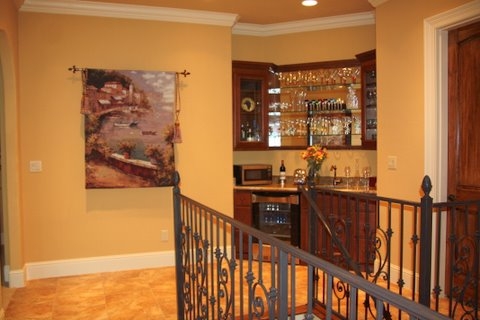

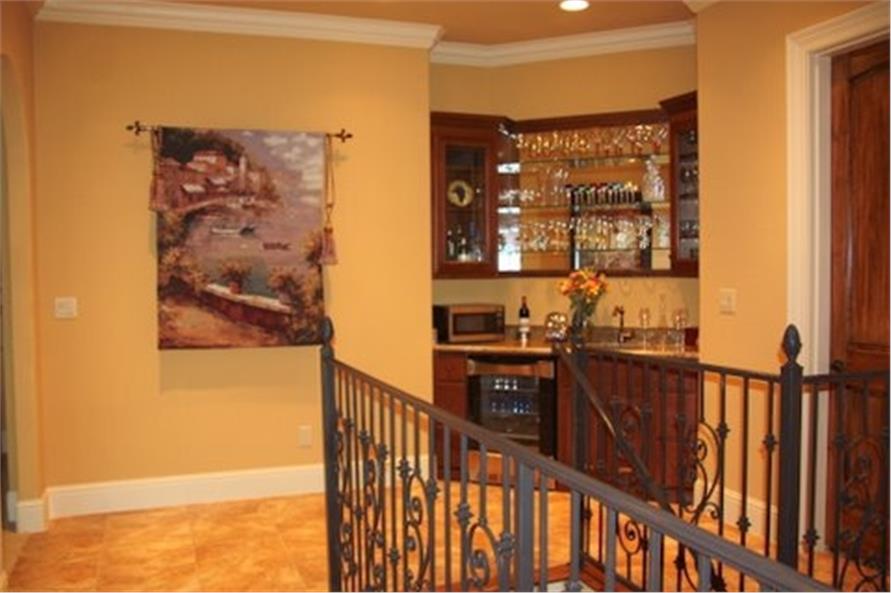

175-1036: Home Interior Photograph

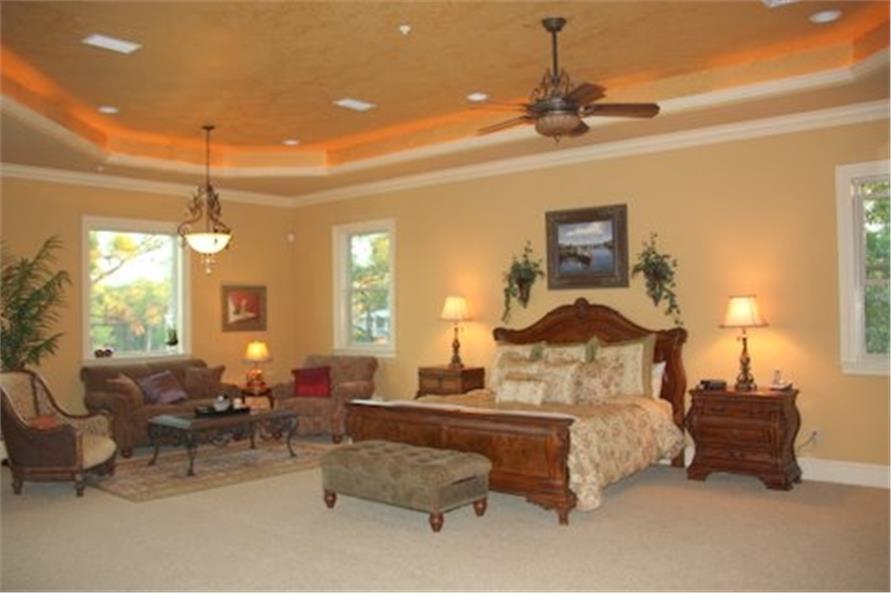

175-1036: Home Interior Photograph-Master Bedroom

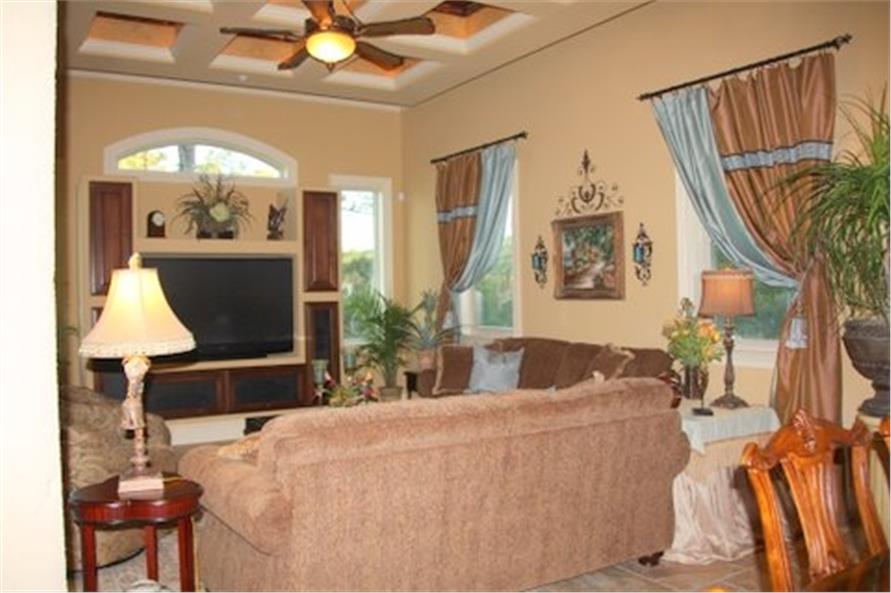

175-1036: Home Interior Photograph
4-Bedroom, 3763 Sq Ft Florida Style House Plan - 175-1036 - Front Exterior
175-1036: Home Exterior Photograph
175-1036: Home Exterior Photograph
175-1036: Home Interior Photograph-Kitchen
175-1036: Home Interior Photograph
175-1036: Home Interior Photograph-Master Bedroom
175-1036: Home Interior Photograph

About Plan # 175-1036

About Plan # 175-1036

3763 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
3 FLOOR 40' 0" WIDTH 77' 2" DEPTH 4 GARAGE BAY

Stately Mediterranean house plan featuring three floors perfect for a coastal lot! Plenty of storage on the lower level of this floor plan and the added convenience of an elevator too. Upstairs of this home plan features your living and guest bedrooms, saving the entire third floor for the master suite. All together this blueprint offers 3,700 square feet of living plus the storage area downstairs. If you've got a waterfront lot, then this coastal house plan would be perfect to take in all of the views.

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

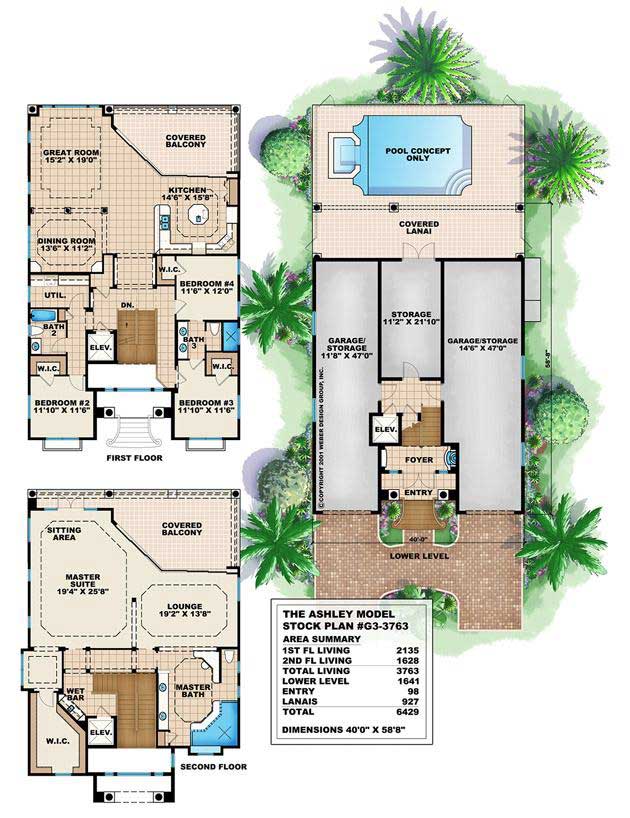

Home Plan: #175-1036 Floor Plan First Story - first story Floor Plan First Story of Florida Style Plan #175-1036
Home Plan: #175-1036 Floor Plan First Story - first story Floor Plan First Story of Florida Style Plan #175-1036
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1036
Floors:
3
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
3763
Main Floor:
2135
Upper Floor:
1628
Unfinished Sq Ft:

Dimensions

Width:
40' 0"
Depth:
77' 2"
Ridge Height:
40' 4"

Architectural Styles

Mediterranean
Beachfront
Coastal
Florida Style

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling
11 Foot Ceiling
12 Foot Ceiling

Special Feature

Dining Room
Main Level Laundry
Split Bathroom
Storage
Elevator
Balcony

Garage Type

Attached Garage
Under Main Floor Entry
Front Entry

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Covered Lanai

Master Suite Features

Master Bathroom
Walk In Closet
Sitting Area
Private Deck
Second Floor Master

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
