3-Bedroom, 3672 Sq Ft Traditional Plan with Second Floor Master

Traditional style house (ThePlanCollection: Plan #201-1013)
3-Bedroom, 3672 Sq Ft Traditional Home - Plan #201-1013 - Main Exterior

About Plan # 201-1013

About Plan # 201-1013

3672 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 84' 8" WIDTH 51' 8" DEPTH 2 GARAGE BAY

This magnificent Traditional style home with Colonial expressions (Plan #201-1013) has a total under-roof area of 5336 square feet in finished and unfinished space, which includes 3672 square feet of living space, 670 square feet of garage space, and 994 square feet of porches. The 2-story floor plan includes 3 bedrooms, plus a first-floor study that could be a guest room or extra bedroom.

Each plan set includes the following:

  • COVER SHEET
  • CEILING JOIST FRAMING PLAN
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

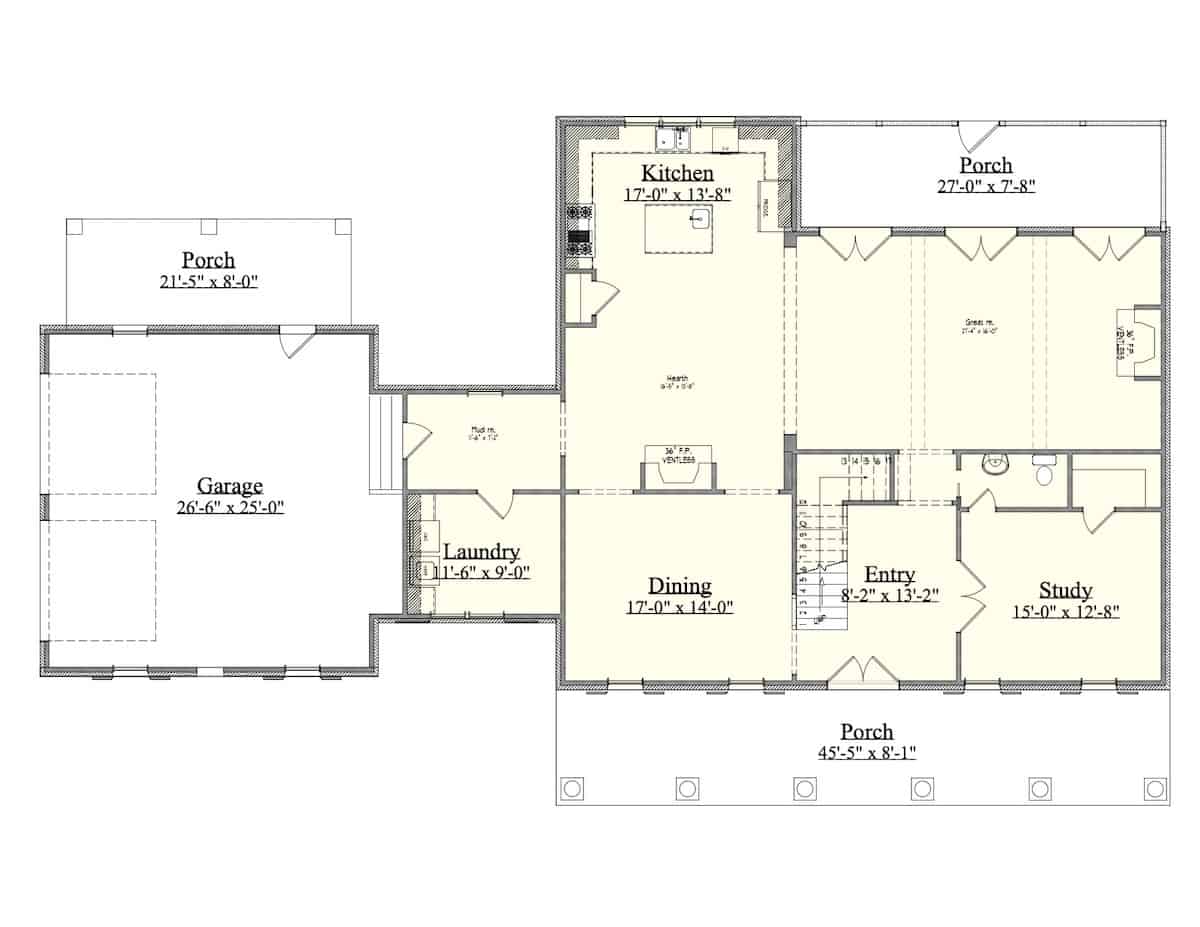

Home Plan: #201-1013 Floor Plan First Story - main level Main Level of Traditional Plan #201-1013

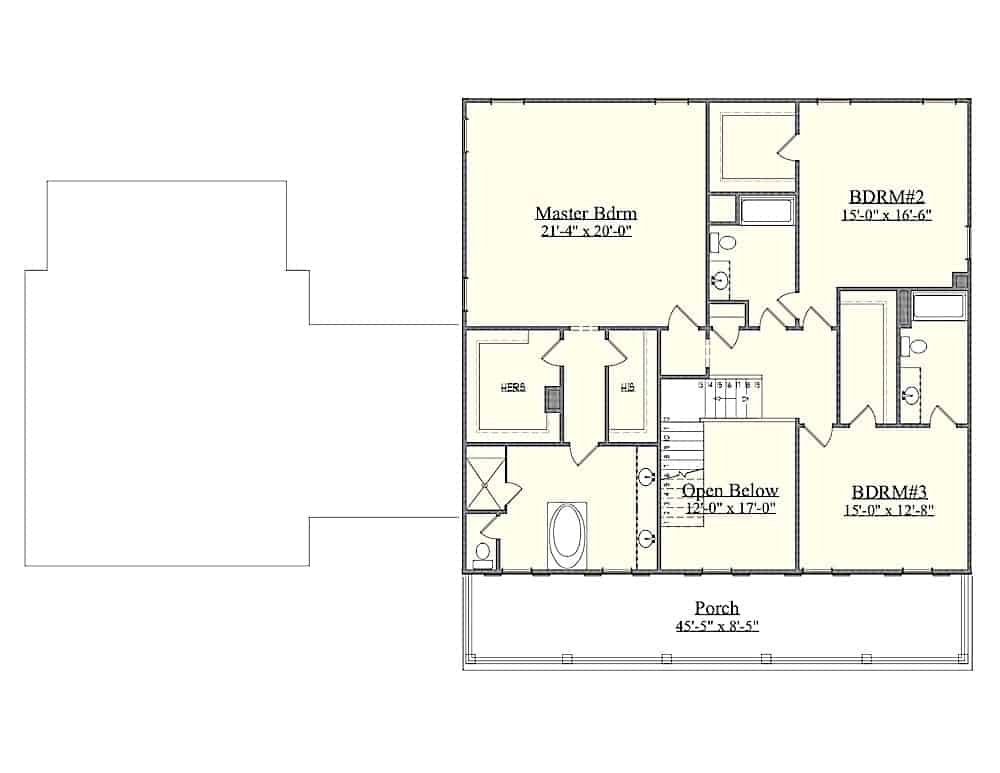

#201-1013 Floor Plan Second Story - upper level Floor Plan Upper Level of Colonial Plan #201-1013
