4-Bedroom, 3650 Sq Ft European Plan with Fireplace in Master

Main image for house plan # 13400
REAR ELEVATION
FRONT ELEVATION
EXTERIOR PHOTO

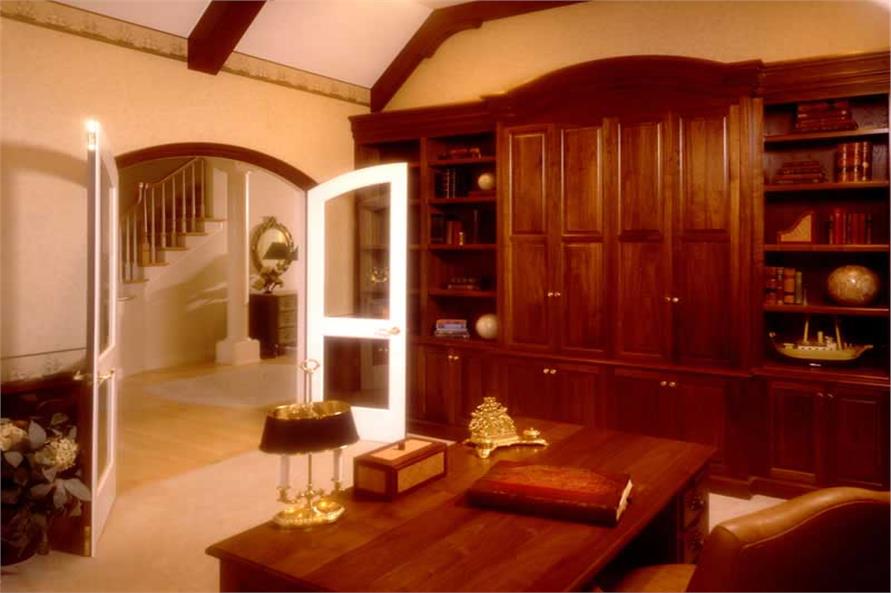

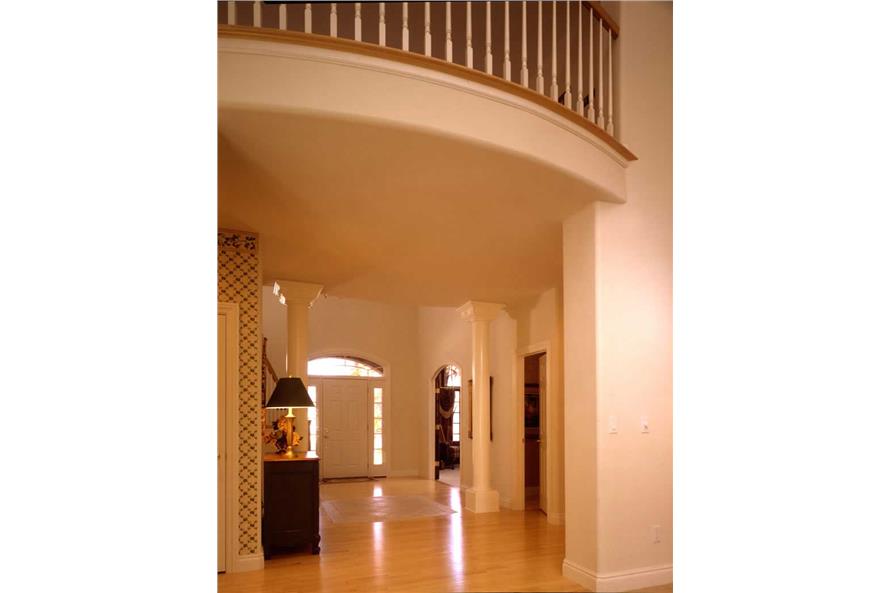

INTERIOR PHOTO
INTERIOR PHOTO
INTERIOR PHOTO
INTERIOR PHOTO
4-Bedroom, 3650 Sq Ft European House Plan - 101-1716 - Front Exterior

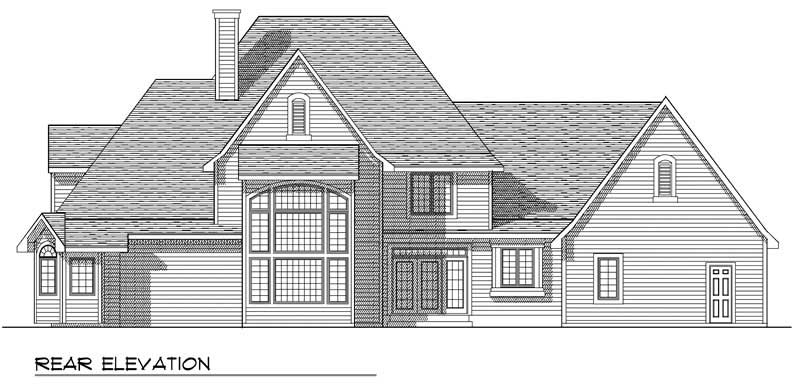

REAR ELEVATION
FRONT ELEVATION

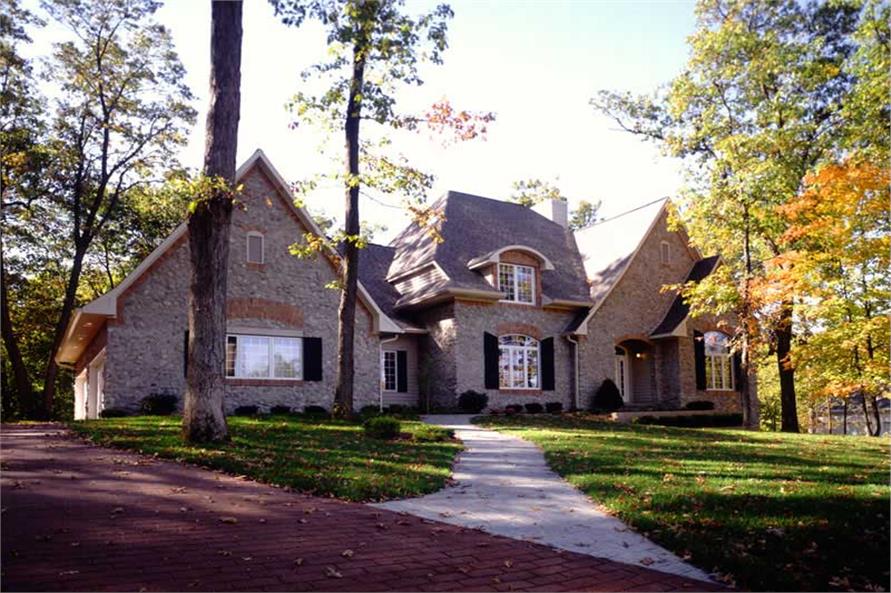

EXTERIOR PHOTO

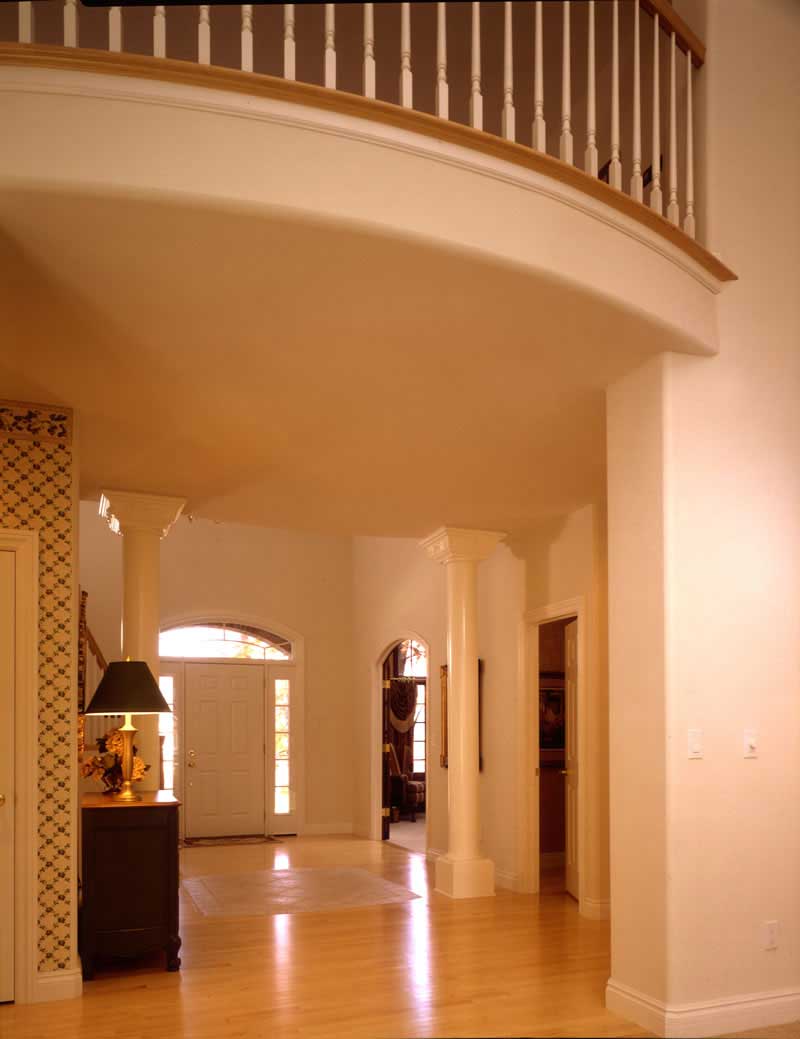

INTERIOR PHOTO

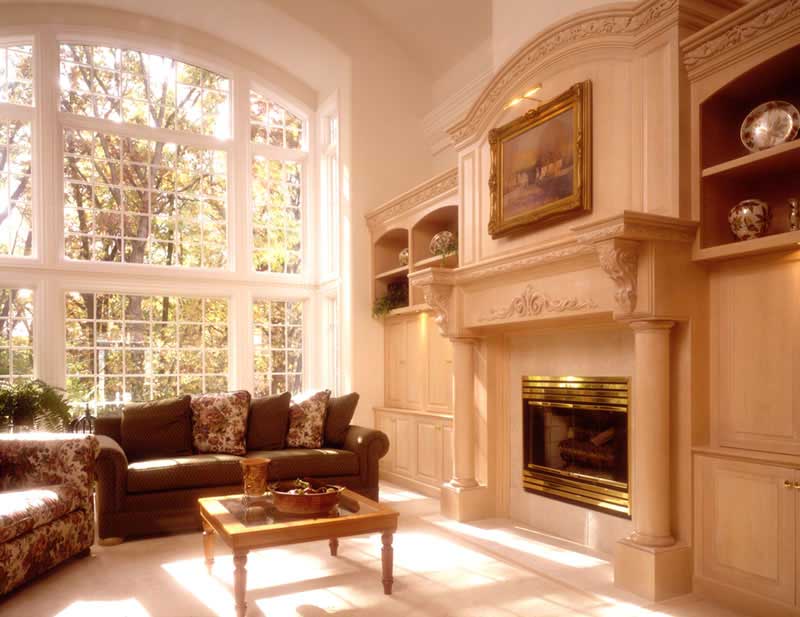

INTERIOR PHOTO

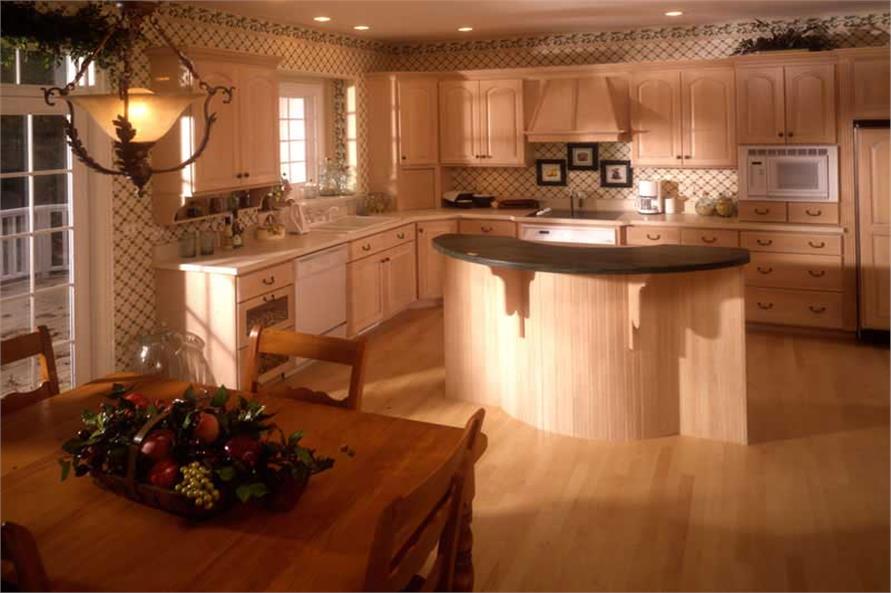

INTERIOR PHOTO
INTERIOR PHOTO

About Plan # 101-1716

About Plan # 101-1716

3650 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 85' 0" WIDTH 53' 4" DEPTH 4 GARAGE BAY
This lavish four-bedroom home makes a stunning impression from the very start with its dramatic roofline and European-styled stonework. Inside, a cozy den to the right and a formal dining room to the left flank the two-story foyer. The variety of ceiling heights and styles add to the visual interest of this home. Directly ahead is the great room, complete with a fireplace and a bayed sitting area. The kitchen is sure to please with a cook top island and an adjacent nook area for casual meals. A deluxe master bedroom suite on this level assures privacy. Its amenities include two walk-in closets and a sumptuous bath with a luxurious corner and plenty of space. An efficient laundry room that opens into the four-car garage completes the first floor. Upstairs, two family bedrooms share a full bath with a separate vanity area, while a third bedroom offers its own bath and study area, making it perfect for a guest suite.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

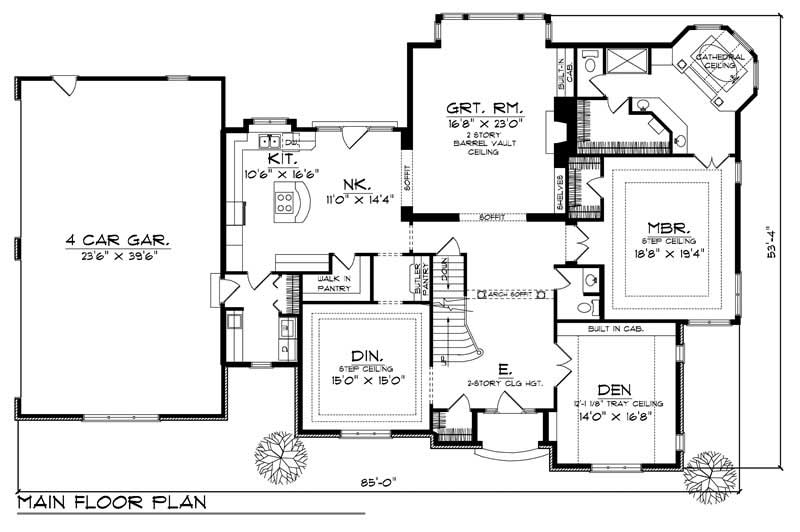

Home Plan: #101-1716 Floor Plan First Story - main Floor Plan First Story of European Plan #101-1716

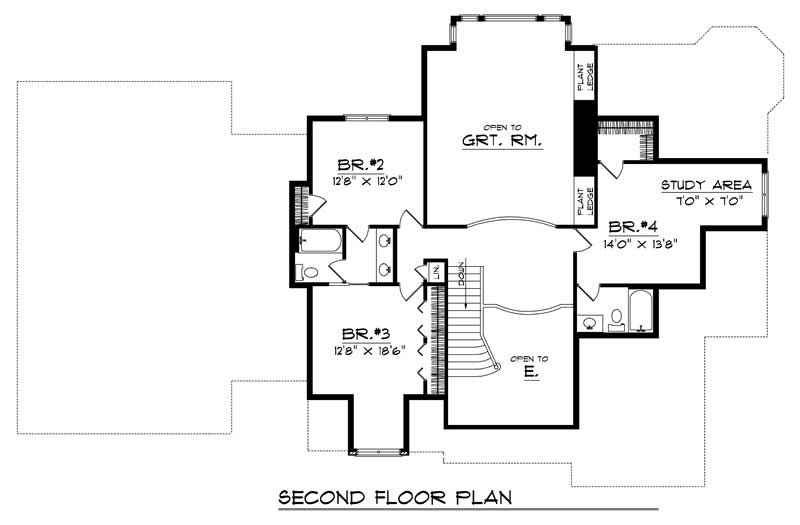

#101-1716 Floor Plan Second Story - second Floor Plan Second Story of European Plan #101-1716
